Tube Fittings and Adapters

2651-FG

Scraped 2026-02-15 08:27:50

Description

Description

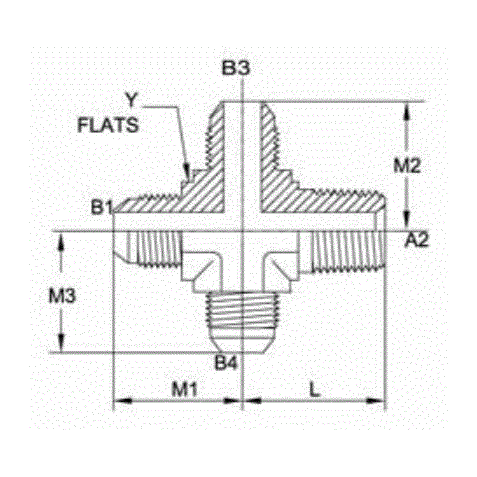

MJ-MP-MJ-MJ Cross

Variations (6)

2651-04-04-04-04-FG

$29.49

Attribute: 2651-04-04-04-04-FG (04MJ-04MP-0...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE7/16-20
THREAD B1 DRILL IN0.172
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE NPTF
THREAD B2 SIZE1/4-18
THREAD B2 DRILL IN0.281
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE7/16-20
THREAD 3 DRILL IN0.172
THREAD 3 SPECIFICATIONSAE J514
THREAD 4 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE7/16-20
THREAD 4 DRILL IN0.172
THREAD 4 SPECIFICATIONSAE J514
BODY HEX IN0.562
OVERALL LENGTH L IN2.100
OVERALL LENGTH L2 IN2.100
CENTERLINE LENGTH M IN1.050
CENTERLINE LENGTH M2 IN1.050
CENTERLINE LENGTH M3 IN1.050
CENTERLINE LENGTH M4 IN1.050
SHAPECROSS
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.1562
CALIFORNIA RESIDENTSPROP-65 WARNING

2651-06-04-06-06-FG

$43.17

Attribute: 2651-06-04-06-06-FG (06MJ-04MP-0...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE9/16-18
THREAD B1 DRILL IN0.297
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE NPTF
THREAD B2 SIZE1/4-18
THREAD B2 DRILL IN0.281
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE9/16-18
THREAD 3 DRILL IN0.297
THREAD 3 SPECIFICATIONSAE J514
THREAD 4 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE9/16-18
THREAD 4 DRILL IN0.297
THREAD 4 SPECIFICATIONSAE J514
BODY HEX IN0.562
OVERALL LENGTH L IN2.150
OVERALL LENGTH L2 IN2.120
CENTERLINE LENGTH M IN1.060
CENTERLINE LENGTH M2 IN1.090
CENTERLINE LENGTH M3 IN1.060
CENTERLINE LENGTH M4 IN1.060
SHAPECROSS
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.1625
CALIFORNIA RESIDENTSPROP-65 WARNING

2651-06-06-06-06-FG

$86.24

Attribute: 2651-06-06-06-06-FG (06MJ-06MP-0...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE9/16-18
THREAD B1 DRILL IN0.297
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE NPTF
THREAD B2 SIZE3/8-18
THREAD B2 DRILL IN0.406
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE9/16-18
THREAD 3 DRILL IN0.297
THREAD 3 SPECIFICATIONSAE J514
THREAD 4 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE9/16-18
THREAD 4 DRILL IN0.297
THREAD 4 SPECIFICATIONSAE J514
BODY HEX IN0.750
OVERALL LENGTH L IN2.360
OVERALL LENGTH L2 IN2.280
CENTERLINE LENGTH M IN1.140
CENTERLINE LENGTH M2 IN1.220
CENTERLINE LENGTH M3 IN1.140
CENTERLINE LENGTH M4 IN1.140
SHAPECROSS
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.25
CALIFORNIA RESIDENTSPROP-65 WARNING

2651-08-08-08-08-FG

$94.76

Attribute: 2651-08-08-08-08-FG (08MJ-08MP-0...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE3/4-16
THREAD B1 DRILL IN0.391
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE NPTF
THREAD B2 SIZE1/2-14
THREAD B2 DRILL IN0.531
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE3/4-16
THREAD 3 DRILL IN0.391
THREAD 3 SPECIFICATIONSAE J514
THREAD 4 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE3/4-16
THREAD 4 DRILL IN0.391
THREAD 4 SPECIFICATIONSAE J514
BODY HEX IN0.875
OVERALL LENGTH L IN2.800
OVERALL LENGTH L2 IN2.660
CENTERLINE LENGTH M IN1.330
CENTERLINE LENGTH M2 IN1.470
CENTERLINE LENGTH M3 IN1.330
CENTERLINE LENGTH M4 IN1.330
SHAPECROSS
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.4312
CALIFORNIA RESIDENTSPROP-65 WARNING

2651-12-12-12-12-FG

$102.04

Attribute: 2651-12-12-12-12-FG (12MJ-12MP-1...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE1-1/16-12
THREAD B1 DRILL IN0.609
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE NPTF
THREAD B2 SIZE3/4-14
THREAD B2 DRILL IN0.719
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE1-1/16-12
THREAD 3 DRILL IN0.609
THREAD 3 SPECIFICATIONSAE J514
THREAD 4 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE1-1/16-12
THREAD 4 DRILL IN0.609
THREAD 4 SPECIFICATIONSAE J514
BODY HEX IN1.062
OVERALL LENGTH L IN3.250
OVERALL LENGTH L2 IN3.320
CENTERLINE LENGTH M IN1.660
CENTERLINE LENGTH M2 IN1.590
CENTERLINE LENGTH M3 IN1.660
CENTERLINE LENGTH M4 IN1.660
SHAPECROSS
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.7437
CALIFORNIA RESIDENTSPROP-65 WARNING

2651-16-16-16-16-FG

$147.08

Attribute: 2651-16-16-16-16-FG (16MJ-16MP-1...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE1-5/16-12
THREAD B1 DRILL IN0.844
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE NPTF
THREAD B2 SIZE1-11-1/2
THREAD B2 DRILL IN0.938
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE1-5/16-12
THREAD 3 DRILL IN0.844
THREAD 3 SPECIFICATIONSAE J514
THREAD 4 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE1-5/16-12
THREAD 4 DRILL IN0.844
THREAD 4 SPECIFICATIONSAE J514
BODY HEX IN1.312
OVERALL LENGTH L IN3.780
OVERALL LENGTH L2 IN3.620
CENTERLINE LENGTH M IN1.810
CENTERLINE LENGTH M2 IN1.970
CENTERLINE LENGTH M3 IN1.810
CENTERLINE LENGTH M4 IN1.810
SHAPECROSS
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS1.1125
CALIFORNIA RESIDENTSPROP-65 WARNING

General Attributes

Connections NPT, JIC
Shape Cross
