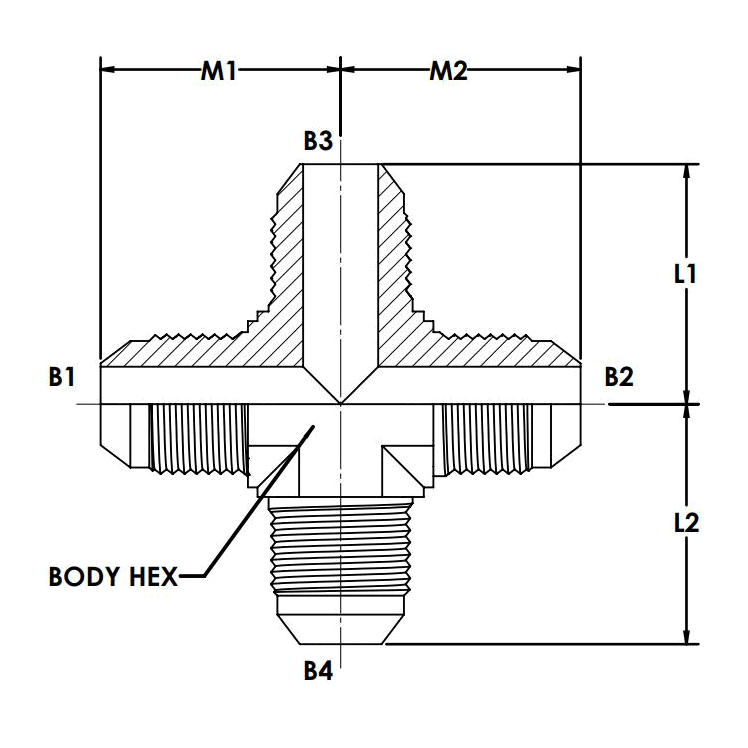

2650-FG

2650-02-02-02-02-FG

$34.36

Attribute: 2650-02-02-02-02-FG (02MJ-02MJ-0...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	5/16-24
THREAD 3 DRILL IN	0.062
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	5/16-24
THREAD 4 DRILL IN	0.062
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.540
OVERALL LENGTH L2 IN	1.540
CENTERLINE LENGTH M IN	0.770
CENTERLINE LENGTH M2 IN	0.770
CENTERLINE LENGTH M3 IN	0.770
CENTERLINE LENGTH M4 IN	0.770
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0687
CALIFORNIA RESIDENTS	PROP-65 WARNING

2650-04-04-04-04-FG

$24.37

Attribute: 2650-04-04-04-04-FG (04MJ-04MJ-0...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	7/16-20
THREAD 4 DRILL IN	0.172
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.780
OVERALL LENGTH L2 IN	1.780
CENTERLINE LENGTH M IN	0.890
CENTERLINE LENGTH M2 IN	0.890
CENTERLINE LENGTH M3 IN	0.890
CENTERLINE LENGTH M4 IN	0.890
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

2650-04-04-04-04-SS

$101.55

Attribute: 2650-04-04-04-04-SS (04MJ-04MJ-0...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	7/16-20
THREAD 4 DRILL IN	0.172
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.780
OVERALL LENGTH L2 IN	1.780
CENTERLINE LENGTH M IN	0.890
CENTERLINE LENGTH M2 IN	0.890
CENTERLINE LENGTH M3 IN	0.890
CENTERLINE LENGTH M4 IN	0.890
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.092
CALIFORNIA RESIDENTS	PROP-65 WARNING

2650-05-05-05-05-FG

$27.32

Attribute: 2650-05-05-05-05-FG (05MJ-05MJ-0...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1/2-20
THREAD 3 DRILL IN	0.234
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	1/2-20
THREAD 4 DRILL IN	0.234
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.900
OVERALL LENGTH L2 IN	1.900
CENTERLINE LENGTH M IN	0.950
CENTERLINE LENGTH M2 IN	0.950
CENTERLINE LENGTH M3 IN	0.950
CENTERLINE LENGTH M4 IN	0.950
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1375
CALIFORNIA RESIDENTS	PROP-65 WARNING

2650-06-06-06-06-FG

$28.31

Attribute: 2650-06-06-06-06-FG (06MJ-06MJ-0...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	9/16-18
THREAD 4 DRILL IN	0.297
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.120
OVERALL LENGTH L2 IN	2.120
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.060
CENTERLINE LENGTH M3 IN	1.060
CENTERLINE LENGTH M4 IN	1.060
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.16
CALIFORNIA RESIDENTS	PROP-65 WARNING

2650-06-06-06-06-SS

$137.04

Attribute: 2650-06-06-06-06-SS (06MJ-06MJ-0...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	9/16-18
THREAD 4 DRILL IN	0.297
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.120
OVERALL LENGTH L2 IN	2.120
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.060
CENTERLINE LENGTH M3 IN	1.060
CENTERLINE LENGTH M4 IN	1.060
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.154
CALIFORNIA RESIDENTS	PROP-65 WARNING

2650-06-08-06-08-FG

$31.26

Attribute: 2650-06-08-06-08-FG (06MJ-08MJ-0...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	3/4-16
THREAD 4 DRILL IN	0.391
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.390
OVERALL LENGTH L2 IN	2.390
CENTERLINE LENGTH M IN	1.140
CENTERLINE LENGTH M2 IN	1.250
CENTERLINE LENGTH M3 IN	1.140
CENTERLINE LENGTH M4 IN	1.250
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.338
CALIFORNIA RESIDENTS	PROP-65 WARNING

2650-08-08-08-08-FG

$33.03

Attribute: 2650-08-08-08-08-FG (08MJ-08MJ-0...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	3/4-16
THREAD 4 DRILL IN	0.391
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.500
OVERALL LENGTH L2 IN	2.500
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.250
CENTERLINE LENGTH M3 IN	1.250
CENTERLINE LENGTH M4 IN	1.250
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

2650-08-08-08-08-SS

$122.96

Attribute: 2650-08-08-08-08-SS (08MJ-08MJ-0...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	3/4-16
THREAD 4 DRILL IN	0.391
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.500
OVERALL LENGTH L2 IN	2.500
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.250
CENTERLINE LENGTH M3 IN	1.250
CENTERLINE LENGTH M4 IN	1.250
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.313
CALIFORNIA RESIDENTS	PROP-65 WARNING

2650-10-10-10-10-FG

$62.77

Attribute: 2650-10-10-10-10-FG (10MJ-10MJ-1...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	7/8-14
THREAD 4 DRILL IN	0.484
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.900
OVERALL LENGTH L2 IN	2.900
CENTERLINE LENGTH M IN	1.450
CENTERLINE LENGTH M2 IN	1.450
CENTERLINE LENGTH M3 IN	1.450
CENTERLINE LENGTH M4 IN	1.450
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4875
CALIFORNIA RESIDENTS	PROP-65 WARNING

2650-10-10-10-10-SS

$215.90

Attribute: 2650-10-10-10-10-SS (10MJ-10MJ-1...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	7/8-14
THREAD 4 DRILL IN	0.484
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.900
OVERALL LENGTH L2 IN	2.900
CENTERLINE LENGTH M IN	1.450
CENTERLINE LENGTH M2 IN	1.450
CENTERLINE LENGTH M3 IN	1.450
CENTERLINE LENGTH M4 IN	1.450
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5
CALIFORNIA RESIDENTS	PROP-65 WARNING

2650-12-12-12-12-FG

$74.23

Attribute: 2650-12-12-12-12-FG (12MJ-12MJ-1...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	1-1/16-12
THREAD 4 DRILL IN	0.609
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	3.320
OVERALL LENGTH L2 IN	3.320
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.660
CENTERLINE LENGTH M3 IN	1.660
CENTERLINE LENGTH M4 IN	1.660
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.7687
CALIFORNIA RESIDENTS	PROP-65 WARNING

2650-12-12-12-12-SS

$426.82

Attribute: 2650-12-12-12-12-SS (12MJ-12MJ-1...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	1-1/16-12
THREAD 4 DRILL IN	0.609
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	3.320
OVERALL LENGTH L2 IN	3.320
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.660
CENTERLINE LENGTH M3 IN	1.660
CENTERLINE LENGTH M4 IN	1.660
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.8125
CALIFORNIA RESIDENTS	PROP-65 WARNING

2650-16-16-16-16-FG

$108.49

Attribute: 2650-16-16-16-16-FG (16MJ-16MJ-1...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	1-5/16-12
THREAD 4 DRILL IN	0.844
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	3.620
OVERALL LENGTH L2 IN	3.620
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	1.810
CENTERLINE LENGTH M3 IN	1.810
CENTERLINE LENGTH M4 IN	1.810
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.1312
CALIFORNIA RESIDENTS	PROP-65 WARNING

2650-16-16-16-16-SS

$791.62

Attribute: 2650-16-16-16-16-SS (16MJ-16MJ-1...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	1-5/16-12
THREAD 4 DRILL IN	0.844
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	3.620
OVERALL LENGTH L2 IN	3.620
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	1.810
CENTERLINE LENGTH M3 IN	1.810
CENTERLINE LENGTH M4 IN	1.810
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.1375
CALIFORNIA RESIDENTS	PROP-65 WARNING

2650-20-20-20-20-FG

$244.45

Attribute: 2650-20-20-20-20-FG (20MJ-20MJ-2...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	1-5/8-12
THREAD 4 DRILL IN	1.078
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	4.120
OVERALL LENGTH L2 IN	4.120
CENTERLINE LENGTH M IN	2.060
CENTERLINE LENGTH M2 IN	2.060
CENTERLINE LENGTH M3 IN	2.060
CENTERLINE LENGTH M4 IN	2.060
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.85
CALIFORNIA RESIDENTS	PROP-65 WARNING

2650-20-20-20-20-SS

$1,277.03

Attribute: 2650-20-20-20-20-SS (20MJ-20MJ-2...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	1-5/8-12
THREAD 4 DRILL IN	1.078
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	4.120
OVERALL LENGTH L2 IN	4.120
CENTERLINE LENGTH M IN	2.060
CENTERLINE LENGTH M2 IN	2.060
CENTERLINE LENGTH M3 IN	2.060
CENTERLINE LENGTH M4 IN	2.060
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.8937
CALIFORNIA RESIDENTS	PROP-65 WARNING

2650-24-24-24-24-FG

$291.65

Attribute: 2650-24-24-24-24-FG (24MJ-24MJ-2...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-7/8-12
THREAD 3 DRILL IN	1.312
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	1-7/8-12
THREAD 4 DRILL IN	1.312
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	4.660
OVERALL LENGTH L2 IN	4.660
CENTERLINE LENGTH M IN	2.330
CENTERLINE LENGTH M2 IN	2.330
CENTERLINE LENGTH M3 IN	2.330
CENTERLINE LENGTH M4 IN	2.330
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	2.525
CALIFORNIA RESIDENTS	PROP-65 WARNING

2650-24-24-24-24-SS

$1,797.37

Attribute: 2650-24-24-24-24-SS (24MJ-24MJ-2...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-7/8-12
THREAD 3 DRILL IN	1.312
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	1-7/8-12
THREAD 4 DRILL IN	1.312
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	4.660
OVERALL LENGTH L2 IN	4.660
CENTERLINE LENGTH M IN	2.330
CENTERLINE LENGTH M2 IN	2.330
CENTERLINE LENGTH M3 IN	2.330
CENTERLINE LENGTH M4 IN	2.330
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	2.6187
CALIFORNIA RESIDENTS	PROP-65 WARNING

2650-32-32-32-32-FG

$602.31

Attribute: 2650-32-32-32-32-FG (32MJ-32MJ-3...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	2-1/2-12
THREAD 3 DRILL IN	1.781
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	2-1/2-12
THREAD 4 DRILL IN	1.781
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	2.500
OVERALL LENGTH L IN	6.120
OVERALL LENGTH L2 IN	6.120
CENTERLINE LENGTH M IN	3.060
CENTERLINE LENGTH M2 IN	3.060
CENTERLINE LENGTH M3 IN	3.060
CENTERLINE LENGTH M4 IN	3.060
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	6
CALIFORNIA RESIDENTS	PROP-65 WARNING

2650-32-32-32-32-SS

$4,343.68

Attribute: 2650-32-32-32-32-SS (32MJ-32MJ-3...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	2-1/2-12
THREAD 3 DRILL IN	1.781
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	2-1/2-12
THREAD 4 DRILL IN	1.781
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	2.500
OVERALL LENGTH L IN	6.120
OVERALL LENGTH L2 IN	6.120
CENTERLINE LENGTH M IN	3.060
CENTERLINE LENGTH M2 IN	3.060
CENTERLINE LENGTH M3 IN	3.060
CENTERLINE LENGTH M4 IN	3.060
SHAPE	CROSS
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	6.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	JIC
Shape	Cross

ID	10141759
Category	Tube Fittings and Adapters

Description

Description

Variations (21)

2650-02-02-02-02-FG

2650-04-04-04-04-FG

2650-04-04-04-04-SS

2650-05-05-05-05-FG

2650-06-06-06-06-FG

2650-06-06-06-06-SS

2650-06-08-06-08-FG

2650-08-08-08-08-FG

2650-08-08-08-08-SS

2650-10-10-10-10-FG

2650-10-10-10-10-SS

2650-12-12-12-12-FG

2650-12-12-12-12-SS

2650-16-16-16-16-FG

2650-16-16-16-16-SS

2650-20-20-20-20-FG

2650-20-20-20-20-SS

2650-24-24-24-24-FG

2650-24-24-24-24-SS

2650-32-32-32-32-FG

2650-32-32-32-32-SS

General Attributes

PDF Documents
