Tube Fittings and Adapters

2612-FG

Scraped 2026-02-15 08:27:50

Description

Description

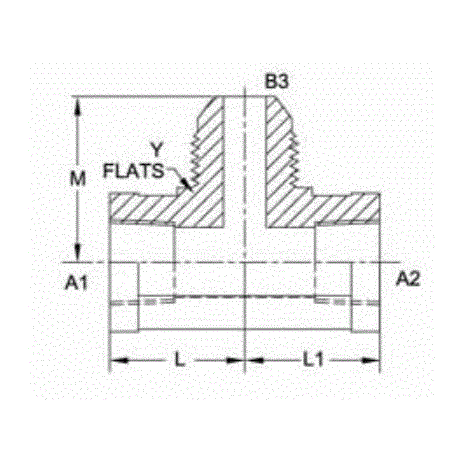

FP-FP-MJ Tee

Variations (8)

2612-02-02-04-FG

$30.46

Attribute: 2612-02-02-04-FG (02FP-02FP-04MJ...)

Stock Status: True

THREAD B1 TYPEFEMALE NPTF
THREAD B1 SIZE1/8-27
THREAD B1 DRILL IN0.188
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEFEMALE NPTF
THREAD B2 SIZE1/8-27
THREAD B2 DRILL IN0.188
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE7/16-20
THREAD 3 DRILL IN0.172
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN0.562
OVERALL LENGTH L IN1.320
OVERALL LENGTH L2 IN1.080
CENTERLINE LENGTH M IN0.660
CENTERLINE LENGTH M2 IN0.660
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.0937
CALIFORNIA RESIDENTSPROP-65 WARNING

2612-04-04-06-FG

$39.97

Attribute: 2612-04-04-06-FG (04FP-04FP-06MJ...)

Stock Status: True

THREAD B1 TYPEFEMALE NPTF
THREAD B1 SIZE1/4-18
THREAD B1 DRILL IN0.281
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEFEMALE NPTF
THREAD B2 SIZE1/4-18
THREAD B2 DRILL IN0.281
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE9/16-18
THREAD 3 DRILL IN0.297
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN0.750
OVERALL LENGTH L IN1.760
OVERALL LENGTH L2 IN1.230
CENTERLINE LENGTH M IN0.880
CENTERLINE LENGTH M2 IN0.880
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.2062
CALIFORNIA RESIDENTSPROP-65 WARNING

2612-06-06-08-FG

$48.78

Attribute: 2612-06-06-08-FG (06FP-06FP-08MJ...)

Stock Status: True

THREAD B1 TYPEFEMALE NPTF
THREAD B1 SIZE3/8-18
THREAD B1 DRILL IN0.406
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEFEMALE NPTF
THREAD B2 SIZE3/8-18
THREAD B2 DRILL IN0.406
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE3/4-16
THREAD 3 DRILL IN0.391
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN0.875
OVERALL LENGTH L IN2.040
OVERALL LENGTH L2 IN1.420
CENTERLINE LENGTH M IN1.020
CENTERLINE LENGTH M2 IN1.020
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.3062
CALIFORNIA RESIDENTSPROP-65 WARNING

2612-08-08-08-FG

$79.70

Attribute: 2612-08-08-08-FG (08FP-08FP-08MJ...)

Stock Status: True

THREAD B1 TYPEFEMALE NPTF
THREAD B1 SIZE1/2-14
THREAD B1 DRILL IN0.531
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEFEMALE NPTF
THREAD B2 SIZE1/2-14
THREAD B2 DRILL IN0.531
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE3/4-16
THREAD 3 DRILL IN0.391
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN1.062
OVERALL LENGTH L IN2.460
OVERALL LENGTH L2 IN1.520
CENTERLINE LENGTH M IN1.230
CENTERLINE LENGTH M2 IN1.230
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.4812
CALIFORNIA RESIDENTSPROP-65 WARNING

2612-08-08-08-SS

$421.65

Attribute: 2612-08-08-08-SS (08FP-08FP-08MJ...)

Stock Status: True

THREAD B1 TYPEFEMALE NPTF
THREAD B1 SIZE1/2-14
THREAD B1 DRILL IN0.531
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEFEMALE NPTF
THREAD B2 SIZE1/2-14
THREAD B2 DRILL IN0.531
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE3/4-16
THREAD 3 DRILL IN0.391
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN1.062
OVERALL LENGTH L IN2.460
OVERALL LENGTH L2 IN1.520
CENTERLINE LENGTH M IN1.230
CENTERLINE LENGTH M2 IN1.230
SHAPETEE
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTSPROP-65 WARNING

2612-12-12-12-FG

$91.32

Attribute: 2612-12-12-12-FG (12FP-12FP-12MJ...)

Stock Status: True

THREAD B1 TYPEFEMALE NPTF
THREAD B1 SIZE3/4-14
THREAD B1 DRILL IN0.719
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEFEMALE NPTF
THREAD B2 SIZE3/4-14
THREAD B2 DRILL IN0.719
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE1-1/16-12
THREAD 3 DRILL IN0.609
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN1.312
OVERALL LENGTH L IN2.720
OVERALL LENGTH L2 IN1.890
CENTERLINE LENGTH M IN1.360
CENTERLINE LENGTH M2 IN1.360
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.7875
CALIFORNIA RESIDENTSPROP-65 WARNING

2612-12-12-12-SS

$776.46

Attribute: 2612-12-12-12-SS (12FP-12FP-12MJ...)

Stock Status: True

THREAD B1 TYPEFEMALE NPTF
THREAD B1 SIZE3/4-14
THREAD B1 DRILL IN0.719
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEFEMALE NPTF
THREAD B2 SIZE3/4-14
THREAD B2 DRILL IN0.719
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE1-1/16-12
THREAD 3 DRILL IN0.609
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN1.312
OVERALL LENGTH L IN2.720
OVERALL LENGTH L2 IN1.890
CENTERLINE LENGTH M IN1.360
CENTERLINE LENGTH M2 IN1.360
SHAPETEE
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTSPROP-65 WARNING

2612-16-16-16-FG

$161.06

Attribute: 2612-16-16-16-FG (16FP-16FP-16MJ...)

Stock Status: True

THREAD B1 TYPEFEMALE NPTF
THREAD B1 SIZE1-11-1/2
THREAD B1 DRILL IN0.938
THREAD B1 SPECIFICATIONSAE J476
THREAD B2 TYPEFEMALE NPTF
THREAD B2 SIZE1-11-1/2
THREAD B2 DRILL IN0.938
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE1-5/16-12
THREAD 3 DRILL IN0.844
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN1.625
OVERALL LENGTH L IN3.240
OVERALL LENGTH L2 IN2.170
CENTERLINE LENGTH M IN1.620
CENTERLINE LENGTH M2 IN1.620
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS1.3875
CALIFORNIA RESIDENTSPROP-65 WARNING

General Attributes

Connections NPT, JIC
Shape Tee

PDF Documents

Download CAD and Drawings Open PDF
