2611-FG

2611-04-02-02-FG

$16.99

Attribute: 2611-04-02-02-FG (04MJ-02MP-02FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/8-27
THREAD 3 DRILL IN	0.188
THREAD 3 SPECIFICATION	SAE J476

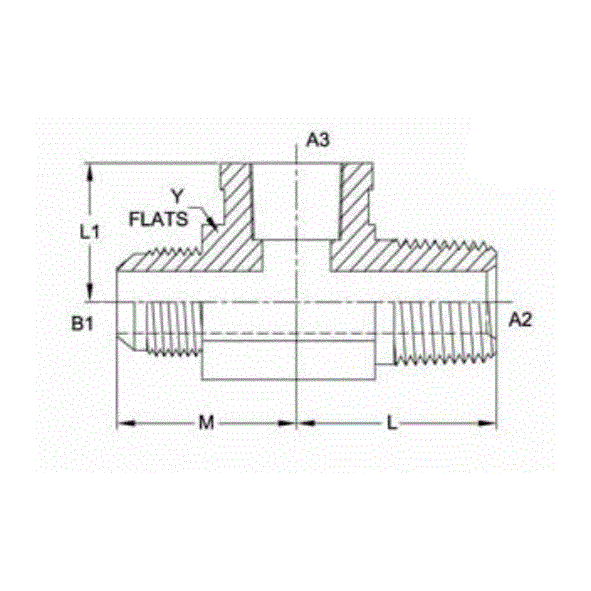

BODY HEX IN	0.562
OVERALL LENGTH L IN	1.860
OVERALL LENGTH L2 IN	0.660
CENTERLINE LENGTH M IN	1.080
CENTERLINE LENGTH M2 IN	0.780
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

2611-04-04-02-FG

$17.27

Attribute: 2611-04-04-02-FG (04MJ-04MP-02FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/8-27
THREAD 3 DRILL IN	0.188
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.310
OVERALL LENGTH L2 IN	0.690
CENTERLINE LENGTH M IN	1.220
CENTERLINE LENGTH M2 IN	1.090
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.125
CALIFORNIA RESIDENTS	PROP-65 WARNING

2611-04-04-04-FG

$31.89

Attribute: 2611-04-04-04-FG (04MJ-04MP-04FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.281
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.310
OVERALL LENGTH L2 IN	0.880
CENTERLINE LENGTH M IN	1.220
CENTERLINE LENGTH M2 IN	1.090
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2062
CALIFORNIA RESIDENTS	PROP-65 WARNING

2611-04-04-04-SS

$272.51

Attribute: 2611-04-04-04-SS (04MJ-04MP-04FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.281
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.310
OVERALL LENGTH L2 IN	0.880
CENTERLINE LENGTH M IN	1.220
CENTERLINE LENGTH M2 IN	1.090
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5187
CALIFORNIA RESIDENTS	PROP-65 WARNING

2611-06-04-04-FG

$34.30

Attribute: 2611-06-04-04-FG (06MJ-04MP-04FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.281
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.320
OVERALL LENGTH L2 IN	0.880
CENTERLINE LENGTH M IN	1.230
CENTERLINE LENGTH M2 IN	1.090
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2062
CALIFORNIA RESIDENTS	PROP-65 WARNING

2611-06-06-06-FG

$49.38

Attribute: 2611-06-06-06-FG (06MJ-06MP-06FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	3/8-18
THREAD 3 DRILL IN	0.406
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.530
OVERALL LENGTH L2 IN	1.020
CENTERLINE LENGTH M IN	1.310
CENTERLINE LENGTH M2 IN	1.220
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2937
CALIFORNIA RESIDENTS	PROP-65 WARNING

2611-08-06-06-FG

$52.52

Attribute: 2611-08-06-06-FG (08MJ-06MP-06FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	3/8-18
THREAD 3 DRILL IN	0.406
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.640
OVERALL LENGTH L2 IN	1.020
CENTERLINE LENGTH M IN	1.420
CENTERLINE LENGTH M2 IN	1.220
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3187
CALIFORNIA RESIDENTS	PROP-65 WARNING

2611-08-08-08-FG

$61.97

Attribute: 2611-08-08-08-FG (08MJ-08MP-08FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/2-14
THREAD 3 DRILL IN	0.531
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	2.990
OVERALL LENGTH L2 IN	1.230
CENTERLINE LENGTH M IN	1.520
CENTERLINE LENGTH M2 IN	1.470
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.5502
CALIFORNIA RESIDENTS	PROP-65 WARNING

2611-12-12-12-FG

$80.04

Attribute: 2611-12-12-12-FG (12MJ-12MP-12FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	3/4-14
THREAD 3 DRILL IN	0.719
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	3.480
OVERALL LENGTH L2 IN	1.360
CENTERLINE LENGTH M IN	1.890
CENTERLINE LENGTH M2 IN	1.590
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.8125
CALIFORNIA RESIDENTS	PROP-65 WARNING

2611-12-12-12-SS

$607.67

Attribute: 2611-12-12-12-SS (12MJ-12MP-12FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	3/4-14
THREAD 3 DRILL IN	0.719
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	3.480
OVERALL LENGTH L2 IN	1.360
CENTERLINE LENGTH M IN	1.890
CENTERLINE LENGTH M2 IN	1.590
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.8225
CALIFORNIA RESIDENTS	PROP-65 WARNING

2611-16-16-16-FG

$125.72

Attribute: 2611-16-16-16-FG (16MJ-16MP-16FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-11-1/2
THREAD 3 DRILL IN	0.938
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	4.140
OVERALL LENGTH L2 IN	1.620
CENTERLINE LENGTH M IN	2.170
CENTERLINE LENGTH M2 IN	1.970
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.425
CALIFORNIA RESIDENTS	PROP-65 WARNING

2611-16-16-16-SS

$1,045.44

Attribute: 2611-16-16-16-SS (16MJ-16MP-16FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-11-1/2
THREAD 3 DRILL IN	0.938
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	4.140
OVERALL LENGTH L2 IN	1.620
CENTERLINE LENGTH M IN	2.170
CENTERLINE LENGTH M2 IN	1.970
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

2611-20-20-20-FG

$281.26

Attribute: 2611-20-20-20-FG (20MJ-20MP-20FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-1/4-11-1/2
THREAD 3 DRILL IN	1.250
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	4.710
OVERALL LENGTH L2 IN	1.700
CENTERLINE LENGTH M IN	2.330
CENTERLINE LENGTH M2 IN	2.380
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.85
CALIFORNIA RESIDENTS	PROP-65 WARNING

2611-20-20-20-SS

$1,172.42

Attribute: 2611-20-20-20-SS (20MJ-20MP-20FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-1/4-11-1/2
THREAD 3 DRILL IN	1.250
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	4.710
OVERALL LENGTH L2 IN	1.700
CENTERLINE LENGTH M IN	2.330
CENTERLINE LENGTH M2 IN	2.380
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	3.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

2611-24-24-24-FG

$417.47

Attribute: 2611-24-24-24-FG (24MJ-24MP-24FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-1/2-11-1/2
THREAD 3 DRILL IN	1.500
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	2.562
OVERALL LENGTH L IN	5.520
OVERALL LENGTH L2 IN	2.080
CENTERLINE LENGTH M IN	2.880
CENTERLINE LENGTH M2 IN	2.640
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	4.6437
CALIFORNIA RESIDENTS	PROP-65 WARNING

2611-32-32-32-FG

$566.62

Attribute: 2611-32-32-32-FG (32MJ-32MP-32FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	2-11-1/2
THREAD 3 DRILL IN	1.938
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	2.812
OVERALL LENGTH L IN	6.300
OVERALL LENGTH L2 IN	2.390
CENTERLINE LENGTH M IN	3.300
CENTERLINE LENGTH M2 IN	3.000
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	7
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT, JIC
Shape	Tee

ID	10141713
Category	Tube Fittings and Adapters

Description

Description

Variations (16)

2611-04-02-02-FG

2611-04-04-02-FG

2611-04-04-04-FG

2611-04-04-04-SS

2611-06-04-04-FG

2611-06-06-06-FG

2611-08-06-06-FG

2611-08-08-08-FG

2611-12-12-12-FG

2611-12-12-12-SS

2611-16-16-16-FG

2611-16-16-16-SS

2611-20-20-20-FG

2611-20-20-20-SS

2611-24-24-24-FG

2611-32-32-32-FG

General Attributes

PDF Documents
