Description

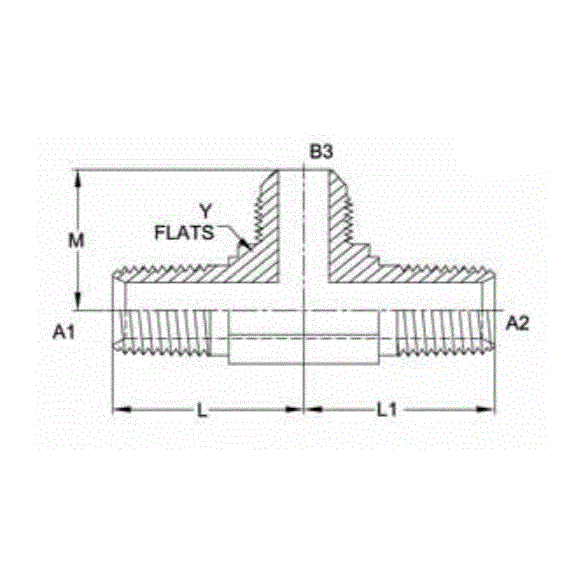

MP-MP-MJ Tee
Description
Variations (9)
2610-04-04-04-FG
$29.93Attribute: 2610-04-04-04-FG (04MP-04MP-04MJ...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.281 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 7/16-20 |
| THREAD 3 DRILL IN | 0.172 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 2.180 |
| OVERALL LENGTH L2 IN | 1.050 |
| CENTERLINE LENGTH M IN | 1.090 |
| CENTERLINE LENGTH M2 IN | 1.090 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1312 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2610-04-04-06-FG
$32.35Attribute: 2610-04-04-06-FG (04MP-04MP-06MJ...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.281 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 9/16-18 |
| THREAD 3 DRILL IN | 0.297 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 2.180 |
| OVERALL LENGTH L2 IN | 1.060 |
| CENTERLINE LENGTH M IN | 1.090 |
| CENTERLINE LENGTH M2 IN | 1.090 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1375 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2610-04-04-06-SS
$322.66Attribute: 2610-04-04-06-SS (04MP-04MP-06MJ...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/4-18 |
| THREAD B1 DRILL IN | 0.281 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/4-18 |
| THREAD B2 DRILL IN | 0.281 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 9/16-18 |
| THREAD 3 DRILL IN | 0.297 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 2.180 |
| OVERALL LENGTH L2 IN | 1.060 |
| CENTERLINE LENGTH M IN | 1.090 |
| CENTERLINE LENGTH M2 IN | 1.090 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.2812 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2610-06-06-06-FG
$41.60Attribute: 2610-06-06-06-FG (06MP-06MP-06MJ...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 3/8-18 |
| THREAD B1 DRILL IN | 0.406 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 3/8-18 |
| THREAD B2 DRILL IN | 0.406 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 9/16-18 |
| THREAD 3 DRILL IN | 0.297 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 2.440 |
| OVERALL LENGTH L2 IN | 1.140 |
| CENTERLINE LENGTH M IN | 1.220 |
| CENTERLINE LENGTH M2 IN | 1.220 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.2312 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2610-06-06-08-FG
$47.55Attribute: 2610-06-06-08-FG (06MP-06MP-08MJ...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 3/8-18 |
| THREAD B1 DRILL IN | 0.406 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 3/8-18 |
| THREAD B2 DRILL IN | 0.406 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 3/4-16 |
| THREAD 3 DRILL IN | 0.391 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 2.440 |
| OVERALL LENGTH L2 IN | 1.250 |
| CENTERLINE LENGTH M IN | 1.220 |
| CENTERLINE LENGTH M2 IN | 1.220 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.2312 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2610-08-08-08-FG
$49.48Attribute: 2610-08-08-08-FG (08MP-08MP-08MJ...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/2-14 |
| THREAD B1 DRILL IN | 0.531 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/2-14 |
| THREAD B2 DRILL IN | 0.531 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 3/4-16 |
| THREAD 3 DRILL IN | 0.391 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.875 |
| OVERALL LENGTH L IN | 2.940 |
| OVERALL LENGTH L2 IN | 1.330 |
| CENTERLINE LENGTH M IN | 1.470 |
| CENTERLINE LENGTH M2 IN | 1.470 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.3562 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2610-08-08-10-FG
$51.98Attribute: 2610-08-08-10-FG (08MP-08MP-10MJ...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1/2-14 |
| THREAD B1 DRILL IN | 0.531 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1/2-14 |
| THREAD B2 DRILL IN | 0.531 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 7/8-14 |
| THREAD 3 DRILL IN | 0.484 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 0.875 |
| OVERALL LENGTH L IN | 2.940 |
| OVERALL LENGTH L2 IN | 1.450 |
| CENTERLINE LENGTH M IN | 1.470 |
| CENTERLINE LENGTH M2 IN | 1.470 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.3687 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2610-12-12-12-FG
$61.78Attribute: 2610-12-12-12-FG (12MP-12MP-12MJ...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 3/4-14 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 3/4-14 |
| THREAD B2 DRILL IN | 0.719 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-1/16-12 |
| THREAD 3 DRILL IN | 0.609 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.062 |
| OVERALL LENGTH L IN | 3.180 |
| OVERALL LENGTH L2 IN | 1.660 |
| CENTERLINE LENGTH M IN | 1.590 |
| CENTERLINE LENGTH M2 IN | 1.590 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.5687 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
2610-16-16-16-FG
$97.86Attribute: 2610-16-16-16-FG (16MP-16MP-16MJ...)
Stock Status: True
| THREAD B1 TYPE | MALE NPTF |
|---|---|
| THREAD B1 SIZE | 1-11-1/2 |
| THREAD B1 DRILL IN | 0.938 |
| THREAD B1 SPECIFICATION | SAE J476 |
| THREAD B2 TYPE | MALE NPTF |
| THREAD B2 SIZE | 1-11-1/2 |
| THREAD B2 DRILL IN | 0.938 |
| THREAD B2 SPECIFICATION | SAE J476 |
| THREAD 3 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD 3 SIZE | 1-5/16-12 |
| THREAD 3 DRILL IN | 0.844 |
| THREAD 3 SPECIFICATION | SAE J514 |
| BODY HEX IN | 1.312 |
| OVERALL LENGTH L IN | 3.940 |
| OVERALL LENGTH L2 IN | 1.810 |
| CENTERLINE LENGTH M IN | 1.970 |
| CENTERLINE LENGTH M2 IN | 1.970 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.9312 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | NPT, JIC |
|---|---|
| Shape | Tee |
PDF Documents
Download CAD and Drawings
Open PDF
