2609-FG

2609-04-02-02-FG

$13.53

Attribute: 2609-04-02-02-FG (04MJ-02FP-02FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/8-27
THREAD 3 DRILL IN	0.188
THREAD 3 SPECIFICATION	SAE J476

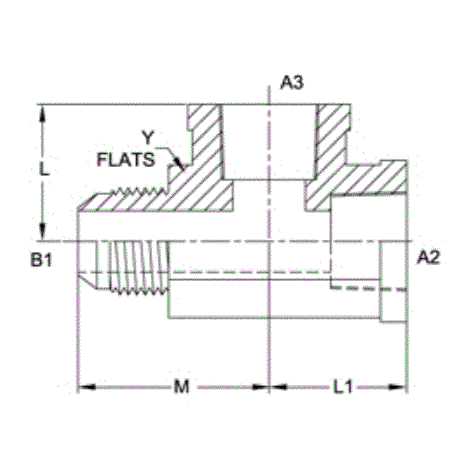

BODY HEX IN	0.562
OVERALL LENGTH L IN	1.740
OVERALL LENGTH L2 IN	0.660
CENTERLINE LENGTH M IN	1.080
CENTERLINE LENGTH M2 IN	0.660
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING

2609-04-04-04-FG

$24.51

Attribute: 2609-04-04-04-FG (04MJ-04FP-04FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.281
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.100
OVERALL LENGTH L2 IN	0.880
CENTERLINE LENGTH M IN	1.220
CENTERLINE LENGTH M2 IN	0.880
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2062
CALIFORNIA RESIDENTS	PROP-65 WARNING

2609-05-04-04-FG

$29.34

Attribute: 2609-05-04-04-FG (05MJ-04FP-04FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.281
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.100
OVERALL LENGTH L2 IN	0.880
CENTERLINE LENGTH M IN	1.220
CENTERLINE LENGTH M2 IN	0.880
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1937
CALIFORNIA RESIDENTS	PROP-65 WARNING

2609-06-04-04-FG

$27.91

Attribute: 2609-06-04-04-FG (06MJ-04FP-04FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.281
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.110
OVERALL LENGTH L2 IN	0.880
CENTERLINE LENGTH M IN	1.230
CENTERLINE LENGTH M2 IN	0.880
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2125
CALIFORNIA RESIDENTS	PROP-65 WARNING

2609-06-04-04-SS

$327.75

Attribute: 2609-06-04-04-SS (06MJ-04FP-04FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.281
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.110
OVERALL LENGTH L2 IN	0.880
CENTERLINE LENGTH M IN	1.230
CENTERLINE LENGTH M2 IN	0.880
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5187
CALIFORNIA RESIDENTS	PROP-65 WARNING

2609-08-08-08-FG

$60.15

Attribute: 2609-08-08-08-FG (08MJ-08FP-08FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/2-14
THREAD 3 DRILL IN	0.531
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	2.750
OVERALL LENGTH L2 IN	1.230
CENTERLINE LENGTH M IN	1.520
CENTERLINE LENGTH M2 IN	1.230
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4625
CALIFORNIA RESIDENTS	PROP-65 WARNING

2609-10-08-08-FG

$64.14

Attribute: 2609-10-08-08-FG (10MJ-08FP-08FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/2-14
THREAD 3 DRILL IN	0.531
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	2.870
OVERALL LENGTH L2 IN	1.230
CENTERLINE LENGTH M IN	1.640
CENTERLINE LENGTH M2 IN	1.230
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.475
CALIFORNIA RESIDENTS	PROP-65 WARNING

2609-12-12-12-FG

$111.10

Attribute: 2609-12-12-12-FG (12MJ-12FP-12FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	3/4-14
THREAD 3 DRILL IN	0.719
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.312
OVERALL LENGTH L IN	3.250
OVERALL LENGTH L2 IN	1.360
CENTERLINE LENGTH M IN	1.890
CENTERLINE LENGTH M2 IN	1.360
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.7875
CALIFORNIA RESIDENTS	PROP-65 WARNING

2609-16-16-16-FG

$199.01

Attribute: 2609-16-16-16-FG (16MJ-16FP-16FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-11-1/2
THREAD 3 DRILL IN	0.938
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	3.790
OVERALL LENGTH L2 IN	1.620
CENTERLINE LENGTH M IN	2.170
CENTERLINE LENGTH M2 IN	1.620
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.4
CALIFORNIA RESIDENTS	PROP-65 WARNING

2609-20-20-20-FG

$263.15

Attribute: 2609-20-20-20-FG (20MJ-20FP-20FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1 5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1 1/4-11 1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1 1/4-11 1/2
THREAD 3 DRILL IN	1.250
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	4.030
OVERALL LENGTH L2 IN	1.700
CENTERLINE LENGTH M IN	2.330
CENTERLINE LENGTH M2 IN	1.700
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.5187
CALIFORNIA RESIDENTS	PROP-65 WARNING

2609-24-24-24-FG

$555.40

Attribute: 2609-24-24-24-FG (24MJ-24FP-24FP...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1-1/2-11-1/2
THREAD 3 DRILL IN	1.500
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	2.562
OVERALL LENGTH L IN	4.720
OVERALL LENGTH L2 IN	2.080
CENTERLINE LENGTH M IN	2.640
CENTERLINE LENGTH M2 IN	2.080
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	4.3475
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT, JIC
Shape	Tee

ID	10141687
Category	Tube Fittings and Adapters
