Tube Fittings and Adapters

2608-FG

Scraped 2026-02-15 08:27:50

Description

Description

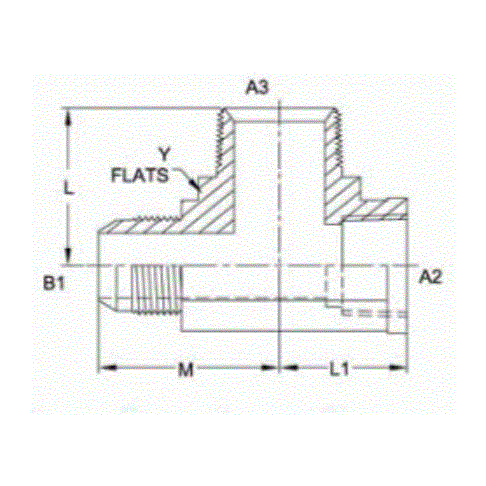

MJ-FP-MP Tee

Variations (8)

2608-04-02-02-FG

$20.47

Attribute: 2608-04-02-02-FG (04MJ-02FP-02MP...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE7/16-20
THREAD B1 DRILL IN0.172
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE NPTF
THREAD B2 SIZE1/8-27
THREAD B2 DRILL IN0.188
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE NPTF
THREAD 3 SIZE1/8-27
THREAD 3 DRILL IN0.188
THREAD 3 SPECIFICATIONSAE J476
BODY HEX IN0.562
OVERALL LENGTH L IN1.740
OVERALL LENGTH L2 IN0.780
CENTERLINE LENGTH M IN1.080
CENTERLINE LENGTH M2 IN0.660
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.1
CALIFORNIA RESIDENTSPROP-65 WARNING

2608-06-04-04-FG

$30.76

Attribute: 2608-06-04-04-FG (06MJ-04FP-04MP...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE9/16-18
THREAD B1 DRILL IN0.297
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE NPTF
THREAD B2 SIZE1/4-18
THREAD B2 DRILL IN0.281
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE NPTF
THREAD 3 SIZE1/4-18
THREAD 3 DRILL IN0.281
THREAD 3 SPECIFICATIONSAE J476
BODY HEX IN0.750
OVERALL LENGTH L IN2.110
OVERALL LENGTH L2 IN1.090
CENTERLINE LENGTH M IN1.230
CENTERLINE LENGTH M2 IN0.880
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.2125
CALIFORNIA RESIDENTSPROP-65 WARNING

2608-08-02-06-SS

$435.34

Attribute: 2608-08-02-06-SS (08MJ-02FP-06MP...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE3/4-16
THREAD B1 DRILL IN0.391
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE NPTF
THREAD B2 SIZE1/8-27
THREAD B2 DRILL IN0.188
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE NPTF
THREAD 3 SIZE3/8-18
THREAD 3 DRILL IN0.406
THREAD 3 SPECIFICATIONSAE J476
BODY HEX IN0.750
OVERALL LENGTH L IN2.060
OVERALL LENGTH L2 IN1.220
CENTERLINE LENGTH M IN1.250
CENTERLINE LENGTH M2 IN0.810
SHAPETEE
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTSPROP-65 WARNING

2608-08-06-06-FG

$41.05

Attribute: 2608-08-06-06-FG (08MJ-06FP-06MP...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE3/4-16
THREAD B1 DRILL IN0.391
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE NPTF
THREAD B2 SIZE3/8-18
THREAD B2 DRILL IN0.406
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE NPTF
THREAD 3 SIZE3/8-18
THREAD 3 DRILL IN0.406
THREAD 3 SPECIFICATIONSAE J476
BODY HEX IN0.875
OVERALL LENGTH L IN2.440
OVERALL LENGTH L2 IN1.220
CENTERLINE LENGTH M IN1.420
CENTERLINE LENGTH M2 IN1.020
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.3187
CALIFORNIA RESIDENTSPROP-65 WARNING

2608-10-08-08-FG

$48.68

Attribute: 2608-10-08-08-FG (10MJ-08FP-08MP...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE7/8-14
THREAD B1 DRILL IN0.484
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE NPTF
THREAD B2 SIZE1/2-14
THREAD B2 DRILL IN0.531
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE NPTF
THREAD 3 SIZE1/2-14
THREAD 3 DRILL IN0.531
THREAD 3 SPECIFICATIONSAE J476
BODY HEX IN1.062
OVERALL LENGTH L IN2.870
OVERALL LENGTH L2 IN1.470
CENTERLINE LENGTH M IN1.640
CENTERLINE LENGTH M2 IN1.230
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.5
CALIFORNIA RESIDENTSPROP-65 WARNING

2608-12-12-12-FG

$100.07

Attribute: 2608-12-12-12-FG (12MJ-12FP-12MP...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE1-1/16-12
THREAD B1 DRILL IN0.609
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE NPTF
THREAD B2 SIZE3/4-14
THREAD B2 DRILL IN0.719
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE NPTF
THREAD 3 SIZE3/4-14
THREAD 3 DRILL IN0.719
THREAD 3 SPECIFICATIONSAE J476
BODY HEX IN1.312
OVERALL LENGTH L IN3.250
OVERALL LENGTH L2 IN1.590
CENTERLINE LENGTH M IN1.890
CENTERLINE LENGTH M2 IN1.360
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.8
CALIFORNIA RESIDENTSPROP-65 WARNING

2608-12-12-12-SS

$575.01

Attribute: 2608-12-12-12-SS (12MJ-12FP-12MP...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE1-1/16-12
THREAD B1 DRILL IN0.609
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE NPTF
THREAD B2 SIZE3/4-14
THREAD B2 DRILL IN0.719
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE NPTF
THREAD 3 SIZE3/4-14
THREAD 3 DRILL IN0.719
THREAD 3 SPECIFICATIONSAE J476
BODY HEX IN1.312
OVERALL LENGTH L IN3.250
OVERALL LENGTH L2 IN1.590
CENTERLINE LENGTH M IN1.890
CENTERLINE LENGTH M2 IN1.360
SHAPETEE
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTSPROP-65 WARNING

2608-16-16-16-FG

$239.38

Attribute: 2608-16-16-16-FG (16MJ-16FP-16MP...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE1-5/16-12
THREAD B1 DRILL IN0.844
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE NPTF
THREAD B2 SIZE1-11-1/2
THREAD B2 DRILL IN0.938
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE NPTF
THREAD 3 SIZE1-11-1/2
THREAD 3 DRILL IN0.938
THREAD 3 SPECIFICATIONSAE J476
BODY HEX IN1.625
OVERALL LENGTH L IN3.790
OVERALL LENGTH L2 IN1.700
CENTERLINE LENGTH M IN2.170
CENTERLINE LENGTH M2 IN1.620
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS1.3937
CALIFORNIA RESIDENTSPROP-65 WARNING

General Attributes

Connections NPT, JIC
Shape Tee

PDF Documents

Download CAD and Drawings Open PDF
