Tube Fittings and Adapters

2607-FG

Scraped 2026-02-15 08:27:50

Description

Description

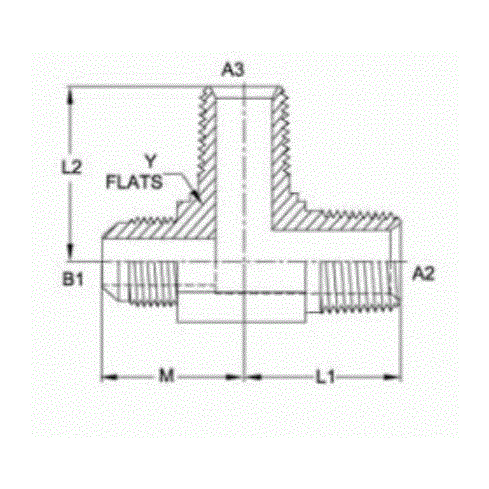

MJ-MP-MP Tee

Variations (9)

2607-04-02-02-FG

$9.89

Attribute: 2607-04-02-02-FG (04MJ-02MP-02MP...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE7/16-20
THREAD B1 DRILL IN0.172
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE NPTF
THREAD B2 SIZE1/8-27
THREAD B2 DRILL IN0.188
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE NPTF
THREAD 3 SIZE1/8-27
THREAD 3 DRILL IN0.188
THREAD 3 SPECIFICATIONSAE J476
BODY HEX IN0.438
OVERALL LENGTH L IN1.670
OVERALL LENGTH L2 IN0.780
CENTERLINE LENGTH M IN0.890
CENTERLINE LENGTH M2 IN0.780
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.06
CALIFORNIA RESIDENTSPROP-65 WARNING

2607-06-04-04-FG

$40.86

Attribute: 2607-06-04-04-FG (06MJ-04MP-04MP...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE9/16-18
THREAD B1 DRILL IN0.281
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE NPTF
THREAD B2 SIZE1/4-18
THREAD B2 DRILL IN0.281
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE NPTF
THREAD 3 SIZE1/4-18
THREAD 3 DRILL IN0.281
THREAD 3 SPECIFICATIONSAE J476
BODY HEX IN0.562
OVERALL LENGTH L IN2.150
OVERALL LENGTH L2 IN1.090
CENTERLINE LENGTH M IN1.060
CENTERLINE LENGTH M2 IN1.090
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.1312
CALIFORNIA RESIDENTSPROP-65 WARNING

2607-06-06-06-FG

$36.92

Attribute: 2607-06-06-06-FG (06MJ-06MP-06MP...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE9/16-18
THREAD B1 DRILL IN0.281
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE NPTF
THREAD B2 SIZE3/8-18
THREAD B2 DRILL IN0.406
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE NPTF
THREAD 3 SIZE3/8-18
THREAD 3 DRILL IN0.406
THREAD 3 SPECIFICATIONSAE J476
BODY HEX IN0.750
OVERALL LENGTH L IN2.360
OVERALL LENGTH L2 IN1.220
CENTERLINE LENGTH M IN1.140
CENTERLINE LENGTH M2 IN1.220
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.225
CALIFORNIA RESIDENTSPROP-65 WARNING

2607-08-06-06-FG

$48.68

Attribute: 2607-08-06-06-FG (08MJ-06MP-06MP...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE3/4-16
THREAD B1 DRILL IN0.391
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE NPTF
THREAD B2 SIZE3/8-18
THREAD B2 DRILL IN0.406
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE NPTF
THREAD 3 SIZE3/8-18
THREAD 3 DRILL IN0.406
THREAD 3 SPECIFICATIONSAE J476
BODY HEX IN0.750
OVERALL LENGTH L IN2.470
OVERALL LENGTH L2 IN1.220
CENTERLINE LENGTH M IN1.250
CENTERLINE LENGTH M2 IN1.220
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.25
CALIFORNIA RESIDENTSPROP-65 WARNING

2607-08-08-08-FG

$49.86

Attribute: 2607-08-08-08-FG (08MJ-08MP-08MP...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE3/4-16
THREAD B1 DRILL IN0.391
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE NPTF
THREAD B2 SIZE1/2-14
THREAD B2 DRILL IN0.531
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE NPTF
THREAD 3 SIZE1/2-14
THREAD 3 DRILL IN0.531
THREAD 3 SPECIFICATIONSAE J476
BODY HEX IN0.875
OVERALL LENGTH L IN2.800
OVERALL LENGTH L2 IN1.470
CENTERLINE LENGTH M IN1.330
CENTERLINE LENGTH M2 IN1.470
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.3687
CALIFORNIA RESIDENTSPROP-65 WARNING

2607-10-08-06-SS

$650.70

Attribute: 2607-10-08-06-SS (10MJ-08MP-06MP...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE7/8-14
THREAD B1 DRILL IN0.484
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE NPTF
THREAD B2 SIZE1/2-14
THREAD B2 DRILL IN0.531
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE NPTF
THREAD 3 SIZE3/8-18
THREAD 3 DRILL IN0.406
THREAD 3 SPECIFICATIONSAE J476
BODY HEX IN0.875
OVERALL LENGTH L IN2.920
OVERALL LENGTH L2 IN1.280
CENTERLINE LENGTH M IN1.450
CENTERLINE LENGTH M2 IN1.470
SHAPETEE
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
WEIGHT LBS0.348
CALIFORNIA RESIDENTSPROP-65 WARNING

2607-12-12-12-FG

$72.50

Attribute: 2607-12-12-12-FG (12MJ-12MP-12MP...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE1 1/16-12
THREAD B1 DRILL IN0.609
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE NPTF
THREAD B2 SIZE3/4-14
THREAD B2 DRILL IN0.719
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE NPTF
THREAD 3 SIZE3/4-14
THREAD 3 DRILL IN0.719
THREAD 3 SPECIFICATIONSAE J476
BODY HEX IN1.062
OVERALL LENGTH L IN3.250
OVERALL LENGTH L2 IN1.590
CENTERLINE LENGTH M IN1.660
CENTERLINE LENGTH M2 IN1.590
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.6125
CALIFORNIA RESIDENTSPROP-65 WARNING

2607-16-16-16-FG

$131.53

Attribute: 2607-16-16-16-FG (16MJ-16MP-16MP...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE1 5/16-12
THREAD B1 DRILL IN0.844
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE NPTF
THREAD B2 SIZE1-11 1/2
THREAD B2 DRILL IN0.938
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE NPTF
THREAD 3 SIZE1-11 1/2
THREAD 3 DRILL IN0.938
THREAD 3 SPECIFICATIONSAE J476
BODY HEX IN1.312
OVERALL LENGTH L IN3.780
OVERALL LENGTH L2 IN1.970
CENTERLINE LENGTH M IN1.810
CENTERLINE LENGTH M2 IN1.970
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.9215
CALIFORNIA RESIDENTSPROP-65 WARNING

2607-20-20-20-FG

$160.77

Attribute: 2607-20-20-20-FG (20MJ-20MP-20MP...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE1 5/8-12
THREAD B1 DRILL IN1.078
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE NPTF
THREAD B2 SIZE1 1/4-11 1/2
THREAD B2 DRILL IN1.250
THREAD B2 SPECIFICATIONSAE J476
THREAD 3 TYPEMALE NPTF
THREAD 3 SIZE1 1/4-11 1/2
THREAD 3 DRILL IN1.250
THREAD 3 SPECIFICATIONSAE J476
BODY HEX IN1.625
OVERALL LENGTH L IN4.440
OVERALL LENGTH L2 IN2.380
CENTERLINE LENGTH M IN2.060
CENTERLINE LENGTH M2 IN2.380
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS4.35
CALIFORNIA RESIDENTSPROP-65 WARNING

General Attributes

Connections NPT, JIC
Shape Tee

PDF Documents

Download CAD and Drawings Open PDF
