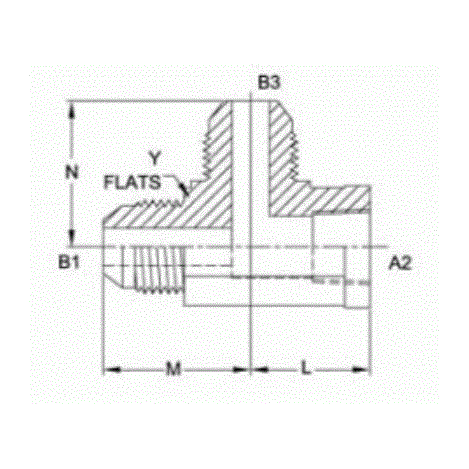

2606-FG

2606-04-02-04-FG

$24.81

Attribute: 2606-04-02-04-FG (04MJ-02FP-04MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.740
OVERALL LENGTH L2 IN	1.080
CENTERLINE LENGTH M IN	1.080
CENTERLINE LENGTH M2 IN	0.660
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1125
CALIFORNIA RESIDENTS	PROP-65 WARNING

2606-04-02-04-SS

$226.73

Attribute: 2606-04-02-04-SS (04MJ-02FP-04MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.740
OVERALL LENGTH L2 IN	1.080
CENTERLINE LENGTH M IN	1.080
CENTERLINE LENGTH M2 IN	0.660
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

2606-04-04-04-FG

$60.54

Attribute: 2606-04-04-04-FG (04MJ-04FP-04MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.100
OVERALL LENGTH L2 IN	1.220
CENTERLINE LENGTH M IN	1.220
CENTERLINE LENGTH M2 IN	0.880
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.16
CALIFORNIA RESIDENTS	PROP-65 WARNING

2606-04-04-04-SS

$281.22

Attribute: 2606-04-04-04-SS (04MJ-04FP-04MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.100
OVERALL LENGTH L2 IN	1.220
CENTERLINE LENGTH M IN	1.220
CENTERLINE LENGTH M2 IN	0.880
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.225
CALIFORNIA RESIDENTS	PROP-65 WARNING

2606-05-02-05-FG

$50.45

Attribute: 2606-05-02-05-FG (05MJ-02FP-05MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1/2-20
THREAD 3 DRILL IN	0.234
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.740
OVERALL LENGTH L2 IN	1.080
CENTERLINE LENGTH M IN	1.080
CENTERLINE LENGTH M2 IN	0.660
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

2606-06-04-06-FG

$42.97

Attribute: 2606-06-04-06-FG (06MJ-04FP-06MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.110
OVERALL LENGTH L2 IN	1.230
CENTERLINE LENGTH M IN	1.230
CENTERLINE LENGTH M2 IN	0.880
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2125
CALIFORNIA RESIDENTS	PROP-65 WARNING

2606-06-04-06-SS

$239.96

Attribute: 2606-06-04-06-SS (06MJ-04FP-06MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.110
OVERALL LENGTH L2 IN	1.230
CENTERLINE LENGTH M IN	1.230
CENTERLINE LENGTH M2 IN	0.880
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.19
CALIFORNIA RESIDENTS	PROP-65 WARNING

2606-06-06-06-FG

$43.07

Attribute: 2606-06-06-06-FG (06MJ-06FP-06MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.330
OVERALL LENGTH L2 IN	1.310
CENTERLINE LENGTH M IN	1.310
CENTERLINE LENGTH M2 IN	1.020
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2937
CALIFORNIA RESIDENTS	PROP-65 WARNING

2606-08-06-08-FG

$45.54

Attribute: 2606-08-06-08-FG (08MJ-06FP-08MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.440
OVERALL LENGTH L2 IN	1.420
CENTERLINE LENGTH M IN	1.420
CENTERLINE LENGTH M2 IN	1.020
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3437
CALIFORNIA RESIDENTS	PROP-65 WARNING

2606-08-06-08-SS

$453.65

Attribute: 2606-08-06-08-SS (08MJ-06FP-08MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.440
OVERALL LENGTH L2 IN	1.420
CENTERLINE LENGTH M IN	1.420
CENTERLINE LENGTH M2 IN	1.020
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.324
CALIFORNIA RESIDENTS	PROP-65 WARNING

2606-08-08-08-FG

$78.17

Attribute: 2606-08-08-08-FG (08MJ-08FP-08MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	2.750
OVERALL LENGTH L2 IN	1.520
CENTERLINE LENGTH M IN	1.520
CENTERLINE LENGTH M2 IN	1.230
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.5125
CALIFORNIA RESIDENTS	PROP-65 WARNING

2606-08-08-08-SS

$645.37

Attribute: 2606-08-08-08-SS (08MJ-08FP-08MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	2.750
OVERALL LENGTH L2 IN	1.520
CENTERLINE LENGTH M IN	1.520
CENTERLINE LENGTH M2 IN	1.230
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.4875
CALIFORNIA RESIDENTS	PROP-65 WARNING

2606-10-08-10-FG

$61.08

Attribute: 2606-10-08-10-FG (10MJ-08FP-10MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	2.870
OVERALL LENGTH L2 IN	1.640
CENTERLINE LENGTH M IN	1.640
CENTERLINE LENGTH M2 IN	1.230
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.5437
CALIFORNIA RESIDENTS	PROP-65 WARNING

2606-10-08-10-SS

$479.54

Attribute: 2606-10-08-10-SS (10MJ-08FP-10MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	2.870
OVERALL LENGTH L2 IN	1.640
CENTERLINE LENGTH M IN	1.640
CENTERLINE LENGTH M2 IN	1.230
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.4187
CALIFORNIA RESIDENTS	PROP-65 WARNING

2606-12-12-12-FG

$74.53

Attribute: 2606-12-12-12-FG (12MJ-12FP-12MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	3.170
OVERALL LENGTH L2 IN	1.810
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	1.360
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1
CALIFORNIA RESIDENTS	PROP-65 WARNING

2606-12-12-12-SS

$944.06

Attribute: 2606-12-12-12-SS (12MJ-12FP-12MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	3.170
OVERALL LENGTH L2 IN	1.810
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	1.360
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.9045
CALIFORNIA RESIDENTS	PROP-65 WARNING

2606-16-16-16-FG

$140.24

Attribute: 2606-16-16-16-FG (16MJ-16FP-16MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	3.790
OVERALL LENGTH L2 IN	2.170
CENTERLINE LENGTH M IN	2.170
CENTERLINE LENGTH M2 IN	1.620
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.5
CALIFORNIA RESIDENTS	PROP-65 WARNING

2606-16-16-16-SS

$961.99

Attribute: 2606-16-16-16-SS (16MJ-16FP-16MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	3.790
OVERALL LENGTH L2 IN	2.170
CENTERLINE LENGTH M IN	2.170
CENTERLINE LENGTH M2 IN	1.620
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	4.35
CALIFORNIA RESIDENTS	PROP-65 WARNING

2606-20-20-20-FG

$278.66

Attribute: 2606-20-20-20-FG (20MJ-20FP-20MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	4.030
OVERALL LENGTH L2 IN	2.330
CENTERLINE LENGTH M IN	2.330
CENTERLINE LENGTH M2 IN	1.700
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.9687
CALIFORNIA RESIDENTS	PROP-65 WARNING

2606-20-20-20-SS

$1,246.31

Attribute: 2606-20-20-20-SS (20MJ-20FP-20MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	4.030
OVERALL LENGTH L2 IN	2.330
CENTERLINE LENGTH M IN	2.330
CENTERLINE LENGTH M2 IN	1.700
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	3.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

2606-24-24-24-FG

$421.80

Attribute: 2606-24-24-24-FG (24MJ-24FP-24MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-7/8-12
THREAD 3 DRILL IN	1.312
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	2.562
OVERALL LENGTH L IN	4.970
OVERALL LENGTH L2 IN	2.890
CENTERLINE LENGTH M IN	2.890
CENTERLINE LENGTH M2 IN	2.080
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	5.0437
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT, JIC
Shape	Tee

ID	10141638
Category	Tube Fittings and Adapters

Description

Description

Variations (21)

2606-04-02-04-FG

2606-04-02-04-SS

2606-04-04-04-FG

2606-04-04-04-SS

2606-05-02-05-FG

2606-06-04-06-FG

2606-06-04-06-SS

2606-06-06-06-FG

2606-08-06-08-FG

2606-08-06-08-SS

2606-08-08-08-FG

2606-08-08-08-SS

2606-10-08-10-FG

2606-10-08-10-SS

2606-12-12-12-FG

2606-12-12-12-SS

2606-16-16-16-FG

2606-16-16-16-SS

2606-20-20-20-FG

2606-20-20-20-SS

2606-24-24-24-FG

General Attributes

PDF Documents
