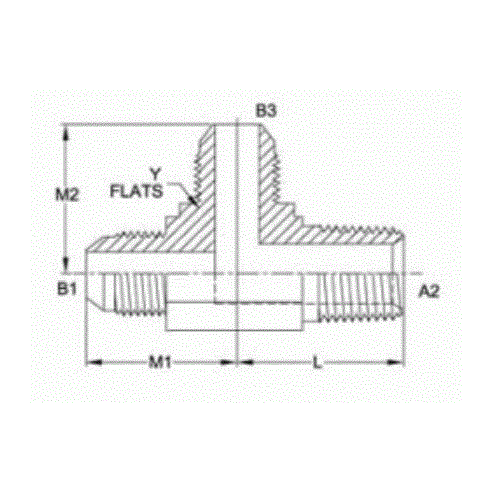

2605-FG

2605-03-02-03-FG

$18.16

Attribute: 2605-03-02-03-FG (03MJ-02MP-03MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/8-24
THREAD 3 DRILL IN	0.125
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.550
OVERALL LENGTH L2 IN	0.830
CENTERLINE LENGTH M IN	0.830
CENTERLINE LENGTH M2 IN	0.720
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.07
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-03-02-03-SS

$370.26

Attribute: 2605-03-02-03-SS (03MJ-02MP-03MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/8-24
THREAD 3 DRILL IN	0.125
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.550
OVERALL LENGTH L2 IN	0.830
CENTERLINE LENGTH M IN	0.830
CENTERLINE LENGTH M2 IN	0.720
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.04
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-04-02-04-FG

$13.33

Attribute: 2605-04-02-04-FG (04MJ-02MP-04MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.670
OVERALL LENGTH L2 IN	0.890
CENTERLINE LENGTH M IN	0.890
CENTERLINE LENGTH M2 IN	0.780
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.075
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-04-02-04-SS

$104.65

Attribute: 2605-04-02-04-SS (04MJ-02MP-04MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.670
OVERALL LENGTH L2 IN	0.890
CENTERLINE LENGTH M IN	0.890
CENTERLINE LENGTH M2 IN	0.780
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-04-04-04-FG

$16.83

Attribute: 2605-04-04-04-FG (04MJ-04MP-04MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.140
OVERALL LENGTH L2 IN	1.050
CENTERLINE LENGTH M IN	1.050
CENTERLINE LENGTH M2 IN	1.090
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1375
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-04-04-04-SS

$108.59

Attribute: 2605-04-04-04-SS (04MJ-04MP-04MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.140
OVERALL LENGTH L2 IN	1.050
CENTERLINE LENGTH M IN	1.050
CENTERLINE LENGTH M2 IN	1.090
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.12
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-05-02-05-FG

$21.90

Attribute: 2605-05-02-05-FG (05MJ-02MP-05MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1/2-20
THREAD 3 DRILL IN	0.234
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.730
OVERALL LENGTH L2 IN	0.950
CENTERLINE LENGTH M IN	0.950
CENTERLINE LENGTH M2 IN	0.780
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-05-02-05-SS

$459.97

Attribute: 2605-05-02-05-SS (05MJ-02MP-05MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1/2-20
THREAD 3 DRILL IN	0.234
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.730
OVERALL LENGTH L2 IN	0.950
CENTERLINE LENGTH M IN	0.950
CENTERLINE LENGTH M2 IN	0.780
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-05-04-05-FG

$22.10

Attribute: 2605-05-04-05-FG (05MJ-04MP-05MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1/2-20
THREAD 3 DRILL IN	0.234
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.140
OVERALL LENGTH L2 IN	1.050
CENTERLINE LENGTH M IN	1.050
CENTERLINE LENGTH M2 IN	1.090
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1375
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-05-04-05-SS

$435.24

Attribute: 2605-05-04-05-SS (05MJ-04MP-05MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1/2-20
THREAD 3 DRILL IN	0.234
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.140
OVERALL LENGTH L2 IN	1.050
CENTERLINE LENGTH M IN	1.050
CENTERLINE LENGTH M2 IN	1.090
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.106
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-06-02-06-FG

$23.97

Attribute: 2605-06-02-06-FG (06MJ-02MP-06MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.960
OVERALL LENGTH L2 IN	1.060
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	0.900
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.125
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-06-04-04-FG

$20.13

Attribute: 2605-06-04-04-FG (06MJ-04MP-04MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.150
OVERALL LENGTH L2 IN	1.060
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.090
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1312
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-06-04-06-FG

$15.30

Attribute: 2605-06-04-06-FG (06MJ-04MP-06MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.150
OVERALL LENGTH L2 IN	1.060
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.090
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1486
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-06-04-06-SS

$94.76

Attribute: 2605-06-04-06-SS (06MJ-04MP-06MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	2.150
OVERALL LENGTH L2 IN	1.060
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.090
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.135
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-06-06-06-FG

$18.76

Attribute: 2605-06-06-06-FG (06MJ-06MP-06MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.360
OVERALL LENGTH L2 IN	1.140
CENTERLINE LENGTH M IN	1.140
CENTERLINE LENGTH M2 IN	1.220
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-06-06-06-SS

$290.81

Attribute: 2605-06-06-06-SS (06MJ-06MP-06MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.360
OVERALL LENGTH L2 IN	1.140
CENTERLINE LENGTH M IN	1.140
CENTERLINE LENGTH M2 IN	1.220
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2175
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-06-08-06-FG

$36.13

Attribute: 2605-06-08-06-FG (06MJ-08MP-06MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.690
OVERALL LENGTH L2 IN	1.220
CENTERLINE LENGTH M IN	1.220
CENTERLINE LENGTH M2 IN	1.470
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-08-04-08-FG

$47.85

Attribute: 2605-08-04-08-FG (08MJ-04MP-08MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.470
OVERALL LENGTH L2 IN	1.250
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.220
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.25
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-08-06-06-FG

$23.53

Attribute: 2605-08-06-06-FG (08MJ-06MP-06MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.470
OVERALL LENGTH L2 IN	1.250
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.220
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2375
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-08-06-08-FG

$22.30

Attribute: 2605-08-06-08-FG (08MJ-06MP-08MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.470
OVERALL LENGTH L2 IN	1.250
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.220
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.24
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-08-06-08-SS

$141.86

Attribute: 2605-08-06-08-SS (08MJ-06MP-08MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	2.470
OVERALL LENGTH L2 IN	1.250
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.220
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5187
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-08-08-06-FG

$48.14

Attribute: 2605-08-08-06-FG (08MJ-08MP-06MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.800
OVERALL LENGTH L2 IN	1.330
CENTERLINE LENGTH M IN	1.330
CENTERLINE LENGTH M2 IN	1.470
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3625
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-08-08-08-FG

$23.92

Attribute: 2605-08-08-08-FG (08MJ-08MP-08MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.800
OVERALL LENGTH L2 IN	1.330
CENTERLINE LENGTH M IN	1.330
CENTERLINE LENGTH M2 IN	1.470
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.356
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-08-08-08-SS

$297.46

Attribute: 2605-08-08-08-SS (08MJ-08MP-08MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.800
OVERALL LENGTH L2 IN	1.330
CENTERLINE LENGTH M IN	1.330
CENTERLINE LENGTH M2 IN	1.470
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.3648
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-08-12-08-FG

$106.62

Attribute: 2605-08-12-08-FG (08MJ-12MP-08MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	3.010
OVERALL LENGTH L2 IN	1.420
CENTERLINE LENGTH M IN	1.420
CENTERLINE LENGTH M2 IN	1.590
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4812
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-10-08-10-FG

$28.31

Attribute: 2605-10-08-10-FG (10MJ-08MP-10MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.920
OVERALL LENGTH L2 IN	1.450
CENTERLINE LENGTH M IN	1.450
CENTERLINE LENGTH M2 IN	1.470
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-10-08-10-SS

$293.08

Attribute: 2605-10-08-10-SS (10MJ-08MP-10MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	2.920
OVERALL LENGTH L2 IN	1.450
CENTERLINE LENGTH M IN	1.450
CENTERLINE LENGTH M2 IN	1.470
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.4
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-10-12-10-FG

$83.98

Attribute: 2605-10-12-10-FG (10MJ-12MP-10MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	3.130
OVERALL LENGTH L2 IN	1.540
CENTERLINE LENGTH M IN	1.540
CENTERLINE LENGTH M2 IN	1.590
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.5187
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-12-08-12-FG

$63.50

Attribute: 2605-12-08-12-FG (12MJ-08MP-12MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	3.250
OVERALL LENGTH L2 IN	1.660
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.590
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.5937
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-12-08-12-SS

$982.22

Attribute: 2605-12-08-12-SS (12MJ-08MP-12MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	3.250
OVERALL LENGTH L2 IN	1.660
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.590
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.4187
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-12-12-08-FG

$139.05

Attribute: 2605-12-12-08-FG (12MJ-12MP-08MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	3.250
OVERALL LENGTH L2 IN	1.660
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.590
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.5937
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-12-12-12-FG

$35.79

Attribute: 2605-12-12-12-FG (12MJ-12MP-12MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	3.250
OVERALL LENGTH L2 IN	1.660
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.590
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.6581
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-12-12-12-SS

$507.95

Attribute: 2605-12-12-12-SS (12MJ-12MP-12MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	3.250
OVERALL LENGTH L2 IN	1.660
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.590
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.68
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-16-16-16-FG

$46.27

Attribute: 2605-16-16-16-FG (16MJ-16MP-16MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	3.780
OVERALL LENGTH L2 IN	1.810
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	1.970
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.05
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-16-16-16-SS

$634.50

Attribute: 2605-16-16-16-SS (16MJ-16MP-16MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	3.780
OVERALL LENGTH L2 IN	1.810
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	1.970
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.9333
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-20-16-20-FG

$70.49

Attribute: 2605-20-16-20-FG (20MJ-16MP-20MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	4.410
OVERALL LENGTH L2 IN	2.060
CENTERLINE LENGTH M IN	2.060
CENTERLINE LENGTH M2 IN	2.350
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-20-16-20-SS

$951.83

Attribute: 2605-20-16-20-SS (20MJ-16MP-20MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	4.410
OVERALL LENGTH L2 IN	2.060
CENTERLINE LENGTH M IN	2.060
CENTERLINE LENGTH M2 IN	2.350
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-20-20-16-FG

$130.15

Attribute: 2605-20-20-16-FG (20MJ-20MP-16MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	4.440
OVERALL LENGTH L2 IN	2.060
CENTERLINE LENGTH M IN	2.060
CENTERLINE LENGTH M2 IN	2.380
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.5
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-20-20-20-FG

$129.80

Attribute: 2605-20-20-20-FG (20MJ-20MP-20MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	4.440
OVERALL LENGTH L2 IN	2.060
CENTERLINE LENGTH M IN	2.060
CENTERLINE LENGTH M2 IN	2.380
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.7625
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-20-20-20-SS

$1,543.51

Attribute: 2605-20-20-20-SS (20MJ-20MP-20MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	4.440
OVERALL LENGTH L2 IN	2.060
CENTERLINE LENGTH M IN	2.060
CENTERLINE LENGTH M2 IN	2.380
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.4141
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-24-24-24-FG

$177.75

Attribute: 2605-24-24-24-FG (24MJ-24MP-24MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-7/8-12
THREAD 3 DRILL IN	1.312
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	4.970
OVERALL LENGTH L2 IN	2.330
CENTERLINE LENGTH M IN	2.330
CENTERLINE LENGTH M2 IN	2.640
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	2.0625
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-24-24-24-SS

$1,295.23

Attribute: 2605-24-24-24-SS (24MJ-24MP-24MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-7/8-12
THREAD 3 DRILL IN	1.312
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	4.970
OVERALL LENGTH L2 IN	2.330
CENTERLINE LENGTH M IN	2.330
CENTERLINE LENGTH M2 IN	2.640
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	2.382
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-32-32-32-FG

$656.61

Attribute: 2605-32-32-32-FG (32MJ-32MP-32MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	2-1/2-12
THREAD 3 DRILL IN	1.781
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	2.500
OVERALL LENGTH L IN	6.060
OVERALL LENGTH L2 IN	3.060
CENTERLINE LENGTH M IN	3.060
CENTERLINE LENGTH M2 IN	3.000
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	9
CALIFORNIA RESIDENTS	PROP-65 WARNING

2605-32-32-32-SS

$2,163.75

Attribute: 2605-32-32-32-SS (32MJ-32MP-32MJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	2-1/2-12
THREAD 3 DRILL IN	1.781
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	2.500
OVERALL LENGTH L IN	6.060
OVERALL LENGTH L2 IN	3.060
CENTERLINE LENGTH M IN	3.060
CENTERLINE LENGTH M2 IN	3.000
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	12.6
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT, JIC
Shape	Tee

ID	10141589
Category	Tube Fittings and Adapters

Description

Description

Variations (44)

2605-03-02-03-FG

2605-03-02-03-SS

2605-04-02-04-FG

2605-04-02-04-SS

2605-04-04-04-FG

2605-04-04-04-SS

2605-05-02-05-FG

2605-05-02-05-SS

2605-05-04-05-FG

2605-05-04-05-SS

2605-06-02-06-FG

2605-06-04-04-FG

2605-06-04-06-FG

2605-06-04-06-SS

2605-06-06-06-FG

2605-06-06-06-SS

2605-06-08-06-FG

2605-08-04-08-FG

2605-08-06-06-FG

2605-08-06-08-FG

2605-08-06-08-SS

2605-08-08-06-FG

2605-08-08-08-FG

2605-08-08-08-SS

2605-08-12-08-FG

2605-10-08-10-FG

2605-10-08-10-SS

2605-10-12-10-FG

2605-12-08-12-FG

2605-12-08-12-SS

2605-12-12-08-FG

2605-12-12-12-FG

2605-12-12-12-SS

2605-16-16-16-FG

2605-16-16-16-SS

2605-20-16-20-FG

2605-20-16-20-SS

2605-20-20-16-FG

2605-20-20-20-FG

2605-20-20-20-SS

2605-24-24-24-FG

2605-24-24-24-SS

2605-32-32-32-FG

2605-32-32-32-SS

General Attributes

PDF Documents
