Description

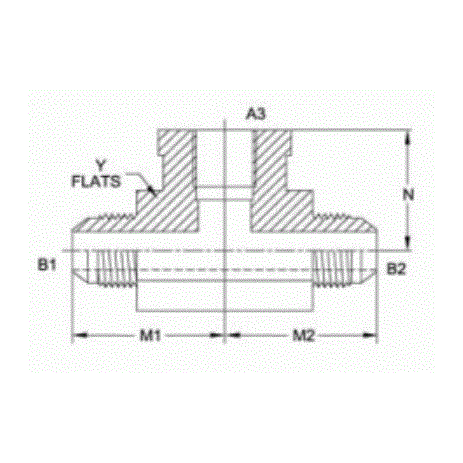

MJ-MJ-FP TEE
Description
Variations (32)
2602-03-03-02-FG
$18.56Attribute: 2602-03-03-02-FG (03MJ-03MJ-02FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/8-24 |
| THREAD B1 DRILL IN | 0.125 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/8-24 |
| THREAD B2 DRILL IN | 0.125 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1/8-27 |
| THREAD 3 DRILL IN | 0.188 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 2.060 |
| OVERALL LENGTH L2 IN | 0.660 |
| CENTERLINE LENGTH M IN | 1.030 |
| CENTERLINE LENGTH M2 IN | 1.030 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1062 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.089 |
2602-04-04-02-FG
$25.11Attribute: 2602-04-04-02-FG (04MJ-04MJ-02FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1/8-27 |
| THREAD 3 DRILL IN | 0.188 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 2.160 |
| OVERALL LENGTH L2 IN | 0.660 |
| CENTERLINE LENGTH M IN | 1.080 |
| CENTERLINE LENGTH M2 IN | 1.080 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1125 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.142 |
2602-04-04-02-SS
$82.31Attribute: 2602-04-04-02-SS (04MJ-04MJ-02FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1/8-27 |
| THREAD 3 DRILL IN | 0.188 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 2.160 |
| OVERALL LENGTH L2 IN | 0.660 |
| CENTERLINE LENGTH M IN | 1.080 |
| CENTERLINE LENGTH M2 IN | 1.080 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.11 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.142 |
2602-04-04-04-FG
$23.33Attribute: 2602-04-04-04-FG (04MJ-04MJ-04FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1/4-18 |
| THREAD 3 DRILL IN | 0.281 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 2.440 |
| OVERALL LENGTH L2 IN | 0.880 |
| CENTERLINE LENGTH M IN | 1.220 |
| CENTERLINE LENGTH M2 IN | 1.220 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.2187 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.297 |
2602-04-04-04-SS
$167.02Attribute: 2602-04-04-04-SS (04MJ-04MJ-04FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1/4-18 |
| THREAD 3 DRILL IN | 0.281 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 2.440 |
| OVERALL LENGTH L2 IN | 0.880 |
| CENTERLINE LENGTH M IN | 1.220 |
| CENTERLINE LENGTH M2 IN | 1.220 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.2256 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.297 |
2602-05-05-02-FG
$22.70Attribute: 2602-05-05-02-FG (05MJ-05MJ-02FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1/2-20 |
| THREAD B2 DRILL IN | 0.234 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1/8-27 |
| THREAD 3 DRILL IN | 0.188 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 2.160 |
| OVERALL LENGTH L2 IN | 0.660 |
| CENTERLINE LENGTH M IN | 1.080 |
| CENTERLINE LENGTH M2 IN | 1.080 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.1125 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 1.142 |
2602-06-06-04-FG
$23.24Attribute: 2602-06-06-04-FG (06MJ-06MJ-04FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1/4-18 |
| THREAD 3 DRILL IN | 0.281 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 2.460 |
| OVERALL LENGTH L2 IN | 0.880 |
| CENTERLINE LENGTH M IN | 1.230 |
| CENTERLINE LENGTH M2 IN | 1.230 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.2187 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.315 |
2602-06-06-04-SS
$275.16Attribute: 2602-06-06-04-SS (06MJ-06MJ-04FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1/4-18 |
| THREAD 3 DRILL IN | 0.281 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 2.460 |
| OVERALL LENGTH L2 IN | 0.880 |
| CENTERLINE LENGTH M IN | 1.230 |
| CENTERLINE LENGTH M2 IN | 1.230 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.2 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 2.315 |
2602-06-06-06-FG
$29.78Attribute: 2602-06-06-06-FG (06MJ-06MJ-06FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 3/8-18 |
| THREAD 3 DRILL IN | 0.406 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.875 |
| OVERALL LENGTH L IN | 2.620 |
| OVERALL LENGTH L2 IN | 1.020 |
| CENTERLINE LENGTH M IN | 1.310 |
| CENTERLINE LENGTH M2 IN | 1.310 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.3 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.341 |
2602-06-06-06-SS
$271.67Attribute: 2602-06-06-06-SS (06MJ-06MJ-06FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 3/8-18 |
| THREAD 3 DRILL IN | 0.406 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.875 |
| OVERALL LENGTH L IN | 2.620 |
| OVERALL LENGTH L2 IN | 1.020 |
| CENTERLINE LENGTH M IN | 1.310 |
| CENTERLINE LENGTH M2 IN | 1.310 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.3 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.341 |
2602-08-08-04-FG
$32.05Attribute: 2602-08-08-04-FG (08MJ-08MJ-04FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1/4-18 |
| THREAD 3 DRILL IN | 0.281 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.875 |
| OVERALL LENGTH L IN | 2.840 |
| OVERALL LENGTH L2 IN | 1.020 |
| CENTERLINE LENGTH M IN | 1.420 |
| CENTERLINE LENGTH M2 IN | 1.420 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.375 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.622 |
2602-08-08-04-SS
$307.94Attribute: 2602-08-08-04-SS (08MJ-08MJ-04FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1/4-18 |
| THREAD 3 DRILL IN | 0.281 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.875 |
| OVERALL LENGTH L IN | 2.840 |
| OVERALL LENGTH L2 IN | 1.020 |
| CENTERLINE LENGTH M IN | 1.420 |
| CENTERLINE LENGTH M2 IN | 1.420 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.5187 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.622 |
2602-08-08-06-FG
$22.05Attribute: 2602-08-08-06-FG (08MJ-08MJ-06FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 3/8-18 |
| THREAD 3 DRILL IN | 0.406 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.875 |
| OVERALL LENGTH L IN | 2.840 |
| OVERALL LENGTH L2 IN | 1.020 |
| CENTERLINE LENGTH M IN | 1.420 |
| CENTERLINE LENGTH M2 IN | 1.420 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.3375 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.622 |
2602-08-08-06-SS
$631.74Attribute: 2602-08-08-06-SS (08MJ-08MJ-06FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 3/8-18 |
| THREAD 3 DRILL IN | 0.406 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.875 |
| OVERALL LENGTH L IN | 2.840 |
| OVERALL LENGTH L2 IN | 1.020 |
| CENTERLINE LENGTH M IN | 1.420 |
| CENTERLINE LENGTH M2 IN | 1.420 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.3355 |
| MAXIMUM DYNAMIC PRESSURE PSI | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.622 |
2602-08-08-08-FG
$37.51Attribute: 2602-08-08-08-FG (08MJ-08MJ-08FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1/2-14 |
| THREAD 3 DRILL IN | 0.531 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.062 |
| OVERALL LENGTH L IN | 3.040 |
| OVERALL LENGTH L2 IN | 1.230 |
| CENTERLINE LENGTH M IN | 1.520 |
| CENTERLINE LENGTH M2 IN | 1.520 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.5437 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 5.685 |
2602-08-08-08-SS
$409.65Attribute: 2602-08-08-08-SS (08MJ-08MJ-08FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1/2-14 |
| THREAD 3 DRILL IN | 0.531 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.062 |
| OVERALL LENGTH L IN | 3.040 |
| OVERALL LENGTH L2 IN | 1.230 |
| CENTERLINE LENGTH M IN | 1.520 |
| CENTERLINE LENGTH M2 IN | 1.520 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.5471 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 5.685 |
2602-10-10-04-FG
$38.76Attribute: 2602-10-10-04-FG (10MJ-10MJ-04FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1/4-18 |
| THREAD 3 DRILL IN | 0.281 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.875 |
| OVERALL LENGTH L IN | 2.900 |
| OVERALL LENGTH L2 IN | 1.010 |
| CENTERLINE LENGTH M IN | 1.450 |
| CENTERLINE LENGTH M2 IN | 1.450 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 3.673 |
2602-10-10-08-FG
$40.41Attribute: 2602-10-10-08-FG (10MJ-10MJ-08FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1/2-14 |
| THREAD 3 DRILL IN | 0.531 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.062 |
| OVERALL LENGTH L IN | 3.280 |
| OVERALL LENGTH L2 IN | 1.230 |
| CENTERLINE LENGTH M IN | 1.640 |
| CENTERLINE LENGTH M2 IN | 1.640 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.5687 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 6.134 |
2602-10-10-08-SS
$361.70Attribute: 2602-10-10-08-SS (10MJ-10MJ-08FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 7/8-14 |
| THREAD B2 DRILL IN | 0.484 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1/2-14 |
| THREAD 3 DRILL IN | 0.531 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.062 |
| OVERALL LENGTH L IN | 3.280 |
| OVERALL LENGTH L2 IN | 1.230 |
| CENTERLINE LENGTH M IN | 1.640 |
| CENTERLINE LENGTH M2 IN | 1.640 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.5733 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 6.134 |
2602-12-12-08-FG
$69.11Attribute: 2602-12-12-08-FG (12MJ-12MJ-08FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1/2-14 |
| THREAD 3 DRILL IN | 0.531 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.312 |
| OVERALL LENGTH L IN | 3.780 |
| OVERALL LENGTH L2 IN | 1.350 |
| CENTERLINE LENGTH M IN | 1.890 |
| CENTERLINE LENGTH M2 IN | 1.890 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.87 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 9.948 |
2602-12-12-08-SS
$936.54Attribute: 2602-12-12-08-SS (12MJ-12MJ-08FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1/2-14 |
| THREAD 3 DRILL IN | 0.531 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.312 |
| OVERALL LENGTH L IN | 3.780 |
| OVERALL LENGTH L2 IN | 1.350 |
| CENTERLINE LENGTH M IN | 1.890 |
| CENTERLINE LENGTH M2 IN | 1.890 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 1.4187 |
| MAXIMUM DYNAMIC PRESSURE PSI | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 9.948 |
2602-12-12-12-FG
$54.59Attribute: 2602-12-12-12-FG (12MJ-12MJ-12FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 3/4-14 |
| THREAD 3 DRILL IN | 0.719 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.312 |
| OVERALL LENGTH L IN | 3.780 |
| OVERALL LENGTH L2 IN | 1.360 |
| CENTERLINE LENGTH M IN | 1.890 |
| CENTERLINE LENGTH M2 IN | 1.890 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.9 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 9.998 |
2602-12-12-12-SS
$488.99Attribute: 2602-12-12-12-SS (12MJ-12MJ-12FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 3/4-14 |
| THREAD 3 DRILL IN | 0.719 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.312 |
| OVERALL LENGTH L IN | 3.780 |
| OVERALL LENGTH L2 IN | 1.360 |
| CENTERLINE LENGTH M IN | 1.890 |
| CENTERLINE LENGTH M2 IN | 1.890 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 0.93 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 9.998 |
2602-14-14-12-FG
$87.82Attribute: 2602-14-14-12-FG (14MJ-14MJ-12FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-3/16-12 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-3/16-12 |
| THREAD B2 DRILL IN | 0.719 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 3/4-14 |
| THREAD 3 DRILL IN | 0.719 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.312 |
| OVERALL LENGTH L IN | 3.720 |
| OVERALL LENGTH L2 IN | 1.420 |
| CENTERLINE LENGTH M IN | 1.860 |
| CENTERLINE LENGTH M2 IN | 1.860 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.9125 |
| MAXIMUM DYNAMIC PRESSURE PSI | 4,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 10.132 |
2602-16-16-16-FG
$92.00Attribute: 2602-16-16-16-FG (16MJ-16MJ-16FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1-11-1/2 |
| THREAD 3 DRILL IN | 0.938 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.625 |
| OVERALL LENGTH L IN | 4.340 |
| OVERALL LENGTH L2 IN | 1.620 |
| CENTERLINE LENGTH M IN | 2.170 |
| CENTERLINE LENGTH M2 IN | 2.170 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 1.5812 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 17.155 |
2602-16-16-16-SS
$1,534.46Attribute: 2602-16-16-16-SS (16MJ-16MJ-16FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1-11-1/2 |
| THREAD 3 DRILL IN | 0.938 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.625 |
| OVERALL LENGTH L IN | 4.340 |
| OVERALL LENGTH L2 IN | 1.620 |
| CENTERLINE LENGTH M IN | 2.170 |
| CENTERLINE LENGTH M2 IN | 2.170 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 1.475 |
| MAXIMUM DYNAMIC PRESSURE PSI | 3,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 17.155 |
2602-20-20-20-FG
$131.77Attribute: 2602-20-20-20-FG (20MJ-20MJ-20FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1-1/4-11-1/2 |
| THREAD 3 DRILL IN | 1.250 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.875 |
| OVERALL LENGTH L IN | 4.660 |
| OVERALL LENGTH L2 IN | 1.700 |
| CENTERLINE LENGTH M IN | 2.330 |
| CENTERLINE LENGTH M2 IN | 2.330 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 2.1 |
| MAXIMUM DYNAMIC PRESSURE PSI | 2,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 23.045 |
2602-20-20-20-SS
$1,380.59Attribute: 2602-20-20-20-SS (20MJ-20MJ-20FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-5/8-12 |
| THREAD B2 DRILL IN | 1.078 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1-1/4-11-1/2 |
| THREAD 3 DRILL IN | 1.250 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.875 |
| OVERALL LENGTH L IN | 4.660 |
| OVERALL LENGTH L2 IN | 1.700 |
| CENTERLINE LENGTH M IN | 2.330 |
| CENTERLINE LENGTH M2 IN | 2.330 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 1.1875 |
| MAXIMUM DYNAMIC PRESSURE PSI | 2,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 23.045 |
2602-24-24-24-FG
$413.78Attribute: 2602-24-24-24-FG (24MJ-24MJ-24FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1-1/2-11-1/2 |
| THREAD 3 DRILL IN | 1.500 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 2.562 |
| OVERALL LENGTH L IN | 5.780 |
| OVERALL LENGTH L2 IN | 2.080 |
| CENTERLINE LENGTH M IN | 2.890 |
| CENTERLINE LENGTH M2 IN | 2.890 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 5.125 |
| MAXIMUM DYNAMIC PRESSURE PSI | 2,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 49.771 |
2602-24-24-24-SS
$1,822.23Attribute: 2602-24-24-24-SS (24MJ-24MJ-24FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 1-7/8-12 |
| THREAD B2 DRILL IN | 1.312 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 1-1/2-11-1/2 |
| THREAD 3 DRILL IN | 1.500 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 2.562 |
| OVERALL LENGTH L IN | 5.780 |
| OVERALL LENGTH L2 IN | 2.080 |
| CENTERLINE LENGTH M IN | 2.890 |
| CENTERLINE LENGTH M2 IN | 2.890 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| WEIGHT LBS | 12.6 |
| MAXIMUM DYNAMIC PRESSURE PSI | 2,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 49.771 |
2602-32-32-32-FG
$535.31Attribute: 2602-32-32-32-FG (32MJ-32MJ-32FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 2-1/2-12 |
| THREAD B1 DRILL IN | 1.781 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 2-1/2-12 |
| THREAD B2 DRILL IN | 1.781 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 2-11-1/2 |
| THREAD 3 DRILL IN | 1.938 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 2.812 |
| OVERALL LENGTH L IN | 6.600 |
| OVERALL LENGTH L2 IN | 2.390 |
| CENTERLINE LENGTH M IN | 3.300 |
| CENTERLINE LENGTH M2 IN | 3.300 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 6.25 |
| MAXIMUM DYNAMIC PRESSURE PSI | 2,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 70.451 |
2602-32-32-32-SS
$4,022.40Attribute: 2602-32-32-32-SS (32MJ-32MJ-32FP...)
Stock Status: True
| THREAD B1 TYPE | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD B1 SIZE | 2-1/2-12 |
| THREAD B1 DRILL IN | 1.781 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | MALE JIC SAE 37 DEGREE FLARE |
| THREAD B2 SIZE | 2-1/2-12 |
| THREAD B2 DRILL IN | 1.781 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | FEMALE NPTF |
| THREAD 3 SIZE | 2-11-1/2 |
| THREAD 3 DRILL IN | 1.938 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 2.812 |
| OVERALL LENGTH L IN | 6.600 |
| OVERALL LENGTH L2 IN | 2.390 |
| CENTERLINE LENGTH M IN | 3.300 |
| CENTERLINE LENGTH M2 IN | 3.300 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| MAXIMUM DYNAMIC PRESSURE PSI | 2,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE L X W X H | 70.451 |
General Attributes
| Connections | NPT, JIC |
|---|---|
| Shape | Tee |
PDF Documents
Download CAD and Drawings
Open PDF
