2408

2408-02

$7.68

Attribute: 2408-02 (02MJ Plug)

Stock Status: True

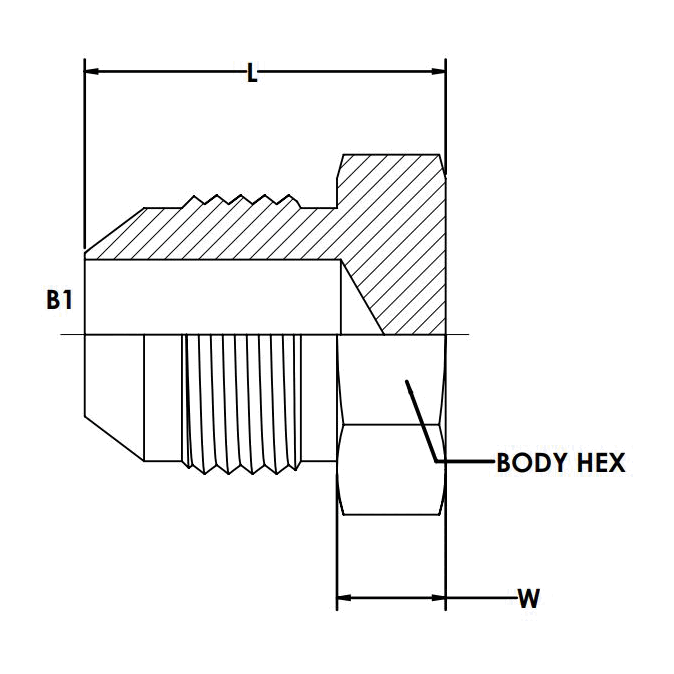

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	0.700
OVERALL LENGTH L2 IN	0.220
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.018
MAXIMUM DYNAMIC PRESSURE PSI	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.134

2408-02-BB

$24.55

Attribute: 2408-02-BB (02MJ Plug BB)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	0.700
OVERALL LENGTH L2 IN	0.220
SHAPE	STRAIGHT
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.018
CALIFORNIA RESIDENTS	PROP-65 WARNING

2408-02-SS

$28.11

Attribute: 2408-02-SS (02MJ Plug Stnls)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	0.700
OVERALL LENGTH L2 IN	0.220
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.025
MAXIMUM DYNAMIC PRESSURE PSI	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.134

2408-03

$8.71

Attribute: 2408-03 (03MJ Plug)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	0.730
OVERALL LENGTH L2 IN	0.251
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.025
MAXIMUM DYNAMIC PRESSURE PSI	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.14

2408-03-SS

$25.79

Attribute: 2408-03-SS (03MJ Plug Stnls)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L IN	0.730
OVERALL LENGTH L2 IN	0.251
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.03
MAXIMUM DYNAMIC PRESSURE PSI	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.14

2408-04

$2.71

Attribute: 2408-04 (04MJ Plug)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	0.500
OVERALL LENGTH L IN	0.800
OVERALL LENGTH L2 IN	0.220
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0281
MAXIMUM DYNAMIC PRESSURE PSI	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.2

2408-04-B

$6.20

Attribute: 2408-04-B (04MJ Plug Brass)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	0.500
OVERALL LENGTH L IN	0.800
OVERALL LENGTH L2 IN	0.220
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.0312
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.2

2408-04-SS

$16.19

Attribute: 2408-04-SS (04MJ Plug Stnls)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	0.500
OVERALL LENGTH L IN	0.800
OVERALL LENGTH L2 IN	0.220
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.04
MAXIMUM DYNAMIC PRESSURE PSI	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.2

2408-05

$3.74

Attribute: 2408-05 (05MJ Plug)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.800
OVERALL LENGTH L2 IN	0.250
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.035
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.253

2408-05-SS

$32.79

Attribute: 2408-05-SS (05MJ Plug Stnls)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.800
OVERALL LENGTH L2 IN	0.250
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.041
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.253

2408-06

$3.00

Attribute: 2408-06 (06MJ Plug)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	0.625
OVERALL LENGTH L IN	0.840
OVERALL LENGTH L2 IN	0.284
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0457
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.328

2408-06-B

$12.27

Attribute: 2408-06-B (06MJ Plug Brass)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	0.625
OVERALL LENGTH L IN	0.840
OVERALL LENGTH L2 IN	0.284
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.0562
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.328

2408-06-SS

$24.85

Attribute: 2408-06-SS (06MJ Plug Stnls)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	0.625
OVERALL LENGTH L IN	0.840
OVERALL LENGTH L2 IN	0.284
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.06
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.328

2408-08

$3.94

Attribute: 2408-08 (08MJ Plug)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	0.812
OVERALL LENGTH L IN	0.940
OVERALL LENGTH L2 IN	0.250
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0869
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.62

2408-08-B

$14.16

Attribute: 2408-08-B (08MJ Plug Brass)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	0.812
OVERALL LENGTH L IN	0.940
OVERALL LENGTH L2 IN	0.250
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.62

2408-08-SS

$27.91

Attribute: 2408-08-SS (08MJ Plug Stnls)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	0.812
OVERALL LENGTH L IN	0.940
OVERALL LENGTH L2 IN	0.250
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.12
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.62

2408-10

$5.07

Attribute: 2408-10 (10MJ Plug)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	0.938
OVERALL LENGTH L IN	1.100
OVERALL LENGTH L2 IN	0.310
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1333
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.966

2408-10-B

$103.80

Attribute: 2408-10-B (10MJ Plug Brass)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	0.938
OVERALL LENGTH L IN	1.100
OVERALL LENGTH L2 IN	0.310
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.966

2408-10-SS

$72.02

Attribute: 2408-10-SS (10MJ Plug Stnls)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	0.938
OVERALL LENGTH L IN	1.100
OVERALL LENGTH L2 IN	0.310
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.18
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.966

2408-12

$8.66

Attribute: 2408-12 (12MJ Plug)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	1.125
OVERALL LENGTH L IN	1.280
OVERALL LENGTH L2 IN	0.380
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2243
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.62

2408-12-B

$38.94

Attribute: 2408-12-B (12MJ Plug Brass)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	1.125
OVERALL LENGTH L IN	1.280
OVERALL LENGTH L2 IN	0.380
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.2437
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.62

2408-12-SS

$89.25

Attribute: 2408-12-SS (12MJ Plug Stnls)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	1.125
OVERALL LENGTH L IN	1.280
OVERALL LENGTH L2 IN	0.380
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.3
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.62

2408-14

$14.82

Attribute: 2408-14 (14MJ Plug)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	1.250
OVERALL LENGTH L IN	1.310
OVERALL LENGTH L2 IN	0.380
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2793
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.047

2408-14-SS

$275.55

Attribute: 2408-14-SS (14MJ Plug Stnls)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	1.250
OVERALL LENGTH L IN	1.310
OVERALL LENGTH L2 IN	0.380
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.28
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.047

2408-16

$10.88

Attribute: 2408-16 (16MJ Plug)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	1.375
OVERALL LENGTH L IN	1.330
OVERALL LENGTH L2 IN	0.419
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.3332
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.515

2408-16-SS

$101.50

Attribute: 2408-16-SS (16MJ Plug Stnls)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	1.375
OVERALL LENGTH L IN	1.330
OVERALL LENGTH L2 IN	0.419
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.504
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.515

2408-20

$18.31

Attribute: 2408-20 (20MJ Plug)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	1.688
OVERALL LENGTH L IN	1.450
OVERALL LENGTH L2 IN	0.490
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.5548
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.132

2408-20-B

$55.19

Attribute: 2408-20-B (20MJ Plug Brass)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	1.688
OVERALL LENGTH L IN	1.450
OVERALL LENGTH L2 IN	0.490
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.6125
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.132

2408-20-SS

$195.52

Attribute: 2408-20-SS (20MJ Plug Stnls)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	1.688
OVERALL LENGTH L IN	1.450
OVERALL LENGTH L2 IN	0.490
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.82
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.132

2408-24

$45.54

Attribute: 2408-24 (24MJ Plug)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	2.000
OVERALL LENGTH L IN	1.650
OVERALL LENGTH L2 IN	0.530
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.9
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	6.6

2408-24-B

$110.18

Attribute: 2408-24-B (24MJ Plug Brass)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	2.000
OVERALL LENGTH L IN	1.650
OVERALL LENGTH L2 IN	0.530
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	6.6

2408-24-SS

$320.20

Attribute: 2408-24-SS (24MJ Plug Stnls)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	2.000
OVERALL LENGTH L IN	1.650
OVERALL LENGTH L2 IN	0.530
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.86
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	6.6

2408-32

$118.24

Attribute: 2408-32 (32MJ Plug)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	2.625
OVERALL LENGTH L IN	2.050
OVERALL LENGTH L2 IN	0.717
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.88
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	14.126

2408-32-SS

$717.25

Attribute: 2408-32-SS (32MJ Plug Stnls)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	2.625
OVERALL LENGTH L IN	2.050
OVERALL LENGTH L2 IN	0.717
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.72
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	14.126

2408-40

$632.92

Attribute: 2408-40 (40MJ Plug)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3-12
THREAD B1 DRILL IN	2.318
THREAD B1 SPECIFICATION	SAE J514
BODY HEX IN	3.250
OVERALL LENGTH L IN	2.051
OVERALL LENGTH L2 IN	0.718
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	2.725
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	21.664

Connections	Other
Shape	Plug

ID	10141513
Category	Tube Fittings and Adapters

Description

Description

Variations (35)

2408-02

2408-02-BB

2408-02-SS

2408-03

2408-03-SS

2408-04

2408-04-B

2408-04-SS

2408-05

2408-05-SS

2408-06

2408-06-B

2408-06-SS

2408-08

2408-08-B

2408-08-SS

2408-10

2408-10-B

2408-10-SS

2408-12

2408-12-B

2408-12-SS

2408-14

2408-14-SS

2408-16

2408-16-SS

2408-20

2408-20-B

2408-20-SS

2408-24

2408-24-B

2408-24-SS

2408-32

2408-32-SS

2408-40

General Attributes

PDF Documents
