Description
INS-INS-NEEDLE VALVE, STRAIGHT FLOW. INTEGRAL-BONNET NEEDLE VALVE
Description
Variations (33)
NH-300U-B-L-R-1/2-RS
$495.08Attribute: NH-300U-B-L-R-1/2-RS (08INS-08IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | REGULATING STEM |
| END CONNECTION SIZE | 1/2″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 6.4 |
| FLOW COEFFICIENT (CV) | 0.73 |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |

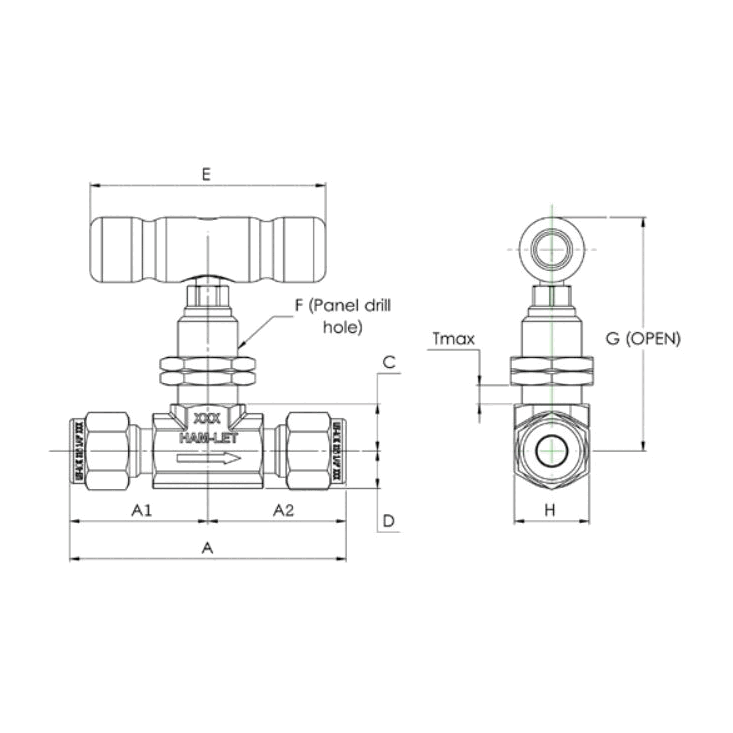

| A (MM) | 71.6 |
| A1 (MM) | 35.8 |
| A2 (MM) | 35.8 |
| A3 (MM) | 35.8 |
| B (MM) | 52.3 |
| C (MM) | 14.3 |
| D (MM) | 16.5 |
| E (MM) | 47.8 |
| F (MM) | 20.0 |
| G (MM) | 78.4 |
| H (MM) | 23.8 |
| T (MM) | 12.0 |
NH-300U-B-L-R-1/4-M
$197.52Attribute: NH-300U-B-L-R-1/4-M (04INS-04INS...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | REGULATING STEM |
| END CONNECTION SIZE | 1/4″ |
| HANDLE TYPE | METAL BAR |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 4.4 |
| FLOW COEFFICIENT (CV) | 0.37 |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| A (MM) | 58.8 |
| A1 (MM) | 29.4 |
| A2 (MM) | 29.4 |
| A3 (MM) | 29.4 |
| B (MM) | 37.3 |
| C (MM) | 10 |
| D (MM) | 7.95 |
| E (MM) | 50 |
| F (MM) | 13 |
| G (MM) | 56 |
| H (MM) | 15.9 |
| T (MM) | 10 |
NH-300U-B-L-R-1/4-RS
$159.11Attribute: NH-300U-B-L-R-1/4-RS (04INS-04IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | REGULATING STEM |
| END CONNECTION SIZE | 1/4″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 4.4 |
| FLOW COEFFICIENT (CV) | 0.37 |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| A (MM) | 58.8 |
| A1 (MM) | 29.4 |
| A2 (MM) | 29.4 |
| A3 (MM) | 29.4 |
| B (MM) | 37.3 |
| C (MM) | 10.0 |
| D (MM) | 7.95 |
| E (MM) | 35.1 |
| F (MM) | 13.0 |
| G (MM) | 63.5 |
| H (MM) | 15.9 |
| T (MM) | 10.0 |
NH-300U-B-L-R-1/8-RS
$229.40Attribute: NH-300U-B-L-R-1/8-RS (02INS-02IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | REGULATING STEM |
| END CONNECTION SIZE | 1/8″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 2 |
| FLOW COEFFICIENT (CV) | 0.09 |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| A (MM) | 50.8 |
| A1 (MM) | 25.4 |
| A2 (MM) | 25.4 |
| A3 (MM) | 25.4 |
| B (MM) | 33.4 |
| C (MM) | 10 |
| D (MM) | 7.95 |
| E (MM) | 35.1 |
| F (MM) | 13 |
| G (MM) | 63.5 |
| H (MM) | 15.9 |
| T (MM) | 10 |
NH-300U-B-L-R-3/8-M
$527.43Attribute: NH-300U-B-L-R-3/8-M (06INS-06INS...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | REGULATING STEM |
| END CONNECTION SIZE | 3/8″ |
| HANDLE TYPE | METAL BAR |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 6.4 |
| FLOW COEFFICIENT (CV) | 0.73 |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| A (MM) | 66 |
| A1 (MM) | 33 |
| A2 (MM) | 33 |
| A3 (MM) | 33 |
| B (MM) | 49.5 |
| C (MM) | 14.3 |
| D (MM) | 16.5 |
| E (MM) | 65 |
| F (MM) | 20 |
| G (MM) | 66.8 |
| H (MM) | 23.8 |
| T (MM) | 12 |
NH-300U-B-L-R-3/8-RS
$221.87Attribute: NH-300U-B-L-R-3/8-RS (06INS-06IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | REGULATING STEM |
| END CONNECTION SIZE | 3/8″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 6.4 |
| FLOW COEFFICIENT (CV) | 0.73 |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| A (MM) | 66.0 |
| A1 (MM) | 33.0 |
| A2 (MM) | 33.0 |
| A3 (MM) | 33.0 |
| B (MM) | 49.5 |
| C (MM) | 14.3 |
| D (MM) | 16.5 |
| E (MM) | 47.8 |
| F (MM) | 20.0 |
| G (MM) | 78.4 |
| H (MM) | 23.8 |
| T (MM) | 12.0 |
NH-300U-B-L-V-1/2-RS
$489.59Attribute: NH-300U-B-L-V-1/2-RS (08INS-08IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | V STEM |
| END CONNECTION SIZE | 1/2″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 6.4 |
| FLOW COEFFICIENT (CV) | 0.73 |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| A (MM) | 71.6 |
| A1 (MM) | 35.8 |
| A2 (MM) | 35.8 |
| A3 (MM) | 35.8 |
| B (MM) | 52.3 |
| C (MM) | 14.3 |
| D (MM) | 16.5 |
| E (MM) | 47.8 |
| F (MM) | 20.0 |
| G (MM) | 78.4 |
| H (MM) | 23.8 |
| T (MM) | 12.0 |
NH-300U-B-L-V-1/4-M
$197.52Attribute: NH-300U-B-L-V-1/4-M (04INS-04INS...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | V STEM |
| END CONNECTION SIZE | 1/4″ |
| HANDLE TYPE | METAL BAR |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 4.4 |
| FLOW COEFFICIENT (CV) | 0.37 |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| A (MM) | 58.8 |
| A1 (MM) | 29.4 |
| A2 (MM) | 29.4 |
| A3 (MM) | 29.4 |
| B (MM) | 37.3 |
| C (MM) | 10 |
| D (MM) | 7.95 |
| E (MM) | 50 |
| F (MM) | 13 |
| G (MM) | 56 |
| H (MM) | 15.9 |
| T (MM) | 10 |
NH-300U-B-L-V-1/4-RS
$228.60Attribute: NH-300U-B-L-V-1/4-RS (04INS-04IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | V STEM |
| END CONNECTION SIZE | 1/4″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 4.4 |
| FLOW COEFFICIENT (CV) | 0.37 |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| A (MM) | 58.8 |
| A1 (MM) | 29.4 |
| A2 (MM) | 29.4 |
| A3 (MM) | 29.4 |
| B (MM) | 37.3 |
| C (MM) | 10 |
| D (MM) | 7.95 |
| E (MM) | 35.1 |
| F (MM) | 13 |
| G (MM) | 63.5 |
| H (MM) | 15.9 |
| T (MM) | 10 |
NH-300U-B-L-V-1/8-RS
$229.40Attribute: NH-300U-B-L-V-1/8-RS (02INS-02IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | V STEM |
| END CONNECTION SIZE | 1/8″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 2 |
| FLOW COEFFICIENT (CV) | 0.09 |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| A (MM) | 50.8 |
| A1 (MM) | 25.4 |
| A2 (MM) | 25.4 |
| A3 (MM) | 25.4 |
| B (MM) | 33.4 |
| C (MM) | 10 |
| D (MM) | 7.95 |
| E (MM) | 35.1 |
| F (MM) | 13 |
| G (MM) | 63.5 |
| H (MM) | 15.9 |
| T (MM) | 10 |
NH-300U-B-L-V-3/8-M
$551.43Attribute: NH-300U-B-L-V-3/8-M (06INS-06INS...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | V STEM |
| END CONNECTION SIZE | 3/8″ |
| HANDLE TYPE | METAL BAR |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 6.4 |
| FLOW COEFFICIENT (CV) | 0.73 |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| A (MM) | 66 |
| A1 (MM) | 33 |
| A2 (MM) | 33 |
| A3 (MM) | 33 |
| B (MM) | 49.5 |
| C (MM) | 14.3 |
| D (MM) | 16.5 |
| E (MM) | 65 |
| F (MM) | 20 |
| G (MM) | 66.8 |
| H (MM) | 23.8 |
| T (MM) | 12 |
NH-300U-B-L-V-3/8-RS
$268.92Attribute: NH-300U-B-L-V-3/8-RS (06INS-06IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | V STEM |
| END CONNECTION SIZE | 3/8″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 6.4 |
| FLOW COEFFICIENT (CV) | 0.73 |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| A (MM) | 66 |
| A1 (MM) | 33 |
| A2 (MM) | 33 |
| A3 (MM) | 33 |
| B (MM) | 49.5 |
| C (MM) | 14.3 |
| D (MM) | 16.5 |
| E (MM) | 47.8 |
| F (MM) | 20 |
| G (MM) | 78.4 |
| H (MM) | 23.8 |
| T (MM) | 12 |
NH-300U-SS-L-R-1/2-M
$435.33Attribute: NH-300U-SS-L-R-1/2-M (08INS-08IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | REGULATING STEM |
| END CONNECTION SIZE | 1/2″ |
| HANDLE TYPE | METAL BAR (316SS) |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 6.4 |
| FLOW COEFFICIENT (CV) | 0.73 |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| A (MM) | 71.6 |
| A1 (MM) | 35.8 |
| A2 (MM) | 35.8 |
| A3 (MM) | 35.8 |
| B (MM) | 52.3 |
| C (MM) | 14.3 |
| D (MM) | 16.5 |
| E (MM) | 65.0 |
| F (MM) | 20.0 |
| G (MM) | 66.8 |
| H (MM) | 23.8 |
| T (MM) | 12.0 |
NH-300U-SS-L-R-1/2-RS
$378.63Attribute: NH-300U-SS-L-R-1/2-RS (08INS-08I...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | REGULATING STEM |
| END CONNECTION SIZE | 1/2″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 6.4 |
| FLOW COEFFICIENT (CV) | 0.73 |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| A (MM) | 71.6 |
| A1 (MM) | 35.8 |
| A2 (MM) | 35.8 |
| A3 (MM) | 35.8 |
| B (MM) | 52.3 |
| C (MM) | 14.3 |
| D (MM) | 16.5 |
| E (MM) | 47.8 |
| F (MM) | 20.0 |
| G (MM) | 78.4 |
| H (MM) | 23.8 |
| T (MM) | 12.0 |
NH-300U-SS-L-R-1/4-M
$283.97Attribute: NH-300U-SS-L-R-1/4-M (04INS-04IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | REGULATING STEM |
| END CONNECTION SIZE | 1/4″ |
| HANDLE TYPE | METAL BAR (316SS) |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 4.4 |
| FLOW COEFFICIENT (CV) | 0.37 |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| A (MM) | 58.8 |
| A1 (MM) | 29.4 |
| A2 (MM) | 29.4 |
| A3 (MM) | 29.4 |
| B (MM) | 37.3 |
| C (MM) | 10.0 |
| D (MM) | 7.95 |
| E (MM) | 50.0 |
| F (MM) | 13.0 |
| G (MM) | 56.0 |
| H (MM) | 15.9 |
| T (MM) | 10.0 |
NH-300U-SS-L-R-1/4-RS
$242.74Attribute: NH-300U-SS-L-R-1/4-RS (06INS-06I...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | REGULATING STEM |
| END CONNECTION SIZE | 1/4″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 4.4 |
| FLOW COEFFICIENT (CV) | 0.37 |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| A (MM) | 58.8 |
| A1 (MM) | 29.4 |
| A2 (MM) | 29.4 |
| A3 (MM) | 29.4 |
| B (MM) | 37.3 |
| C (MM) | 10.0 |
| D (MM) | 7.95 |
| E (MM) | 35.1 |
| F (MM) | 13.0 |
| G (MM) | 63.5 |
| H (MM) | 15.9 |
| T (MM) | 10.0 |
NH-300U-SS-L-R-1/8-M
$304.00Attribute: NH-300U-SS-L-R-1/8-M (02INS-02IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | REGULATING STEM |
| END CONNECTION SIZE | 1/8″ |
| HANDLE TYPE | METAL BAR (316SS) |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 2.0 |
| FLOW COEFFICIENT (CV) | 0.09 |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| A (MM) | 50.8 |
| A1 (MM) | 25.4 |
| A2 (MM) | 25.4 |
| A3 (MM) | 25.4 |
| B (MM) | 33.4 |
| C (MM) | 10.0 |
| D (MM) | 7.95 |
| E (MM) | 50.0 |
| F (MM) | 13.0 |
| G (MM) | 56.0 |
| H (MM) | 15.9 |
| T (MM) | 10.0 |
NH-300U-SS-L-R-1/8-RS
$264.32Attribute: NH-300U-SS-L-R-1/8-RS (02INS-02I...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | REGULATING STEM |
| END CONNECTION SIZE | 1/8″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 2.0 |
| FLOW COEFFICIENT (CV) | 0.09 |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| A (MM) | 50.8 |
| A1 (MM) | 25.4 |
| A2 (MM) | 25.4 |
| A3 (MM) | 25.4 |
| B (MM) | 33.4 |
| C (MM) | 10.0 |
| D (MM) | 7.95 |
| E (MM) | 35.1 |
| F (MM) | 13.0 |
| G (MM) | 63.5 |
| H (MM) | 15.9 |
| T (MM) | 10.0 |
NH-300U-SS-L-R-3/4-M
$1,012.03Attribute: NH-300U-SS-L-R-3/4-M (12INS-12IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | REGULATING STEM |
| END CONNECTION SIZE | 3/4″ |
| HANDLE TYPE | METAL BAR (316SS) |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 9.5 |
| FLOW COEFFICIENT (CV) | 1.8 |
| INLET CONNECTION (1) | 3/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/4″ LET-LOK INS |
| A (MM) | 97.0 |
| A1 (MM) | 48.5 |
| A2 (MM) | 48.5 |
| A3 (MM) | 48.5 |
| B (MM) | 68.5 |
| C (MM) | 19.5 |
| D (MM) | 20.0 |
| E (MM) | 65.0 |
| F (MM) | 26.0 |
| G (MM) | 94.0 |
| H (MM) | 30.2 |
| T (MM) | 22.0 |
NH-300U-SS-L-R-3/4-RS
$880.06Attribute: NH-300U-SS-L-R-3/4-RS (12INS-12I...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | REGULATING STEM |
| END CONNECTION SIZE | 3/4″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 9.5 |
| FLOW COEFFICIENT (CV) | 1.8 |
| INLET CONNECTION (1) | 3/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/4″ LET-LOK INS |
| A (MM) | 97.0 |
| A1 (MM) | 48.5 |
| A2 (MM) | 48.5 |
| A3 (MM) | 48.5 |
| B (MM) | 68.5 |
| C (MM) | 19.5 |
| D (MM) | 20.0 |
| E (MM) | 47.8 |
| F (MM) | 26.0 |
| G (MM) | 105.6 |
| H (MM) | 30.2 |
| T (MM) | 22.0 |
NH-300U-SS-L-R-3/8-M
$420.86Attribute: NH-300U-SS-L-R-3/8-M (06INS-06IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | REGULATING STEM |
| END CONNECTION SIZE | 3/8″ |
| HANDLE TYPE | METAL BAR (316SS) |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 6.4 |
| FLOW COEFFICIENT (CV) | 0.73 |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| A (MM) | 66.0 |
| A1 (MM) | 33.0 |
| A2 (MM) | 33.0 |
| A3 (MM) | 33.0 |
| B (MM) | 49.5 |
| C (MM) | 14.3 |
| D (MM) | 16.5 |
| E (MM) | 65.0 |
| F (MM) | 20.0 |
| G (MM) | 66.8 |
| H (MM) | 23.8 |
| T (MM) | 12.0 |
NH-300U-SS-L-R-3/8-RS
$366.00Attribute: NH-300U-SS-L-R-3/8-RS (06INS-06I...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | REGULATING STEM |
| END CONNECTION SIZE | 3/8″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 6.4 |
| FLOW COEFFICIENT (CV) | 0.73 |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| A (MM) | 66.0 |
| A1 (MM) | 33.0 |
| A2 (MM) | 33.0 |
| A3 (MM) | 33.0 |
| B (MM) | 49.5 |
| C (MM) | 14.3 |
| D (MM) | 16.5 |
| E (MM) | 47.8 |
| F (MM) | 20.0 |
| G (MM) | 78.4 |
| H (MM) | 23.8 |
| T (MM) | 12.0 |
NH-300U-SS-L-V-1/2-M
$435.33Attribute: NH-300U-SS-L-V-1/2-M (08INS-08IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | V STEM |
| END CONNECTION SIZE | 1/2″ |
| HANDLE TYPE | METAL BAR (316SS) |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 6.4 |
| FLOW COEFFICIENT (CV) | 0.73 |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| A (MM) | 71.6 |
| A1 (MM) | 35.8 |
| A2 (MM) | 35.8 |
| A3 (MM) | 35.8 |
| B (MM) | 52.3 |
| C (MM) | 14.3 |
| D (MM) | 16.5 |
| E (MM) | 65.0 |
| F (MM) | 20.0 |
| G (MM) | 66.8 |
| H (MM) | 23.8 |
| T (MM) | 12.0 |
NH-300U-SS-L-V-1/2-RS
$378.63Attribute: NH-300U-SS-L-V-1/2-RS (08INS-08I...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | V STEM |
| END CONNECTION SIZE | 1/2″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 6.4 |
| FLOW COEFFICIENT (CV) | 0.73 |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| A (MM) | 71.6 |
| A1 (MM) | 35.8 |
| A2 (MM) | 35.8 |
| A3 (MM) | 35.8 |
| B (MM) | 52.3 |
| C (MM) | 14.3 |
| D (MM) | 16.5 |
| E (MM) | 47.8 |
| F (MM) | 20.0 |
| G (MM) | 78.4 |
| H (MM) | 23.8 |
| T (MM) | 12.0 |
NH-300U-SS-L-V-1/4-M
$303.84Attribute: NH-300U-SS-L-V-1/4-M (04INS-04IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | V STEM |
| END CONNECTION SIZE | 1/4″ |
| HANDLE TYPE | METAL BAR (316SS) |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 4.4 |
| FLOW COEFFICIENT (CV) | 0.37 |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| A (MM) | 58.8 |
| A1 (MM) | 29.4 |
| A2 (MM) | 29.4 |
| A3 (MM) | 29.4 |
| B (MM) | 37.3 |
| C (MM) | 10.0 |
| D (MM) | 7.95 |
| E (MM) | 50.0 |
| F (MM) | 13.0 |
| G (MM) | 56.0 |
| H (MM) | 15.9 |
| T (MM) | 10.0 |
NH-300U-SS-L-V-1/4-RS
$264.16Attribute: NH-300U-SS-L-V-1/4-RS (04INS-04I...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | V STEM |
| END CONNECTION SIZE | 1/4″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 4.4 |
| FLOW COEFFICIENT (CV) | 0.37 |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| A (MM) | 58.8 |
| A1 (MM) | 29.4 |
| A2 (MM) | 29.4 |
| A3 (MM) | 29.4 |
| B (MM) | 37.3 |
| C (MM) | 10.0 |
| D (MM) | 7.95 |
| E (MM) | 35.1 |
| F (MM) | 13.0 |
| G (MM) | 63.5 |
| H (MM) | 15.9 |
| T (MM) | 10.0 |
NH-300U-SS-L-V-1/8-M
$332.06Attribute: NH-300U-SS-L-V-1/8-M (02INS-02IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | V STEM |
| END CONNECTION SIZE | 1/8″ |
| HANDLE TYPE | METAL BAR (316SS) |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 2.0 |
| FLOW COEFFICIENT (CV) | 0.09 |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| A (MM) | 50.8 |
| A1 (MM) | 25.4 |
| A2 (MM) | 25.4 |
| A3 (MM) | 25.4 |
| B (MM) | 33.4 |
| C (MM) | 10.0 |
| D (MM) | 7.95 |
| E (MM) | 50.0 |
| F (MM) | 13.0 |
| G (MM) | 56.0 |
| H (MM) | 15.9 |
| T (MM) | 10.0 |
NH-300U-SS-L-V-1/8-RS
$264.32Attribute: NH-300U-SS-L-V-1/8-RS (02INS-02I...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | V STEM |
| END CONNECTION SIZE | 1/8″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 2.0 |
| FLOW COEFFICIENT (CV) | 0.09 |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| A (MM) | 50.8 |
| A1 (MM) | 25.4 |
| A2 (MM) | 25.4 |
| A3 (MM) | 25.4 |
| B (MM) | 33.4 |
| C (MM) | 10.0 |
| D (MM) | 7.95 |
| E (MM) | 35.1 |
| F (MM) | 13.0 |
| G (MM) | 63.5 |
| H (MM) | 15.9 |
| T (MM) | 10.0 |
NH-300U-SS-L-V-12MM-RAS
$489.81Attribute: NH-300U-SS-L-V-12MM-RAS (12MMINS...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | V STEM |
| END CONNECTION SIZE | 12MM |
| HANDLE TYPE | ROUND BLACK ALUMINUM |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 6.4 |
| FLOW COEFFICIENT (CV) | 0.73 |
| INLET CONNECTION (1) | 12MM LET-LOK INS |
| OUTLET CONNECTION (2) | 12MM LET-LOK INS |
| A (MM) | 71.6 |
| A1 (MM) | 35.8 |
| A2 (MM) | 35.8 |
| A3 (MM) | 35.8 |
| B (MM) | 52.3 |
| C (MM) | 14.3 |
| D (MM) | 16.5 |
| E (MM) | 65.0 |
| F (MM) | 20.0 |
| G (MM) | 66.8 |
| H (MM) | 23.8 |
| T (MM) | 12.0 |
NH-300U-SS-L-V-3/4-M
$1,012.03Attribute: NH-300U-SS-L-V-3/4-M (12INS-12IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | V STEM |
| END CONNECTION SIZE | 3/4″ |
| HANDLE TYPE | METAL BAR (316SS) |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 9.5 |
| FLOW COEFFICIENT (CV) | 1.8 |
| INLET CONNECTION (1) | 3/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/4″ LET-LOK INS |
| A (MM) | 97.0 |
| A1 (MM) | 48.5 |
| A2 (MM) | 48.5 |
| A3 (MM) | 48.5 |
| B (MM) | 68.5 |
| C (MM) | 19.5 |
| D (MM) | 20.0 |
| E (MM) | 65.0 |
| F (MM) | 26.0 |
| G (MM) | 94.0 |
| H (MM) | 30.2 |
| T (MM) | 22.0 |
NH-300U-SS-L-V-3/4-RS
$880.06Attribute: NH-300U-SS-L-V-3/4-RS (12INS-12I...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | V STEM |
| END CONNECTION SIZE | 3/4″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 9.5 |
| FLOW COEFFICIENT (CV) | 1.8 |
| INLET CONNECTION (1) | 3/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/4″ LET-LOK INS |
| A (MM) | 97.0 |
| A1 (MM) | 48.5 |
| A2 (MM) | 48.5 |
| A3 (MM) | 48.5 |
| B (MM) | 68.5 |
| C (MM) | 19.5 |
| D (MM) | 20.0 |
| E (MM) | 47.8 |
| F (MM) | 26.0 |
| G (MM) | 105.6 |
| H (MM) | 30.2 |
| T (MM) | 22.0 |
NH-300U-SS-L-V-3/8-M
$420.79Attribute: NH-300U-SS-L-V-3/8-M (06INS-06IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | V STEM |
| END CONNECTION SIZE | 3/8″ |
| HANDLE TYPE | METAL BAR (316SS) |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 6.4 |
| FLOW COEFFICIENT (CV) | 0.73 |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| A (MM) | 66.0 |
| A1 (MM) | 33.0 |
| A2 (MM) | 33.0 |
| A3 (MM) | 33.0 |
| B (MM) | 49.5 |
| C (MM) | 14.3 |
| D (MM) | 16.5 |
| E (MM) | 65.0 |
| F (MM) | 20.0 |
| G (MM) | 66.8 |
| H (MM) | 23.8 |
| T (MM) | 12.0 |
NH-300U-SS-L-V-3/8-RS
$366.00Attribute: NH-300U-SS-L-V-3/8-RS (06INS-06I...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-3 (MAWP 5000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| STEM DESIGNATOR | V STEM |
| END CONNECTION SIZE | 3/8″ |
| HANDLE TYPE | ROUND BLACK PLASTIC |
| PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| ORIFICE (MM) | 6.4 |
| FLOW COEFFICIENT (CV) | 0.73 |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| A (MM) | 66.0 |
| A1 (MM) | 33.0 |
| A2 (MM) | 33.0 |
| A3 (MM) | 33.0 |
| B (MM) | 49.5 |
| C (MM) | 14.3 |
| D (MM) | 16.5 |
| E (MM) | 47.8 |
| F (MM) | 20.0 |
| G (MM) | 78.4 |
| H (MM) | 23.8 |
| T (MM) | 12.0 |
General Attributes
| Connections | Instrumentation |
|---|---|
| Shape | Straight |
PDF Documents
No PDF documents scraped.
