Description
INS-INS-PLUG VALVE STRAIGHT PORT FLOW
Description
Variations (8)
NH-PLV4-00-B-L-1/4-PFS
$292.51Attribute: NH-PLV4-00-B-L-1/4-PFS (04INS PL...)
Stock Status: True
| SERIES | PLV |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/4″ |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| O-RING SEAT MATERIAL | PTFE |
| HANDLE TYPE | BLACK NYLON |
| APPROVAL | STANDARD |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 1.6 |
| ORIFICE | 4.4 |

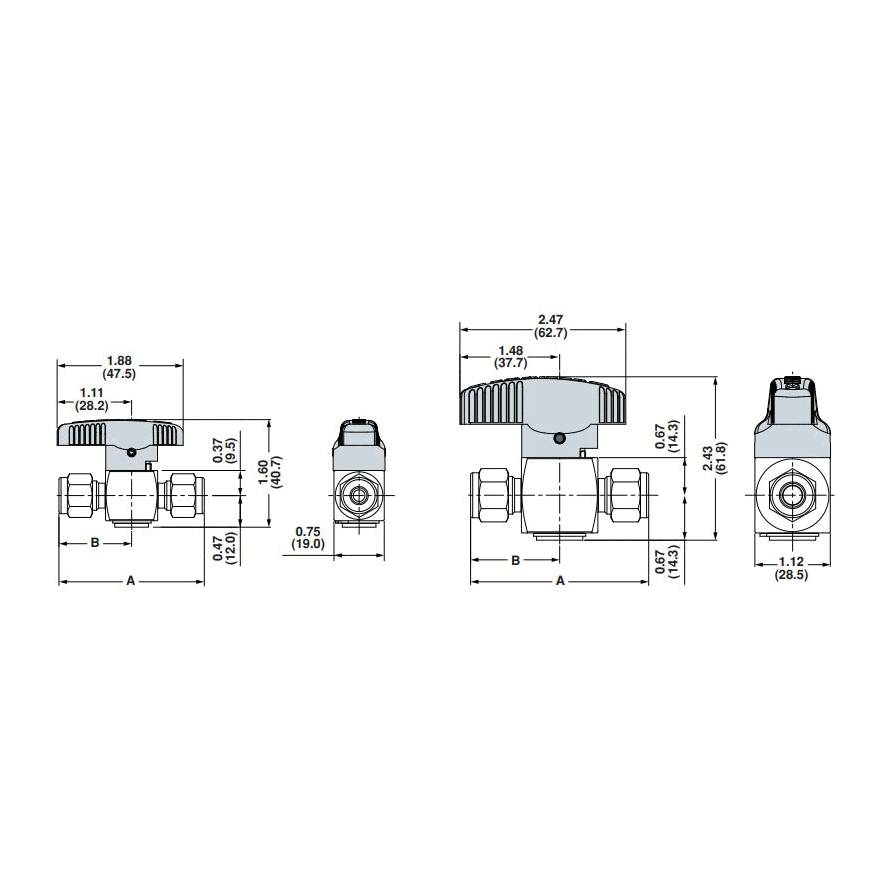

| A OVERALL LENGTH (MM) | 55.1 |
| B (MM) | 27.6 |
| REPLACEMENT HANDLE KIT | NZ-PLV4-HK-S |
| REPLACEMENT SEAL KIT | NZ-PLV4-SK-PF |
| REPLACEMENT PLUG KIT | NZ-PLV4-B-PK-PF-S |
NH-PLV4-00-SS-L-1/4-PFS
$214.13Attribute: NH-PLV4-00-SS-L-1/4-PFS (04INS P...)
Stock Status: True
| SERIES | PLV |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/4″ |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| O-RING SEAT MATERIAL | PTFE |
| HANDLE TYPE | BLACK NYLON |
| APPROVAL | STANDARD |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 1.6 |
| ORIFICE | 4.4 |
| A OVERALL LENGTH (MM) | 55.1 |
| B (MM) | 27.6 |
| REPLACEMENT HANDLE KIT | NZ-PLV4-HK-S |
| REPLACEMENT SEAL KIT | NZ-PLV4-SK-PF |
| REPLACEMENT PLUG KIT | NZ-PLV4-SS-PK-PF-S |
NH-PLV4-00-SS-L-1/8-PFS
$301.11Attribute: NH-PLV4-00-SS-L-1/8-PFS (02INS P...)
Stock Status: True
| SERIES | PLV |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/8″ |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| O-RING SEAT MATERIAL | PTFE |
| HANDLE TYPE | BLACK NYLON |
| APPROVAL | STANDARD |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 0.10 |
| ORIFICE | 2.3 |
| A OVERALL LENGTH (MM) | 50.5 |
| B (MM) | 25.3 |
| REPLACEMENT HANDLE KIT | NZ-PLV4-HK-S |
| REPLACEMENT SEAL KIT | NZ-PLV4-SK-PF |
| REPLACEMENT PLUG KIT | NZ-PLV4-SS-PK-PF-S |
NH-PLV4-00-SS-L-3/8-PFS
$319.94Attribute: NH-PLV4-00-SS-L-3/8-PFS (06INS P...)
Stock Status: True
| SERIES | PLV |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 3/8″ |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| O-RING SEAT MATERIAL | PTFE |
| HANDLE TYPE | BLACK NYLON |
| APPROVAL | STANDARD |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 1.1 |
| ORIFICE | 4.4 |
| A OVERALL LENGTH (MM) | 58.2 |
| B (MM) | 29.1 |
| REPLACEMENT HANDLE KIT | NZ-PLV4-HK-S |
| REPLACEMENT SEAL KIT | NZ-PLV4-SK-PF |
| REPLACEMENT PLUG KIT | NZ-PLV4-SS-PK-PF-S |
NH-PLV6-00-B-L-1/2-PFS
$466.29Attribute: NH-PLV6-00-B-L-1/2-PFS (08INS PL...)
Stock Status: True
| SERIES | PLV |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/2″ |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| O-RING SEAT MATERIAL | PTFE |
| HANDLE TYPE | BLACK NYLON |
| APPROVAL | STANDARD |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 4.4 |
| ORIFICE | 7.2 |
| A OVERALL LENGTH (MM) | 73.2 |
| B (MM) | 36.6 |
| REPLACEMENT HANDLE KIT | NZ-PLV6-HK-S |
| REPLACEMENT SEAL KIT | NZ-PLV6-SK-PF |
| REPLACEMENT PLUG KIT | NZ-PLV6-B-PK-PF-S |
NH-PLV6-00-B-L-3/8-PFS
$457.14Attribute: NH-PLV6-00-B-L-3/8-PFS (06INS PL...)
Stock Status: True
| SERIES | PLV |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 3/8″ |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| O-RING SEAT MATERIAL | PTFE |
| HANDLE TYPE | BLACK NYLON |
| APPROVAL | STANDARD |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 6.4 |
| ORIFICE | 7.2 |
| A OVERALL LENGTH (MM) | 67.6 |
| B (MM) | 33.8 |
| REPLACEMENT HANDLE KIT | NZ-PLV6-HK-S |
| REPLACEMENT SEAL KIT | NZ-PLV6-SK-PF |
| REPLACEMENT PLUG KIT | NZ-PLV6-B-PK-PF-S |
NH-PLV6-00-SS-L-1/2-PFS
$383.05Attribute: NH-PLV6-00-SS-L-1/2-PFS (08INS P...)
Stock Status: True
| SERIES | PLV |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/2″ |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| O-RING SEAT MATERIAL | PTFE |
| HANDLE TYPE | BLACK NYLON |
| APPROVAL | STANDARD |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 4.4 |
| ORIFICE | 7.2 |
| A OVERALL LENGTH (MM) | 73.2 |
| B (MM) | 36.6 |
| REPLACEMENT HANDLE KIT | NZ-PLV6-HK-S |
| REPLACEMENT SEAL KIT | NZ-PLV6-SK-PF |
| REPLACEMENT PLUG KIT | NZ-PLV6-SS-PK-PF-S |
NH-PLV6-00-SS-L-3/8-PFS
$350.89Attribute: NH-PLV6-00-SS-L-3/8-PFS (06INS P...)
Stock Status: True
| SERIES | PLV |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 3/8″ |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| O-RING SEAT MATERIAL | PTFE |
| HANDLE TYPE | BLACK NYLON |
| APPROVAL | STANDARD |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 6.4 |
| ORIFICE | 7.2 |
| A OVERALL LENGTH (MM) | 67.6 |
| B (MM) | 33.8 |
| REPLACEMENT HANDLE KIT | NZ-PLV6-HK-S |
| REPLACEMENT SEAL KIT | NZ-PLV6-SK-PF |
| REPLACEMENT PLUG KIT | NZ-PLV6-SS-PK-PF-S |
General Attributes
| Connections | Instrumentation |
|---|---|
| Shape | Straight |
