NH-995-HP

NH-995-HP-SS-NL-1/2-A

$687.24

Attribute: NH-995-HP-SS-NL-1/2-A (08MP-08IN...)

Stock Status: True

SERIES	H-995-HP
MAXIMUM WORKING PRESSURE	6000PSI
SERVICE PRESSURE	50-6000PSI
END CONNECTION	NPT / LET-LOK INS
MATERIAL	STAINLESS STEEL
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ LET-LOK INS
SPRING DESIGNATOR	A (WHITE)
NOMINAL CRACKING PRESSURE	50-350PSIG
SEAT MATERIAL	FLUOROCARBON FKM
CE/PED CERTIFICATION	STANDARD TESTING
TREATMENT	STANDARD
ORIFICE	6.4

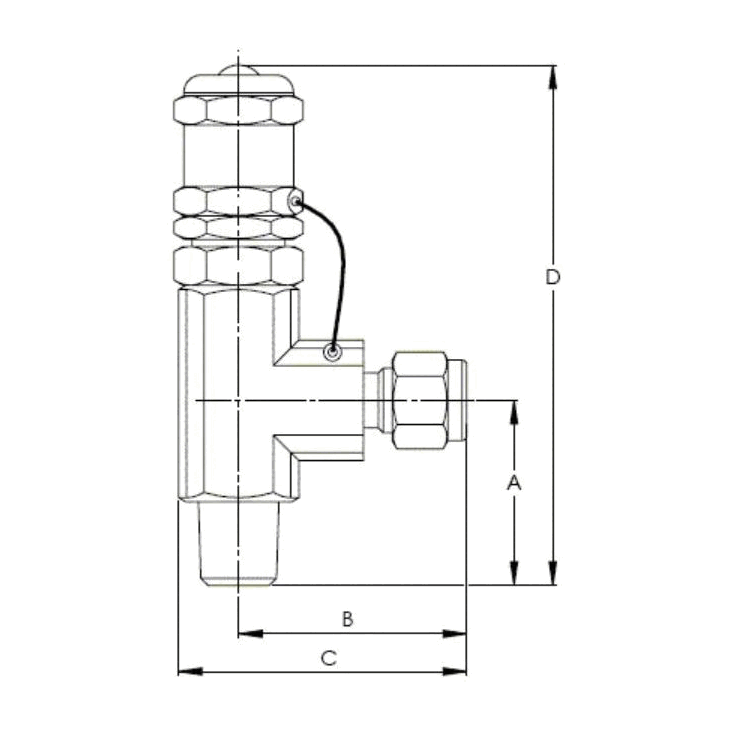

A (MM)	36.3
B (MM)	46.5
C (MM)	59.2
D (MM)	140.0
REPLACEMENT SPRING KIT	NZ-900-HP-SPK-1/2-A
REPLACEMENT SEAL KIT	NZ-900-HP-SK-1/2-VI

NH-995-HP-SS-NL-1/2-B

$682.63

Attribute: NH-995-HP-SS-NL-1/2-B (08MP-08IN...)

Stock Status: True

SERIES	H-995-HP
MAXIMUM WORKING PRESSURE	6000PSI
SERVICE PRESSURE	50-6000PSI
END CONNECTION	NPT / LET-LOK INS
MATERIAL	STAINLESS STEEL
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ LET-LOK INS
SPRING DESIGNATOR	B (BLUE)
NOMINAL CRACKING PRESSURE	350-750PSIG
SEAT MATERIAL	FLUOROCARBON FKM
CE/PED CERTIFICATION	STANDARD TESTING
TREATMENT	STANDARD
ORIFICE	6.4
A (MM)	36.3
B (MM)	46.5
C (MM)	59.2
D (MM)	140.0
REPLACEMENT SPRING KIT	NZ-900-HP-SPK-1/2-B
REPLACEMENT SEAL KIT	NZ-900-HP-SK-1/2-VI

NH-995-HP-SS-NL-1/2-C

$682.63

Attribute: NH-995-HP-SS-NL-1/2-C (08MP-08IN...)

Stock Status: True

SERIES	H-995-HP
MAXIMUM WORKING PRESSURE	6000PSI
SERVICE PRESSURE	50-6000PSI
END CONNECTION	NPT / LET-LOK INS
MATERIAL	STAINLESS STEEL
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ LET-LOK INS
SPRING DESIGNATOR	C (GOLD)
NOMINAL CRACKING PRESSURE	750-1500PSIG
SEAT MATERIAL	FLUOROCARBON FKM
CE/PED CERTIFICATION	STANDARD TESTING
TREATMENT	STANDARD
ORIFICE	6.4
A (MM)	36.3
B (MM)	46.5
C (MM)	59.2
D (MM)	140.0
REPLACEMENT SPRING KIT	NZ-900-HP-SPK-1/2-C
REPLACEMENT SEAL KIT	NZ-900-HP-SK-1/2-VI

NH-995-HP-SS-NL-1/4-A

$577.08

Attribute: NH-995-HP-SS-NL-1/4-A (04MP-04IN...)

Stock Status: True

SERIES	H-995-HP
MAXIMUM WORKING PRESSURE	6000PSI
SERVICE PRESSURE	50-6000PSI
END CONNECTION	NPT / LET-LOK INS
MATERIAL	STAINLESS STEEL
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
SPRING DESIGNATOR	A (WHITE)
NOMINAL CRACKING PRESSURE	50-350PSIG
SEAT MATERIAL	FLUOROCARBON FKM
CE/PED CERTIFICATION	STANDARD TESTING
TREATMENT	STANDARD
ORIFICE	3.6
A (MM)	32.0
B (MM)	39.0
C (MM)	50.0
D (MM)	88.6
REPLACEMENT SPRING KIT	NZ-900-HP-SPK-1/4-A
REPLACEMENT SEAL KIT	NZ-900-HP-SK-1/4-VI

NH-995-HP-SS-NL-1/4-A-EP

$661.71

Attribute: NH-995-HP-SS-NL-1/4-A-EP (04MP-0...)

Stock Status: True

SERIES	H-995-HP
MAXIMUM WORKING PRESSURE	6000PSI
SERVICE PRESSURE	50-6000PSI
END CONNECTION	NPT / LET-LOK INS
MATERIAL	STAINLESS STEEL
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
SPRING DESIGNATOR	A (WHITE)
NOMINAL CRACKING PRESSURE	50-350PSIG
SEAT MATERIAL	EPDM
CE/PED CERTIFICATION	STANDARD TESTING
TREATMENT	STANDARD
ORIFICE	3.6
A (MM)	32.0
B (MM)	39.0
C (MM)	50.0
D (MM)	88.6
REPLACEMENT SPRING KIT	NZ-900-HP-SPK-1/4-A
REPLACEMENT SEAL KIT	NZ-900-HP-SK-1/4-EP

NH-995-HP-SS-NL-1/4-B

$630.22

Attribute: NH-995-HP-SS-NL-1/4-B (04MP-04IN...)

Stock Status: True

SERIES	H-995-HP
MAXIMUM WORKING PRESSURE	6000PSI
SERVICE PRESSURE	50-6000PSI
END CONNECTION	NPT / LET-LOK INS
MATERIAL	STAINLESS STEEL
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
SPRING DESIGNATOR	B (BLUE)
NOMINAL CRACKING PRESSURE	350-750PSIG
SEAT MATERIAL	FLUOROCARBON FKM
CE/PED CERTIFICATION	STANDARD TESTING
TREATMENT	STANDARD
ORIFICE	3.6
A (MM)	32.0
B (MM)	39.0
C (MM)	50.0
D (MM)	88.6
REPLACEMENT SPRING KIT	NZ-900-HP-SPK-1/4-B
REPLACEMENT SEAL KIT	NZ-900-HP-SK-1/4-VI

NH-995-HP-SS-NL-1/4-C

$630.22

Attribute: NH-995-HP-SS-NL-1/4-C (04MP-04IN...)

Stock Status: True

SERIES	H-995-HP
MAXIMUM WORKING PRESSURE	6000PSI
SERVICE PRESSURE	50-6000PSI
END CONNECTION	NPT / LET-LOK INS
MATERIAL	STAINLESS STEEL
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
SPRING DESIGNATOR	C (GOLD)
NOMINAL CRACKING PRESSURE	750-1500PSIG
SEAT MATERIAL	FLUOROCARBON FKM
CE/PED CERTIFICATION	STANDARD TESTING
TREATMENT	STANDARD
ORIFICE	3.6
A (MM)	32.0
B (MM)	39.0
C (MM)	50.0
D (MM)	88.6
REPLACEMENT SPRING KIT	NZ-900-HP-SPK-1/4-C
REPLACEMENT SEAL KIT	NZ-900-HP-SK-1/4-VI

NH-995-HP-SS-NL-1/4-D

$630.22

Attribute: NH-995-HP-SS-NL-1/4-D (04MP-04IN...)

Stock Status: True

SERIES	H-995-HP
MAXIMUM WORKING PRESSURE	6000PSI
SERVICE PRESSURE	50-6000PSI
END CONNECTION	NPT / LET-LOK INS
MATERIAL	STAINLESS STEEL
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
SPRING DESIGNATOR	D (TURQUOISE)
NOMINAL CRACKING PRESSURE	1500-2250PSIG
SEAT MATERIAL	FLUOROCARBON FKM
CE/PED CERTIFICATION	STANDARD TESTING
TREATMENT	STANDARD
ORIFICE	3.6
A (MM)	32.0
B (MM)	39.0
C (MM)	50.0
D (MM)	88.6
REPLACEMENT SPRING KIT	NZ-900-HP-SPK-1/4-D
REPLACEMENT SEAL KIT	NZ-900-HP-SK-1/4-VI

NH-995-HP-SS-NL-1/4-E

$577.08

Attribute: NH-995-HP-SS-NL-1/4-E (04MP-04IN...)

Stock Status: True

SERIES	H-995-HP
MAXIMUM WORKING PRESSURE	6000PSI
SERVICE PRESSURE	50-6000PSI
END CONNECTION	NPT / LET-LOK INS
MATERIAL	STAINLESS STEEL
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
SPRING DESIGNATOR	E (GREEN)
NOMINAL CRACKING PRESSURE	2250-3000PSIG
SEAT MATERIAL	FLUOROCARBON FKM
CE/PED CERTIFICATION	STANDARD TESTING
TREATMENT	STANDARD
ORIFICE	3.6
A (MM)	32.0
B (MM)	39.0
C (MM)	50.0
D (MM)	88.6
REPLACEMENT SPRING KIT	NZ-900-HP-SPK-1/4-E
REPLACEMENT SEAL KIT	NZ-900-HP-SK-1/4-VI

NH-995-HP-SS-NL-1/4-F

$630.22

Attribute: NH-995-HP-SS-NL-1/4-F (04MP-04IN...)

Stock Status: True

SERIES	H-995-HP
MAXIMUM WORKING PRESSURE	6000PSI
SERVICE PRESSURE	50-6000PSI
END CONNECTION	NPT / LET-LOK INS
MATERIAL	STAINLESS STEEL
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
SPRING DESIGNATOR	F (RED)
NOMINAL CRACKING PRESSURE	3000-4000PSIG
SEAT MATERIAL	FLUOROCARBON FKM
CE/PED CERTIFICATION	STANDARD TESTING
TREATMENT	STANDARD
ORIFICE	3.6
A (MM)	32.0
B (MM)	39.0
C (MM)	50.0
D (MM)	88.6
REPLACEMENT SPRING KIT	NZ-900-HP-SPK-1/4-F
REPLACEMENT SEAL KIT	NZ-900-HP-SK-1/4-VI

NH-995-HP-SS-NL-1/4-G

$577.08

Attribute: NH-995-HP-SS-NL-1/4-G (04MP-04IN...)

Stock Status: True

SERIES	H-995-HP
MAXIMUM WORKING PRESSURE	6000PSI
SERVICE PRESSURE	50-6000PSI
END CONNECTION	NPT / LET-LOK INS
MATERIAL	STAINLESS STEEL
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
SPRING DESIGNATOR	G (SILVER)
NOMINAL CRACKING PRESSURE	4000-5000PSIG
SEAT MATERIAL	FLUOROCARBON FKM
CE/PED CERTIFICATION	STANDARD TESTING
TREATMENT	STANDARD
ORIFICE	3.6
A (MM)	32.0
B (MM)	39.0
C (MM)	50.0
D (MM)	88.6
REPLACEMENT SPRING KIT	NZ-900-HP-SPK-1/4-G
REPLACEMENT SEAL KIT	NZ-900-HP-SK-1/4-VI

NH-995-HP-SS-NL-1/4-H

$630.22

Attribute: NH-995-HP-SS-NL-1/4-H (04MP-04IN...)

Stock Status: True

SERIES	H-995-HP
MAXIMUM WORKING PRESSURE	6000PSI
SERVICE PRESSURE	50-6000PSI
END CONNECTION	NPT / LET-LOK INS
MATERIAL	STAINLESS STEEL
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
SPRING DESIGNATOR	H (BLACK)
NOMINAL CRACKING PRESSURE	5000-6000PSIG
SEAT MATERIAL	FLUOROCARBON FKM
CE/PED CERTIFICATION	STANDARD TESTING
TREATMENT	STANDARD
ORIFICE	3.6
A (MM)	32.0
B (MM)	39.0
C (MM)	50.0
D (MM)	88.6
REPLACEMENT SPRING KIT	NZ-900-HP-SPK-1/4-H
REPLACEMENT SEAL KIT	NZ-900-HP-SK-1/4-VI

Connections	NPT, Other
Shape	Elbow

ID	10139848
Category	Instrumentation Valves

Description

Description

Variations (12)

NH-995-HP-SS-NL-1/2-A

NH-995-HP-SS-NL-1/2-B

NH-995-HP-SS-NL-1/2-C

NH-995-HP-SS-NL-1/4-A

NH-995-HP-SS-NL-1/4-A-EP

NH-995-HP-SS-NL-1/4-B

NH-995-HP-SS-NL-1/4-C

NH-995-HP-SS-NL-1/4-D

NH-995-HP-SS-NL-1/4-E

NH-995-HP-SS-NL-1/4-F

NH-995-HP-SS-NL-1/4-G

NH-995-HP-SS-NL-1/4-H
