NH-995

Attribute: NH-995-SS-NL-1/2-SL (08MP-08INS-...)

Stock Status: True

SERIES	H-995
MAXIMUM WORKING PRESSURE	300PSI
SERVICE PRESSURE	10-225PSI
END CONNECTION	NPT / LET-LOK INS
MATERIAL	STAINLESS STEEL
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTOIN (2)	1/2″ LET-LOK INS
SPRING DESIGNATOR	SL (SILVER)
NOMINAL CRACKING PRESSURE	10-225PSI
SEAT MATERIAL	FLUOROCARBON FKM
CE/PED CERTIFICATION	STANDARD TESTING
TREATMENT	STANDARD
ORIFICE	6.4

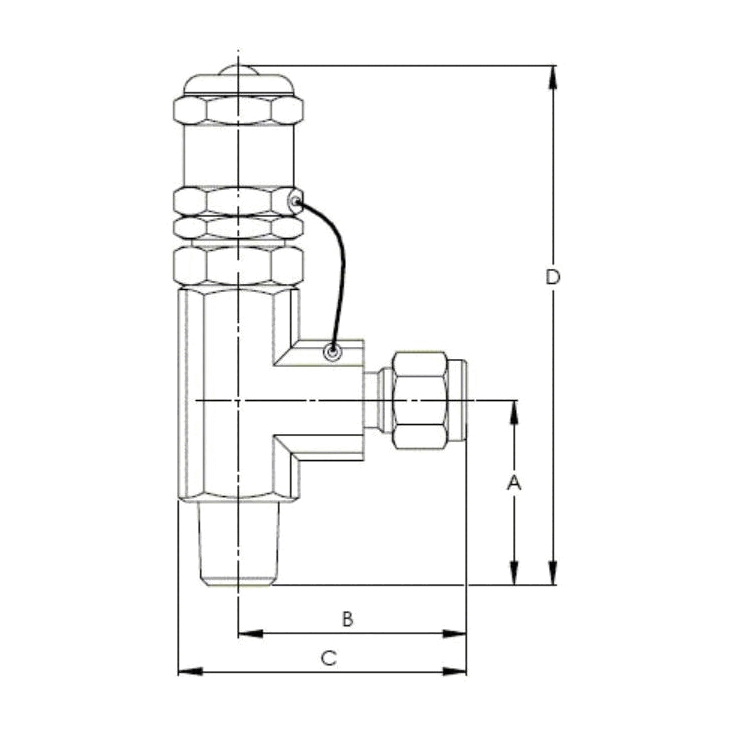

A (MM)	36.3
B (MM)	46.5
C (MM)	59.2
D (MM)	140.0
REPLACEMENT SPRING KIT	NZ-900-SPK-1/2
REPLACEMENT SEAL KIT	NZ-900-SK-1/2-VI

Attribute: NH-995-SS-NL-1/4-SL (04MP-04INS-...)

Stock Status: True

SERIES	H-995
MAXIMUM WORKING PRESSURE	300PSI
SERVICE PRESSURE	10-225PSI
END CONNECTION	NPT / LET-LOK INS
MATERIAL	STAINLESS STEEL
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTOIN (2)	1/4″ LET-LOK INS
SPRING DESIGNATOR	SL (SILVER)
NOMINAL CRACKING PRESSURE	10-225PSI
SEAT MATERIAL	FLUOROCARBON FKM
CE/PED CERTIFICATION	STANDARD TESTING
TREATMENT	STANDARD
ORIFICE	4.8
A (MM)	32.0
B (MM)	39.0
C (MM)	50.0
D (MM)	88.6
REPLACEMENT SPRING KIT	NZ-900-SPK-1/4
REPLACEMENT SEAL KIT	NZ-900-SK-1/4-VI
