Description
MP-FP-SCREWED BONNET NEEDLE VAVLE. STRAIGHT FLOW
Description
Variations (2)
NH-99M-85-SS-N-R-1/2
$515.99Attribute: NH-99M-85-SS-N-R-1/2 (08MP-08FP-...)
Stock Status: True
| SERIES | H-99-85 |
|---|---|
| MAX WORKING PRESSURE | 10,000PSI |
| MAX WORKING TEMPERATURE | 1,112 DEGREES F |
| BODY RAW MATERIAL | INVESTMENT CASTING |
| STRUCTURE | MOUNTABLE |
| VALVE TYPE | MALE TO FEMALE ENDS |
| MATERIAL | STAINLESS STEEL |
| END CONNECTION TYPE | NPT |
| STEM | REGULATING STEM |
| INLET CONNECTION (1) | 1/2″ MALE NPT |
| OUTLET CONNECTION (2) | 1/2″ FEMALE NPT |
| PACKING | PTFE |
| TREATMENT | STANDARD |
| HANDLE TYPE | METAL BAR (316SS) |
| ORIFICE | 6.0 |

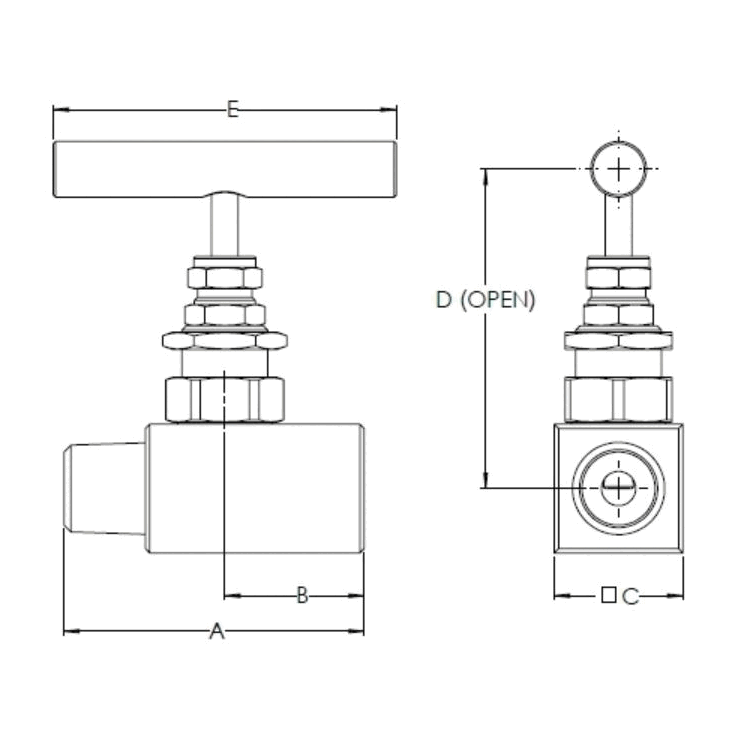

| A (MM) | 70.0 |
| B (MM) | 32.5 |
| C (MM) | 30.0 |
| D (MM) | 87.0 |
| E (MM) | 60.0 |
| PANEL HOLE (MM) | 25.0 |
| MAX PANEL THICKNESS (MM) | 6.35 |
| REPLACEMENT SEAL KIT | NZ-99-SK-1/2-PT |
NH-99M-85-SS-N-V-1/2
$457.90Attribute: NH-99M-85-SS-N-V-1/2 (08MP-08FP-...)
Stock Status: True
| SERIES | H-99-85 |
|---|---|
| MAX WORKING PRESSURE | 10,000PSI |
| MAX WORKING TEMPERATURE | 1,112 DEGREES F |
| BODY RAW MATERIAL | INVESTMENT CASTING |
| STRUCTURE | MOUNTABLE |
| VALVE TYPE | MALE TO FEMALE ENDS |
| MATERIAL | STAINLESS STEEL |
| END CONNECTION TYPE | NPT |
| STEM | V STEM |
| INLET CONNECTION (1) | 1/2″ MALE NPT |
| OUTLET CONNECTION (2) | 1/2″ FEMALE NPT |
| PACKING | PTFE |
| TREATMENT | STANDARD |
| HANDLE TYPE | METAL BAR (316SS) |
| ORIFICE | 6.0 |
| A (MM) | 70.0 |
| B (MM) | 32.5 |
| C (MM) | 30.0 |
| D (MM) | 87.0 |
| E (MM) | 60.0 |
| PANEL HOLE (MM) | 25.0 |
| MAX PANEL THICKNESS (MM) | 6.35 |
| REPLACEMENT SEAL KIT | NZ-99-SK-1/2-PT |
General Attributes
| Connections | NPT, Other |
|---|---|
| Shape | Straight |
