Description
FBSPT-FBSPT-SCREWED BONNET NEEDLE VAVLE. STRAIGHT FLOW
Description
Variations (2)
NH-99L-10-SS-R-V-3/4
$559.78Attribute: NH-99L-10-SS-R-V-3/4 (12FBSPTS-1...)
Stock Status: True
| SERIES | H-99-10 |
|---|---|
| MAX WORKING PRESSURE | 10,000PSI |
| MAX WORKING TEMPERATURE | 1,112 DEGREES F |
| BODY RAW MATERIAL | INVESTMENT CASTING |
| STRUCTURE | STANDARD |
| VALVE TYPE | FEMALE BSPT |
| MATERIAL | STAINLESS STEEL |
| END CONNECTION TYPE | FEMALE BSPT |
| STEM | V STEM |
| INLET CONNECTION (1) | 3/4″ FEMALE BSPT |
| OUTLET CONNECTION (2) | 3/4″ FEMALE BSPT |
| PACKING | PTFE |
| TREATMENT | STANDARD |
| HANDLE TYPE | METAL BAR (316SS) |
| ORIFICE | 6.0 |

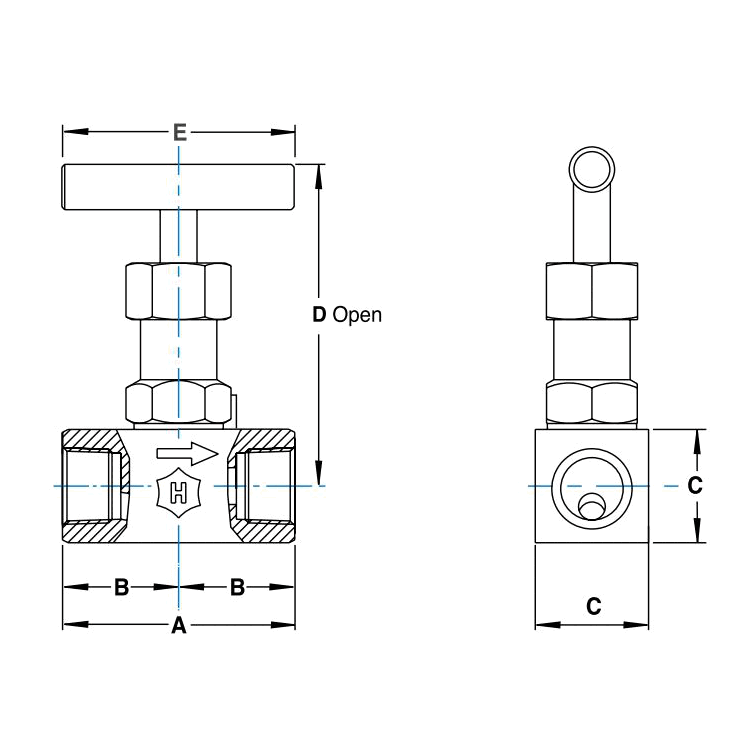

| A (MM) | 70.0 |
| B (MM) | 35.0 |
| C (MM) | 35.0 |
| D (MM) | 90.0 |
| E (MM) | 60.0 |
| REPLACEMENT SEAL KIT | NZ-99-SK-1/2-PT |
NH-99M-10-SS-R-V-1/2
$428.76Attribute: NH-99M-10-SS-R-V-1/2 (08BSPT-08F...)
Stock Status: True
| SERIES | H-99-10 |
|---|---|
| MAX WORKING PRESSURE | 10,000PSI |
| MAX WORKING TEMPERATURE | 1,112 DEGREES F |
| BODY RAW MATERIAL | INVESTMENT CASTING |
| STRUCTURE | MOUNTABLE |
| VALVE TYPE | FEMALE BSPT |
| MATERIAL | STAINLESS STEEL |
| END CONNECTION TYPE | FEMALE BSPT |
| STEM | V STEM |
| INLET CONNECTION (1) | 1/2″ FEMALE BSPT |
| OUTLET CONNECTION (2) | 1/2″ FEMALE BSPT |
| PACKING | PTFE |
| TREATMENT | STANDARD |
| HANDLE TYPE | METAL BAR (316SS) |
| ORIFICE | 6.0 |
| A (MM) | 65.0 |
| B (MM) | 32.5 |
| C (MM) | 30.0 |
| D (MM) | 87.0 |
| E (MM) | 60.0 |
| PANEL HOLE (MM) | 25.0 |
| MAX PANEL THICKNESS (MM) | 6.35 |
| REPLACEMENT SEAL KIT | NZ-99-SK-1/2-PT |
General Attributes
| Connections | BSP, Other |
|---|---|
| Shape | Straight |
