NH-99-10

NH-99L-10-SS-N-NR-3/4

$597.81

Attribute: NH-99L-10-SS-N-NR-3/4 (12FP-12FP...)

Stock Status: True

SERIES	H-99-10
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	STANDARD
VALVE TYPE	FEMALE NPT
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	FEMALE NPT
STEM	NON-ROTATING STEM
INLET CONNECTION (1)	3/4″ FEMALE NPT
OUTLET CONNECTION (2)	3/4″ FEMALE NPT
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	6.0

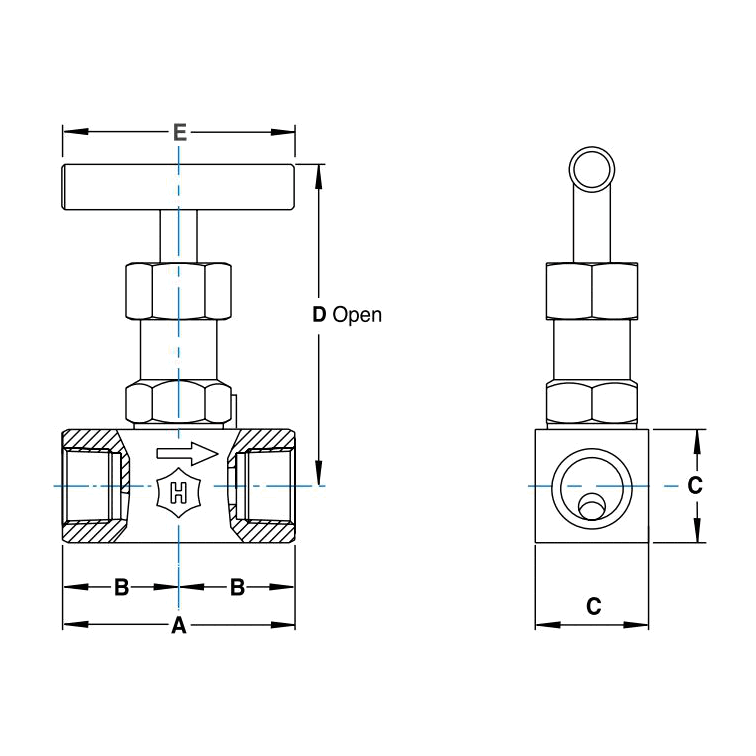

A (MM)	70.0
B (MM)	35.0
C (MM)	35.0
D (MM)	90.0
E (MM)	60.0
REPLACEMENT SEAL KIT	NZ-99-SK-1/2-PT

NH-99L-10-SS-N-R-3/4

$543.49

Attribute: NH-99L-10-SS-N-R-3/4 (12FP-12FP-...)

Stock Status: True

SERIES	H-99-10
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	STANDARD
VALVE TYPE	FEMALE NPT
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	FEMALE NPT
STEM	REGULATING STEM
INLET CONNECTION (1)	3/4″ FEMALE NPT
OUTLET CONNECTION (2)	3/4″ FEMALE NPT
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	6.0
A (MM)	70.0
B (MM)	35.0
C (MM)	35.0
D (MM)	90.0
E (MM)	60.0
REPLACEMENT SEAL KIT	NZ-99-SK-1/2-PT

NH-99L-10-SS-N-V-3/4

$543.49

Attribute: NH-99L-10-SS-N-V-3/4 (12FP-12FP-...)

Stock Status: True

SERIES	H-99-10
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	STANDARD
VALVE TYPE	FEMALE NPT
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	FEMALE NPT
STEM	V STEM
INLET CONNECTION (1)	3/4″ FEMALE NPT
OUTLET CONNECTION (2)	3/4″ FEMALE NPT
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	6.0
A (MM)	70.0
B (MM)	35.0
C (MM)	35.0
D (MM)	90.0
E (MM)	60.0
REPLACEMENT SEAL KIT	NZ-99-SK-1/2-PT

NH-99M-10-SS-N-R-1/2

$416.29

Attribute: NH-99M-10-SS-N-R-1/2 (08FP-08FP-...)

Stock Status: True

SERIES	H-99-10
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	MOUNTABLE
VALVE TYPE	FEMALE NPT
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	FEMALE NPT
STEM	REGULATING STEM
INLET CONNECTION (1)	1/2″ FEMALE NPT
OUTLET CONNECTION (2)	1/2″ FEMALE NPT
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	6.0
A (MM)	65.0
B (MM)	32.5
C (MM)	30.0
D (MM)	87.0
E (MM)	60.0
PANEL HOLE (MM)	25.0
MAX PANEL THICKNESS (MM)	6.35
REPLACEMENT SEAL KIT	NZ-99-SK-1/2-PT

NH-99M-10-SS-N-V-1/2

$399.27

Attribute: NH-99M-10-SS-N-V-1/2 (08FP-08FP-...)

Stock Status: True

SERIES	H-99-10
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	MOUNTABLE
VALVE TYPE	FEMALE NPT
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	FEMALE NPT
STEM	V STEM
INLET CONNECTION (1)	1/2″ FEMALE NPT
OUTLET CONNECTION (2)	1/2″ FEMALE NPT
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	6.0
A (MM)	65.0
B (MM)	32.5
C (MM)	30.0
D (MM)	87.0
E (MM)	60.0
PANEL HOLE (MM)	25.0
MAX PANEL THICKNESS (MM)	6.35
REPLACEMENT SEAL KIT	NZ-99-SK-1/2-PT

NH-99S-10-SS-N-NR-1/4

$430.00

Attribute: NH-99S-10-SS-N-NR-1/4 (04FP-04FP...)

Stock Status: True

SERIES	H-99-10
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	STANDARD
VALVE TYPE	FEMALE NPT
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	FEMALE NPT
STEM	NON-ROTATING STEM
INLET CONNECTION (1)	1/4″ FEMALE NPT
OUTLET CONNECTION (2)	1/4″ FEMALE NPT
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	5.0
A (MM)	58.0
B (MM)	29.0
C (MM)	25.0
D (MM)	75.0
E (MM)	50.0
REPLACEMENT SEAL KIT	NZ-99-SK-1/4-PT

NH-99S-10-SS-N-NR-3/8

$442.86

Attribute: NH-99S-10-SS-N-NR-3/8 (06FP-06FP...)

Stock Status: True

SERIES	H-99-10
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	STANDARD
VALVE TYPE	FEMALE NPT
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	FEMALE NPT
STEM	NON-ROTATING STEM
INLET CONNECTION (1)	3/8″ FEMALE NPT
OUTLET CONNECTION (2)	3/8″ FEMALE NPT
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	5.0
A (MM)	58.0
B (MM)	29.0
C (MM)	25.0
D (MM)	75.0
E (MM)	50.0
REPLACEMENT SEAL KIT	NZ-99-SK-1/4-PT

NH-99S-10-SS-N-R-1/4

$390.89

Attribute: NH-99S-10-SS-N-R-1/4 (04FP-04FP-...)

Stock Status: True

SERIES	H-99-10
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	STANDARD
VALVE TYPE	FEMALE NPT
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	FEMALE NPT
STEM	REGULATING STEM
INLET CONNECTION (1)	1/4″ FEMALE NPT
OUTLET CONNECTION (2)	1/4″ FEMALE NPT
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	5.0
A (MM)	58.0
B (MM)	29.0
C (MM)	25.0
D (MM)	75.0
E (MM)	50.0
REPLACEMENT SEAL KIT	NZ-99-SK-1/4-PT

NH-99S-10-SS-N-R-1/8

$410.44

Attribute: NH-99S-10-SS-N-R-1/8 (02FP-02FP-...)

Stock Status: True

SERIES	H-99-10
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	STANDARD
VALVE TYPE	FEMALE NPT
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	FEMALE NPT
STEM	REGULATING STEM
INLET CONNECTION (1)	1/8″ FEMALE NPT
OUTLET CONNECTION (2)	1/8″ FEAMLE NPT
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	5.
A (MM)	58.0
B (MM)	29.0
C (MM)	25.0
D (MM)	75.0
E (MM)	50.0
REPLACEMENT SEAL KIT	NZ-99-SK-1/4-PT

NH-99S-10-SS-N-R-3/8

$350.31

Attribute: NH-99S-10-SS-N-R-3/8 (06FP-06FP-...)

Stock Status: True

SERIES	H-99-10
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	STANDARD
VALVE TYPE	FEMALE NPT
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	FEMALE NPT
STEM	REGULATING STEM
INLET CONNECTION (1)	3/8″ FEMALE NPT
OUTLET CONNECTION (2)	3/8″ FEMALE NPT
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	5.0
A (MM)	58.0
B (MM)	29.0
C (MM)	25.0
D (MM)	75.0
E (MM)	50.0
REPLACEMENT SEAL KIT	NZ-99-SK-1/4-PT

NH-99S-10-SS-N-V-1/4

$401.14

Attribute: NH-99S-10-SS-N-V-1/4 (04FP-04FP-...)

Stock Status: True

SERIES	H-99-10
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	STANDARD
VALVE TYPE	FEMALE NPT
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	FEMALE NPT
STEM	V STEM
INLET CONNECTION (1)	1/4″ FEMALE NPT
OUTLET CONNECTION (2)	1/4″ FEMALE NPT
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	5.0
A (MM)	58.0
B (MM)	29.0
C (MM)	25.0
D (MM)	75.0
E (MM)	50.0
REPLACEMENT SEAL KIT	NZ-99-SK-1/4-PT

NH-99S-10-SS-N-V-1/8

$410.44

Attribute: NH-99S-10-SS-N-V-1/8 (02FP-02FP-...)

Stock Status: True

SERIES	H-99-10
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	STANDARD
VALVE TYPE	FEMALE NPT
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	FEMALE NPT
STEM	V STEM
INLET CONNECTION (1)	1/8″ FEMALE NPT
OUTLET CONNECTION (2)	1/8″ FEMALE NPT
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	5.0
A (MM)	58.0
B (MM)	29.0
C (MM)	25.0
D (MM)	75.0
E (MM)	50.0
REPLACEMENT SEAL KIT	NZ-99-SK-1/4-PT

NH-99S-10-SS-N-V-3/8

$386.22

Attribute: NH-99S-10-SS-N-V-3/8 (06FP-06FP-...)

Stock Status: True

SERIES	H-99-10
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	STANDARD
VALVE TYPE	FEMALE NPT
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	FEMALE NPT
STEM	V STEM
INLET CONNECTION (1)	3/8″ FEMALE NPT
OUTLET CONNECTION (2)	3/8″ FEMALE NPT
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	5.0
A (MM)	58.0
B (MM)	29.0
C (MM)	25.0
D (MM)	75.0
E (MM)	50.0
REPLACEMENT SEAL KIT	NZ-99-SK-1/4-PT

Connections	NPT, Other
Shape	Straight

ID	10139817
Category	Instrumentation Valves

Description

Description

Variations (13)

NH-99L-10-SS-N-NR-3/4

NH-99L-10-SS-N-R-3/4

NH-99L-10-SS-N-V-3/4

NH-99M-10-SS-N-R-1/2

NH-99M-10-SS-N-V-1/2

NH-99S-10-SS-N-NR-1/4

NH-99S-10-SS-N-NR-3/8

NH-99S-10-SS-N-R-1/4

NH-99S-10-SS-N-R-1/8

NH-99S-10-SS-N-R-3/8

NH-99S-10-SS-N-V-1/4

NH-99S-10-SS-N-V-1/8

NH-99S-10-SS-N-V-3/8
