NH-99

NH-99L-00-SS-L-NR-1

$917.78

Attribute: NH-99L-00-SS-L-NR-1 (16INS-16INS...)

Stock Status: True

SERIES	H-99
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	STANDARD
VALVE TYPE	LET-LOK INS
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	LET-LOK INS
STEM	NON-ROTATING STEM
INLET CONNECTION (1)	1″ LET-LOK INS
OUTLET CONNECTION (2)	1″ LET-LOK INS
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
REPLACEMENT SEAL KIT	NZ-99-SK-1-PT

NH-99L-00-SS-L-V-1

$834.35

Attribute: NH-99L-00-SS-L-V-1 (16INS-16INS-...)

Stock Status: True

SERIES	H-99
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	STANDARD
VALVE TYPE	LET-LOK INS
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	LET-LOK INS
STEM	V STEM
INLET CONNECTION (1)	1″ LET-LOK INS
OUTLET CONNECTION (2)	1″ LET-LOK INS
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
REPLACEMENT SEAL KIT	NZ-99-SK-1-PT

NH-99M-00-SS-L-NR-3/4

$749.90

Attribute: NH-99M-00-SS-L-NR-3/4 (12INS-12I...)

Stock Status: True

SERIES	H-99
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	MOUNTABLE
VALVE TYPE	LET-LOK INS
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	LET-LOK INS
STEM	NON-ROTATING STEM
INLET CONNECTION (1)	3/4″ LET-LOK INS
OUTLET CONNECTION (2)	3/4″ LET-LOK INS
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	6.0

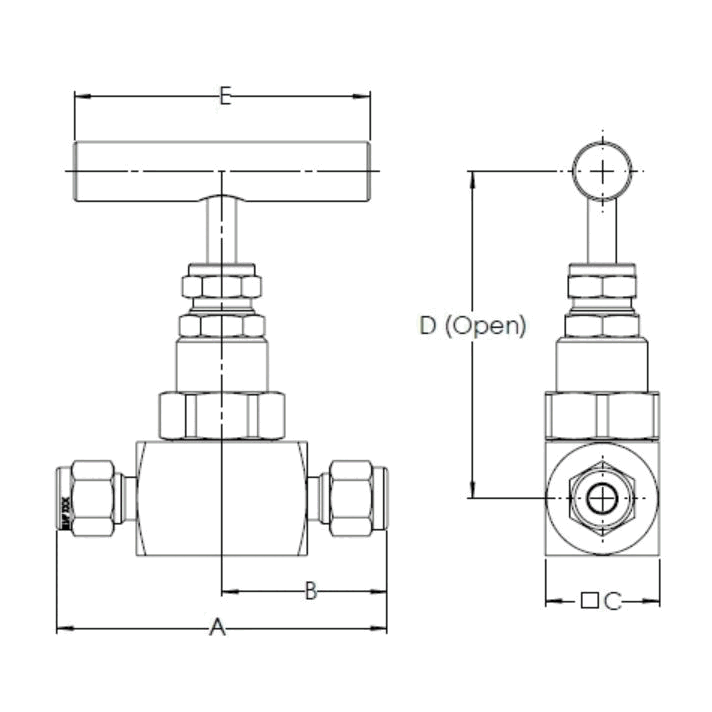

A (MM)	85.3
B (MM)	42.7
C (MM)	30.0
D (MM)	87.0
E (MM)	60.0
PANEL HOLE (MM)	25.0
MAX PANEL THICKNESS (MM)	6.35
REPLACEMENT SEAL KIT	NZ-99-SK-1/2-PT

NH-99M-00-SS-L-R-3/4

$681.71

Attribute: NH-99M-00-SS-L-R-3/4 (12INS-12IN...)

Stock Status: True

SERIES	H-99
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	MOUNTABLE
VALVE TYPE	LET-LOK INS
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	LET-LOK INS
STEM	REGULATING STEM
INLET CONNECTION (1)	3/4″ LET-LOK INS
OUTLET CONNECTION (2)	3/4″ LET-LOK INS
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	6.0
A (MM)	85.3
B (MM)	42.7
C (MM)	30.0
D (MM)	87.0
E (MM)	60.0
PANEL HOLE (MM)	25.0
MAX PANEL THICKNESS (MM)	6.35
REPLACEMENT SEAL KIT	NZ-99-SK-1/2-PT

NH-99M-00-SS-L-V-3/4

$653.97

Attribute: NH-99M-00-SS-L-V-3/4 (12INS-12IN...)

Stock Status: True

SERIES	H-99
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	MOUNTABLE
VALVE TYPE	LET-LOK INS
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	LET-LOK INS
STEM	V STEM
INLET CONNECTION (1)	3/4″ LET-LOK INS
OUTLET CONNECTION (2)	3/4″ LET-LOK INS
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	6.0
A (MM)	85.3
B (MM)	42.7
C (MM)	30.0
D (MM)	87.0
E (MM)	60.0
PANEL HOLE (MM)	25.0
MAX PANEL THICKNESS (MM)	6.35
REPLACEMENT SEAL KIT	NZ-99-SK-1/2-PT

NH-99S-00-SS-L-NR-1/2

$572.98

Attribute: NH-99S-00-SS-L-NR-1/2 (08INS-08I...)

Stock Status: True

SERIES	H-99
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	STANDARD
VALVE TYPE	LET-LOK INS
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	LET-LOK INS
STEM	NON-ROTATING STEM
INLET CONNECTION (1)	1/2″ LET-LOK INS
OUTLET CONNECTION (2)	1/2″ LET-LOK INS
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	5.0
A (MM)	78.3
B (MM)	39.2
C (MM)	25.0
D (MM)	75.0
E (MM)	50.0
REPLACEMENT SEAL KIT	NZ-99-SK-1/2-PT

NH-99S-00-SS-L-NR-1/4

$545.71

Attribute: NH-99S-00-SS-L-NR-1/4 (04INS-04I...)

Stock Status: True

SERIES	H-99
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	STANDARD
VALVE TYPE	LET-LOK INS
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	LET-LOK INS
STEM	NON-ROTATING STEM
INLET CONNECTION (1)	1/4″ LET-LOK INS
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	5.0
A (MM)	72.7
B (MM)	36.4
C (MM)	25.0
D (MM)	75.0
E (MM)	50.0
REPLACEMENT SEAL KIT	NZ-99-SK-1/4-PT

NH-99S-00-SS-L-R-1/2

$512.20

Attribute: NH-99S-00-SS-L-R-1/2 (08INS-08IN...)

Stock Status: True

SERIES	H-99
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	STANDARD
VALVE TYPE	LET-LOK INS
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	LET-LOK INS
STEM	REGULATING STEM
INLET CONNECTION (1)	1/2″ LET-LOK INS
OUTLET CONNECTION (2)	1/2″ LET-LOK INS
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	5.0
A (MM)	78.3
B (MM)	39.2
C (MM)	25.0
D (MM)	75.0
E (MM)	50.0
REPLACEMENT SEAL KIT	NZ-99-SK-1/2-PT

NH-99S-00-SS-L-R-1/4

$496.13

Attribute: NH-99S-00-SS-L-R-1/4 (04INS-04IN...)

Stock Status: True

SERIES	H-99
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	STANDARD
VALVE TYPE	LET-LOK INS
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	LET-LOK INS
STEM	REGULATING STEM
INLET CONNECTION (1)	1/4″ LET-LOK INS
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	5.0
A (MM)	72.7
B (MM)	36.4
C (MM)	25.0
D (MM)	75.0
E (MM)	50.0
REPLACEMENT SEAL KIT	NZ-99-SK-1/4-PT

NH-99S-00-SS-L-R-3/8

$510.95

Attribute: NH-99S-00-SS-L-R-3/8 (06INS-06IN...)

Stock Status: True

SERIES	H-99
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	STANDARD
VALVE TYPE	LET-LOK INS
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	LET-LOK INS
STEM	REGULATING STEM
INLET CONNECTION (1)	3/8″ LET-LOK INS
OUTLET CONNECTION (2)	3/8″ LET-LOK INS
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	5.0
A (MM)	72.7
B (MM)	36.4
C (MM)	25.0
D (MM)	75.0
E (MM)	50.0
REPLACEMENT SEAL KIT	NZ-99-SK-1/4-PT

NH-99S-00-SS-L-V-1/2

$534.73

Attribute: NH-99S-00-SS-L-V-1/2 (08INS-08IN...)

Stock Status: True

SERIES	H-99
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	STANDARD
VALVE TYPE	LET-LOK INS
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	LET-LOK INS
STEM	V STEM
INLET CONNECTION (1)	1/2″ LET-LOK INS
OUTLET CONNECTION (2)	1/2″ LET-LOK INS
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	5.0
A (MM)	78.3
B (MM)	39.2
C (MM)	25.0
D (MM)	75.0
E (MM)	50.0
REPLACEMENT SEAL KIT	NZ-99-SK-1/2-PT

NH-99S-00-SS-L-V-1/4

$509.27

Attribute: NH-99S-00-SS-L-V-1/4 (04INS-04IN...)

Stock Status: True

SERIES	H-99
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	STANDARD
VALVE TYPE	LET-LOK INS
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	LET-LOK INS
STEM	V STEM
INLET CONNECTION (1)	1/4″ LET-LOK INS
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	5.0
A (MM)	72.7
B (MM)	36.4
C (MM)	25.0
D (MM)	75.0
E (MM)	50.0
REPLACEMENT SEAL KIT	NZ-99-SK-1/4-PT

NH-99S-00-SS-L-V-3/8

$490.16

Attribute: NH-99S-00-SS-L-V-3/8 (06INS-06IN...)

Stock Status: True

SERIES	H-99
MAX WORKING PRESSURE	10,000PSI
MAX WORKING TEMPERATURE	1,112 DEGREES F
BODY RAW MATERIAL	INVESTMENT CASTING
STRUCTURE	STANDARD
VALVE TYPE	LET-LOK INS
MATERIAL	STAINLESS STEEL
END CONNECTION TYPE	LET-LOK INS
STEM	V STEM
INLET CONNECTION (1)	3/8″ LET-LOK INS
OUTLET CONNECTION (2)	3/8″ LET-LOK INS
PACKING	PTFE
TREATMENT	STANDARD
HANDLE TYPE	METAL BAR (316SS)
ORIFICE	5.0
A (MM)	72.7
B (MM)	36.4
C (MM)	25.0
D (MM)	75.0
E (MM)	50.0
REPLACEMENT SEAL KIT	NZ-99-SK-1/4-PT

Connections	Instrumentation
Shape	Straight

ID	10139801
Category	Instrumentation Valves

Description

Description

Variations (13)

NH-99L-00-SS-L-NR-1

NH-99L-00-SS-L-V-1

NH-99M-00-SS-L-NR-3/4

NH-99M-00-SS-L-R-3/4

NH-99M-00-SS-L-V-3/4

NH-99S-00-SS-L-NR-1/2

NH-99S-00-SS-L-NR-1/4

NH-99S-00-SS-L-R-1/2

NH-99S-00-SS-L-R-1/4

NH-99S-00-SS-L-R-3/8

NH-99S-00-SS-L-V-1/2

NH-99S-00-SS-L-V-1/4

NH-99S-00-SS-L-V-3/8
