Description
MP-FP-HIGH PRESSURE RELIEVE VALVE 90 DEGREE FLOW
Description
Variations (11)
NH-985-HP-SS-N-1/2-A
$1,034.67Attribute: NH-985-HP-SS-N-1/2-A (08MP-08FP-...)
Stock Status: True
| SERIES | H-985-HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| SERVICE PRESSURE | 50-6000PSI |
| END CONNECTION | NPT |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/2″ MALE NPT |
| OUTLET CONNECTION (2) | 1/2″ FEMALE NPT |
| SPRING DESIGNATOR | A (WHITE) |
| NOMINAL CRACKING PRESSURE | 50-350PSIG |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 6.4 |

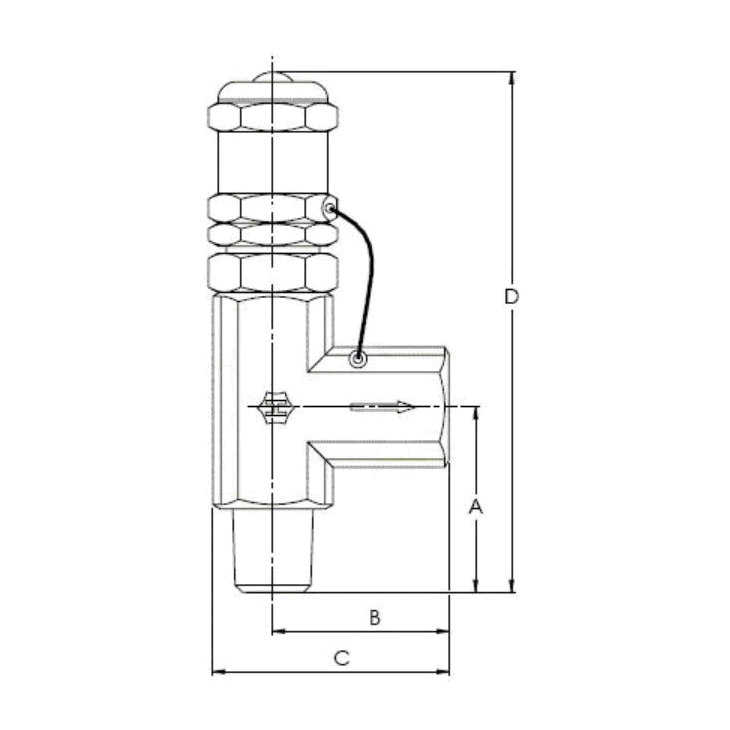

| A (MM) | 36.3 |
| B (MM) | 36.3 |
| C (MM) | 49.0 |
| D (MM) | 140.0 |
| REPLACEMENT SPRING KIT | NZ-900-HP-SPK-1/2-A |
| REPLACEMENT SEAL KIT | NZ-900-HP-SK-1/2-VI |
NH-985-HP-SS-N-1/2-B
$1,034.67Attribute: NH-985-HP-SS-N-1/2-B (08MP-08FP-...)
Stock Status: True
| SERIES | H-985-HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| SERVICE PRESSURE | 50-6000PSI |
| END CONNECTION | NPT |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/2″ MALE NPT |
| OUTLET CONNECTION (2) | 1/2″ FEMALE NPT |
| SPRING DESIGNATOR | B (BLUE) |
| NOMINAL CRACKING PRESSURE | 350-750PSIG |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 6.4 |
| A (MM) | 36.3 |
| B (MM) | 36.3 |
| C (MM) | 49.0 |
| D (MM) | 140.0 |
| REPLACEMENT SPRING KIT | NZ-900-HP-SPK-1/2-B |
| REPLACEMENT SEAL KIT | NZ-900-HP-SK-1/2-VI |
NH-985-HP-SS-N-1/2-C
$1,034.67Attribute: NH-985-HP-SS-N-1/2-C (08MP-08FP-...)
Stock Status: True
| SERIES | H-985-HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| SERVICE PRESSURE | 50-6000PSI |
| END CONNECTION | NPT |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/2″ MALE NPT |
| OUTLET CONNECTION (2) | 1/2″ FEMALE NPT |
| SPRING DESIGNATOR | C (GOLD) |
| NOMINAL CRACKING PRESSURE | 750-1500PSIG |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 6.4 |
| A (MM) | 36.3 |
| B (MM) | 36.3 |
| C (MM) | 49.0 |
| D (MM) | 140.0 |
| REPLACEMENT SPRING KIT | NZ-900-HP-SPK-1/2-C |
| REPLACEMENT SEAL KIT | NZ-900-HP-SK-1/2-VI |
NH-985-HP-SS-N-1/4-A
$644.63Attribute: NH-985-HP-SS-N-1/4-A (04MP-04FP-...)
Stock Status: True
| SERIES | H-985-HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| SERVICE PRESSURE | 50-6000PSI |
| END CONNECTION | NPT |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/4″ MALE NPT |
| OUTLET CONNECTION (2) | 1/4″ FEMALE NPT |
| SPRING DESIGNATOR | A (WHITE) |
| NOMINAL CRACKING PRESSURE | 50-350PSIG |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 3.6 |
| A (MM) | 32.0 |
| B (MM) | 30.0 |
| C (MM) | 40.0 |
| D (MM) | 88.6 |
| REPLACEMENT SPRING KIT | NZ-900-HP-SPK-1/4-A |
| REPLACEMENT SEAL KIT | NZ-900-HP-SK-1/4-VI |
NH-985-HP-SS-N-1/4-B
$602.48Attribute: NH-985-HP-SS-N-1/4-B (04MP-04FP-...)
Stock Status: True
| SERIES | H-985-HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| SERVICE PRESSURE | 50-6000PSI |
| END CONNECTION | NPT |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/4″ MALE NPT |
| OUTLET CONNECTION (2) | 1/4″ FEMALE NPT |
| SPRING DESIGNATOR | B (BLUE) |
| NOMINAL CRACKING PRESSURE | 350-750PSIG |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 3.6 |
| A (MM) | 32.0 |
| B (MM) | 30.0 |
| C (MM) | 40.0 |
| D (MM) | 88.6 |
| REPLACEMENT SPRING KIT | NZ-900-HP-SPK-1/4-B |
| REPLACEMENT SEAL KIT | NZ-900-HP-SK-1/4-VI |
NH-985-HP-SS-N-1/4-C
$602.48Attribute: NH-985-HP-SS-N-1/4-C (04MP-04FP-...)
Stock Status: True
| SERIES | H-985-HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| SERVICE PRESSURE | 50-6000PSI |
| END CONNECTION | NPT |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/4″ MALE NPT |
| OUTLET CONNECTION (2) | 1/4″ FEMALE NPT |
| SPRING DESIGNATOR | C (GOLD) |
| NOMINAL CRACKING PRESSURE | 750-1500PSIG |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 3.6 |
| A (MM) | 32.0 |
| B (MM) | 30.0 |
| C (MM) | 40.0 |
| D (MM) | 88.6 |
| REPLACEMENT SPRING KIT | NZ-900-HP-SPK-1/4-C |
| REPLACEMENT SEAL KIT | NZ-900-HP-SK-1/4-VI |
NH-985-HP-SS-N-1/4-D
$602.48Attribute: NH-985-HP-SS-N-1/4-D (04MP-04FP-...)
Stock Status: True
| SERIES | H-985-HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| SERVICE PRESSURE | 50-6000PSI |
| END CONNECTION | NPT |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/4″ MALE NPT |
| OUTLET CONNECTION (2) | 1/4″ FEMALE NPT |
| SPRING DESIGNATOR | D (TURQUOISE) |
| NOMINAL CRACKING PRESSURE | 1500-2250PSIG |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 3.6 |
| A (MM) | 32.0 |
| B (MM) | 30.0 |
| C (MM) | 40.0 |
| D (MM) | 88.6 |
| REPLACEMENT SPRING KIT | NZ-900-HP-SPK-1/4-D |
| REPLACEMENT SEAL KIT | NZ-900-HP-SK-1/4-VI |
NH-985-HP-SS-N-1/4-E
$602.48Attribute: NH-985-HP-SS-N-1/4-E (04MP-04FP-...)
Stock Status: True
| SERIES | H-985-HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| SERVICE PRESSURE | 50-6000PSI |
| END CONNECTION | NPT |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/4″ MALE NPT |
| OUTLET CONNECTION (2) | 1/4″ FEMALE NPT |
| SPRING DESIGNATOR | E (GREEN) |
| NOMINAL CRACKING PRESSURE | 2250-3000PSIG |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 3.6 |
| A (MM) | 32.0 |
| B (MM) | 30.0 |
| C (MM) | 40.0 |
| D (MM) | 88.6 |
| REPLACEMENT SPRING KIT | NZ-900-HP-SPK-1/4-E |
| REPLACEMENT SEAL KIT | NZ-900-HP-SK-1/4-VI |
NH-985-HP-SS-N-1/4-F
$602.48Attribute: NH-985-HP-SS-N-1/4-F (04MP-04FP-...)
Stock Status: True
| SERIES | H-985-HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| SERVICE PRESSURE | 50-6000PSI |
| END CONNECTION | NPT |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/4″ MALE NPT |
| OUTLET CONNECTION (2) | 1/4″ FEMALE NPT |
| SPRING DESIGNATOR | F (RED) |
| NOMINAL CRACKING PRESSURE | 3000-4000PSIG |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 3.6 |
| A (MM) | 32.0 |
| B (MM) | 30.0 |
| C (MM) | 40.0 |
| D (MM) | 88.6 |
| REPLACEMENT SPRING KIT | NZ-900-HP-SPK-1/4-F |
| REPLACEMENT SEAL KIT | NZ-900-HP-SK-1/4-VI |
NH-985-HP-SS-N-1/4-G
$602.48Attribute: NH-985-HP-SS-N-1/4-G (04MP-04FP-...)
Stock Status: True
| SERIES | H-985-HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| SERVICE PRESSURE | 50-6000PSI |
| END CONNECTION | NPT |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/4″ MALE NPT |
| OUTLET CONNECTION (2) | 1/4″ FEMALE NPT |
| SPRING DESIGNATOR | G (SILVER) |
| NOMINAL CRACKING PRESSURE | 4000-5000PSIG |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 3.6 |
| A (MM) | 32.0 |
| B (MM) | 30.0 |
| C (MM) | 40.0 |
| D (MM) | 88.6 |
| REPLACEMENT SPRING KIT | NZ-900-HP-SPK-1/4-G |
| REPLACEMENT SEAL KIT | NZ-900-HP-SK-1/4-VI |
NH-985-HP-SS-N-1/4-H
$602.48Attribute: NH-985-HP-SS-N-1/4-H (04MP-04FP-...)
Stock Status: True
| SERIES | H-985-HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| SERVICE PRESSURE | 50-6000PSI |
| END CONNECTION | NPT |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/4″ MALE NPT |
| OUTLET CONNECTION (2) | 1/4″ FEMALE NPT |
| SPRING DESIGNATOR | H (BLACK) |
| NOMINAL CRACKING PRESSURE | 5000-6000PSIG |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 3.6 |
| A (MM) | 32.0 |
| B (MM) | 30.0 |
| C (MM) | 40.0 |
| D (MM) | 88.6 |
| REPLACEMENT SPRING KIT | NZ-900-HP-SPK-1/4-H |
| REPLACEMENT SEAL KIT | NZ-900-HP-SK-1/4-VI |
General Attributes
| Connections | NPT, Other |
|---|---|
| Shape | Elbow |
