Description
MP-FP-LOW PRESSURE RELIEVE VALVE 90 DEGREE FLOW
Description
Variations (4)
NH-985-SS-N-1/2-SL
$1,103.75Attribute: NH-985-SS-N-1/2-SL (08MP-08FP-LO...)
Stock Status: True
| SERIES | H-985 |
|---|---|
| MAXIMUM WORKING PRESSURE | 300PSI |
| SERVICE PRESSURE | 10-225PSI |
| END CONNECTION | NPT |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/2″ MALE NPT |
| OUTLET CONNECTION (2) | 1/2″ FEMALE NPT |
| SPRING DESIGNATOR | SL (SILVER) |
| NOMINAL CRACKING PRESSURE | 10-225PSI |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 6.4 |

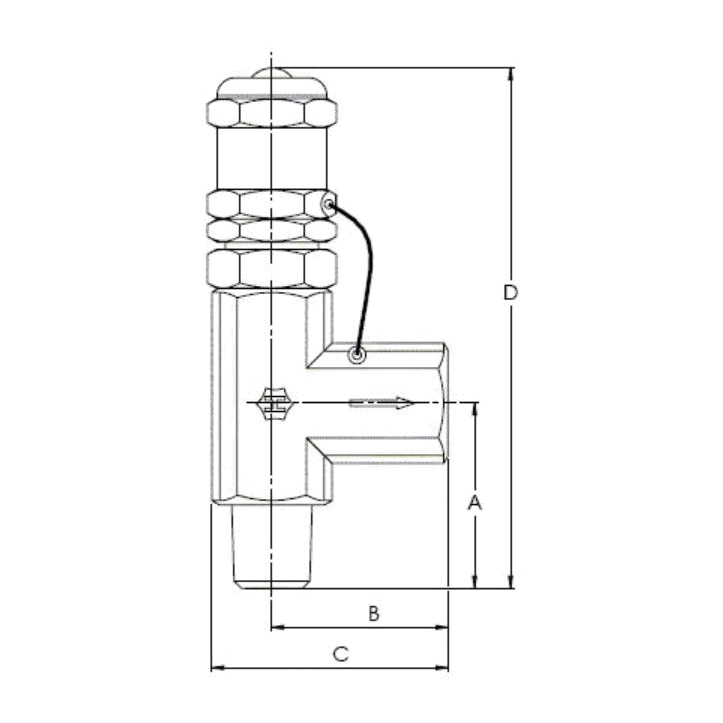

| A (MM) | 36.3 |
| B (MM) | 36.3 |
| C (MM) | 49.0 |
| D (MM) | 140.0 |
| REPLACEMENT SPRING KIT | NZ-900-SPK-1/2 |
| REPLACEMENT SEAL KIT | NZ-900-SK-1/2-VI |
NH-985-SS-N-1/2-SL-EP
$1,158.95Attribute: NH-985-SS-N-1/2-SL-EP (04MP-04FP...)
Stock Status: True
| SERIES | H-985 |
|---|---|
| MAXIMUM WORKING PRESSURE | 300PSI |
| SERVICE PRESSURE | 10-225PSI |
| END CONNECTION | NPT |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/2″ MALE NPT |
| OUTLET CONNECTION (2) | 1/2″ FEMALE NPT |
| SPRING DESIGNATOR | SL (SILVER) |
| NOMINAL CRACKING PRESSURE | 10-225PSI |
| SEAT MATERIAL | EPDM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 6.4 |
| A (MM) | 36.3 |
| B (MM) | 36.3 |
| C (MM) | 49.0 |
| D (MM) | 140.0 |
| REPLACEMENT SPRING KIT | NZ-900-SPK-1/2 |
| REPLACEMENT SEAL KIT | NZ-900-SK-1/2-EP |
NH-985-SS-N-1/4-SL
$742.76Attribute: NH-985-SS-N-1/4-SL (04MP-04FP-LO...)
Stock Status: True
| SERIES | H-985 |
|---|---|
| MAXIMUM WORKING PRESSURE | 300PSI |
| SERVICE PRESSURE | 10-225PSI |
| END CONNECTION | NPT |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/4″ MALE NPT |
| OUTLET CONNECTION (2) | 1/4″ FEMALE NPT |
| SPRING DESIGNATOR | SL (SILVER) |
| NOMINAL CRACKING PRESSURE | 10-225PSI |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 4.8 |
| A (MM) | 32.0 |
| B (MM) | 30.0 |
| C (MM) | 40.0 |
| D (MM) | 88.6 |
| REPLACEMENT SPRING KIT | NZ-900-SPK-1/4 |
| REPLACEMENT SEAL KIT | NZ-900-SK-1/4-VI |
NH-985-SS-N-1/4-SL-OC
$854.13Attribute: NH-985-SS-N-1/4-SL-OC (04MP-04FP...)
Stock Status: True
| SERIES | H-985 |
|---|---|
| MAXIMUM WORKING PRESSURE | 300PSI |
| SERVICE PRESSURE | 10-225PSI |
| END CONNECTION | NPT |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/4″ MALE NPT |
| OUTLET CONNECTION (2) | 1/4″ FEMALE NPT |
| SPRING DESIGNATOR | SL (SILVER) |
| NOMINAL CRACKING PRESSURE | 10-225PSI |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | OXYGEN CLEAN |
| ORIFICE | 4.8 |
| A (MM) | 32.0 |
| B (MM) | 30.0 |
| C (MM) | 40.0 |
| D (MM) | 88.6 |
| REPLACEMENT SPRING KIT | NZ-900-SPK-1/4 |
| REPLACEMENT SEAL KIT | NZ-900-SK-1/4-VI |
General Attributes
| Connections | NPT, Other |
|---|---|
| Shape | Elbow |
