NH-911

Attribute: NH-911-00-SS-L-1/2 (08INS-08INS-...)

Stock Status: True

SERIES	H-911
MAXIMUM WORKING PRESSURE	6000PSI
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
END CONNECTION SIZE	1/2″
INLET CONNECTION (1)	1/2″ LET-LOK INS
OUTLET CONNECTION (2)	1/2″ LET-LOK INS
O-RING SEAT MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD

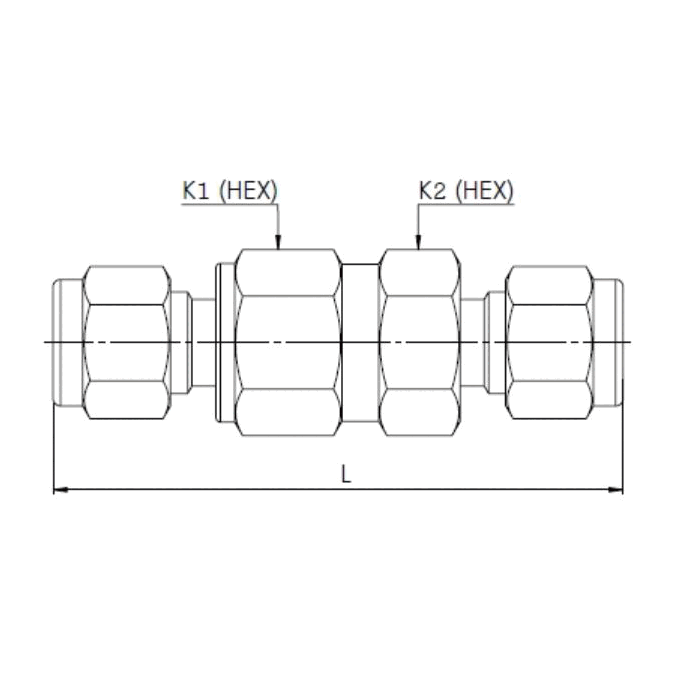

L OVERALL LENGTH (MM)	75.4
K1 HEX (IN)	1″
K2 HEX (IN)	1″

Attribute: NH-911-00-SS-L-1/4 (04INS-04INS-...)

Stock Status: True

SERIES	H-911
MAXIMUM WORKING PRESSURE	6000PSI
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
END CONNECTION SIZE	1/4″
INLET CONNECTION (1)	1/4″ LET-LOK INS
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
O-RING SEAT MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
L OVERALL LENGTH (MM)	61.7
K1 HEX (IN)	11/16″
K2 HEX (IN)	11/16″

Attribute: NH-911-00-SS-L-3/8 (06INS-06INS-...)

Stock Status: True

SERIES	H-911
MAXIMUM WORKING PRESSURE	6000PSI
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
END CONNECTION SIZE	3/8″
INLET CONNECTION (1)	3/8″ LET-LOK INS
OUTLET CONNECTION (2)	3/8″ LET-LOK INS
O-RING SEAT MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
L OVERALL LENGTH (MM)	69.9
K1 HEX (IN)	1″
K2 HEX (IN)	1″
