Description
INS-INS-HIGH PRESSURE RELIEVE VALVE 90 DEGREE FLOW
Description
Variations (11)
NH-900-HP-SS-L-1/2-A
$996.89Attribute: NH-900-HP-SS-L-1/2-A (08INS-08IN...)
Stock Status: True
| SERIES | H-900-HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| SERVICE PRESSURE | 50-6000PSI |
| END CONNECTION | LET-LOK INS |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| SPRING DESIGNATOR | A (WHITE) |
| NOMINAL CRACKING PRESSURE | 50-350PSIG |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 6.4 |

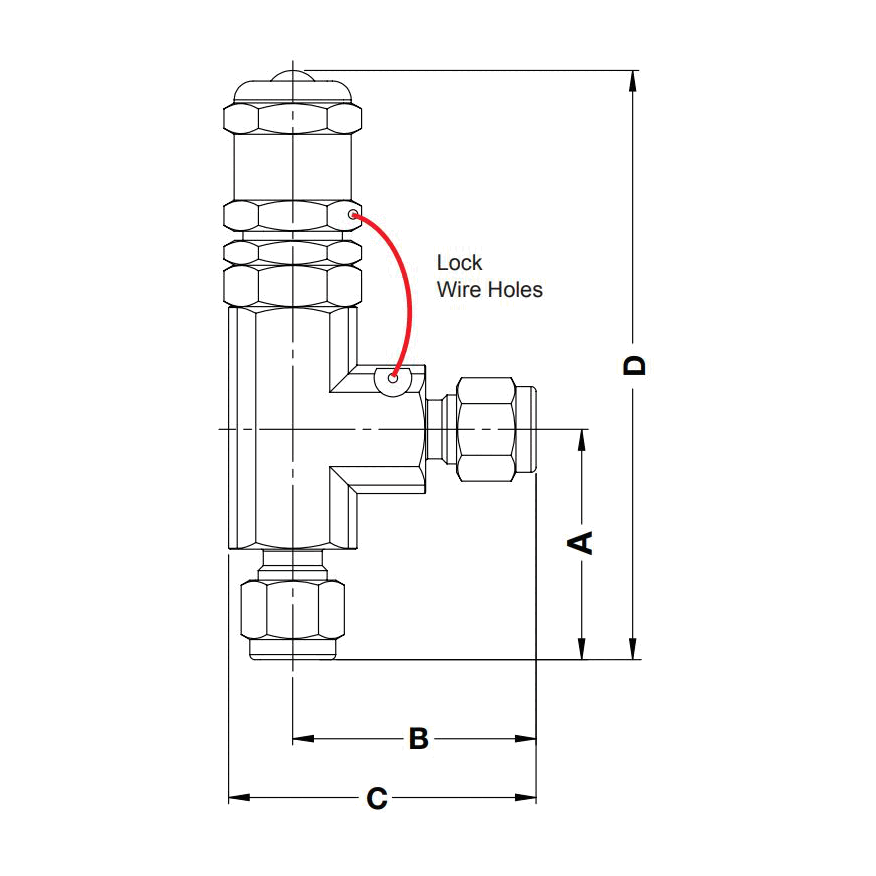

| A (MM) | 46.5 |
| B (MM) | 46.5 |
| C (MM) | 59.2 |
| D (MM) | 150.0 |
| REPLACEMENT SPRING KIT | NZ-900-HP-SPK-1/2-A |
| REPLACEMENT SEAL KIT | NZ-900-HP-SK-1/2-VI |
NH-900-HP-SS-L-1/2-B
$1,088.67Attribute: NH-900-HP-SS-L-1/2-B (08INS-08IN...)
Stock Status: True
| SERIES | H-900-HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| SERVICE PRESSURE | 50-6000PSI |
| END CONNECTION | LET-LOK INS |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| SPRING DESIGNATOR | B (BLUE) |
| NOMINAL CRACKING PRESSURE | 350-750PSIG |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 6.4 |
| A (MM) | 46.5 |
| B (MM) | 46.5 |
| C (MM) | 59.2 |
| D (MM) | 150.0 |
| REPLACEMENT SPRING KIT | NZ-900-HP-SPK-1/2-B |
| REPLACEMENT SEAL KIT | NZ-900-HP-SK-1/2-VI |
NH-900-HP-SS-L-1/2-C
$1,088.67Attribute: NH-900-HP-SS-L-1/2-C (08INS-08IN...)
Stock Status: True
| SERIES | H-900-HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| SERVICE PRESSURE | 50-6000PSI |
| END CONNECTION | LET-LOK INS |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| SPRING DESIGNATOR | C (GOLD) |
| NOMINAL CRACKING PRESSURE | 750-1500PSIG |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 6.4 |
| A (MM) | 46.5 |
| B (MM) | 46.5 |
| C (MM) | 59.2 |
| D (MM) | 150.0 |
| REPLACEMENT SPRING KIT | NZ-900-HP-SPK-1/2-C |
| REPLACEMENT SEAL KIT | NZ-900-HP-SK-1/2-VI |
NH-900-HP-SS-L-1/4-A
$689.40Attribute: NH-900-HP-SS-L-1/4-A (04INS-04IN...)
Stock Status: True
| SERIES | H-900-HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| SERVICE PRESSURE | 50-6000PSI |
| END CONNECTION | LET-LOK INS |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| SPRING DESIGNATOR | A (WHITE) |
| NOMINAL CRACKING PRESSURE | 50-350PSIG |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 3.6 |
| A (MM) | 37.0 |
| B (MM) | 39.0 |
| C (MM) | 50.0 |
| D (MM) | 96.0 |
| REPLACEMENT SPRING KIT | NZ-900-HP-SPK-1/4-A |
| REPLACEMENT SEAL KIT | NZ-900-HP-SK-1/4-VI |
NH-900-HP-SS-L-1/4-B
$689.40Attribute: NH-900-HP-SS-L-1/4-B (04INS-04IN...)
Stock Status: True
| SERIES | H-900-HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| SERVICE PRESSURE | 50-6000PSI |
| END CONNECTION | LET-LOK INS |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| SPRING DESIGNATOR | B (BLUE) |
| NOMINAL CRACKING PRESSURE | 350-750PSIG |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 3.6 |
| A (MM) | 37.0 |
| B (MM) | 39.0 |
| C (MM) | 50.0 |
| D (MM) | 96.0 |
| REPLACEMENT SPRING KIT | NZ-900-HP-SPK-1/4-B |
| REPLACEMENT SEAL KIT | NZ-900-HP-SK-1/4-VI |
NH-900-HP-SS-L-1/4-C
$689.40Attribute: NH-900-HP-SS-L-1/4-C (04INS-04IN...)
Stock Status: True
| SERIES | H-900-HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| SERVICE PRESSURE | 50-6000PSI |
| END CONNECTION | LET-LOK INS |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| SPRING DESIGNATOR | C (GOLD) |
| NOMINAL CRACKING PRESSURE | 750-1500PSIG |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 3.6 |
| A (MM) | 37.0 |
| B (MM) | 39.0 |
| C (MM) | 50.0 |
| D (MM) | 96.0 |
| REPLACEMENT SPRING KIT | NZ-900-HP-SPK-1/4-C |
| REPLACEMENT SEAL KIT | NZ-900-HP-SK-1/4-VI |
NH-900-HP-SS-L-1/4-D
$689.40Attribute: NH-900-HP-SS-L-1/4-D (04INS-04IN...)
Stock Status: True
| SERIES | H-900-HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| SERVICE PRESSURE | 50-6000PSI |
| END CONNECTION | LET-LOK INS |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| SPRING DESIGNATOR | D (TURQUOISE) |
| NOMINAL CRACKING PRESSURE | 1500-2250PSIG |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 3.6 |
| A (MM) | 37.0 |
| B (MM) | 39.0 |
| C (MM) | 50.0 |
| D (MM) | 96.0 |
| REPLACEMENT SPRING KIT | NZ-900-HP-SPK-1/4-D |
| REPLACEMENT SEAL KIT | NZ-900-HP-SK-1/4-VI |
NH-900-HP-SS-L-1/4-E
$689.40Attribute: NH-900-HP-SS-L-1/4-E (04INS-04IN...)
Stock Status: True
| SERIES | H-900-HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| SERVICE PRESSURE | 50-6000PSI |
| END CONNECTION | LET-LOK INS |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| SPRING DESIGNATOR | E (GREEN) |
| NOMINAL CRACKING PRESSURE | 2250-3000PSIG |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 3.6 |
| A (MM) | 37.0 |
| B (MM) | 39.0 |
| C (MM) | 50.0 |
| D (MM) | 96.0 |
| REPLACEMENT SPRING KIT | NZ-900-HP-SPK-1/4-E |
| REPLACEMENT SEAL KIT | NZ-900-HP-SK-1/4-VI |
NH-900-HP-SS-L-1/4-F
$689.40Attribute: NH-900-HP-SS-L-1/4-F (04INS-04IN...)
Stock Status: True
| SERIES | H-900-HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| SERVICE PRESSURE | 50-6000PSI |
| END CONNECTION | LET-LOK INS |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| SPRING DESIGNATOR | F (RED) |
| NOMINAL CRACKING PRESSURE | 3000-4000PSIG |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 3.6 |
| A (MM) | 37.0 |
| B (MM) | 39.0 |
| C (MM) | 50.0 |
| D (MM) | 96.0 |
| REPLACEMENT SPRING KIT | NZ-900-HP-SPK-1/4-F |
| REPLACEMENT SEAL KIT | NZ-900-HP-SK-1/4-VI |
NH-900-HP-SS-L-1/4-G
$689.40Attribute: NH-900-HP-SS-L-1/4-G (04INS-04IN...)
Stock Status: True
| SERIES | H-900-HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| SERVICE PRESSURE | 50-6000PSI |
| END CONNECTION | LET-LOK INS |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| SPRING DESIGNATOR | G (SILVER) |
| NOMINAL CRACKING PRESSURE | 4000-5000PSIG |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 3.6 |
| A (MM) | 37.0 |
| B (MM) | 39.0 |
| C (MM) | 50.0 |
| D (MM) | 96.0 |
| REPLACEMENT SPRING KIT | NZ-900-HP-SPK-1/4-G |
| REPLACEMENT SEAL KIT | NZ-900-HP-SK-1/4-VI |
NH-900-HP-SS-L-1/4-H
$689.40Attribute: NH-900-HP-SS-L-1/4-H (04INS-04IN...)
Stock Status: True
| SERIES | H-900-HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| SERVICE PRESSURE | 50-6000PSI |
| END CONNECTION | LET-LOK INS |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| SPRING DESIGNATOR | H (BLACK) |
| NOMINAL CRACKING PRESSURE | 5000-6000PSIG |
| SEAT MATERIAL | FLUOROCARBON FKM |
| CE/PED CERTIFICATION | STANDARD TESTING |
| TREATMENT | STANDARD |
| ORIFICE | 3.6 |
| A (MM) | 37.0 |
| B (MM) | 39.0 |
| C (MM) | 50.0 |
| D (MM) | 96.0 |
| REPLACEMENT SPRING KIT | NZ-900-HP-SPK-1/4-H |
| REPLACEMENT SEAL KIT | NZ-900-HP-SK-1/4-VI |
General Attributes
| Connections | Instrumentation |
|---|---|
| Shape | Elbow |
