Description
FP-FP-FP-BALL VALVE. 3-WAY BALL VALVE
Description
Variations (4)
NH-810KL-SS-N-1/4-T-SE
$560.41Attribute: NH-810KL-SS-N-1/4-T-SE (04FP-04F...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-810 (3000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| BODY SIZE | KL (LARGE) |
| CONNECTION (1) | 1/4″ FEMALE NPT |
| CONNECTION (2) | 1/4″ FEMALE NPT |
| CONNECTION (3) | 1/4″ FEMALE NPT |
| VALVE PATTERN | 3 PORT VALVE |
| HANDLE | BLACK NYLON |
| TREATMENT | STANDARD |
| ORIFICE | 7.1 |
| FLOW COEFFICIENT (CV) | 1.7 |

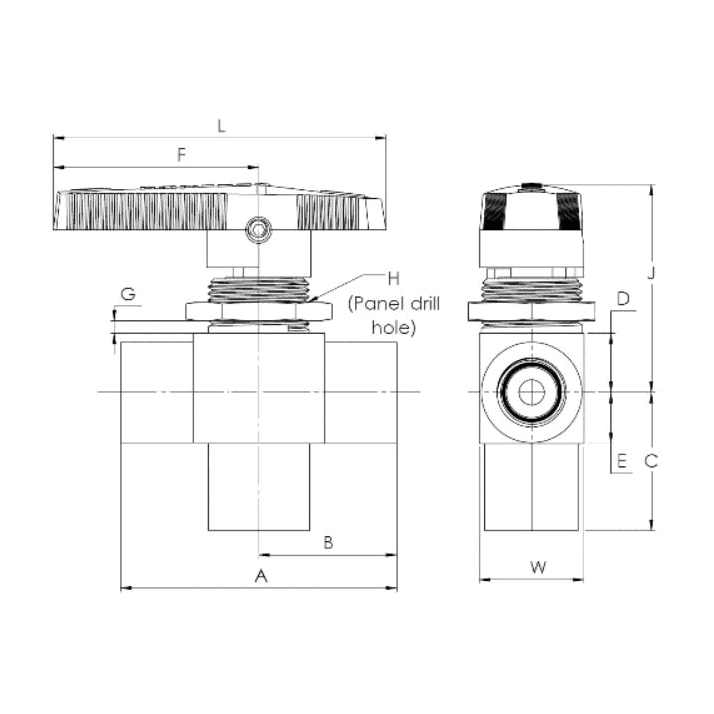

| A (MM) | 63.5 |
| B (MM) | 31.75 |
| C (MM) | 31.75 |
| D (MM) | 14.2 |
| F (MM) | 50.8 |
| L (MM) | 82.3 |
| G (MM) | 9.5 |
| H (MM) | 28.6 |
| J (MM) | 52.6 |
| W (MM) | 28.4 |
NH-810L-SS-N-3/8-T
$646.13Attribute: NH-810L-SS-N-3/8-T (06FP-06FP-06...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-810 (3000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| BODY SIZE | LARGE |
| CONNECTION (1) | 3/8″ FEMALE NPT |
| CONNECTION (2) | 3/8″ FEMALE NPT |
| CONNECTION (3) | 3/8″ FEMALE NPT |
| VALVE PATTERN | 3 PORT VALVE |
| HANDLE | BLACK NYLON |
| TREATMENT | STANDARD |
| ORIFICE | 7.1 |
| FLOW COEFFICIENT (CV) | 1.5 |
| A (MM) | 63.5 |
| B (MM) | 31.75 |
| C (MM) | 31.75 |
| D (MM) | 14.2 |
| F (MM) | 50.8 |
| L (MM) | 82.3 |
| G (MM) | 9.5 |
| H (MM) | 28.6 |
| J (MM) | 52.6 |
| W (MM) | 28.4 |
NH-810M-SS-N-1/4-T
$369.30Attribute: NH-810M-SS-N-1/4-T (04FP-04FP-04...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-810 (3000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| BODY SIZE | MEDIUM |
| CONNECTION (1) | 1/4″ FEMALE NPT |
| CONNECTION (2) | 1/4″ FEMALE NPT |
| CONNECTION (3) | 1/4″ FEMALE NPT |
| VALVE PATTERN | 3 PORT VALVE |
| HANDLE | BLACK NYLON |
| TREATMENT | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 0.75 |
| A (MM) | 52.3 |
| B (MM) | 26.2 |
| C (MM) | 26.2 |
| D (MM) | 11.2 |
| F (MM) | 38.9 |
| L (MM) | 63.0 |
| G (MM) | 4.8 |
| H (MM) | 19.8 |
| J (MM) | 37.3 |
| W (MM) | 19.8 |
NH-810S-SS-N-1/8-T
$286.29Attribute: NH-810S-SS-N-1/8-T (02FP-02FP-02...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-810 (3000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| BODY SIZE | SMALL |
| CONNECTION (1) | 1/8″ FEMALE NPT |
| CONNECTION (2) | 1/8″ FEMALE NPT |
| CONNECTION (3) | 1/8″ FEMALE NPT |
| VALVE PATTERN | 3 PORT VALVE |
| HANDLE | BLACK NYLON |
| TREATMENT | STANDARD |
| ORIFICE | 3.2 |
| FLOW COEFFICIENT (CV) | 0.30 |
| A (MM) | 41.4 |
| B (MM) | 20.6 |
| C (MM) | 20.6 |
| D (MM) | 8.6 |
| F (MM) | 31.0 |
| L (MM) | 50.0 |
| G (MM) | 6.4 |
| H (MM) | 15.1 |
| J (MM) | 34.5 |
| W (MM) | 17.0 |
General Attributes
| Connections | NPT, Other |
|---|---|
| Shape | Cross |
