Description
FP-FP-BALL VALVE. STRAIGHT PORT FLOW
Description
Variations (5)
NH-810KL-SS-N-1/4
$406.13Attribute: NH-810KL-SS-N-1/4 (04FP-04FP-BAL...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-810 (3000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | FEMALE NPT |
| BODY SIZE | LARGE |
| INLET CONNECTION (1) | 1/4″ FEMALE NPT |
| OUTLET CONNECTION (1) | 1/4″ FEMALE NPT |
| VALVE PATTERN | STRAIGHT |
| HANDLE | BLACK NYLON |
| TREATMENT | STANDARD |
| ORIFICE | 7.1 |
| FLOW COEFFICIENT (CV) | 3.0 |

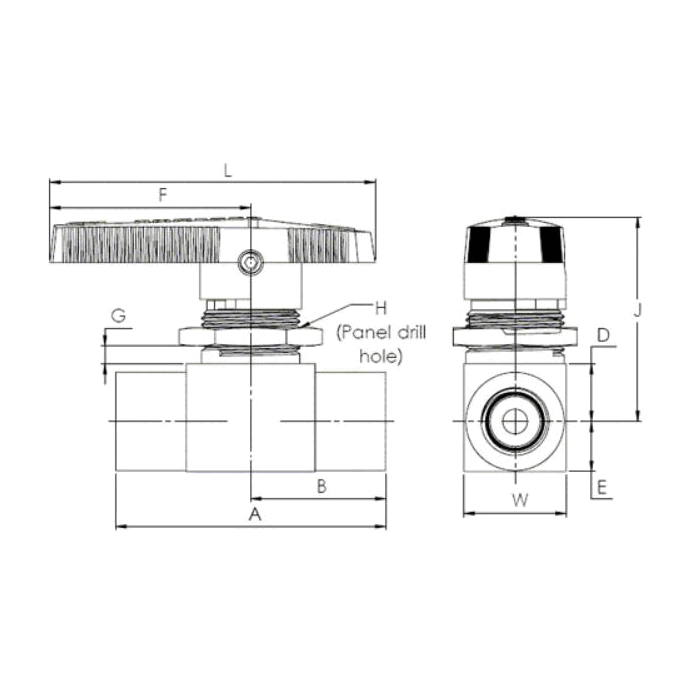

| A (MM) | 63.5 |
| B (MM) | 31.75 |
| C (MM) | 31.75 |
| D (MM) | 14.2 |
| E (MM) | 14.2 |
| F (MM) | 50.8 |
| L (MM) | 82.3 |
| G (MM) | 9.5 |
| H (MM) | 28.6 |
| J (MM) | 52.6 |
| W (MM) | 28.4 |
NH-810L-SS-N-3/8
$459.11Attribute: NH-810L-SS-N-3/8 (06FP-06FP-BALL...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-810 (3000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | FEMALE NPT |
| BODY SIZE | LARGE |
| INLET CONNECTION (1) | 3/8″ FEMALE NPT |
| OUTLET CONNECTION (1) | 3/8″ FEMALE NPT |
| VALVE PATTERN | STRAIGHT |
| HANDLE | BLACK NYLON |
| TREATMENT | STANDARD |
| ORIFICE | 7.1 |
| FLOW COEFFICIENT (CV) | 2.6 |
| A (MM) | 63.5 |
| B (MM) | 31.75 |
| C (MM) | 31.75 |
| D (MM) | 14.2 |
| E (MM) | 14.2 |
| F (MM) | 50.8 |
| L (MM) | 82.3 |
| G (MM) | 9.5 |
| H (MM) | 28.6 |
| J (MM) | 52.6 |
| W (MM) | 28.4 |
NH-810M-SS-N-1/4
$314.76Attribute: NH-810M-SS-N-1/4 (04FP-04FP-BALL...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-810 (3000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | FEMALE NPT |
| BODY SIZE | MEDIUM |
| INLET CONNECTION (1) | 1/4″ FEMALE NPT |
| OUTLET CONNECTION (1) | 1/4″ FEMALE NPT |
| VALVE PATTERN | STRAIGHT |
| HANDLE | BLACK NYLON |
| TREATMENT | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 0.9 |
| A (MM) | 52.3 |
| B (MM) | 26.2 |
| C (MM) | 26.2 |
| D (MM) | 11.2 |
| E (MM) | 9.7 |
| F (MM) | 38.9 |
| L (MM) | 63.0 |
| G (MM) | 4.8 |
| H (MM) | 19.8 |
| J (MM) | 37.3 |
| W (MM) | 19.8 |
NH-810S-SS-N-1/8
$254.35Attribute: NH-810S-SS-N-1/8 (02FP-02FP-BALL...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-810 (3000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | FEMALE NPT |
| BODY SIZE | SMALL |
| INLET CONNECTION (1) | 1/8″ FEMALE NPT |
| OUTLET CONNECTION (1) | 1/8″ FEMALE NPT |
| VALVE PATTERN | STRAIGHT |
| HANDLE | BLACK NYLON |
| TREATMENT | STANDARD |
| ORIFICE | 3.2 |
| FLOW COEFFICIENT (CV) | 0.5 |
| A (MM) | 41.4 |
| B (MM) | 20.6 |
| C (MM) | 20.6 |
| D (MM) | 8.6 |
| E (MM) | 7.1 |
| F (MM) | 31.0 |
| L (MM) | 50.0 |
| G (MM) | 6.4 |
| H (MM) | 15.1 |
| J (MM) | 34.5 |
| W (MM) | 17.0 |
NH-810S-SS-N-1/8-M
$319.40Attribute: NH-810S-SS-N-1/8-M (02FP-04FP-BA...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-810 (3000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | FEMALE NPT |
| BODY SIZE | SMALL |
| INLET CONNECTION (1) | 1/8″ FEMALE NPT |
| OUTLET CONNECTION (1) | 1/8″ FEMALE NPT |
| VALVE PATTERN | STRAIGHT |
| HANDLE | METAL BAR (316SS) |
| TREATMENT | STANDARD |
| ORIFICE | 3.2 |
| FLOW COEFFICIENT (CV) | 0.5 |
| A (MM) | 41.4 |
| B (MM) | 20.6 |
| C (MM) | 20.6 |
| D (MM) | 8.6 |
| E (MM) | 7.1 |
| F (MM) | 31.0 |
| L (MM) | 50.0 |
| G (MM) | 6.4 |
| H (MM) | 15.1 |
| J (MM) | 34.5 |
| W (MM) | 17.0 |
General Attributes
| Connections | NPT, Other |
|---|---|
| Shape | Straight |
