Description
INS-INS-INS-BALL VALVE. 3-WAY BALL VALVE
Description
Variations (9)
NH-800KL-SS-L-1/2-T
$899.17Attribute: NH-800KL-SS-L-1/2-T (08INS-08INS...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-800 (3000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| BODY SIZE | LARGE |
| CONNECTION (1) | 1/2″ LET-LOK INS |
| CONNECTION (2) | 1/2″ LET-LOK INS |
| CONNECTION (3) | 1/2″ LET-LOK INS |
| VALVE PATTERN | 3 PORT VALVE |
| HANDLE | BLACK NYLON |
| TREATMENT | STANDARD |
| ORIFICE | 7.1 |
| FLOW COEFFICIENT (CV) | 4.6 |

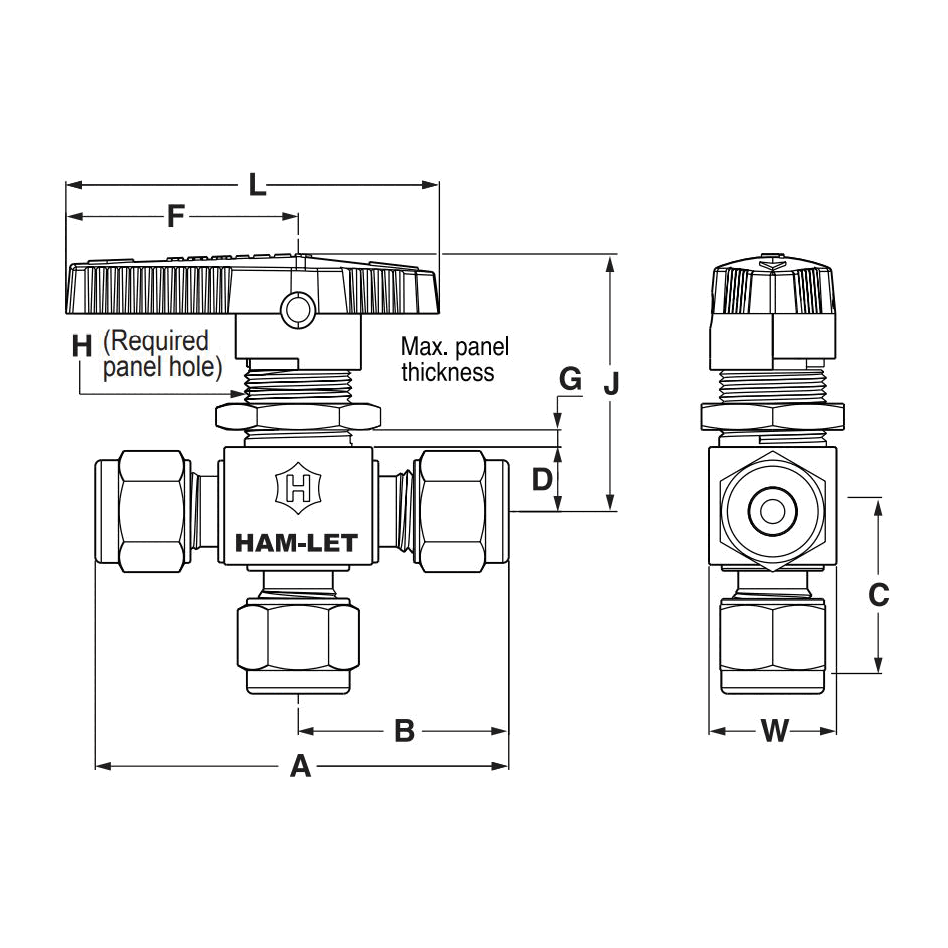

| A (MM) | 79.0 |
| B (MM) | 39.5 |
| C (MM) | 39.1 |
| D (MM) | 14.2 |
| F (MM) | 50.8 |
| L (MM) | 82.3 |
| G (MM) | 9.5 |
| H (MM) | 28.6 |
| J (MM) | 52.6 |
| W (MM) | 28.4 |
NH-800KL-SS-L-3/8-T
$693.56Attribute: NH-800KL-SS-L-3/8-T (06INS-06INS...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-800 (3000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| BODY SIZE | LARGE |
| CONNECTION (1) | 3/8″ LET-LOK INS |
| CONNECTION (2) | 3/8″ LET-LOK INS |
| CONNECTION (3) | 3/8″ LET-LOK INS |
| VALVE PATTERN | 3 PORT VALVE |
| HANDLE | BLACK NYLON |
| TREATMENT | STANDARD |
| ORIFICE | 7.1 |
| FLOW COEFFICIENT (CV) | 2.0 |
| A (MM) | 73.4 |
| B (MM) | 36.8 |
| C (MM) | 36.3 |
| D (MM) | 14.2 |
| F (MM) | 50.8 |
| L (MM) | 82.3 |
| G (MM) | 9.5 |
| H (MM) | 28.6 |
| J (MM) | 52.6 |
| W (MM) | 28.4 |
NH-800L-SS-L-1/2-T
$962.10Attribute: NH-800L-SS-L-1/2-T (08INS-08INS-...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-800 (3000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| BODY SIZE | LARGE |
| CONNECTION (1) | 1/2″ LET-LOK INS |
| CONNECTION (2) | 1/2″ LET-LOK INS |
| CONNECTION (3) | 1/2″ LET-LOK INS |
| VALVE PATTERN | 3 PORT VALVE |
| HANDLE | BLACK NYLON |
| TREATMENT | STANDARD |
| ORIFICE | 7.1 |
| FLOW COEFFICIENT (CV) | 4.6 |
| A (MM) | 79.0 |
| B (MM) | 39.5 |
| C (MM) | 39.1 |
| D (MM) | 14.2 |
| F (MM) | 50.8 |
| L (MM) | 82.3 |
| G (MM) | 9.5 |
| H (MM) | 28.6 |
| J (MM) | 52.6 |
| W (MM) | 28.4 |
NH-800L-SS-L-3/8-T
$679.56Attribute: NH-800L-SS-L-3/8-T (06INS-06INS-...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-800 (3000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| BODY SIZE | LARGE |
| CONNECTION (1) | 3/8″ LET-LOK INS |
| CONNECTION (2) | 3/8″ LET-LOK INS |
| CONNECTION (3) | 3/8″ LET-LOK INS |
| VALVE PATTERN | 3 PORT VALVE |
| HANDLE | BLACK NYLON |
| TREATMENT | STANDARD |
| ORIFICE | 7.1 |
| FLOW COEFFICIENT (CV) | 2.0 |
| A (MM) | 73.4 |
| B (MM) | 36.8 |
| C (MM) | 36.3 |
| D (MM) | 14.2 |
| F (MM) | 50.8 |
| L (MM) | 82.3 |
| G (MM) | 9.5 |
| H (MM) | 28.6 |
| J (MM) | 52.6 |
| W (MM) | 28.4 |
NH-800M-SS-L-1/4-T
$388.67Attribute: NH-800M-SS-L-1/4-T (04INS-04INS-...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-800 (3000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| BODY SIZE | MEDIUM |
| CONNECTION (1) | 1/4″ LET-LOK INS |
| CONNECTION (2) | 1/4″ LET-LOK INS |
| CONNECTION (3) | 1/4″ LET-LOK INS |
| VALVE PATTERN | 3 PORT VALVE |
| HANDLE | BLACK NYLON |
| TREATMENT | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 0.9 |
| A (MM) | 60.7 |
| B (MM) | 30.5 |
| C (MM) | 29.7 |
| D (MM) | 11.2 |
| F (MM) | 38.9 |
| L (MM) | 63.0 |
| G (MM) | 4.8 |
| H (MM) | 19.8 |
| J (MM) | 37.3 |
| W (MM) | 19.8 |
NH-800M-SS-L-3/8-T
$537.05Attribute: NH-800M-SS-L-3/8-T (06INS-06INS-...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-800 (3000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| BODY SIZE | MEDIUM |
| CONNECTION (1) | 3/8″ LET-LOK INS |
| CONNECTION (2) | 3/8″ LET-LOK INS |
| CONNECTION (3) | 3/8″ LET-LOK INS |
| VALVE PATTERN | 3 PORT VALVE |
| HANDLE | BLACK NYLON |
| TREATMENT | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 0.9 |
| A (MM) | 65.5 |
| B (MM) | 32.75 |
| C (MM) | 33.0 |
| D (MM) | 11.2 |
| F (MM) | 38.9 |
| L (MM) | 63.0 |
| G (MM) | 4.8 |
| H (MM) | 19.8 |
| J (MM) | 37.3 |
| W (MM) | 19.8 |
NH-800S-SS-L-1/16-T
$355.40Attribute: NH-800S-SS-L-1/16-T (01INS-01INS...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-800 (3000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| BODY SIZE | SMALL |
| CONNECTION (1) | 1/16″ LET-LOK INS |
| CONNECTION (2) | 1/16″ LET-LOK INS |
| CONNECTION (3) | 1/16″ LET-LOK INS |
| VALVE PATTERN | 3 PORT VALVE |
| HANDLE | BLACK NYLON |
| TREATMENT | STANDARD |
| ORIFICE | 1.3 |
| FLOW COEFFICIENT (CV) | 0.08 |
| A (MM) | 42.7 |
| B (MM) | 21.35 |
| C (MM) | 20.6 |
| D (MM) | 8.6 |
| F (MM) | 31.0 |
| L (MM) | 50.0 |
| G (MM) | 6.4 |
| H (MM) | 15.1 |
| J (MM) | 34.5 |
| W (MM) | 17.0 |
NH-800S-SS-L-1/4-T
$322.48Attribute: NH-800S-SS-L-1/4-T (04INS-04INS-...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-800 (3000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| BODY SIZE | SMALL |
| CONNECTION (1) | 1/4″ LET-LOK INS |
| CONNECTION (2) | 1/4″ LET-LOK INS |
| CONNECTION (3) | 1/4″ LET-LOK INS |
| VALVE PATTERN | 3 PORT VALVE |
| HANDLE | BLACK NYLON |
| TREATMENT | STANDARD |
| ORIFICE | 3.2 |
| FLOW COEFFICIENT (CV) | 0.35 |
| A (MM) | 56.1 |
| B (MM) | 28.05 |
| C (MM) | 27.2 |
| D (MM) | 8.6 |
| F (MM) | 31.0 |
| L (MM) | 50.0 |
| G (MM) | 6.4 |
| H (MM) | 15.1 |
| J (MM) | 34.5 |
| W (MM) | 17.0 |
NH-800S-SS-L-1/8-T
$308.19Attribute: NH-800S-SS-L-1/8-T (02INS-02INS-...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-800 (3000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| BODY SIZE | SMALL |
| CONNECTION (1) | 1/8″ LET-LOK INS |
| CONNECTION (2) | 1/8″ LET-LOK INS |
| CONNECTION (3) | 1/8″ LET-LOK INS |
| VALVE PATTERN | 3 PORT VALVE |
| HANDLE | BLACK NYLON |
| TREATMENT | STANDARD |
| ORIFICE | 2.4 |
| FLOW COEFFICIENT (CV) | 0.15 |
| A (MM) | 51.1 |
| B (MM) | 25.7 |
| C (MM) | 24.6 |
| D (MM) | 8.6 |
| F (MM) | 31.0 |
| L (MM) | 50.0 |
| G (MM) | 6.4 |
| H (MM) | 15.1 |
| J (MM) | 34.5 |
| W (MM) | 17.0 |
General Attributes
| Connections | Instrumentation |
|---|---|
| Shape | Cross |
