NH-800-ANGLE

Attribute: NH-800KL-SS-L-3/8-A (06INS-06INS...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-800 (3000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
BODY SIZE	LARGE
INLET CONNECTION (1)	3/8″ LET-LOK INS
OUTLET CONNECTION (2)	3/8″ LET-LOK INS
VALVE PATTERN	90
HANDLE	BLACK NYLON
TREATMENT	STANDARD
ORIFICE	7.1
FLOW COEFFICIENT (CV)	2.0

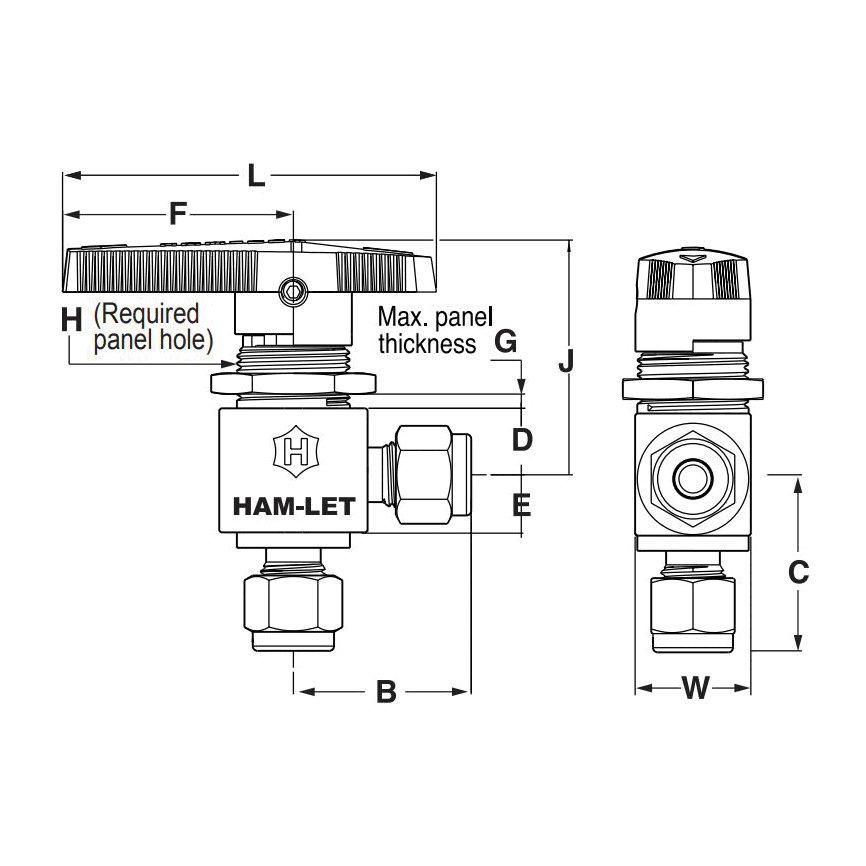

A (MM)	77.5
B (MM)	38.6
C (MM)	36.3
D (MM)	14.2
E (MM)	14.2
F (MM)	50.8
L (MM)	82.3
G (MM)	9.5
H (MM)	28.6
J (MM)	52.6
W (MM)	28.4

Attribute: NH-800L-SS-L-1/2-A (08INS-08INS-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-800 (3000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
BODY SIZE	LARGE
INLET CONNECTION (1)	1/2″ LET-LOK INS
OUTLET CONNECTION (2)	1/2″ LET-LOK INS
VALVE PATTERN	90 DEGREE ANGLE
HANDLE	BLACK NYLON
TREATMENT	STANDARD
ORIFICE	7.1
FLOW COEFFICIENT (CV)	4.6
A (MM)	83.12
B (MM)	41.56
C (MM)	39.16
D (MM)	14.2
E (MM)	14.2
F (MM)	50.8
L (MM)	82.3
G (MM)	9.5
H (MM)	28.6
J (MM)	52.6
W (MM)	28.4

Attribute: NH-800M-SS-L-1/4-A (04INS-04INS-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-800 (3000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
BODY SIZE	MEDIUM
INLET CONNECTION (1)	1/4″ LET-LOK INS
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
VALVE PATTERN	90
HANDLE	BLACK NYLON
TREATMENT	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.90
A (MM)	60.7
B (MM)	30.5
C (MM)	29.7
D (MM)	11.2
E (MM)	9.7
F (MM)	38.9
L (MM)	63.0
G (MM)	4.8
H (MM)	19.8
J (MM)	37.3
W (MM)	19.8

Attribute: NH-800M-SS-L-3/8-A (06INS-06INS-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-800 (3000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
BODY SIZE	MEDIUM
INLET CONNECTION (1)	3/8″ LET-LOK INS
OUTLET CONNECTION (2)	3/8″ LET-LOK INS
VALVE PATTERN	90
HANDLE	BLACK NYLON
TREATMENT	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.90
A (MM)	65.5
B (MM)	32.75
C (MM)	32.8
D (MM)	11.2
E (MM)	9.7
F (MM)	38.9
L (MM)	63.0
G (MM)	4.8
H (MM)	19.8
J (MM)	37.3
W (MM)	19.8

Attribute: NH-800S-SS-L-1/4-A (04INS-04INS-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-800 (3000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
BODY SIZE	SMALL
INLET CONNECTION (1)	1/4″ LET-LOK INS
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
VALVE PATTERN	90 DEGREE ANGLE
HANDLE	BLACK NYLON
TREATMENT	STANDARD
ORIFICE	3.2
FLOW COEFFICIENT (CV)	0.35
A (MM)	56.1
B (MM)	28.05
C (MM)	27.2
D (MM)	8.6
E (MM)	7.1
F (MM)	31.0
L (MM)	50.0
G (MM)	6.4
H (MM)	15.1
J (MM)	34.5
W (MM)	17.0

Attribute: NH-800S-SS-L-1/8-A (02INS-02INS-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-800 (3000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
BODY SIZE	SMALL
INLET CONNECTION (1)	1/8″ LET-LOK INS
OUTLET CONNECTION (2)	1/8″ LET-LOK INS
VALVE PATTERN	90
HANDLE	BLACK NYLON
TREATMENT	STANDARD
ORIFICE	2.4
FLOW COEFFICIENT (CV)	0.15
A (MM)	51.1
B (MM)	25.7
C (MM)	24.6
D (MM)	8.6
E (MM)	7.1
F (MM)	31.0
L (MM)	50.0
G (MM)	6.4
H (MM)	15.1
J (MM)	34.5
W (MM)	17.0
