NH-800

NH-800KL-SS-L-1/2

$962.10

Attribute: NH-800KL-SS-L-1/2 (08INS-08INS-B...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-800 (3000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
BODY SIZE	KL (LARGE)
INLET CONNECTION (1)	1/2″ LET LOK INS
OUTLET CONNECTION (2)	1/2″ LET LOK INS
VALVE PATTERN	STRAIGHT
HANDLE	BLACK NYLON
TREATMENT	STANDARD
ORIFICE	7.1
FLOW COEFFICIENT (CV)	6.0

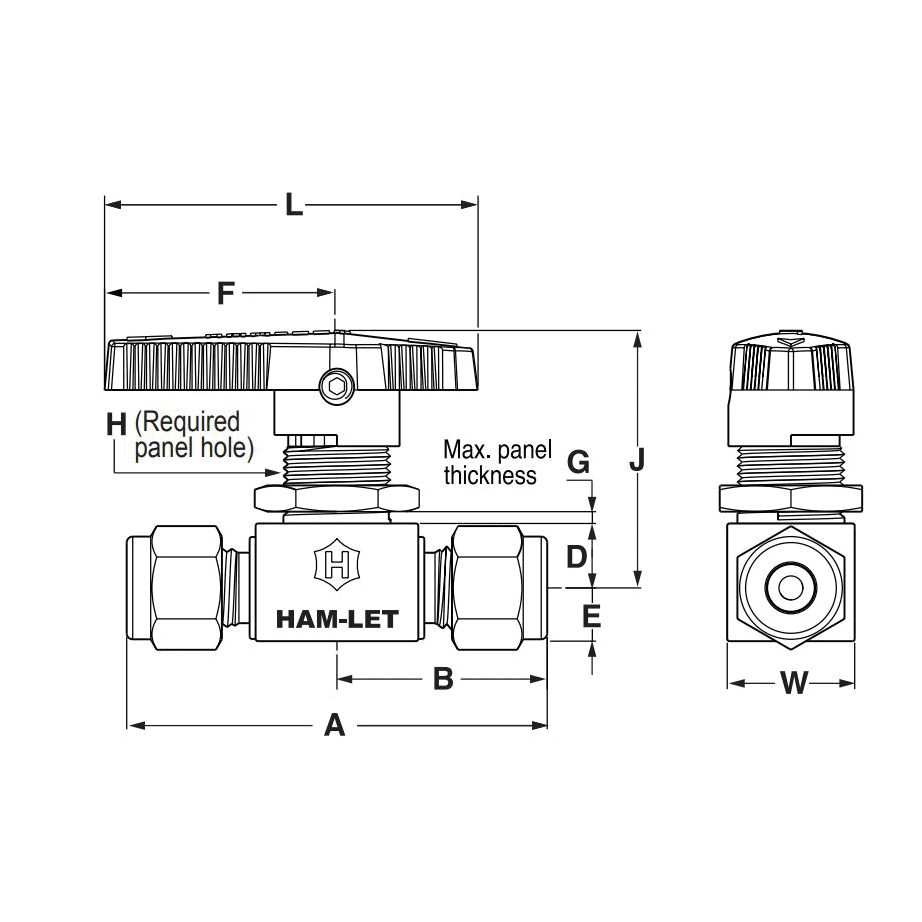

A (MM)	83.12
B (MM)	41.56
C (MM)	39.16
D (MM)	14.2
E (MM)	14.2
F (MM)	50.8
L (MM)	82.3
G (MM)	9.5
H (MM)	28.6
J (MM)	52.6
W (MM)	28.4

NH-800KL-SS-L-3/8

$527.65

Attribute: NH-800KL-SS-L-3/8 (06INS-06INS-B...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-800 (3000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
BODY SIZE	LARGE
INLET CONNECTION (1)	3/8″ LET-LOK INS
OUTLET CONNECTION (2)	3/8″ LET-LOK INS
VALVE PATTERN	STRAIGHT
HANDLE	BLACK NYLON
TREATMENT	STANDARD
ORIFICE	7.1
FLOW COEFFICIENT (CV)	6.0
A (MM)	77.5
B (MM)	38.6
C (MM)	36.3
D (MM)	14.2
E (MM)	14.2
F (MM)	50.8
L (MM)	82.3
G (MM)	9.5
H (MM)	28.6
J (MM)	52.6
W (MM)	28.4

NH-800L-SS-L-1/2

$710.51

Attribute: NH-800L-SS-L-1/2 (08INS-08INS-BA...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-800 (3000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
BODY SIZE	LARGE
INLET CONNECTION (1)	1/2″ LET LOK INS
OUTLET CONNECTION (2)	1/2″ LET LOK INS
VALVE PATTERN	STRAIGHT
HANDLE	BLACK NYLON
TREATMENT	STANDARD
ORIFICE	7.1
FLOW COEFFICIENT (CV)	6.0
A (MM)	83.12
B (MM)	41.56
C (MM)	39.16
D (MM)	14.2
E (MM)	14.2
F (MM)	50.8
L (MM)	82.3
G (MM)	9.5
H (MM)	28.6
J (MM)	52.6
W (MM)	28.4

NH-800L-SS-L-3/8

$483.14

Attribute: NH-800L-SS-L-3/8 (06INS-06INS-BA...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-800 (3000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
BODY SIZE	LARGE
INLET CONNECTION (1)	3/8″ LET-LOK INS
OUTLET CONNECTION (2)	3/8″ LET-LOK INS
VALVE PATTERN	STRAIGHT
HANDLE	BLACK NYLON
TREATMENT	STANDARD
ORIFICE	7.1
FLOW COEFFICIENT (CV)	6.0
A (MM)	77.5
B (MM)	38.6
C (MM)	36.3
D (MM)	14.2
E (MM)	14.2
F (MM)	50.8
L (MM)	82.3
G (MM)	9.5
H (MM)	28.6
J (MM)	52.6
W (MM)	28.4

NH-800M-SS-L-1/4

$330.63

Attribute: NH-800M-SS-L-1/4 (04INS-04INS-BA...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-800 (3000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
BODY SIZE	MEDIUM
INLET CONNECTION (1)	1/4″ LET-LOK INS
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
VALVE PATTERN	STRAIGHT
HANDLE	BLACK NYLON
TREATMENT	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	1.4
A (MM)	60.7
B (MM)	30.5
C (MM)	29.7
D (MM)	11.2
E (MM)	9.7
F (MM)	38.9
L (MM)	63.0
G (MM)	4.8
H (MM)	19.8
J (MM)	37.3
W (MM)	19.8

NH-800M-SS-L-1/4-BH

$333.59

Attribute: NH-800M-SS-L-1/4-BH (04INS-04INS...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-800 (3000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
BODY SIZE	MEDIUM
INLET CONNECTION (1)	1/4″ LET-LOK INS
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
VALVE PATTERN	STRAIGHT
HANDLE	BUTTERFLY HANDLE
TREATMENT	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	1.4
A (MM)	60.7
B (MM)	30.5
C (MM)	29.7
D (MM)	11.2
E (MM)	9.7
F (MM)	38.9
L (MM)	63.0
G (MM)	4.8
H (MM)	19.8
J (MM)	37.3
W (MM)	19.8

NH-800M-SS-L-3/8

$343.65

Attribute: NH-800M-SS-L-3/8 (06INS-06INS-BA...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-800 (3000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
BODY SIZE	MEDIUM
INLET CONNECTION (1)	3/8″ LET-LOK INS
OUTLET CONNECTION (2)	3/8″ LET-LOK INS
VALVE PATTERN	STRAIGHT
HANDLE	BLACK NYLON
TREATMENT	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	1.5
A (MM)	65.5
B (MM)	32.75
C (MM)	32.8
D (MM)	11.2
E (MM)	9.7
F (MM)	38.9
L (MM)	63.0
G (MM)	4.8
H (MM)	19.8
J (MM)	37.3
W (MM)	19.8

NH-800M-SS-L-3/8-M

$395.24

Attribute: NH-800M-SS-L-3/8-M (06INS-06INS-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-800 (3000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
BODY SIZE	MEDIUM
INLET CONNECTION (1)	3/8″ LET-LOK INS
OUTLET CONNECTION (2)	3/8″ LET-LOK INS
VALVE PATTERN	STRAIGHT
HANDLE	METAL BAR (316SS)
TREATMENT	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	1.5
A (MM)	65.5
B (MM)	32.75
C (MM)	32.8
D (MM)	11.2
E (MM)	9.7
F (MM)	38.9
L (MM)	63.0
G (MM)	4.8
H (MM)	19.8
J (MM)	37.3
W (MM)	19.8

NH-800S-SS-L-1/16

$301.62

Attribute: NH-800S-SS-L-1/16 (01INS-01INS-B...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-800 (3000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
BODY SIZE	SMALL
INLET CONNECTION (1)	1/16″ LET-LOK INS
OUTLET CONNECTION (2)	1/16″ LET-LOK INS
VALVE PATTERN	STRAIGHT
HANDLE	BLACK NYLON
TREATMENT	STANDARD
ORIFICE	1.3
FLOW COEFFICIENT (CV)	0.10
A (MM)	42.7
B (MM)	21.35
C (MM)	20.6
D (MM)	8.6
E (MM)	7.1
F (MM)	31.0
L (MM)	50.0
G (MM)	6.4
H (MM)	15.1
J (MM)	34.5
W (MM)	17.0

NH-800S-SS-L-1/4

$270.19

Attribute: NH-800S-SS-L-1/4 (04INS-04INS-BA...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-800 (3000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
BODY SIZE	SMALL
INLET CONNECTION (1)	1/4″ LET-LOK INS
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
VALVE PATTERN	STRAIGHT
HANDLE	BLACK NYLON
TREATMENT	STANDARD
ORIFICE	3.2
FLOW COEFFICIENT (CV)	0.6
A (MM)	56.1
B (MM)	28.05
C (MM)	27.2
D (MM)	8.6
E (MM)	7.1
F (MM)	31.0
L (MM)	50.0
G (MM)	6.4
H (MM)	15.1
J (MM)	34.5
W (MM)	17.0

NH-800S-SS-L-1/4-M

$310.73

Attribute: NH-800S-SS-L-1/4-M (04INS-04INS-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-800 (3000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
BODY SIZE	SMALL
INLET CONNECTION (1)	1/4″ LET-LOK INS
OUTLET CONNECTION (2)	1/4″ LET-LOK INS
VALVE PATTERN	STRAIGHT
HANDLE	METAL BAR (316SS)
TREATMENT	STANDARD
ORIFICE	3.2
FLOW COEFFICIENT (CV)	0.6
A (MM)	56.1
B (MM)	28.05
C (MM)	27.2
D (MM)	8.6
E (MM)	7.1
F (MM)	31.0
L (MM)	50.0
G (MM)	6.4
H (MM)	15.1
J (MM)	34.5
W (MM)	17.0

NH-800S-SS-L-1/8

$260.83

Attribute: NH-800S-SS-L-1/8 (02INS-02INS-BA...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-800 (3000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
BODY SIZE	SMALL
INLET CONNECTION (1)	1/8″ LET-LOK INS
OUTLET CONNECTION (2)	1/8″ LET-LOK INS
VALVE PATTERN	STRAIGHT
HANDLE	BLACK NYLON
TREATMENT	STANDARD
ORIFICE	2.4
FLOW COEFFICIENT (CV)	0.2
A (MM)	51.1
B (MM)	25.70
C (MM)	24.6
D (MM)	8.6
E (MM)	7.1
F (MM)	31.0
L (MM)	50.0
G (MM)	6.4
H (MM)	15.1
J (MM)	324.5
W (MM)	17.0

NVB-1014-SS

$1,194.37

Attribute: NVB-1014-SS (08IN-08IN 2 WAY INS...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	3000PSI
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	INSTRUMENTATION
INLET CONNECTION (1)	1/2″ INS
OUTLET CONNECTION (2)	1/2″ INS
VALVE PATTERN	STRAIGHT
HANDLE	BLACK NYLON
TREATMENT	STANDARD
B (MM)	108.0
G (MM)	116.0
J (MM)	36.5
W (MM)	76.0

Connections	Instrumentation
Shape	Straight

ID	10139685
Category	Instrumentation Valves

Description

Description

Variations (13)

NH-800KL-SS-L-1/2

NH-800KL-SS-L-3/8

NH-800L-SS-L-1/2

NH-800L-SS-L-3/8

NH-800M-SS-L-1/4

NH-800M-SS-L-1/4-BH

NH-800M-SS-L-3/8

NH-800M-SS-L-3/8-M

NH-800S-SS-L-1/16

NH-800S-SS-L-1/4

NH-800S-SS-L-1/4-M

NH-800S-SS-L-1/8

NVB-1014-SS
