Description
MP-INS-BALL VALVE STRAIGHT. GENERAL PURPOSE 2 WAY BALL VALVE
Description
Variations (5)
NH-795-SS-NL-1-T-LD
$694.76Attribute: NH-795-SS-NL-1-T-LD (16MP-16INS ...)
Stock Status: True
| SERIES | H-795 |
|---|---|
| MAXIMUM WORKING PRESSURE | 2000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | NPT / LET-LOK INS |
| END CONNECTION SIZE | 1″ |
| INLET CONNECTION (1) | 1″ MALE NPT |
| OUTLET CONNECTION (2) | 1″ LET-LOK INS |
| SEAT MATERIAL | MODIFIED PTFE |
| METAL LEVER HANDLE STANDARD | LOCKING DEVICE |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 17.35 |
| ORIFICE (MM) | 15.0 |

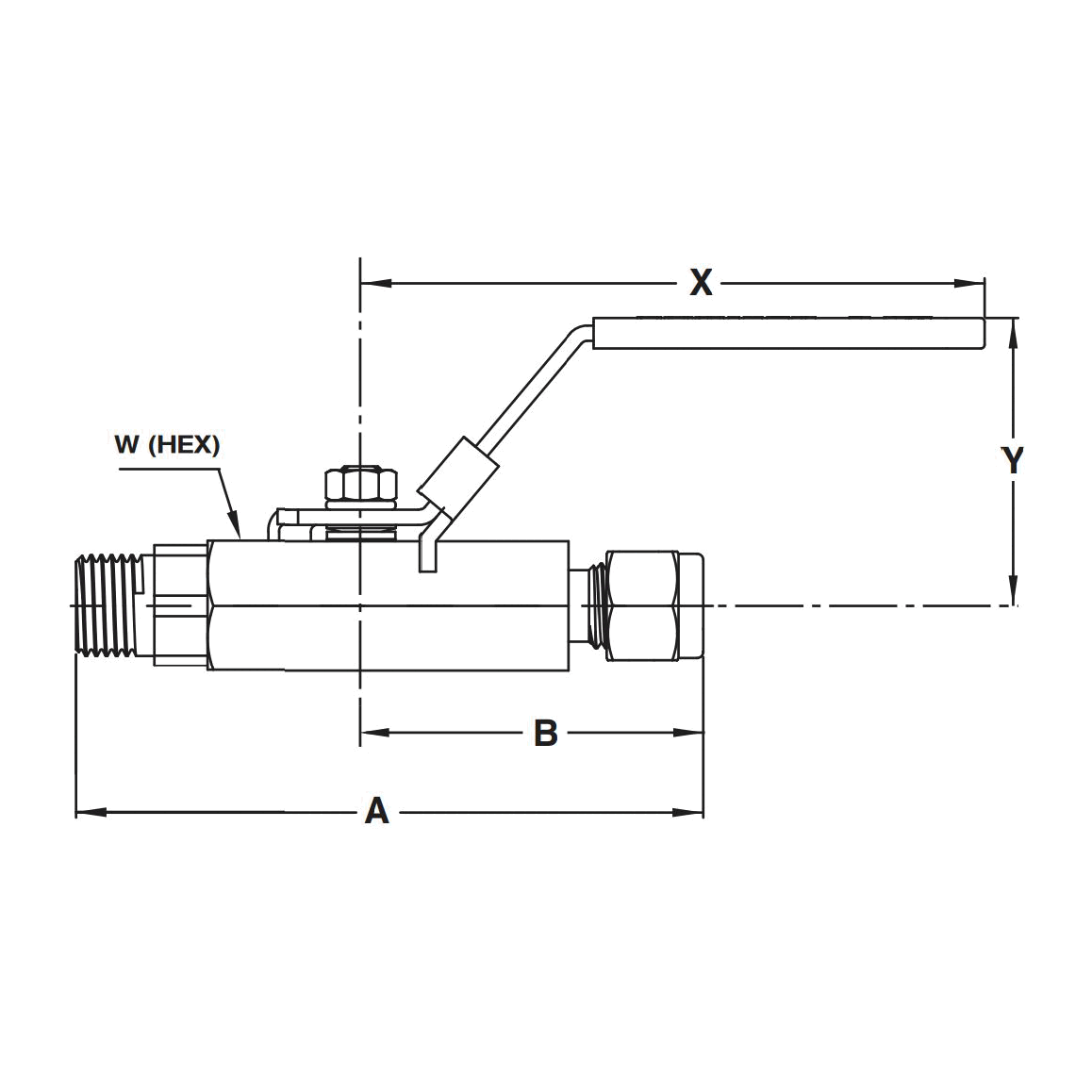

| A OVERALL LENGTH (MM) | 127.4 |
| B (MM) | 64.8 |
| X (MM) | 102.0 |
| Y (MM) | 50.0 |
| W HEX (MM) | 38.0 |
NH-795-SS-NL-1/2-T-LD
$340.86Attribute: NH-795-SS-NL-1/2-T-LD (08MP-08IN...)
Stock Status: True
| SERIES | H-795 |
|---|---|
| MAXIMUM WORKING PRESSURE | 2000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | NPT / LET-LOK INS |
| END CONNECTION SIZE | 1/2″ |
| INLET CONNECTION (1) | 1/2″ NPT |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| SEAT MATERIAL | MODIFIED PTFE |
| METAL LEVER HANDLE STANDARD | LOCKING DEVICE |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 9.25 |
| ORIFICE (MM) | 9.2 |
| A OVERALL LENGTH (MM) | 93.16 |
| B (MM) | 47.7 |
| X (MM) | 82.0 |
| Y (MM) | 40.7 |
| W HEX (MM) | 25.0 |
NH-795-SS-NL-1/4-T-LD
$262.10Attribute: NH-795-SS-NL-1/4-T-LD (04MP-04IN...)
Stock Status: True
| SERIES | H-795 |
|---|---|
| MAXIMUM WORKING PRESSURE | 2000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | NPT / LET-LOK INS |
| END CONNECTION SIZE | 1/4″ |
| INLET CONNECTION (1) | 1/4″ MALE NPT |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| SEAT MATERIAL | MODIFIED PTFE |
| METAL LEVER HANDLE STANDARD | LOCKING DEVICE |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 1.25 |
| ORIFICE (MM) | 5.0 |
| A OVERALL LENGTH (MM) | 77.56 |
| B (MM) | 45.0 |
| X (MM) | 82.0 |
| Y (MM) | 38.0 |
| W HEX (MM) | 17.0 |
NH-795-SS-NL-3/4-T-LD
$370.83Attribute: NH-795-SS-NL-3/4-T-LD (12MP-12IN...)
Stock Status: True
| SERIES | H-795 |
|---|---|
| MAXIMUM WORKING PRESSURE | 2000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | NPT / LET-LOK INS |
| END CONNECTION SIZE | 3/4″ |
| INLET CONNECTION (1) | 3/4″ MALE NPT |
| OUTLET CONNECTION (2) | 3/4″ LET-LOK INS |
| SEAT MATERIAL | MODIFIED PTFE |
| METAL LEVER HANDLE STANDARD | LOCKING DEVICE |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 12.65 |
| ORIFICE (MM) | 12.5 |
| A OVERALL LENGTH (MM) | 110.63 |
| B (MM) | 56.7 |
| X (MM) | 82.0 |
| Y (MM) | 44.5 |
| W HEX (MM) | 32.0 |
NH-795-SS-NL-3/8-T-LD
$261.27Attribute: NH-795-SS-NL-3/8-T-LD (06MP-06IN...)
Stock Status: True
| SERIES | H-795 |
|---|---|
| MAXIMUM WORKING PRESSURE | 2000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | NPT / LET-LOK INS |
| END CONNECTION SIZE | 3/8″ |
| INLET CONNECTION (1) | 3/8″ MALE NPT |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| SEAT MATERIAL | MODIFIED PTFE |
| METAL LEVER HANDLE STANDARD | LOCKING DEVICE |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 2.5 |
| ORIFICE (MM) | 7.0 |
| A OVERALL LENGTH (MM) | 79.46 |
| B (MM) | 45.0 |
| X (MM) | 82.0 |
| Y (MM) | 40.0 |
| W HEX (MM) | 21.0 |
General Attributes
| Connections | NPT, Other |
|---|---|
| Shape | Straight |
