NH-785-NPT

Attribute: NH-785-SS-N-1/2-T-LD (08MP-08FP ...)

Stock Status: True

SERIES	H-785
MAXIMUM WORKING PRESSURE	2000PSI
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
END CONNECTION SIZE	1/2″
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ FEMALE NPT
SEAT MATERIAL	MODIFIED PTFE
METAL LEVER HANDLE STANDARD	LOCKING DEVICE
TREATMENT	STANDARD
FLOW COEFFICIENT (CV)	9.25
ORIFICE (MM)	9.0

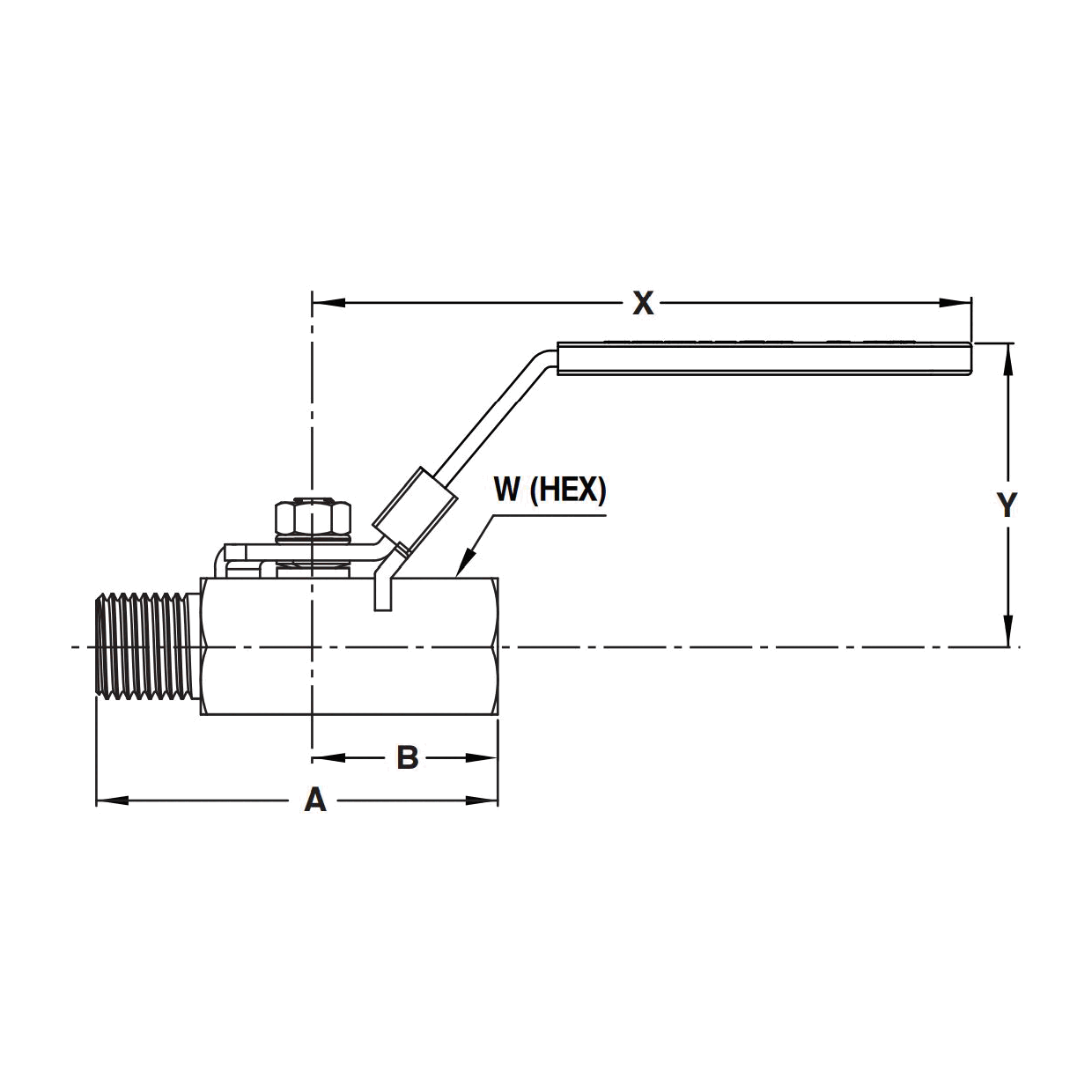

A OVERALL LENGTH (MM)	82.95
B (MM)	37.5
X (MM)	82.0
Y (MM)	56.6
W HEX (MM)	27.0

Attribute: NH-785-SS-N-1/4-T-LD (04MP-04FP ...)

Stock Status: True

SERIES	H-785
MAXIMUM WORKING PRESSURE	2000PSI
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
END CONNECTION SIZE	1/4″
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ FEMALE NPT
SEAT MATERIAL	MODIFIED PTFE
METAL LEVER HANDLE STANDARD	LOCKING DEVICE
TREATMENT	STANDARD
FLOW COEFFICIENT (CV)	1.35
ORIFICE (MM)	5.0
A OVERALL LENGTH (MM)	50.0
B (MM)	24.85
X (MM)	82.0
Y (MM)	38.0
W HEX (MM)	17.0

Attribute: NH-785-SS-N-3/8-T-LD (06MP-06FP ...)

Stock Status: True

SERIES	H-785
MAXIMUM WORKING PRESSURE	2000PSI
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	NPT
END CONNECTION SIZE	3/8″
INLET CONNECTION (1)	3/8″ MALE NPT
OUTLET CONNECTION (2)	3/8″ FEMALE NPT
SEAT MATERIAL	MODIFIED PTFE
METAL LEVER HANDLE STANDARD	LOCKING DEVICE
TREATMENT	STANDARD
