Description
MBSPP-FBSPP-BALL VALVE STRAIGHT. GENERAL PURPOSE 2 WAY BALL VALVE
Description
Variations (2)
NH-785-SS-G-1/2-T-LD
$300.57Attribute: NH-785-SS-G-1/2-T-LD (08MBSPP-08...)
Stock Status: True
| SERIES | H-785 |
|---|---|
| MAXIMUM WORKING PRESSURE | 2000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | BSPP(G ISO PARALLEL) |
| END CONNECTION SIZE | 1/2″ |
| INLET CONNECTION (1) | 1/2″ MALE BSPP |
| OUTLET CONNECTION (2) | 1/2″ FEMALE BSPP |
| SEAT MATERIAL | MODIFIED PTFE |
| METAL LEVER HANDLE STANDARD | LOCKING DEVICE |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 9.25 |
| ORIFICE (MM) | 9.0 |

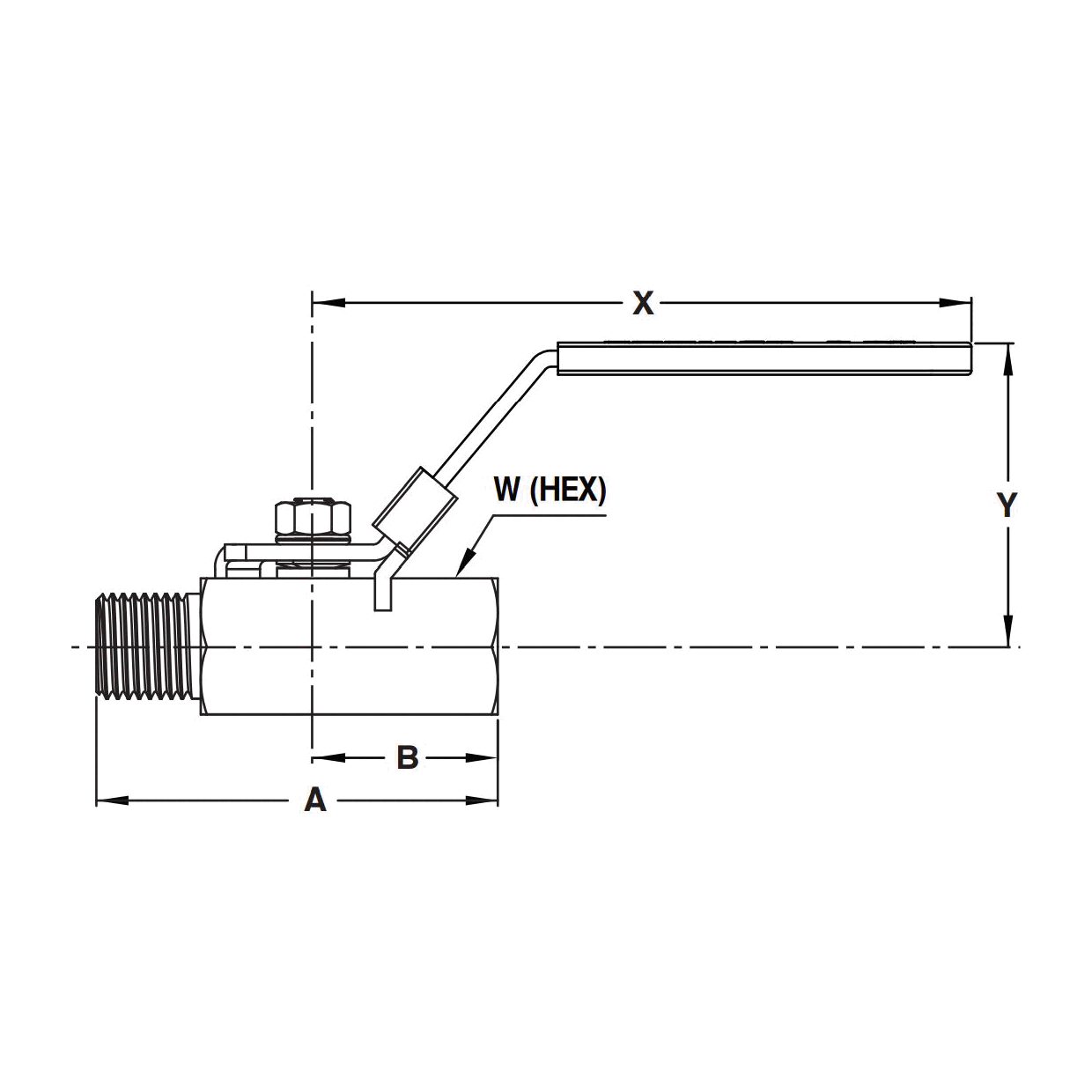

| A OVERALL LENGTH (MM) | 82.95 |
| B (MM) | 37.5 |
| X (MM) | 82.0 |
| Y (MM) | 56.6 |
| W HEX (MM) | 27.0 |
NH-785-SS-G-1/4-T-LD
$225.94Attribute: NH-785-SS-G-1/4-T-LD (04MBSPP-04...)
Stock Status: True
| SERIES | H-785 |
|---|---|
| MAXIMUM WORKING PRESSURE | 2000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | BSPP(G ISO PARALLEL) |
| END CONNECTION SIZE | 1/4″ |
| INLET CONNECTION (1) | 1/4″ MALE BSPP |
| OUTLET CONNECTION (2) | 1/4″ FEMALE BSPP |
| SEAT MATERIAL | MODIFIED PTFE |
| METAL LEVER HANDLE STANDARD | LOCKING DEVICE |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 1.35 |
| ORIFICE (MM) | 5.0 |
| A OVERALL LENGTH (MM) | 50.05 |
| B (MM) | 24.85 |
| X (MM) | 82.0 |
| Y (MM) | 38.0 |
| W HEX (MM) | 17.0 |
General Attributes
| Connections | BSP, Other |
|---|---|
| Shape | Straight |
