Description
MP-MP-BALL VALVE STRAIGHT. GENERAL PURPOSE 2 WAY BALL VALVE
Description
Variations (3)
NH-780-SS-N-1/2-T-LD
$272.92Attribute: NH-780-SS-N-1/2-T-LD (08MP-08MP ...)
Stock Status: True
| SERIES | H-780 |
|---|---|
| MAXIMUM WORKING PRESSURE | 2000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | MALE NPT |
| END CONNECTION SIZE | 1/2″ |
| INLET CONNECTION (1) | 1/2″ MALE NPT |
| OUTLET CONNECTION (2) | 1/2″ MALE NPT |
| SEAT MATERIAL | MODIFIED PTFE |
| METAL LEVER HANDLE STANDARD | LOCKING DEVICE |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 9.25 |
| ORIFICE (MM) | 9.2 |

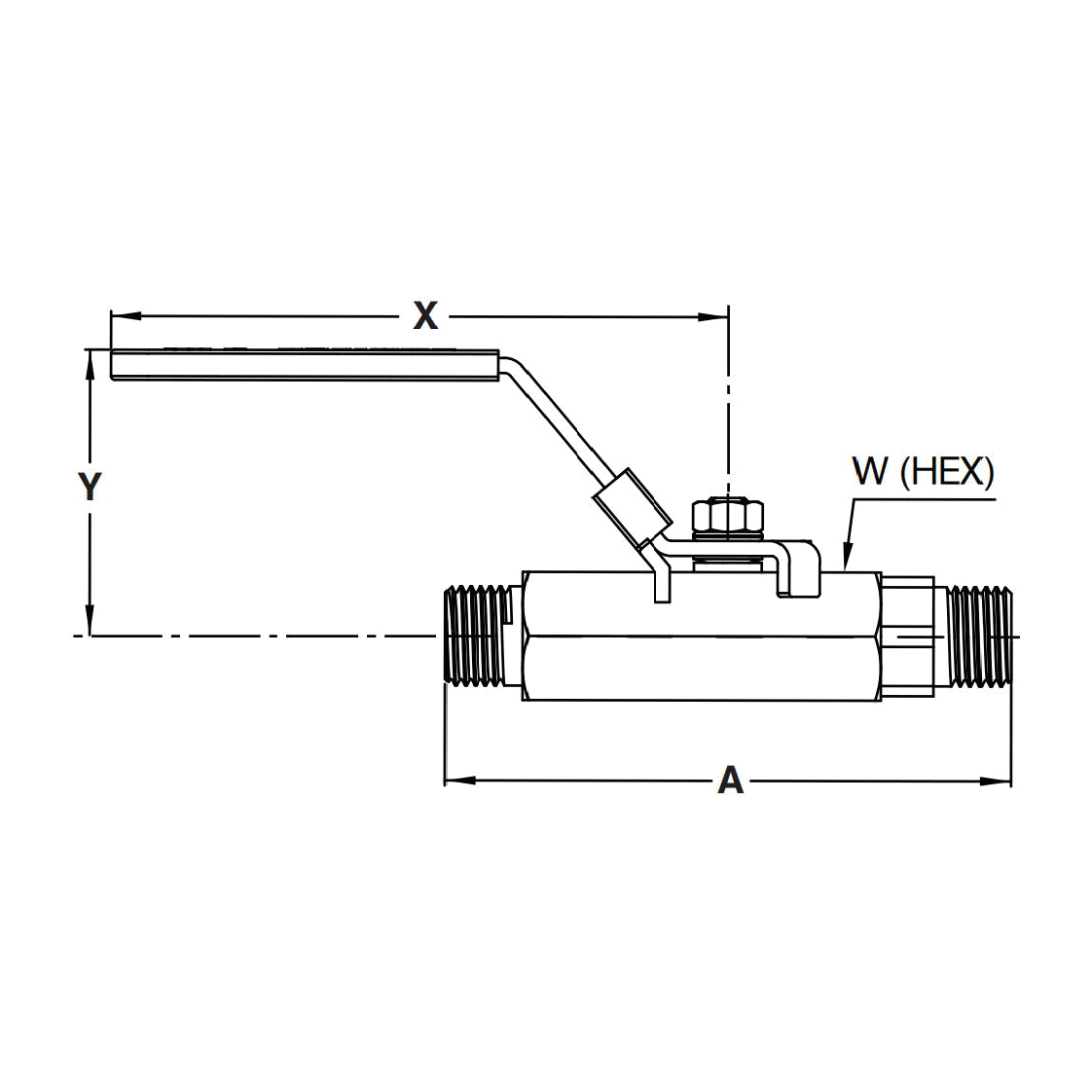

| A OVERALL LENGTH (MM) | 90.9 |
| X (MM) | 82.0 |
| Y (MM) | 40.7 |
| W HEX (MM) | 25.0 |
NH-780-SS-N-1/4-T-LD
$211.14Attribute: NH-780-SS-N-1/4-T-LD (04MP-04MP ...)
Stock Status: True
| SERIES | H-780 |
|---|---|
| MAXIMUM WORKING PRESSURE | 2000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | MALE NPT |
| END CONNECTION SIZE | 1/4″ |
| INLET CONNECTION (1) | 1/4″ MALE NPT |
| OUTLET CONNECTION (2) | 1/4″ MALE NPT |
| SEAT MATERIAL | MODIFIED PTFE |
| METAL LEVER HANDLE STANDARD | LOCKING DEVICE |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 1.35 |
| ORIFICE (MM) | 5.0 |
| A OVERALL LENGTH (MM) | 75.0 |
| X (MM) | 82.0 |
| Y (MM) | 38.0 |
| W HEX (MM) | 17.0 |
NH-780-SS-N-3/8-T-LD
$299.87Attribute: NH-780-SS-N-3/8-T-LD (06MP-06MP ...)
Stock Status: True
| SERIES | H-780 |
|---|---|
| MAXIMUM WORKING PRESSURE | 2000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | MALE NPT |
| END CONNECTION SIZE | 3/8″ |
| INLET CONNECTION (1) | 3/8″ MALE NPT |
| OUTLET CONNECTION (2) | 3/8″ MALE NPT |
| SEAT MATERIAL | MODIFIED PTFE |
| METAL LEVER HANDLE STANDARD | LOCKING DEVICE |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 2.5 |
| ORIFICE (MM) | 7.0 |
| A OVERALL LENGTH (MM) | 75.0 |
| X (MM) | 82.0 |
| Y (MM) | 40.0 |
| W HEX (MM) | 21.0 |
General Attributes
| Connections | NPT, Other |
|---|---|
| Shape | Straight |
