Description
FBSPT-FBSPT-BALL VALVE STRAIGHT. GENERAL PURPOSE 2 WAY BALL VALVE
Description
Variations (5)
NH-710-SS-R-1-T-LD
$313.59Attribute: NH-710-SS-R-1-T-LD (16FBSPT-16FB...)
Stock Status: True
| SERIES | H-710 |
|---|---|
| MAXIMUM WORKING PRESSURE | 2000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | BSPT (R ISO TAPERED) |
| END CONNECTION SIZE | 1″ |
| INLET CONNECTION (1) | 1″ FEMALE BSPT |
| OUTLET CONNECTION (2) | 1″ FEMALE BSPT |
| SEAT MATERIAL | MODIFIED PTFE |
| METAL LEVER HANDLE STANDARD | LOCKING DEVICE |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 17.35 |
| ORIFICE (MM) | 15.0 |

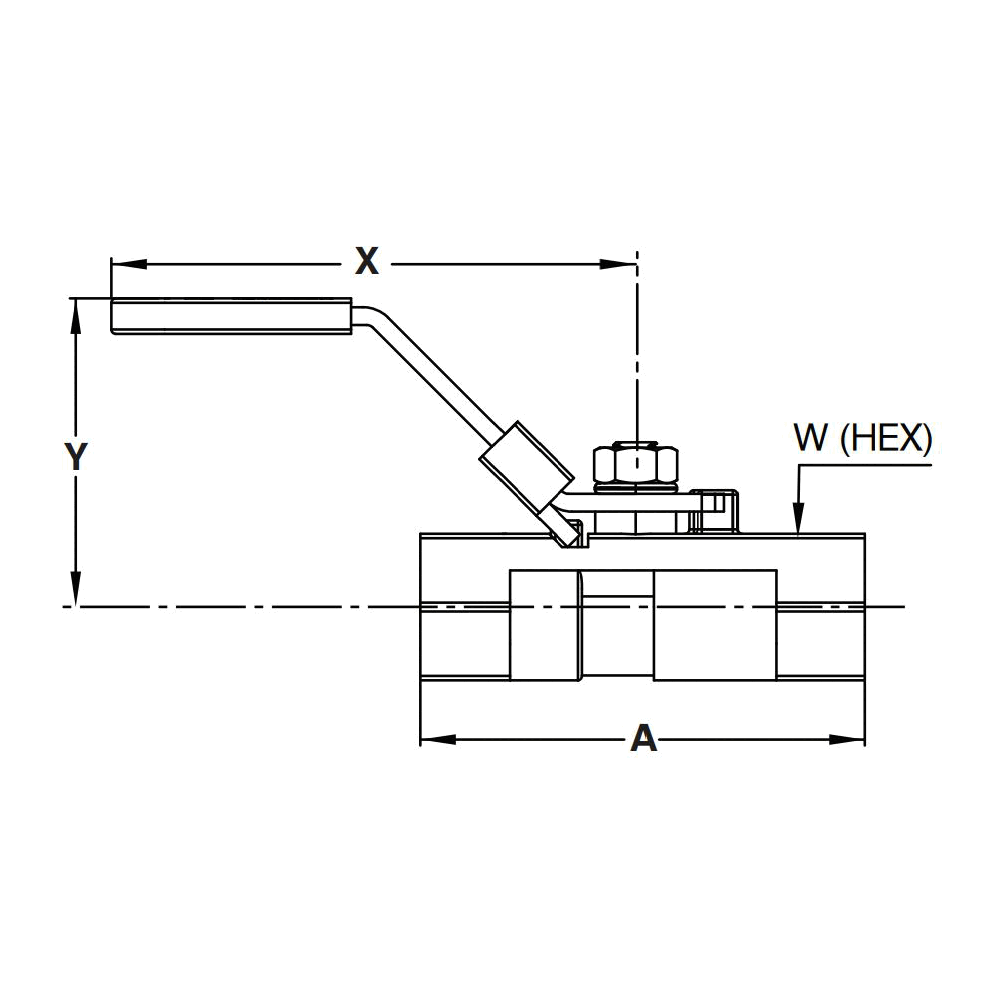

| A OVERALL LENGTH (MM) | 71.0 |
| X (MM) | 102.0 |
| Y (MM) | 50.0 |
| W HEX (MM) | 41.0 |
NH-710-SS-R-1/2-T-LD
$212.73Attribute: NH-710-SS-R-1/2-T-LD (08FBSPT-08...)
Stock Status: True
| SERIES | H-710 |
|---|---|
| MAXIMUM WORKING PRESSURE | 2000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | BPST (R ISO TAPERED) |
| END CONNECTION SIZE | 1/2″ |
| INLET CONNECTION (1) | 1/2″ FEMALE BSPT |
| OUTLET CONNECTION (2) | 1/2″ FEMALE BPST |
| SEAT MATERIAL | MODIFIED PTFE |
| METAL LEVER HANDLE STANDARD | LOCKING DEVICE |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 9.25 |
| ORIFICE (MM) | 9.0 |
| A OVERALL LENGTH (MM) | 75.0 |
| X (MM) | 82.5 |
| Y (MM) | 42.9 |
| W HEX (MM) | 25.0 |
NH-710-SS-R-1/4-T-LD
$154.98Attribute: NH-710-SS-R-1/4-T-LD (04FBSPT-04...)
Stock Status: True
| SERIES | H-710 |
|---|---|
| MAXIMUM WORKING PRESSURE | 2000PSI |
| BODY MATERIAL | STAINLESS STEL |
| END CONNECTION | BSPT (R ISO TAPERED) |
| END CONNECTION SIZE | 1/4″ |
| INLET CONNECTION (1) | 1/4″ FEMALE BSPT |
| OUTLET CONNECTION (2) | 1/4″ FEMALE BSPT |
| SEAT MATERIAL | MODIFIED PTFE |
| METAL LEVER HANDLE STANDARD | LOCKING DEVICE |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 1.35 |
| ORIFICE (MM) | 5.0 |
| A OVERALL LENGTH (MM) | 50.0 |
| X (MM) | 67.0 |
| Y (MM) | 47.0 |
| W HEX (MM) | 16.5 |
NH-710-SS-R-3/4-T-LD
$273.68Attribute: NH-710-SS-R-3/4-T-LD (12FBSPT-12...)
Stock Status: True
| SERIES | H-710 |
|---|---|
| MAXIMUM WORKING PRESSURE | 2000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | BSPT (R ISO TAPERED) |
| END CONNECTION SIZE | 3/4″ |
| INLET CONNECTION (1) | 3/4″ FEMALE BSPT |
| OUTLET CONNECTION (2) | 3/4″ FEMALE BSPT |
| SEAT MATERIAL | MODIFIED PTFE |
| METAL LEVER HANDLE STANDARD | LOCKING DEVICE |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 12.65 |
| ORIFICE (MM) | 12.5 |
| A OVERALL LENGTH (MM) | 59.0 |
| X (MM) | 85.0 |
| Y (MM) | 44.0 |
| W HEX (MM) | 32.0 |
NH-710-SS-R-3/8-T-LD
$196.00Attribute: NH-710-SS-R-3/8-T-LD (06FBSPT-06...)
Stock Status: True
| SERIES | H-710 |
|---|---|
| MAXIMUM WORKING PRESSURE | 2000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | BSPT (R ISO TAPERED) |
| END CONNECTION SIZE | 3/8″ |
| INLET CONNECTION (1) | 3/8″ FEMALE BPST |
| OUTLET CONNECTION (2) | 3/8″ FEMALE BSPT |
| SEAT MATERIAL | MODIFIED PTFE |
| METAL LEVER HANDLE STANDARD | LOCKING DEVICE |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 2.6 |
| ORIFICE (MM) | 7.0 |
| A OVERALL LENGTH (MM) | 60.0 |
| X (MM) | 67.0 |
| Y (MM) | 49.0 |
| W HEX (MM) | 13/16″ |
General Attributes
| Connections | BSP, Other |
|---|---|
| Shape | Straight |
