Description
FP-FP-BALL VALVE STRAIGHT. GENERAL PURPOSE 2 WAY BALL VALVE
Description
Variations (5)
NH-710-SS-N-1-T-LD
$287.17Attribute: NH-710-SS-N-1-T-LD (16FP-16FP ST...)
Stock Status: True
| SERIES | H-710 |
|---|---|
| MAXIMUM WORKING PRESSURE | 2000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | FEMALE NPT |
| END CONNECTION SIZE | 1″ |
| INLET CONNECTION (1) | 1″ FEMALE NPT |
| OUTLET CONNECTION (2) | 1″ FEMALE NPT |
| SEAT MATERIAL | MODIFIED PTFE |
| METAL LEVER HANDLE STANDARD | LOCKING DEVICE |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 17.35 |
| ORIFICE (MM) | 15.0 |

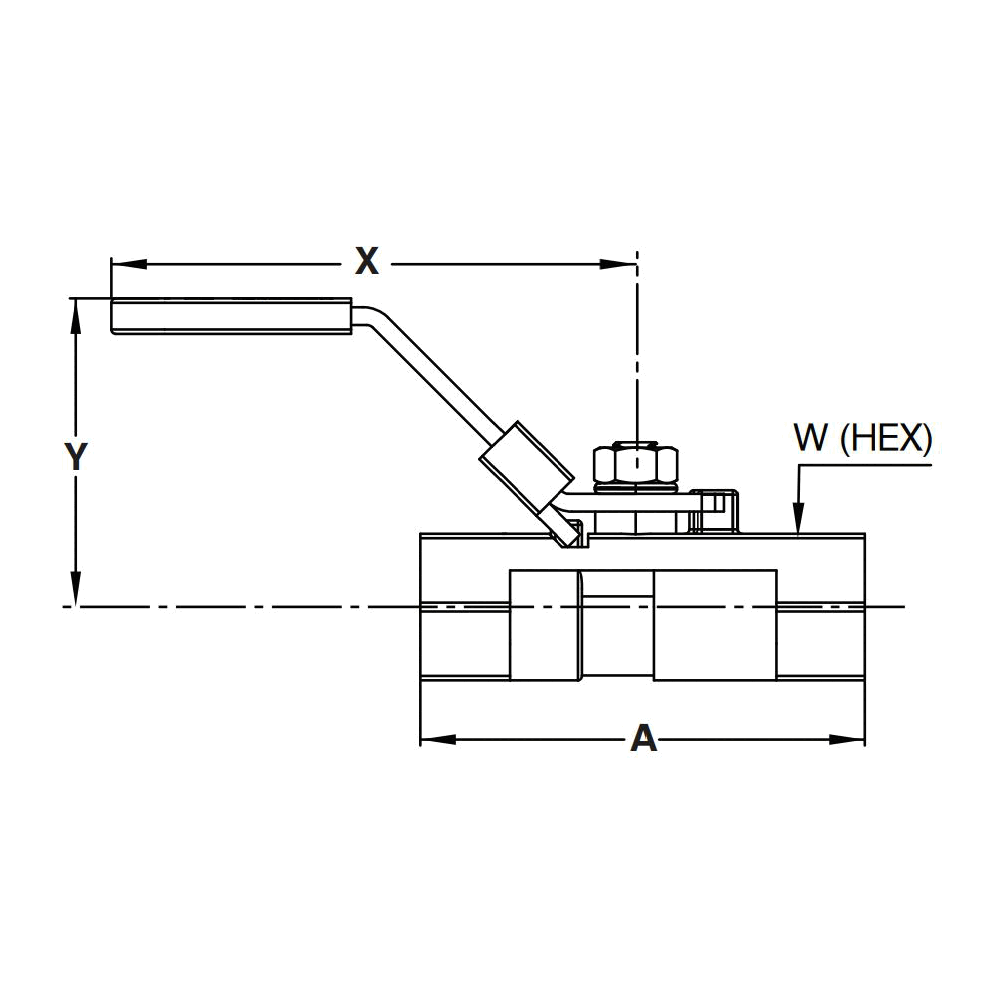

| A OVERALL LENGTH (MM) | 71.0 |
| X (MM) | 102.0 |
| Y (MM) | 50.0 |
| W HEX (MM) | 41.0 |
NH-710-SS-N-1/2-T-LD
$208.44Attribute: NH-710-SS-N-1/2-T-LD (08FP-08FP ...)
Stock Status: True
| SERIES | H-710 |
|---|---|
| MAXIMUM WORKING PRESSURE | 2000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | FEMALE NPT |
| END CONNECTION SIZE | 1/2″ |
| INLET CONNECTION (1) | 1/2″ FEMALE NPT |
| OUTLET CONNECTION (2) | 1/2″ FEMALE NPT |
| SEAT MATERIAL | MODIFIED PTFE |
| METAL LEVER HANDLE STANDARD | LOCKING DEVICE |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 9.25 |
| ORIFICE (MM) | 9.0 |
| A OVERALL LENGTH (MM) | 75.0 |
| X (MM) | 82.5 |
| Y (MM) | 42.9 |
| W HEX (MM) | 25.0 |
NH-710-SS-N-1/4-T-LD
$165.81Attribute: NH-710-SS-N-1/4-T-LD (04FP-04FP ...)
Stock Status: True
| SERIES | H-710 |
|---|---|
| MAXIMUM WORKING PRESSURE | 2000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | FEMALE NPT |
| END CONNECTION SIZE | 1/4″ |
| INLET CONNECTION (1) | 1/4″ FEMALE NPT |
| OUTLET CONNECTION (2) | 1/4″ FEMALE NPT |
| SEAT MATERIAL | MODIFIED PTFE |
| METAL LEVER HANDLE STANDARD | LOCKING DEVICE |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 1.35 |
| ORIFICE (MM) | 5.0 |
| A OVERALL LENGTH (MM) | 50.0 |
| X (MM) | 67.0 |
| Y (MM) | 47.0 |
| W HEX (MM) | 16.5 |
NH-710-SS-N-3/4-T-LD
$250.60Attribute: NH-710-SS-N-3/4-T-LD (12FP-12FP ...)
Stock Status: True
| SERIES | H-710 |
|---|---|
| MAXIMUM WORKING PRESSURE | 2000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | FEMALE NPT |
| END CONNECTION SIZE | 3/4″ |
| INLET CONNECTION (1) | 3/4″ FEMALE NPT |
| OUTLET CONNECTION (2) | 3/4″ FEMALE NPT |
| SEAT MATERIAL | MODIFIED PTFE |
| METAL LEVER HANDLE STANDARD | LOCKING DEVICE |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 12.65 |
| ORIFICE (MM) | 12.5 |
| A OVERALL LENGTH (MM) | 59.0 |
| X (MM) | 85.0 |
| Y (MM) | 44.4 |
| W HEX (MM) | 32.0 |
NH-710-SS-N-3/8-T-LD
$190.57Attribute: NH-710-SS-N-3/8-T-LD (06FP-06FP ...)
Stock Status: True
| SERIES | H-710 |
|---|---|
| MAXIMUM WORKING PRESSURE | 2000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | FEMALE NPT |
| END CONNECTION SIZE | 3/8″ |
| INLET CONNECTION (1) | 3/8″ FEMALE NPT |
| OUTLET CONNECTION (2) | 3/8″ FEMALE NPT |
| SEAT MATERIAL | MODIFIED PTFE |
| METAL LEVER HANDLE STANDARD | LOCKING DEVICE |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 2.6 |
| ORIFICE (MM) | 7.0 |
| A OVERALL LENGTH (MM) | 60.0 |
| X (MM) | 67.0 |
| Y (MM) | 49.0 |
| W HEX (MM) | 13/16″ |
General Attributes
| Connections | NPT, Other |
|---|---|
| Shape | Straight |
