Description
MP-FP-BALL VALVE STRAIGHT FLOW, HIGH PERFORMANCE BALL VALVE
Description
Variations (5)
NH-6885-B-N-1/4-PSS
$390.38Attribute: NH-6885-B-N-1/4-PSS (04MP-04FP-B...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6885 (6000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | NPT |
| END CONNECTION SIZE | 1/4′ |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 1.2 |

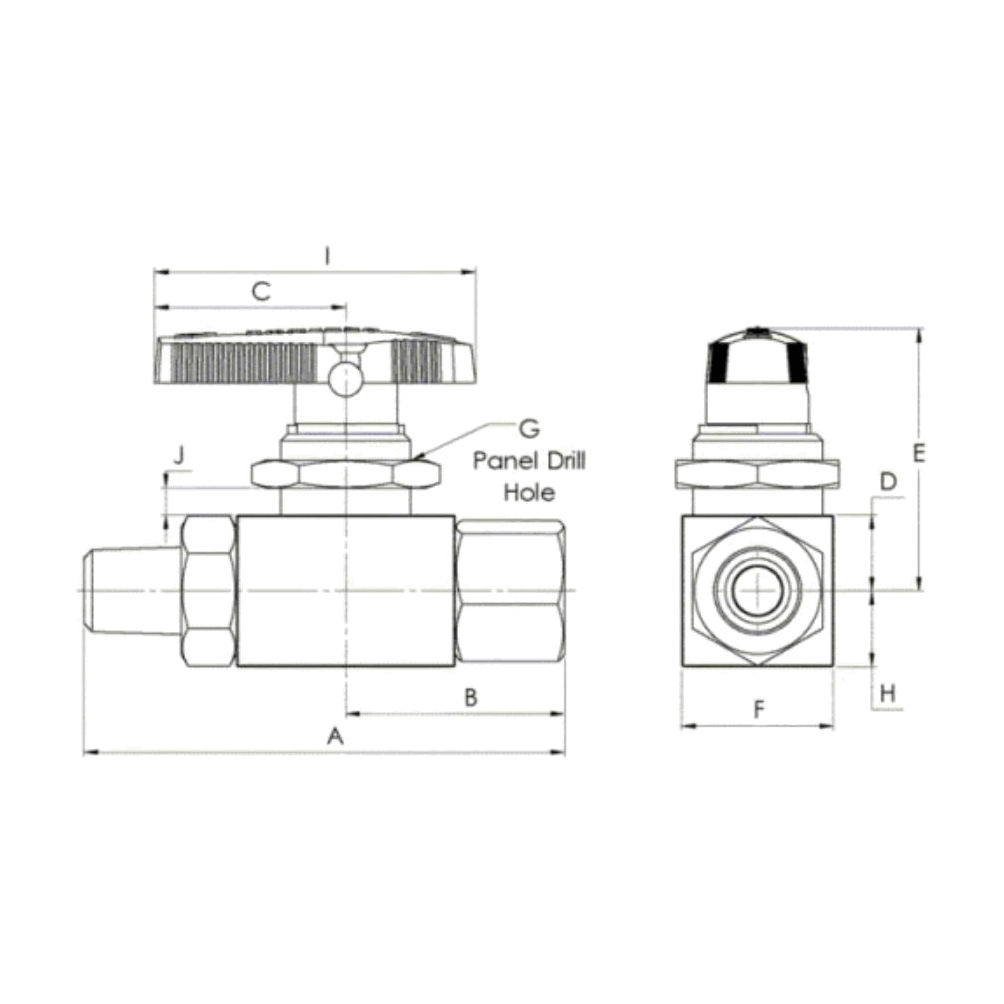

| A (MM) | 76.6 |
| B (MM) | 38.3 |
| C (MM) | 31 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50 |
| J (MM) | 6.5 |
NH-6885-SS-N-1/2-PSS
$807.05Attribute: NH-6885-SS-N-1/2-PSS (08MP-08FP-...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6885 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | NPT |
| END CONNECTION SIZE | 1/2″ |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 10.3 |
| FLOW COEFFICIENT (CV) | 8.2 |
| A (MM) | 92.4 |
| B (MM) | 416.2 |
| C (MM) | 50.0 |
| D (MM) | 16.0 |
| E (MM) | 50.0 |
| F (MM) | 32.0 |
| G (MM) | 20.8 |
| H (MM) | 16.0 |
| I (MM) | 80.0 |
| J (MM) | 6.5 |
NH-6885-SS-N-1/4-PSS
$488.38Attribute: NH-6885-SS-N-1/4-PSS (04MP-04FP-...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6885 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | NPT |
| END CONNECTION SIZE | 1/4″ |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 1.2 |
| A (MM) | 76.6 |
| B (MM) | 38.3 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
NH-6885-SS-N-1/8-RPSS
$341.56Attribute: NH-6885-SS-N-1/8-RPSS (02MP-02FP...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6885 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | NPT |
| END CONNECTION SIZE | 1/8″ |
| BODY SIZE | REDUCED BODY SIZE |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 1.5 |
| A (MM) | 67.6 |
| B (MM) | 33.8 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
NH-6885-SS-N-3/8-IPSS
$498.79Attribute: NH-6885-SS-N-3/8-IPSS (06MP-06FP...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6885 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | NPT |
| END CONNECTION SIZE | 3/8″ |
| BODY SIZE | INCREASED BODY SIZE |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 0.90 |
| A (MM) | 76.6 |
| B (MM) | 38.3 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
General Attributes
| Connections | NPT, Other |
|---|---|
| Shape | Straight |
