NH-6880-90D-ANGLE

Attribute: NH-6810-B-N-1/4-PSA (04FP-04FP-B...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	BRASS
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	1/4′
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	90
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.75

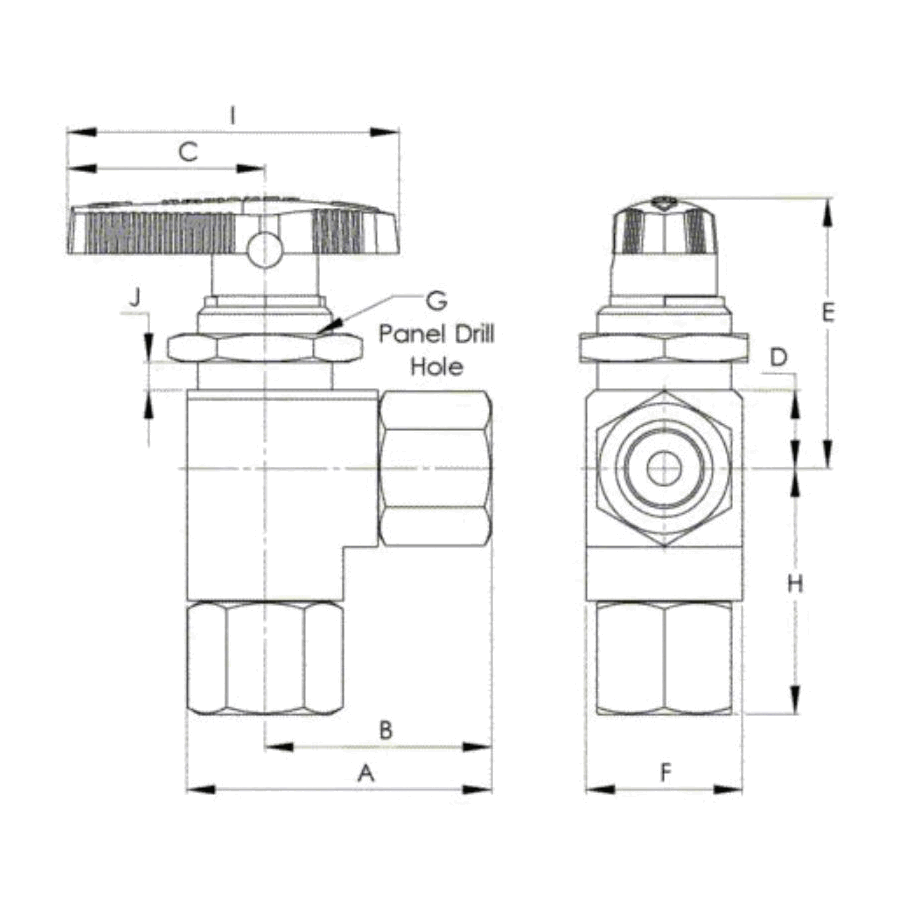

A (MM)	64
B (MM)	31.8
C (MM)	31
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	34.8
I (MM)	50
J (MM)	6.5
K (MM)	43.1

Attribute: NH-6880-B-N-1/4-PSA (04MP-04MP-B...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6880 (6000PSI)
BODY MATERIAL	BRASS
END CONNECTION	MALE NPT
END CONNECTION SIZE	1/4′
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	90
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.6
A (MM)	76.6
B (MM)	38.3
C (MM)	31
D (MM)	11
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	41.1
I (MM)	50
J (MM)	6.5
K (MM)	49.4

Attribute: NH-6880-SS-N-1/4-PSA (04MP-04MP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6880 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	MALE NPT
END CONNECTION SIZE	1/4″
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	90
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.60
A (MM)	76.6
B (MM)	38.3
C (MM)	31.0
D (MM)	11.0
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	41.1
I (MM)	50.0
J (MM)	6.5
K (MM)	49.4
