NH-6880-3PORT

Attribute: NH-6880-SS-N-1/2-PST (08MP-08MP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6880 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	MALE NPT
END CONNECTION SIZE	1/2″
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	10.3
FLOW COEFFICIENT (CV)	3.0

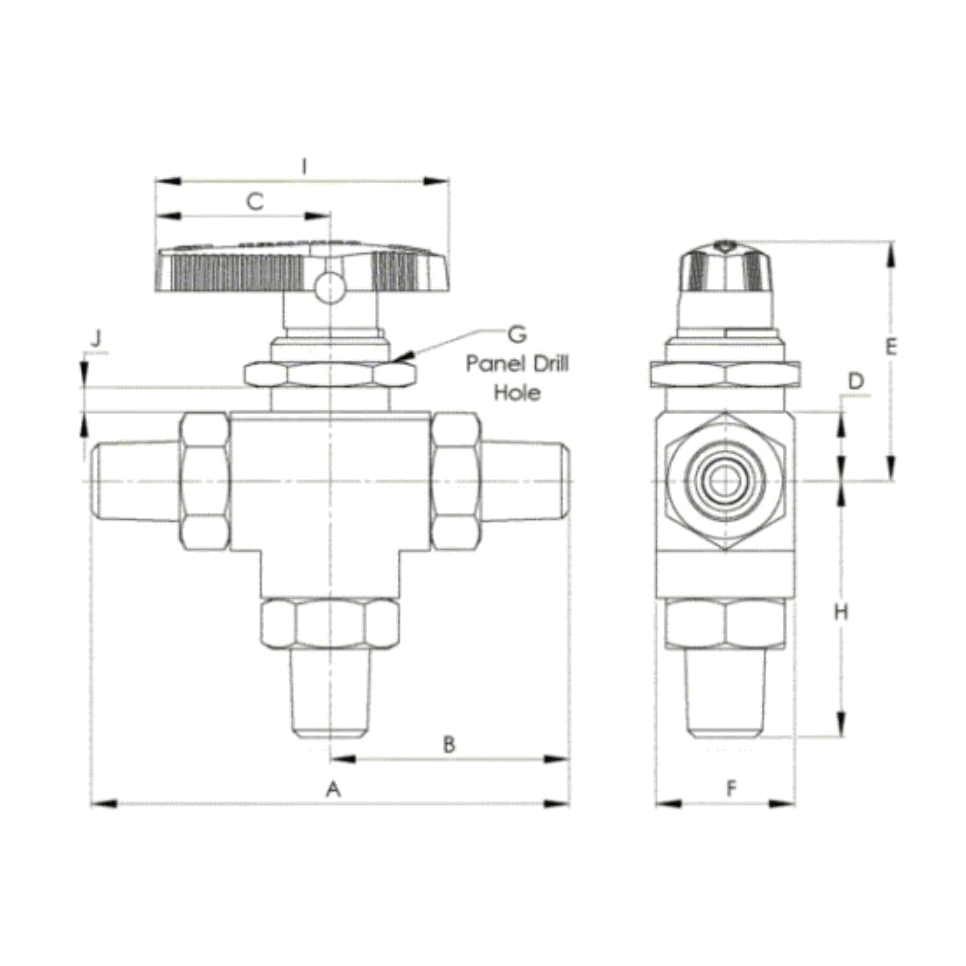

A (MM)	92.4
B (MM)	46.2
C (MM)	50.0
D (MM)	16.0
E (MM)	50.0
F (MM)	32.0
G (MM)	20.8
H (MM)	52.5
I (MM)	80.0
J (MM)	6.5
K (MM)	62.2

Attribute: NH-6880-SS-N-1/4-PST (04MP-04MP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6880 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	MALE NPT
END CONNECTION SIZE	1/4″
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.60
A (MM)	76.6
B (MM)	38.3
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	41.1
I (MM)	50.0
J (MM)	6.5
K (MM)	49.4

Attribute: NH-6880-SS-N-1/8-RPST (02MP-02MP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6880 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	MALE NPT
END CONNECTION SIZE	1/8″
BODY SIZE	REDUCED BODY SIZE
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.90
A (MM)	67.6
B (MM)	33.8
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	36.6
I (MM)	50.0
J (MM)	6.5
K (MM)	44.9
