Description
FP-FP-BALL VALVE, 2 PORT 90D ANGLE HIGH PERFORMANCE BALL VALVE
Description
Variations (4)
NH-6810-SS-N-1/4-PSA
$419.56Attribute: NH-6810-SS-N-1/4-PSA (04FP-04FP-...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6810 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | FEMALE NPT |
| END CONNECTION SIZE | 1/4″ |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | 90 |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 0.75 |

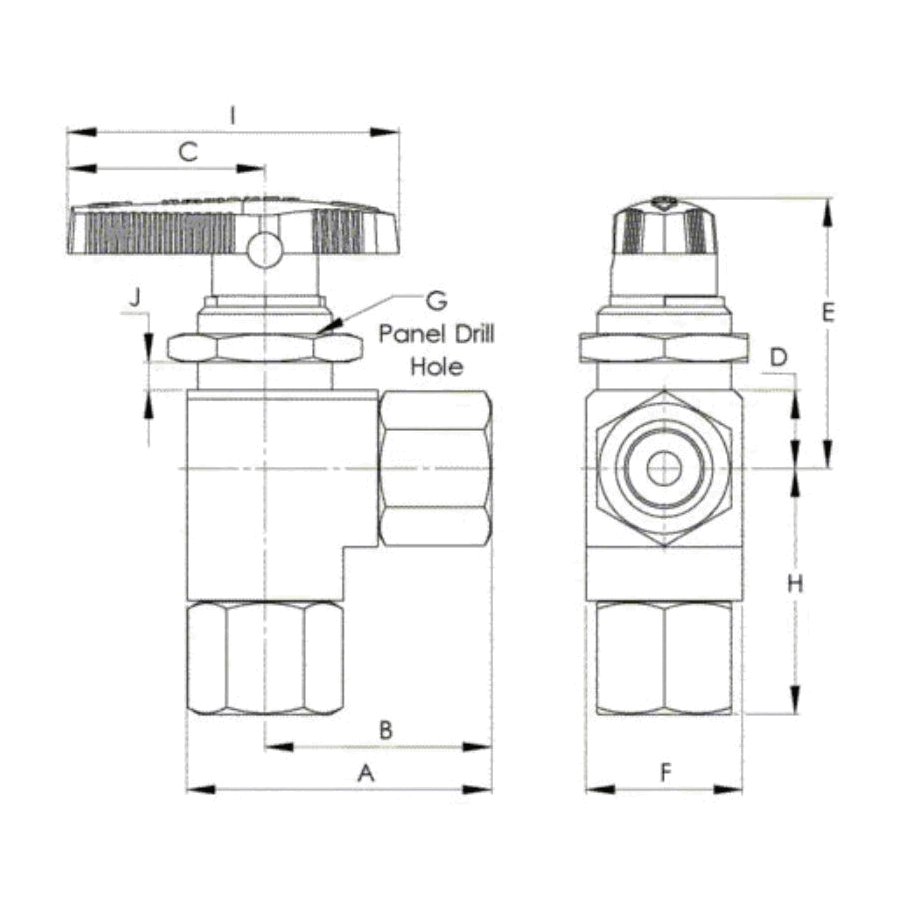

| A (MM) | 64.0 |
| B (MM) | 31.8 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 34.8 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
| K (MM) | 43.1 |
NH-6810-SS-N-1/8-RPSA
$394.32Attribute: NH-6810-SS-N-1/8-RPSA (02FP-02FP...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6810 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | FEMALE NPT |
| END CONNECTION SIZE | 1/8″ |
| BODY SIZE | REDUCED BODY SIZE |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | 90 |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 0.3 |
| A (MM) | 63.6 |
| B (MM) | 32.0 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 34.6 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
| K (MM) | 42.9 |
NH-6810-SS-N-3/4-IPSA
$1,368.48Attribute: NH-6810-SS-N-3/4-IPSA (12FP-12FP...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6810 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | FEMALE NPT |
| END CONNECTION SIZE | 3/4″ |
| BODY SIZE | INCREASED BODY SIZE |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | 90 |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 10.3 |
| FLOW COEFFICIENT (CV) | 2.5 |
| A (MM) | 91.0 |
| B (MM) | 45.5 |
| C (MM) | 50.0 |
| D (MM) | 16.0 |
| E (MM) | 50.0 |
| F (MM) | 32.0 |
| G (MM) | 20.8 |
| H (MM) | 50.0 |
| I (MM) | 80.0 |
| J (MM) | 6.5 |
| K (MM) | 61.5 |
NH-6810-SS-N-3/8-IPSA
$591.43Attribute: NH-6810-SS-N-3/8-IPSA (06FP-06FP...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6810 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | FEMALE NPT |
| END CONNECTION SIZE | 3/8″ |
| BODY SIZE | INCREASED BODY SIZE |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | 90 |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 0.5 |
| A (MM) | 69.6 |
| B (MM) | 34.8 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 37.6 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
| K (MM) | 45.9 |
General Attributes
| Connections | NPT, Other |
|---|---|
| Shape | Elbow |
