Instrumentation Valves

NH-6810-3PORT

Scraped 2026-02-15 08:27:56

Description

FP-FP-FP-BALL VALVE, 3 PORT HIGH PERFORMANCE BALL VALVE

Variations (11)

NH-6810-B-N-1/2-PST

$803.08

Attribute: NH-6810-B-N-1/2-PST (08FP-08FP-0...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	BRASS
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	1/2′
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	10.3
FLOW COEFFICIENT (CV)	3.5

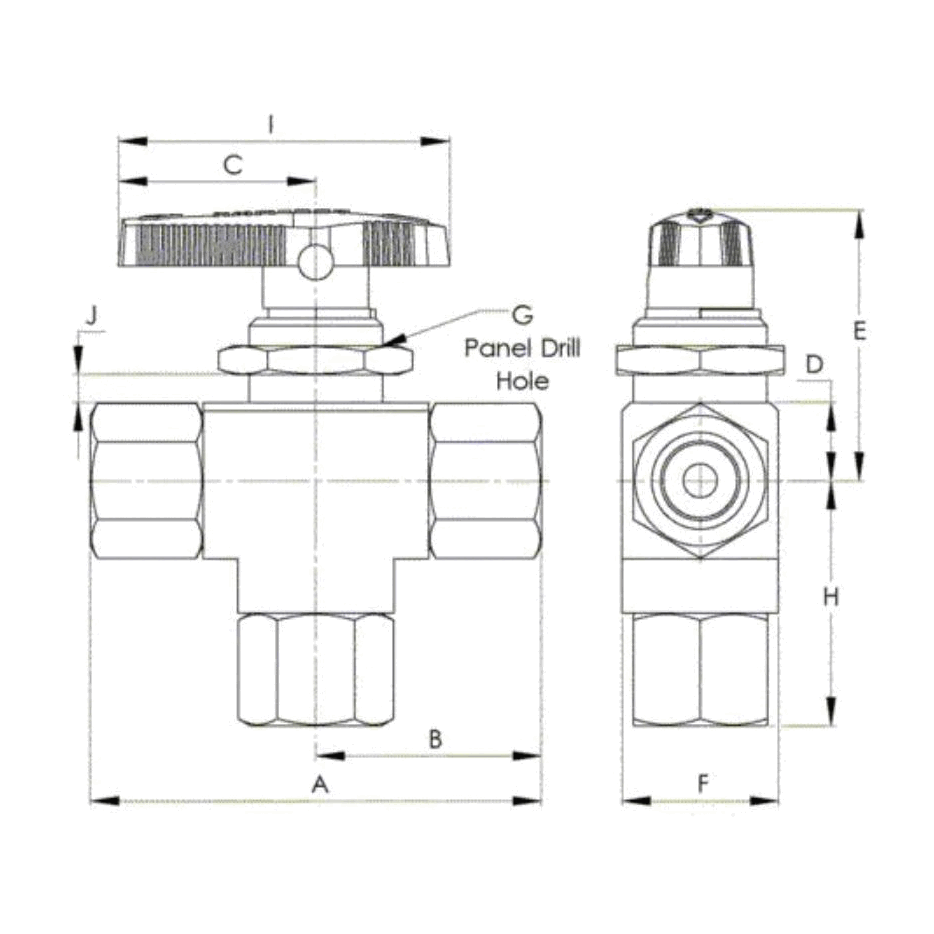

A (MM)	87.4
B (MM)	43.7
C (MM)	50
D (MM)	16
E (MM)	50
F (MM)	32
G (MM)	20.8
H (MM)	50
I (MM)	80
J (MM)	6.5
K (MM)	59.7

NH-6810-B-N-1/4-PST

$503.37

Attribute: NH-6810-B-N-1/4-PST (04FP-04FP-0...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	BRASS
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	1/4″
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.75
A (MM)	64.0
B (MM)	31.8
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	34.8
I (MM)	50.0
J (MM)	6.5
K (MM)	43.1

NH-6810-B-N-1/8-RPST

$484.73

Attribute: NH-6810-B-N-1/8-RPST (02FP-02FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	BRASS
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	1/8″
BODY SIZE	REDUCED BODY SIZE
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.3
A (MM)	63.6
B (MM)	32.0
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	34.6
I (MM)	50.0
J (MM)	6.5
K (MM)	42.9

NH-6810-B-N-3/8-IPST

$447.46

Attribute: NH-6810-B-N-3/8-IPST (06FP-06FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	BRASS
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	3/8″
BODY SIZE	INCREASED BODY SIZE
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.5
A (MM)	69.6
B (MM)	34.8
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	37.6
I (MM)	50.0
J (MM)	6.5
K (MM)	45.9

NH-6810-SS-N-1-IPST

$1,476.83

Attribute: NH-6810-SS-N-1-IPST (16FP-16FP-1...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	1″
BODY SIZE	INCREASED BODY SIZE
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD

NH-6810-SS-N-1/2-PST

$887.75

Attribute: NH-6810-SS-N-1/2-PST (08FP-08FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	1/2″
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	10.3
FLOW COEFFICIENT (CV)	3.5
A (MM)	87.4
B (MM)	43.7
C (MM)	50.0
D (MM)	16.0
E (MM)	50.0
F (MM)	32.0
G (MM)	20.8
H (MM)	50.0
I (MM)	80.0
J (MM)	6.5
K (MM)	59.7

NH-6810-SS-N-1/4-CST

$701.46

Attribute: NH-6810-SS-N-1/4-CST (04FP-04FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	1/4″
SEAT MATERIAL	PCTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.75
A (MM)	64.0
B (MM)	31.8
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	34.8
I (MM)	50.0
J (MM)	6.5
K (MM)	43.1

NH-6810-SS-N-1/4-PST

$508.29

Attribute: NH-6810-SS-N-1/4-PST (04FP-04FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	1/4″
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.75
A (MM)	64.0
B (MM)	31.8
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	34.8
I (MM)	50.0
J (MM)	6.5
K (MM)	43.1

NH-6810-SS-N-1/8-RPST

$406.86

Attribute: NH-6810-SS-N-1/8-RPST (02FP-02FP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6800 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	1/8″
BODY SIZE	REDUCED BODY SIZE
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.30
A (MM)	63.6
B (MM)	32.0
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	34.6
I (MM)	50.0
J (MM)	6.5
K (MM)	42.9

NH-6810-SS-N-3/4-IPST

$1,038.25

Attribute: NH-6810-SS-N-3/4-IPST (12FP-12FP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	3/4″
BODY SIZE	INCREASED BODY SIZE
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	10.3
FLOW COEFFICIENT (CV)	2.5
A (MM)	91.0
B (MM)	45.5
C (MM)	50.0
D (MM)	16.0
E (MM)	50.0
F (MM)	32.0
G (MM)	20.8
H (MM)	50.0
I (MM)	80.0
J (MM)	6.5
K (MM)	61.5

NH-6810-SS-N-3/8-IPST

$676.86

Attribute: NH-6810-SS-N-3/8-IPST (06FP-06FP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	3/8″
BODY SIZE	INCREASED BODY SIZE
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.5
A (MM)	69.6
B (MM)	34.8
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	37.6
I (MM)	50.0
J (MM)	6.5
K (MM)	45.9

General Attributes

Connections	NPT, Other
Shape	Cross
