NH-6810

NH-6810-B-N-1/2-PSS

$568.86

Attribute: NH-6810-B-N-1/2-PSS (08FP-08FP-B...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	BRASS
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	1/2′
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	STRAIGHT
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	10.3
FLOW COEFFICIENT (CV)	6.3

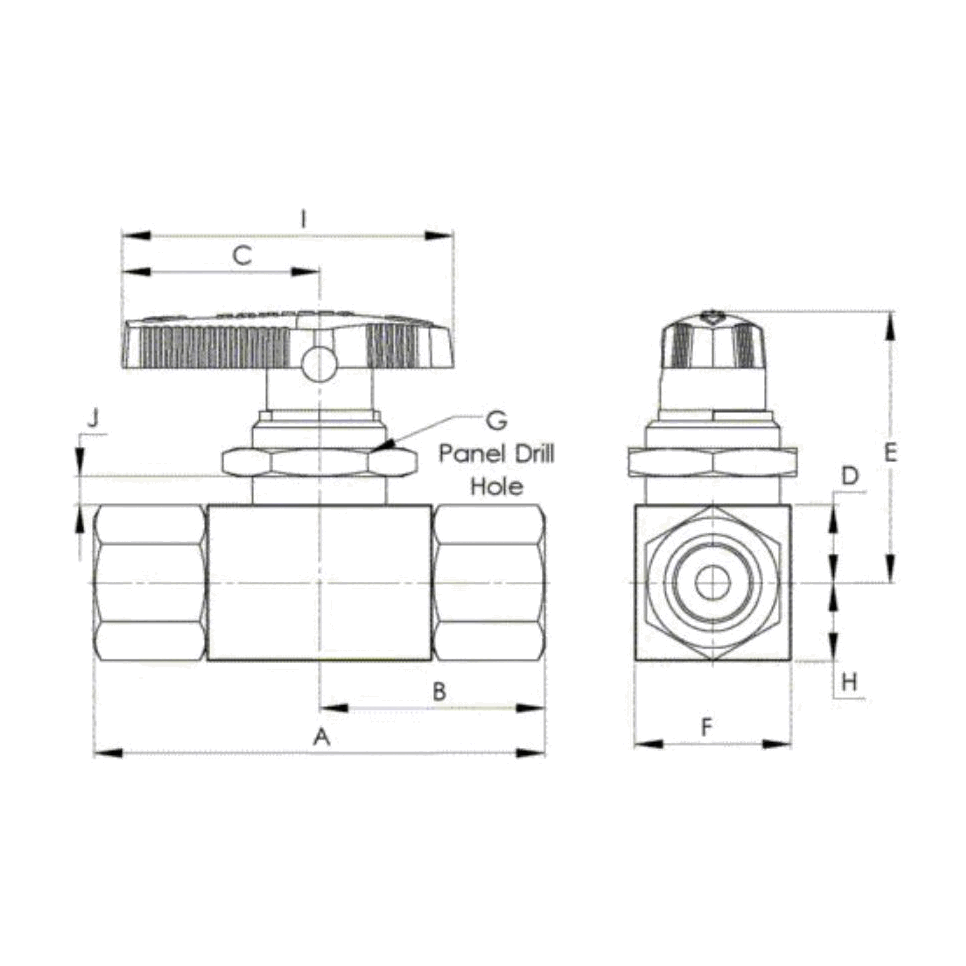

A (MM)	87.4
B (MM)	43.7
C (MM)	50
D (MM)	16
E (MM)	50
F (MM)	32
G (MM)	20.8
H (MM)	16
I (MM)	80
J (MM)	6.5

NH-6810-B-N-1/4-CMS

$746.06

Attribute: NH-6810-B-N-1/4-CMS (04FP-04FP-B...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	BRASS
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	1/4′
SEAT MATERIAL	PCTFE
HANDLE	METAL BAR
VALVE PATTERN	STRAIGHT
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.9
A (MM)	64
B (MM)	32
C (MM)	31
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	11.1
I (MM)	50
J (MM)	6.5

NH-6810-B-N-1/4-CSS

$565.11

Attribute: NH-6810-B-N-1/4-CSS (04FP-04FP-B...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	BRASS
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	1/4′
SEAT MATERIAL	PCTFE
HANDLE	BLACK NYLON
VALVE PATTERN	STRAIGHT
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.9
A (MM)	64
B (MM)	32
C (MM)	31
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	11.1
I (MM)	50
J (MM)	6.5

NH-6810-B-N-1/4-PSS

$409.49

Attribute: NH-6810-B-N-1/4-PSS (04FP-04FP-B...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	BRASS
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	1/4′
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	STRAIGHT
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.9
A (MM)	64
B (MM)	32
C (MM)	31
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	11.1
I (MM)	50
J (MM)	6.5

NH-6810-B-N-1/8-RPSS

$247.59

Attribute: NH-6810-B-N-1/8-RPSS (02FP-02FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	BRASS
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	1/8′
BODY SIZE	REDUCED BODY SIZE
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	STRAIGHT
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	1.2
A (MM)	63.6
B (MM)	31.8
C (MM)	31
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	11.1
I (MM)	50
J (MM)	6.5

NH-6810-B-N-3/4-IPSS

$667.17

Attribute: NH-6810-B-N-3/4-IPSS (12FP-12FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	BRASS
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	3/4′
BODY SIZE	INCREASED BODY SIZSE
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	STRAIGHT
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	10.3
FLOW COEFFICIENT (CV)	6.1
A (MM)	91
B (MM)	45.5
C (MM)	50
D (MM)	16
E (MM)	50
F (MM)	32
G (MM)	20.8
H (MM)	16
I (MM)	80
J (MM)	6.5

NH-6810-B-N-3/8-IPSS

$441.02

Attribute: NH-6810-B-N-3/8-IPSS (06FP-06FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	BRASS
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	3/8′
BODY SIZE	INCREASED BODY SIZE
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	STRAIGHT
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.6
A (MM)	69.6
B (MM)	34.8
C (MM)	31
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	11.1
I (MM)	50
J (MM)	6.5

NH-6810-SS-N-1-IPSS

$1,210.44

Attribute: NH-6810-SS-N-1-IPSS (16FP-16FP-B...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	1″
BODY SIZE	INCREASED BODY SIZE
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	STRAIGHT
TREATMENT	STANDARD
APPROVAL	STANDARD

NH-6810-SS-N-1/2-PSS

$751.27

Attribute: NH-6810-SS-N-1/2-PSS (08FP-08FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	1/2″
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	STRAIGHT
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	10.3
FLOW COEFFICIENT (CV)	6.3
A (MM)	87.4
B (MM)	43.7
C (MM)	50.0
D (MM)	16.0
E (MM)	50.0
F (MM)	32.0
G (MM)	20.8
H (MM)	16.0
I (MM)	80.0
J (MM)	6.5

NH-6810-SS-N-1/4-CMS

$579.43

Attribute: NH-6810-SS-N-1/4-CMS (04FP-04FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	1/4″
SEAT MATERIAL	PCTFE
HANDLE	METAL BAR (316SS)
VALVE PATTERN	STRAIGHT
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.9
A (MM)	64.0
B (MM)	32.0
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	11.1
I (MM)	50.0
J (MM)	6.5

NH-6810-SS-N-1/4-CSS

$503.81

Attribute: NH-6810-SS-N-1/4-CSS (04FP-04FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	1/4″
SEAT MATERIAL	PCTFE
HANDLE	BLACK NYLON
VALVE PATTERN	STRAIGHT
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.9
A (MM)	64.0
B (MM)	32.0
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	11.1
I (MM)	50.0
J (MM)	6.5

NH-6810-SS-N-1/4-CSS-OC

$619.97

Attribute: NH-6810-SS-N-1/4-CSS-OC (04FP-04...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	1/4″
SEAT MATERIAL	PCTFE
HANDLE	BLACK NYLON
VALVE PATTERN	STRAIGHT
TREATMENT	OXYGEN CLEAN
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.9
A (MM)	64.0
B (MM)	32.0
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	11.1
I (MM)	50.0
J (MM)	6.5

NH-6810-SS-N-1/4-PSS

$390.67

Attribute: NH-6810-SS-N-1/4-PSS (04FP-04FP-...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	1/4″
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	STRAIGHT
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.9
A (MM)	64.0
B (MM)	32.0
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	11.1
I (MM)	50.0
J (MM)	6.5

NH-6810-SS-N-1/8-RPSS

$312.73

Attribute: NH-6810-SS-N-1/8-RPSS (02FP-02FP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	1/8″
BODY SIZE	REDUCED BODY SIZE
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	STRAIGHT
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	1.2
A (MM)	63.6
B (MM)	31.8
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	11.1
I (MM)	50.0
J (MM)	6.5

NH-6810-SS-N-3/4-IPSS

$963.97

Attribute: NH-6810-SS-N-3/4-IPSS (12FP-12FP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	3/4″
BODY SIZE	INCREASED BODY SIZSE
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	STRAIGHT
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	10.3
FLOW COEFFICIENT (CV)	6.10
A (MM)	91.0
B (MM)	45.5
C (MM)	50.0
D (MM)	16.0
E (MM)	50.0
F (MM)	32.0
G (MM)	20.8
H (MM)	16.0
I (MM)	80.0
J (MM)	6.5

NH-6810-SS-N-3/8-IPSS

$514.63

Attribute: NH-6810-SS-N-3/8-IPSS (06FP-06FP...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6810 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	FEMALE NPT
END CONNECTION SIZE	3/8″
BODY SIZE	INCREASED BODY SIZE
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	STRAIGHT
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.6
A (MM)	69.6
B (MM)	34.8
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	11.1
I (MM)	50.0
J (MM)	6.5

Connections	NPT, Other
Shape	Tee

ID	10139545
Category	Instrumentation Valves

Description

Description

Variations (16)

NH-6810-B-N-1/2-PSS

NH-6810-B-N-1/4-CMS

NH-6810-B-N-1/4-CSS

NH-6810-B-N-1/4-PSS

NH-6810-B-N-1/8-RPSS

NH-6810-B-N-3/4-IPSS

NH-6810-B-N-3/8-IPSS

NH-6810-SS-N-1-IPSS

NH-6810-SS-N-1/2-PSS

NH-6810-SS-N-1/4-CMS

NH-6810-SS-N-1/4-CSS

NH-6810-SS-N-1/4-CSS-OC

NH-6810-SS-N-1/4-PSS

NH-6810-SS-N-1/8-RPSS

NH-6810-SS-N-3/4-IPSS

NH-6810-SS-N-3/8-IPSS
