INS-INS-BALL VALVE, 2 PORT 90D ANGLE HIGH PERFORMANCE BALL VALVE
Description
Variations (9)
NH-6800-B-L-1/4-PSA
$359.68Attribute: NH-6800-B-L-1/4-PSA (04INS-04INS...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/4″ |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | 90 |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 0.9 |

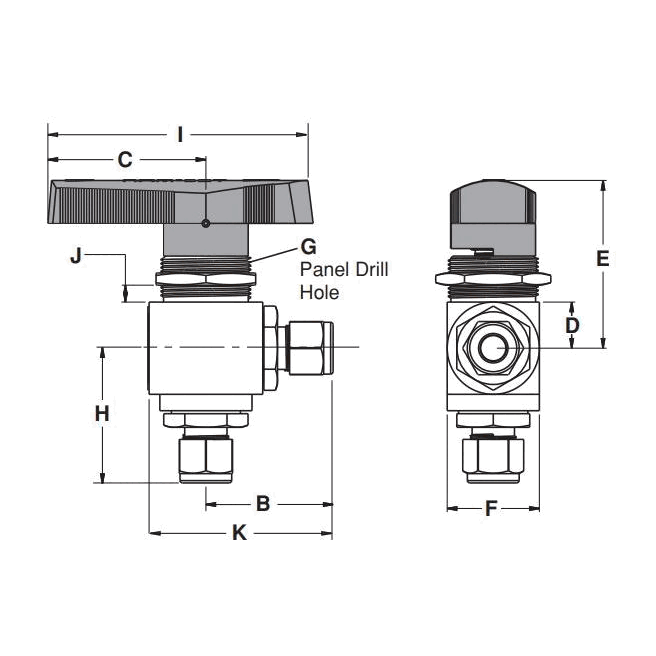

| A (MM) | 83.6 |
| B (MM) | 41.8 |
| C (MM) | 31 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 44.6 |
| I (MM) | 50 |
| J (MM) | 6.5 |
| K (MM) | 52.9 |
NH-6800-B-L-1/8-RPSA
$337.49Attribute: NH-6800-B-L-1/8-RPSA (02INS-02IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/8″ |
| BODY SIZE | REDUCED BODY SIZE |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | 90 |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 2.4 |
| FLOW COEFFICIENT (CV) | 0.15 |
| A (MM) | 78.6 |
| B (MM) | 39.3 |
| C (MM) | 31 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 42.1 |
| I (MM) | 50 |
| J (MM) | 6.5 |
| K (MM) | 50.4 |
NH-6800-B-L-3/8-IPSA
$496.63Attribute: NH-6800-B-L-3/8-IPSA (06INS-06IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 3/8″ |
| BODY SIZE | INCREASED BODY SIZE |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | 90 |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 0.6 |
| A (MM) | 86.3 |
| B (MM) | 43.15 |
| C (MM) | 31 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 46 |
| I (MM) | 50 |
| J (MM) | 6.5 |
| K (MM) | 54.25 |
NH-6800-SS-L-1/16-RPSA
$384.92Attribute: NH-6800-SS-L-1/16-RPSA (01INS-01...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/16″ |
| BODY SIZE | REDUCED BODY SIZE |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | 90 |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 1.3 |
| FLOW COEFFICIENT (CV) | 0.08 |
| A (MM) | 70.2 |
| B (MM) | 35.1 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 37.9 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
| K (MM) | 46.2 |
NH-6800-SS-L-1/2-PSA
$941.30Attribute: NH-6800-SS-L-1/2-PSA (08INS-08IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/2″ |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | 90 |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 10.3 |
| FLOW COEFFICIENT (CV) | 4.6 |
| A (MM) | 102.5 |
| B (MM) | 51.25 |
| C (MM) | 50.0 |
| D (MM) | 16.0 |
| E (MM) | 50.0 |
| F (MM) | 32.0 |
| G (MM) | 20.8 |
| H (MM) | 57.5 |
| I (MM) | 80.0 |
| J (MM) | 6.5 |
| K (MM) | 67.3 |
NH-6800-SS-L-1/4-PSA
$412.73Attribute: NH-6800-SS-L-1/4-PSA (04INS-04IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/4″ |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | 90 |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 0.90 |
| A (MM) | 83.6 |
| B (MM) | 41.8 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 44.6 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
| K (MM) | 52.9 |
NH-6800-SS-L-1/8-RPSA
$368.48Attribute: NH-6800-SS-L-1/8-RPSA (02INS-02I...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/8″ |
| BODY SIZE | REDUCED BODY SIZE |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | 90 |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 2.4 |
| FLOW COEFFICIENT (CV) | 0.15 |
| A (MM) | 78.6 |
| B (MM) | 39.3 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 42.1 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
| K (MM) | 50.4 |
NH-6800-SS-L-3/4-IPSA
$1,054.86Attribute: NH-6800-SS-L-3/4-IPSA (12INS-12I...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 3/4″ |
| BODY SIZE | INCREASED BODY SIZE |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | 90 |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 10.3 |
| FLOW COEFFICIENT (CV) | 3.8 |
| A (MM) | 102.5 |
| B (MM) | 51.25 |
| C (MM) | 50.0 |
| D (MM) | 16.0 |
| E (MM) | 50.0 |
| F (MM) | 32.0 |
| G (MM) | 20.8 |
| H (MM) | 57.5 |
| I (MM) | 80.0 |
| J (MM) | 6.5 |
| K (MM) | 67.3 |
NH-6800-SS-L-3/8-IPSA
$633.21Attribute: NH-6800-SS-L-3/8-IPSA (06INS-06I...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 3/8″ |
| BODY SIZE | INCREASED BODY SIZE |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | 90 |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 0.60 |
| A (MM) | 86.3 |
| B (MM) | 43.15 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 46.0 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
| K (MM) | 54.25 |
