NH-6800-3PORT

NH-6800-B-L-1/2-PST

$736.67

Attribute: NH-6800-B-L-1/2-PST (08INS-08INS...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6800 (6000PSI)
BODY MATERIAL	BRASS
END CONNECTION	LET-LOK INS
END CONNECTION SIZE	1/2″
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	10.3
FLOW COEFFICIENT (CV)	4.6

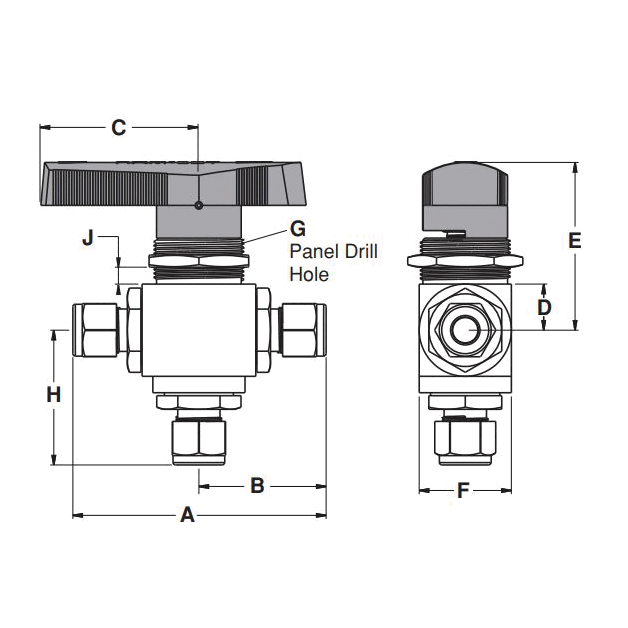

A (MM)	102.5
B (MM)	51.25
C (MM)	50
D (MM)	16
E (MM)	50
F (MM)	32
G (MM)	20.8
H (MM)	57.5
I (MM)	80
J (MM)	6.5
K (MM)	67.3

NH-6800-B-L-1/4-PST

$601.75

Attribute: NH-6800-B-L-1/4-PST (04INS-04INS...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6800 (6000PSI)
BODY MATERIAL	BRASS
END CONNECTION	LET-LOK INS
END CONNECTION SIZE	1/4″
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.9
A (MM)	83.6
B (MM)	41.8
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	44.6
I (MM)	50.0
J (MM)	6.5
K (MM)	52.9

NH-6800-B-L-1/8-RPST

$516.25

Attribute: NH-6800-B-L-1/8-RPST (02INS-02IN...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6800 (6000PSI)
BODY MATERIAL	BRASS
END CONNECTION	LET-LOK INS
END CONNECTION SIZE	1/8″
BODY SIZE	REDUCED BODY SIZE
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	2.4
FLOW COEFFICIENT (CV)	0.15
A (MM)	78.6
B (MM)	39.3
C (MM)	31
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	42.1
I (MM)	50
J (MM)	6.5
K (MM)	50.4

NH-6800-B-L-3/8-IPST

$462.92

Attribute: NH-6800-B-L-3/8-IPST (06INS-06IN...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6800 (6000PSI)
BODY MATERIAL	BRASS
END CONNECTION	LET-LOK INS
END CONNECTION SIZE	3/8″
BODY SIZE	INCREASED BODY SIZE
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.60
A (MM)	86.3
B (MM)	43.15
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	46.0
I (MM)	50.0
J (MM)	6.5
K (MM)	54.25

NH-6800-SS-L-1/16-RPST

$377.94

Attribute: NH-6800-SS-L-1/16-RPST (01INS-01...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6800 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
END CONNECTION SIZE	1/16″
BODY SIZE	REDUCED BODY SIZE
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	1.3
FLOW COEFFICIENT (CV)	0.08
A (MM)	70.2
B (MM)	35.1
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	37.9
I (MM)	50.0
J (MM)	6.5
K (MM)	46.2

NH-6800-SS-L-1/2-AMT

$1,720.92

Attribute: NH-6800-SS-L-1/2-AMT (08INS-08IN...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6800 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
END CONNECTION SIZE	1/2″
SEAT MATERIAL	PEEK
HANDLE	METAL BAR (316SS)
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	10.3
FLOW COEFFICIENT (CV)	4.6
A (MM)	102.5
B (MM)	51.25
C (MM)	50.0
D (MM)	16.0
E (MM)	50.0
F (MM)	32.0
G (MM)	20.8
H (MM)	57.5
I (MM)	80.0
J (MM)	6.5
K (MM)	67.3

NH-6800-SS-L-1/2-CST

$1,379.11

Attribute: NH-6800-SS-L-1/2-CST (08INS-08IN...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6800 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
END CONNECTION SIZE	1/2″
SEAT MATERIAL	PCTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	10.3
FLOW COEFFICIENT (CV)	4.6
A (MM)	102.5
B (MM)	51.25
C (MM)	50.0
D (MM)	16.0
E (MM)	50.0
F (MM)	32.0
G (MM)	20.8
H (MM)	57.5
I (MM)	80.0
J (MM)	6.5
K (MM)	67.3

NH-6800-SS-L-1/2-PST

$999.40

Attribute: NH-6800-SS-L-1/2-PST (08INS-08IN...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6800 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
END CONNECTION SIZE	1/2″
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	10.3
FLOW COEFFICIENT (CV)	4.6
A (MM)	102.5
B (MM)	51.25
C (MM)	50.0
D (MM)	16.0
E (MM)	50.0
F (MM)	32.0
G (MM)	20.8
H (MM)	57.5
I (MM)	80.0
J (MM)	6.5
K (MM)	67.3

NH-6800-SS-L-1/4-C-ISLTS-T

$741.08

Attribute: NH-6800-SS-L-1/4-C-ISLTS-T (04IN...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6800 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
END CONNECTION SIZE	1/4″
SEAT MATERIAL	PCTFE
HANDLE	ISLT BLACK
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.9
A (MM)	83.6
B (MM)	41.8
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	44.6
I (MM)	50.0
J (MM)	6.5
K (MM)	52.9

NH-6800-SS-L-1/4-CST

$609.90

Attribute: NH-6800-SS-L-1/4-CST (04INS-04IN...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6800 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
END CONNECTION SIZE	1/4″
SEAT MATERIAL	PCTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.9
A (MM)	83.6
B (MM)	41.8
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	44.6
I (MM)	50.0
J (MM)	6.5
K (MM)	52.9

NH-6800-SS-L-1/4-CST-OC

$701.40

Attribute: NH-6800-SS-L-1/4-CST-OC (04INS-0...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6800 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
END CONNECTION SIZE	1/4″
SEAT MATERIAL	PCTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	OXYGEN CLEAN
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.9
A (MM)	83.6
B (MM)	41.8
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	44.6
I (MM)	50.0
J (MM)	6.5
K (MM)	52.9

NH-6800-SS-L-1/4-PST

$442.03

Attribute: NH-6800-SS-L-1/4-PST (04INS-04IN...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6800 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
END CONNECTION SIZE	1/4″
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.90
A (MM)	83.6
B (MM)	41.8
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	44.6
I (MM)	50.0
J (MM)	6.5
K (MM)	52.9

NH-6800-SS-L-1/8-RPST

$327.62

Attribute: NH-6800-SS-L-1/8-RPST (02INS-02I...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6800 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
END CONNECTION SIZE	1/8″
BODY SIZE	REDUCED BODY SIZE
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	2.4
FLOW COEFFICIENT (CV)	0.15
A (MM)	78.6
B (MM)	39.3
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	42.1
I (MM)	50.0
J (MM)	6.5
K (MM)	50.4

NH-6800-SS-L-12MM-PST

$665.49

Attribute: NH-6800-SS-L-12MM-PST (12MMINS-1...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6800 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
END CONNECTION SIZE	12MM
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	10.3
FLOW COEFFICIENT (CV)	4.6
A (MM)	102.5
B (MM)	51.25
C (MM)	50.0
D (MM)	16.0
E (MM)	50.0
F (MM)	32.0
G (MM)	20.8
H (MM)	57.5
I (MM)	80.0
J (MM)	6.5
K (MM)	67.3

NH-6800-SS-L-3/4-IPST

$959.14

Attribute: NH-6800-SS-L-3/4-IPST (12INS-12I...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6800 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
END CONNECTION SIZE	3/4″
BODY SIZE	INCREASED BODY SIZE
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	10.3
FLOW COEFFICIENT (CV)	3.8
A (MM)	102.5
B (MM)	51.25
C (MM)	50.0
D (MM)	16.0
E (MM)	50.0
F (MM)	32.0
G (MM)	20.8
H (MM)	57.5
I (MM)	80.0
J (MM)	6.5
K (MM)	67.3

NH-6800-SS-L-3/8-IPST

$712.13

Attribute: NH-6800-SS-L-3/8-IPST (06INS-06I...)

Stock Status: True

SERIES / MAX WORKING PRESSURE	H-6800 (6000PSI)
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	LET-LOK INS
END CONNECTION SIZE	3/8″
BODY SIZE	INCREASED BODY SIZE
SEAT MATERIAL	MODIFIED PTFE
HANDLE	BLACK NYLON
VALVE PATTERN	3 PORT VALVE
TREATMENT	STANDARD
APPROVAL	STANDARD
ORIFICE	4.8
FLOW COEFFICIENT (CV)	0.60
A (MM)	86.3
B (MM)	43.15
C (MM)	31.0
D (MM)	11.1
E (MM)	38.85
F (MM)	22.2
G (MM)	19.3
H (MM)	46.0
I (MM)	50.0
J (MM)	6.5
K (MM)	54.25

Connections	Instrumentation
Shape	Cross

ID	10139514
Category	Instrumentation Valves

Description

Description

Variations (16)

NH-6800-B-L-1/2-PST

NH-6800-B-L-1/4-PST

NH-6800-B-L-1/8-RPST

NH-6800-B-L-3/8-IPST

NH-6800-SS-L-1/16-RPST

NH-6800-SS-L-1/2-AMT

NH-6800-SS-L-1/2-CST

NH-6800-SS-L-1/2-PST

NH-6800-SS-L-1/4-C-ISLTS-T

NH-6800-SS-L-1/4-CST

NH-6800-SS-L-1/4-CST-OC

NH-6800-SS-L-1/4-PST

NH-6800-SS-L-1/8-RPST

NH-6800-SS-L-12MM-PST

NH-6800-SS-L-3/4-IPST

NH-6800-SS-L-3/8-IPST
