INS-INS-BALL VALVE, 2 PORT HIGH PERFORMANCE BALL VALVE
Description
Variations (27)
NH-6800-B-L-1/2-PSS
$598.00Attribute: NH-6800-B-L-1/2-PSS (08INS-08INS...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/2″ |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 10.3 |
| FLOW COEFFICIENT (CV) | 12 |

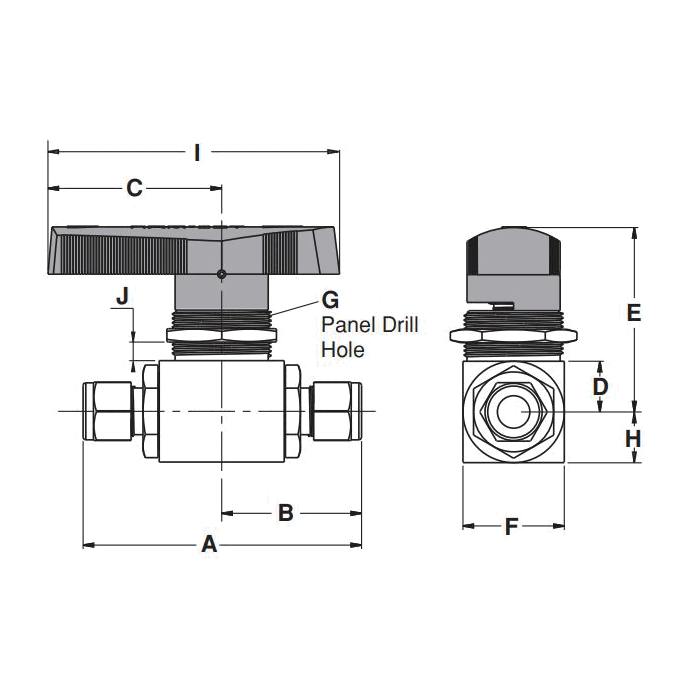

| A (MM) | 102.5 |
| B (MM) | 51.25 |
| C (MM) | 50 |
| D (MM) | 16 |
| E (MM) | 50 |
| F (MM) | 32 |
| G (MM) | 20.8 |
| H (MM) | 16 |
| I (MM) | 80 |
| J (MM) | 6.5 |
NH-6800-B-L-1/4-CSS
$459.49Attribute: NH-6800-B-L-1/4-CSS (04INS-04INS...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/4″ |
| SEAT MATERIAL | PCTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 1.5 |
| A (MM) | 83.6 |
| B (MM) | 41.8 |
| C (MM) | 31 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50 |
| J (MM) | 6.5 |
NH-6800-B-L-1/4-PSS
$368.10Attribute: NH-6800-B-L-1/4-PSS (04INS-04INS...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/4″ |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 1.5 |
| A (MM) | 83.6 |
| B (MM) | 41.8 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
NH-6800-B-L-1/8-RPSS
$441.52Attribute: NH-6800-B-L-1/8-RPSS (02INS-02IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/8″ |
| BODY SIZE | REDUCED BODY SIZE |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 2.4 |
| FLOW COEFFICIENT (CV) | 0.2 |
| A (MM) | 78.6 |
| B (MM) | 39.3 |
| C (MM) | 31 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50 |
| J (MM) | 6.5 |
NH-6800-B-L-3/4-IPSS
$615.87Attribute: NH-6800-B-L-3/4-IPSS (12INS-12IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 3/4″ |
| BODY SIZE | INCREASED BODY SIZE |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 10.3 |
| FLOW COEFFICIENT (CV) | 6.5 |
| A (MM) | 102.5 |
| B (MM) | 51.25 |
| C (MM) | 50 |
| D (MM) | 16 |
| E (MM) | 50 |
| F (MM) | 32 |
| G (MM) | 20.8 |
| H (MM) | 16 |
| I (MM) | 80 |
| J (MM) | 6.5 |
NH-6800-B-L-3/8-IPSS
$385.27Attribute: NH-6800-B-L-3/8-IPSS (06INS-06IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 3/8″ |
| BODY SIZE | INCREASED BODY SIZE |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 1.5 |
| A (MM) | 86.3 |
| B (MM) | 43.15 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
NH-6800-B-L-6MM-PSS
$298.70Attribute: NH-6800-B-L-6MM-PSS (06MMINS-06M...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | BRASS |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 6MM |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 1.5 |
| A (MM) | 83.6 |
| B (MM) | 41.8 |
| C (MM) | 31 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50 |
| J (MM) | 6.5 |
NH-6800-SS-L-1-IPSS
$960.13Attribute: NH-6800-SS-L-1-IPSS (16INS-16INS...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1″ |
| BODY SIZE | INCREASED BODY SIZE |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
NH-6800-SS-L-1/16-RPSS
$320.73Attribute: NH-6800-SS-L-1/16-RPSS (01INS-01...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/16″ |
| BODY SIZE | REDUCED BODY SIZE |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 1.3 |
| FLOW COEFFICIENT (CV) | 0.10 |
| A (MM) | 70.2 |
| B (MM) | 35.1 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
NH-6800-SS-L-1/2-CSS
$1,147.46Attribute: NH-6800-SS-L-1/2-CSS (08INS-08IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/2″ |
| SEAT MATERIAL | PCTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 10.3 |
| FLOW COEFFICIENT (CV) | 12.0 |
| A (MM) | 102.5 |
| B (MM) | 51.25 |
| C (MM) | 50.0 |
| D (MM) | 16.0 |
| E (MM) | 50.0 |
| F (MM) | 32.0 |
| G (MM) | 20.8 |
| H (MM) | 16.0 |
| I (MM) | 80.0 |
| J (MM) | 6.5 |
NH-6800-SS-L-1/2-P-ISLTA-S
$1,081.02Attribute: NH-6800-SS-L-1/2-P-ISLTA-S (08IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/2″ |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | ISLTA |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 10.3 |
| FLOW COEFFICIENT (CV) | 12.0 |
| A (MM) | 102.5 |
| B (MM) | 51.25 |
| C (MM) | 50.0 |
| D (MM) | 16.0 |
| E (MM) | 50.0 |
| F (MM) | 32.0 |
| G (MM) | 20.8 |
| H (MM) | 16.0 |
| I (MM) | 80.0 |
| J (MM) | 6.5 |
NH-6800-SS-L-1/2-PSS
$831.52Attribute: NH-6800-SS-L-1/2-PSS (08INS-08IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/2″ |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 10.3 |
| FLOW COEFFICIENT (CV) | 12.0 |
| A (MM) | 102.5 |
| B (MM) | 51.25 |
| C (MM) | 50.0 |
| D (MM) | 16.0 |
| E (MM) | 50.0 |
| F (MM) | 32.0 |
| G (MM) | 20.8 |
| H (MM) | 16.0 |
| I (MM) | 80.0 |
| J (MM) | 6.5 |
NH-6800-SS-L-1/2-PSS-LF
$956.19Attribute: NH-6800-SS-L-1/2-PSS-LF (08INS-0...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/2″ |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | LUBRICANT FREE |
| APPROVAL | STANDARD |
| ORIFICE | 10.3 |
| FLOW COEFFICIENT (CV) | 12.0 |
| A (MM) | 102.5 |
| B (MM) | 51.25 |
| C (MM) | 50.0 |
| D (MM) | 16.0 |
| E (MM) | 50.0 |
| F (MM) | 32.0 |
| G (MM) | 20.8 |
| H (MM) | 16.0 |
| I (MM) | 80.0 |
| J (MM) | 6.5 |
NH-6800-SS-L-1/4-CBS
$524.16Attribute: NH-6800-SS-L-1/4-CBS (04INS-04IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/4″ |
| SEAT MATERIAL | PCTFE |
| HANDLE | BLUE NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 1.5 |
| A (MM) | 83.6 |
| B (MM) | 41.8 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
NH-6800-SS-L-1/4-CRS
$524.16Attribute: NH-6800-SS-L-1/4-CRS (04INS-04IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/4″ |
| SEAT MATERIAL | PCTFE |
| HANDLE | RED NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 1.5 |
| A (MM) | 83.6 |
| B (MM) | 41.8 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
NH-6800-SS-L-1/4-CSS
$485.30Attribute: NH-6800-SS-L-1/4-CSS (04INS-04IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/4″ |
| SEAT MATERIAL | PCTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 1.5 |
| A (MM) | 83.6 |
| B (MM) | 41.8 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50.0 |
| J (MM) | 6.50 |
NH-6800-SS-L-1/4-P-ISLTS-S
$457.17Attribute: NH-6800-SS-L-1/4-P-ISLTS-S (04IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/4″ |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | ISLT BLACK |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 1.5 |
| A (MM) | 83.6 |
| B (MM) | 41.8 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
NH-6800-SS-L-1/4-PSS
$351.65Attribute: NH-6800-SS-L-1/4-PSS (04INS-04IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/4″ |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 1.5 |
| A (MM) | 83.6 |
| B (MM) | 41.8 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
NH-6800-SS-L-1/4-PSS-LF
$378.03Attribute: NH-6800-SS-L-1/4-PSS-LF (04INS-0...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/4″ |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | LUBRICANT FREE |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 1.5 |
| A (MM) | 83.6 |
| B (MM) | 41.8 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
NH-6800-SS-L-1/8-RCSS-LF
$470.83Attribute: NH-6800-SS-L-1/8-RCSS-LF (04INS-...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/8″ |
| BODY SIZE | REDUCED BODY SIZE |
| SEAT MATERIAL | PCTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | LUBRICANT FREE |
| APPROVAL | STANDARD |
| ORIFICE | 2.4 |
| FLOW COEFFICIENT (CV) | 0.2 |
| A (MM) | 78.6 |
| B (MM) | 39.3 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
NH-6800-SS-L-1/8-RPSS
$277.24Attribute: NH-6800-SS-L-1/8-RPSS (02INS-02I...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/8″ |
| BODY SIZE | REDUCED BODY SIZE |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 2.4 |
| FLOW COEFFICIENT (CV) | 0.20 |
| A (MM) | 78.6 |
| B (MM) | 39.3 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
NH-6800-SS-L-3/4-IPSS
$855.24Attribute: NH-6800-SS-L-3/4-IPSS (12INS-12I...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 3/4″ |
| BODY SIZE | INCREASED BODY SIZE |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 10.3 |
| FLOW COEFFICIENT (CV) | 6.5 |
| A (MM) | 102.5 |
| B (MM) | 51.25 |
| C (MM) | 50.0 |
| D (MM) | 16.0 |
| E (MM) | 50.0 |
| F (MM) | 32.0 |
| G (MM) | 20.8 |
| H (MM) | 16.0 |
| I (MM) | 80.0 |
| J (MM) | 6.5 |
NH-6800-SS-L-3/8-IAS-A2C
$1,866.73Attribute: NH-6800-SS-L-3/8-IAS-A2C (06INS-...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 3/8″ |
| BODY SIZE | INCREASED BODY SIZE |
| SEAT MATERIAL | PEEK |
| VALVE PATTERN | STRAIGHT |
| ACTUATOR TYPE | A2C |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 1.5 |
| A (MM) | 86.3 |
| B (MM) | 43.15 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
NH-6800-SS-L-3/8-ICSS
$747.40Attribute: NH-6800-SS-L-3/8-ICSS (06INS-06I...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 3/8″ |
| BODY SIZE | INCREASED BODY SIZE |
| SEAT MATERIAL | PCTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 1.5 |
| A (MM) | 86.3 |
| B (MM) | 43.15 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
NH-6800-SS-L-3/8-IP-ISLTS-S
$704.03Attribute: NH-6800-SS-L-3/8-IP-ISLTS-S (06I...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 3/8″ |
| BODY SIZE | INCREASED BODY SIZE |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | ISLT BLACK |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 1.5 |
| A (MM) | 86.3 |
| B (MM) | 43.15 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
NH-6800-SS-L-3/8-IPSS
$541.59Attribute: NH-6800-SS-L-3/8-IPSS (06INS-06I...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 3/8″ |
| BODY SIZE | INCREASED BODY SIZE |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 1.5 |
| A (MM) | 86.3 |
| B (MM) | 43.15 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
NH-6800-SS-L-6MM-PSS
$276.79Attribute: NH-6800-SS-L-6MM-PSS (06MMINS-06...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 6MM |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |
| FLOW COEFFICIENT (CV) | 1.5 |
| A (MM) | 83.6 |
| B (MM) | 41.8 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 50.0 |
| J (MM) | 6.5 |
General Attributes
| Connections | Instrumentation |
|---|---|
| Shape | Tee |
PDF Documents
No PDF documents scraped.
