INS-INS-BALL VALVE, THREE-PIECE BALL VALVE
Description
Variations (5)
NH-500-SS-L-1
$1,312.83Attribute: NH-500-SS-L-1 (16INS-16INS-BALL ...)
Stock Status: True
| SERIES | H-5 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| VALVE BODY SIZE | STANDARD |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1″ |
| PATTERN | STRAIGHT |
| SEAT MATERIAL | PTFE |
| HANDLE | LEVER HANDLE |
| TREATMENT | STANDARD |
| INTLET CONNECTION (1) | 1″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1″ LET-LOK INS |
| ORIFICE (MM) | 20.0 |
| FLOW COEFFICIENT (CV) | 36.0 |
| BALL ID (MM) | 20.0 |

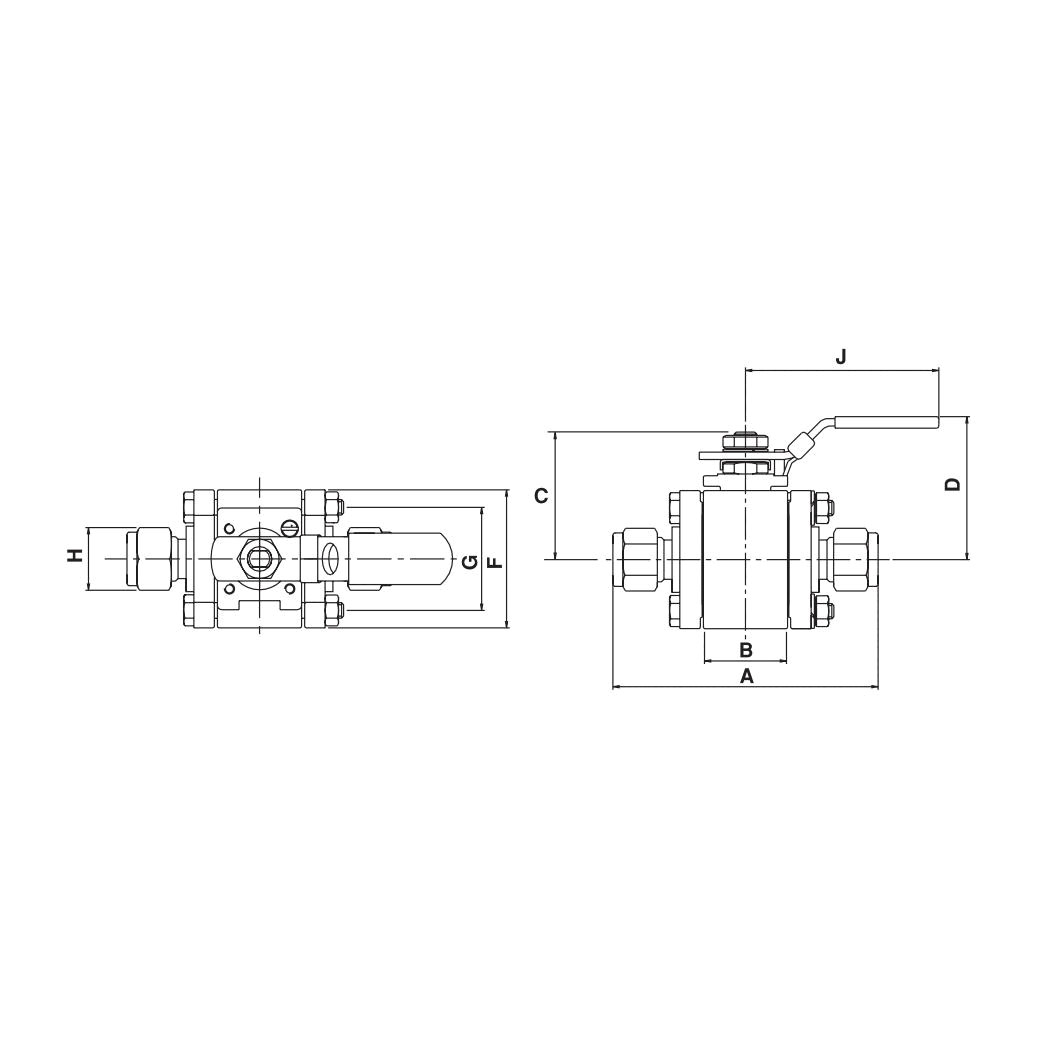

| A (MM) | 124.4 |
| B (MM) | 31.8 |
| F (MM) | 60.0 |
| C (MM) | 56.7 |
| D (MM) | 74.5 |
| H (MM) | 38.1 |
| J (MM) | 151.0 |
| G (MM) | 44.0 |
NH-500-SS-L-1/2
$570.32Attribute: NH-500-SS-L-1/2 (08INS-08INS BAL...)
Stock Status: True
| SERIES | H-5 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| VALVE BODY SIZE | STANDARD |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/2″ |
| PATTERN | STRAIGHT |
| SEAT MATERIAL | PTFE |
| HANDLE | LEVER HANDLE |
| TREATMENT | STANDARD |
| INTLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| ORIFICE (MM) | 10.3 |
| FLOW COEFFICIENT (CV) | 7.6 |
| BALL ID (MM) | 11.0 |
| A (MM) | 92.3 |
| B (MM) | 20.6 |
| F (MM) | 44.4 |
| C (MM) | 40.5 |
| D (MM) | 56.2 |
| H (MM) | 22.2 |
| J (MM) | 121.5 |
| G (MM) | 32.0 |
NH-500-SS-L-1/4
$558.32Attribute: NH-500-SS-L-1/4 (04INS-04INS-BAL...)
Stock Status: True
| SERIES | H-5 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| VALVE BODY SIZE | SMALL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 1/4″ |
| PATTERN | STRAIGHT |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | LEVER HANDLE |
| TREATMENT | STANDARD |
| INTLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| ORIFICE (MM) | 4.8 |
| FLOW COEFFICIENT (CV) | 1.2 |
| BALL ID (MM) | 4.8 |
| A (MM) | 80.5 |
| B (MM) | 15.1 |
| F (MM) | 38.5 |
| C (MM) | 33.2 |
| D (MM) | 48.0 |
| H (MM) | 14.3 |
| J (MM) | 61.0 |
| G (MM) | 25.5 |
NH-500-SS-L-3/4
$713.40Attribute: NH-500-SS-L-3/4 (12INS-12INS BAL...)
Stock Status: True
| SERIES | H-5 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| VALVE BODY SIZE | STANDARD |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 3/4″ |
| PATTERN | STRAIGHT |
| SEAT MATERIAL | PTFE |
| HANDLE | LEVER HANDLE |
| TREATMENT | STANDARD |
| INTLET CONNECTION (1) | 3/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/4″ LET-LOK INS |
| ORIFICE (MM) | 13.0 |
| FLOW COEFFICIENT (CV) | 13.6 |
| BALL ID (MM) | 14.1 |
| A (MM) | 92.7 |
| B (MM) | 24.6 |
| F (MM) | 50.8 |
| C (MM) | 44.0 |
| D (MM) | 60.0 |
| H (MM) | 28.6 |
| J (MM) | 121.5 |
| G (MM) | 38.2 |
NH-500-SS-L-3/8
$581.17Attribute: NH-500-SS-L-3/8 (06INS-06INS BAL...)
Stock Status: True
| SERIES | H-5 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| VALVE BODY SIZE | SMALL |
| END CONNECTION | LET-LOK INS |
| END CONNECTION SIZE | 3/8″ |
| PATTERN | STRAIGHT |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | LEVER HANDLE |
| TREATMENT | STANDARD |
| INTLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| ORIFICE (MM) | 7.10 |
| FLOW COEFFICIENT (CV) | 3.70 |
| BALL ID (MM) | 7.10 |
| A (MM) | 80.5 |
| B (MM) | 15.1 |
| F (MM) | 38.5 |
| C (MM) | 33.2 |
| D (MM) | 48.0 |
| H (MM) | 17.5 |
| J (MM) | 61.0 |
| G (MM) | 25.5 |
General Attributes
| Connections | Instrumentation |
|---|---|
| Shape | Tee |
