NH-480

NH-480-B-N-1-1/3PSI

$1,382.13

Attribute: NH-480-B-N-1-1/3PSI (16MP-16MP C...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	1/3PSI
MATERIAL	BRASS
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1″ MALE NPT
OUTLET CONNECTION (2)	1″ MALE NPT
REPLACEMENT SPRING KIT	NZ-410-SPK-1-1/3PSI
REPLACEMENT O-RING KIT	NZ-410-SK-1-VI

NH-480-B-N-1/2-1/3PSI

$225.05

Attribute: NH-480-B-N-1/2-1/3PSI (08MP-08MP...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	1/3PSI
MATERIAL	BRASS
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ MALE NPT
FLOW COEFFICIENT (CV)	1.68

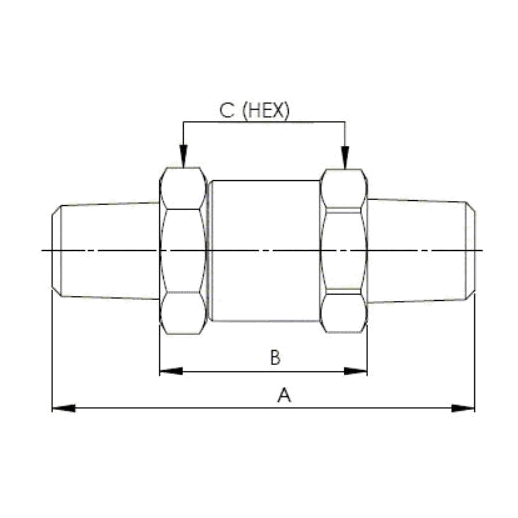

A OVERALL LENGTH (MM)	70.4
B (MM)	32.6
C HEX (MM)	23.8
REPLACEMENT SPRING KIT	NZ-400-SPK-1/2-1/3PS
REPLACEMENT O-RING KIT	NZ-400-SK-1/2-VI

NH-480-B-N-1/2-1PSI

$186.63

Attribute: NH-480-B-N-1/2-1PSI (08MP-08MP C...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	1PSI
MATERIAL	BRASS
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ MALE NPT
FLOW COEFFICIENT (CV)	1.68
A OVERALL LENGTH (MM)	70.4
B (MM)	32.6
C HEX (MM)	23.8
REPLACEMENT SPRING KIT	NZ-400-SPK-1/2-1PSI
REPLACEMENT O-RING KIT	NZ-400-SK-1/2-VI

NH-480-B-N-1/4-1/3PSI

$221.97

Attribute: NH-480-B-N-1/4-1/3PSI (04MP-04MP...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	1/3PSI
MATERIAL	BRASS
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
FLOW COEFFICIENT (CV)	0.47
A OVERALL LENGTH (MM)	55.7
B (MM)	25
C HEX (MM)	19.05
REPLACEMENT SPRING KIT	NZ-400-SPK-1/4-1/3PS
REPLACEMENT O-RING KIT	NZ-400-SK-1/4-VI

NH-480-B-N-1/4-10PSI

$221.97

Attribute: NH-480-B-N-1/4-10PSI (04MP-04MP ...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	10PSI
MATERIAL	BRASS
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
FLOW COEFFICIENT (CV)	0.47
A OVERALL LENGTH (MM)	55.7
B (MM)	25
C HEX (MM)	19.05
REPLACEMENT SPRING KIT	NZ-400-SPK-1/4-10PSI
REPLACEMENT O-RING KIT	NZ-400-SK-1/4-VI

NH-480-B-N-1/4-1PSI

$184.13

Attribute: NH-480-B-N-1/4-1PSI (04MP-04MP C...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	1PSI
MATERIAL	BRASS
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
FLOW COEFFICIENT (CV)	0.47
A OVERALL LENGTH (MM)	55.7
B (MM)	25
C HEX (MM)	19.05
REPLACEMENT SPRING KIT	NZ-400-SPK-1/4-1PSI
REPLACEMENT O-RING KIT	NZ-400-SK-1/4-VI

NH-480-SS-N-1-1/3PSI

$1,265.81

Attribute: NH-480-SS-N-1-1/3PSI (16MP-16MP ...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	1/3PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1″ MALE NPT
OUTLET CONNECTION (2)	1″ MALE NPT
REPLACEMENT SPRING KIT	NZ-410-SPK-1-1/3PSI
REPLACEMENT O-RING KIT	NZ-410-SK-1-VI

NH-480-SS-N-1-1PSI

$1,382.25

Attribute: NH-480-SS-N-1-1PSI (16MP-16MP CH...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	1PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1″ MALE NPT
OUTLET CONNECTION (2)	1″ MALE NPT
REPLACEMENT SPRING KIT	NZ-410-SPK-1-1PSI
REPLACEMENT O-RING KIT	NZ-410-SK-1-VI

NH-480-SS-N-1-3PSI

$1,382.25

Attribute: NH-480-SS-N-1-3PSI (16MP-16MP CH...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	3PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1″ MALE NPT
OUTLET CONNECTION (2)	1″ MALE NPT
REPLACEMENT SPRING KIT	NZ-410-SPK-1-3PSI
REPLACEMENT O-RING KIT	NZ-410-SK-1-VI

NH-480-SS-N-1/2-1/3PSI

$432.19

Attribute: NH-480-SS-N-1/2-1/3PSI (08MP-08M...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	1/3PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ MALE NPT
FLOW COEFFICIENT (CV)	1.68
A OVERALL LENGTH (MM)	70.4
B (MM)	32.6
C HEX (MM)	23.8
REPLACEMENT SPRING KIT	NZ-400-SPK-1/2-1/3PS
REPLACEMENT O-RING KIT	NZ-400-SK-1/2-VI

NH-480-SS-N-1/2-1/3PSI-NE

$453.71

Attribute: NH-480-SS-N-1/2-1/3PSI-NE (08MP-...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	1/3PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	POLYCHLOROPRENE (CR)
TREATMENT	STANDARD
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ MALE NPT
FLOW COEFFICIENT (CV)	1.68
A OVERALL LENGTH (MM)	70.4
B (MM)	32.6
C HEX (MM)	23.8
REPLACEMENT SPRING KIT	NZ-400-SPK-1/2-1/3PS
REPLACEMENT O-RING KIT	NZ-400-SK-1/2-NE

NH-480-SS-N-1/2-10PSI

$432.19

Attribute: NH-480-SS-N-1/2-10PSI (08MP-08MP...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	10PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ MALE NPT
FLOW COEFFICIENT (CV)	1.68
A OVERALL LENGTH (MM)	70.4
B (MM)	32.6
C HEX (MM)	23.8
REPLACEMENT SPRING KIT	NZ-400-SPK-1/2-10PSI
REPLACEMENT O-RING KIT	NZ-400-SK-1/2-VI

NH-480-SS-N-1/2-1PSI

$403.90

Attribute: NH-480-SS-N-1/2-1PSI (08MP-08MP ...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	1PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ MALE NPT
FLOW COEFFICIENT (CV)	1.68
A OVERALL LENGTH (MM)	70.4
B (MM)	32.6
C HEX (MM)	23.8
REPLACEMENT SPRING KIT	NZ-400-SPK-1/2-1PSI
REPLACEMENT O-RING KIT	NZ-400-SK-1/2-VI

NH-480-SS-N-1/2-25PSI

$403.90

Attribute: NH-480-SS-N-1/2-25PSI (08MP-08MP...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	25PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ MALE NPT
FLOW COEFFICIENT (CV)	1.68
A OVERALL LENGTH (MM)	70.4
B (MM)	32.6
C HEX (MM)	23.8
REPLACEMENT SPRING KIT	NZ-400-SPK-1/2-25PSI
REPLACEMENT O-RING KIT	NZ-400-SK-1/2-VI

NH-480-SS-N-1/2-3PSI

$403.90

Attribute: NH-480-SS-N-1/2-3PSI (08MP-08MP ...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	3PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ MALE NPT
FLOW COEFFICIENT (CV)	1.68
A OVERALL LENGTH (MM)	70.4
B (MM)	32.6
C HEX (MM)	23.8
REPLACEMENT SPRING KIT	NZ-400-SPK-1/2-3PSI
REPLACEMENT O-RING KIT	NZ-400-SK-1/2-VI

NH-480-SS-N-1/2-5PSI

$403.90

Attribute: NH-480-SS-N-1/2-5PSI (08MP-08MP ...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	5PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/2″ MALE NPT
OUTLET CONNECTION (2)	1/2″ MALE NPT
FLOW COEFFICIENT (CV)	1.68
A OVERALL LENGTH (MM)	70.4
B (MM)	32.6
C HEX (MM)	23.8
REPLACEMENT SPRING KIT	NZ-400-SPK-1/2-5PSI
REPLACEMENT O-RING KIT	NZ-400-SK-1/2-VI

NH-480-SS-N-1/4-1/3PSI

$196.44

Attribute: NH-480-SS-N-1/4-1/3PSI (04MP-04M...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	1/3PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
FLOW COEFFICIENT (CV)	0.47
A OVERALL LENGTH (MM)	55.7
B (MM)	25.0
C HEX (MM)	19.05
REPLACEMENT SPRING KIT	NZ-400-SPK-1/4-1/3PS
REPLACEMENT O-RING KIT	NZ-400-SK-1/4-VI

NH-480-SS-N-1/4-10PSI

$183.59

Attribute: NH-480-SS-N-1/4-10PSI (04MP-04MP...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	10PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
FLOW COEFFICIENT (CV)	0.47
A OVERALL LENGTH (MM)	55.7
B (MM)	25.0
C HEX (MM)	19.05
REPLACEMENT SPRING KIT	NZ-400-SPK-1/4-10PSI
REPLACEMENT O-RING KIT	NZ-400-SK-1/4-VI

NH-480-SS-N-1/4-1PSI

$183.59

Attribute: NH-480-SS-N-1/4-1PSI (04MP-04MP ...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	1PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
FLOW COEFFICIENT (CV)	0.47
A OVERALL LENGTH (MM)	55.7
B (MM)	25.0
C HEX (MM)	19.05
REPLACEMENT SPRING KIT	NZ-400-SPK-1/4-1PSI
REPLACEMENT O-RING KIT	NZ-400-SK-1/4-VI

NH-480-SS-N-1/4-25PSI

$196.35

Attribute: NH-480-SS-N-1/4-25PSI (04MP-04MP...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	25PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
FLOW COEFFICIENT (CV)	0.47
A OVERALL LENGTH (MM)	55.7
B (MM)	25.0
C HEX (MM)	19.05
REPLACEMENT SPRING KIT	NZ-400-SPK-1/4-25PSI
REPLACEMENT O-RING KIT	NZ-400-SK-1/4-VI

NH-480-SS-N-1/4-3PSI

$183.59

Attribute: NH-480-SS-N-1/4-3PSI (04MP-04MP ...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	3PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
FLOW COEFFICIENT (CV)	0.47
A OVERALL LENGTH (MM)	55.7
B (MM)	25.0
C HEX (MM)	19.05
REPLACEMENT SPRING KIT	NZ-400-SPK-1/4-3PSI
REPLACEMENT O-RING KIT	NZ-400-SK-1/4-VI

NH-480-SS-N-1/4-50PSI

$200.51

Attribute: NH-480-SS-N-1/4-50PSI (04MP-04MP...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	50PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
FLOW COEFFICIENT (CV)	0.47
A OVERALL LENGTH (MM)	55.7
B (MM)	25.0
C HEX (MM)	19.05
REPLACEMENT SPRING KIT	NZ-400-SPK-1/4-50PSI
REPLACEMENT O-RING KIT	NZ-400-SK-1/4-VI

NH-480-SS-N-1/4-5PSI

$183.59

Attribute: NH-480-SS-N-1/4-5PSI (04MP-04MP ...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	5PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/4″ MALE NPT
OUTLET CONNECTION (2)	1/4″ MALE NPT
FLOW COEFFICIENT (CV)	0.47
A OVERALL LENGTH (MM)	55.7
B (MM)	25.0
C HEX (MM)	19.05
REPLACEMENT SPRING KIT	NZ-400-SPK-1/4-5PSI
REPLACEMENT O-RING KIT	NZ-400-SK-1/4-VI

NH-480-SS-N-1/8-1/3PSI

$214.95

Attribute: NH-480-SS-N-1/8-1/3PSI (02MP-02M...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	1/3PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/8″ MALE NPT
OUTLET CONNECTION (2)	1/8″ MALE NPT
FLOW COEFFICIENT (CV)	0.10
A OVERALL LENGTH (MM)	44.3
B (MM)	24.9
C HEX (MM)	15.88
REPLACEMENT SPRING KIT	NZ-400-SPK-1/4-1/3PS
REPLACEMENT O-RING KIT	NZ-400-SK-1/4-VI

NH-480-SS-N-1/8-10PSI

$214.95

Attribute: NH-480-SS-N-1/8-10PSI (02MP-02MP...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	10PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/8″ MALE NPT
OUTLET CONNECTION (2)	1/8″ MALE NPT
FLOW COEFFICIENT (CV)	0.10
A OVERALL LENGTH (MM)	44.3
B (MM)	24.9
C HEX (MM)	15.88
REPLACEMENT SPRING KIT	NZ-400-SPK-1/4-10PSI
REPLACEMENT O-RING KIT	NZ-400-SK-1/4-VI

NH-480-SS-N-1/8-1PSI

$214.95

Attribute: NH-480-SS-N-1/8-1PSI (02MP-02MP ...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	1PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/8″ MALE NPT
OUTLET CONNECTION (2)	1/8″ MALE NPT
FLOW COEFFICIENT (CV)	0.10
A OVERALL LENGTH (MM)	44.3
B (MM)	24.9
C HEX (MM)	15.88
REPLACEMENT SPRING KIT	NZ-400-SPK-1/4-1PSI
REPLACEMENT O-RING KIT	NZ-400-SK-1/4-VI

NH-480-SS-N-1/8-25PSI

$230.00

Attribute: NH-480-SS-N-1/8-25PSI (02MP-02MP...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	25PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/8″ MALE NPT
OUTLET CONNECTION (2)	1/8″ MALE NPT
FLOW COEFFICIENT (CV)	0.10
A OVERALL LENGTH (MM)	44.3
B (MM)	24.9
C HEX (MM)	15.88
REPLACEMENT SPRING KIT	NZ-400-SPK-1/4-25PSI
REPLACEMENT O-RING KIT	NZ-400-SK-1/4-VI

NH-480-SS-N-1/8-3PSI

$214.95

Attribute: NH-480-SS-N-1/8-3PSI (02MP-02MP ...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	3PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/8″ MALE NPT
OUTLET CONNECTION (2)	1/8″ MALE NPT
FLOW COEFFICIENT (CV)	0.10
A OVERALL LENGTH (MM)	44.3
B (MM)	24.9
C HEX (MM)	15.88
REPLACEMENT SPRING KIT	NZ-400-SPK-1/4-3PSI
REPLACEMENT O-RING KIT	NZ-400-SK-1/4-VI

NH-480-SS-N-1/8-5PSI

$251.71

Attribute: NH-480-SS-N-1/8-5PSI (02MP-02MP ...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	5PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	1/8″ MALE NPT
OUTLET CONNECTION (2)	1/8″ MALE NPT
FLOW COEFFICIENT (CV)	0.10
A OVERALL LENGTH (MM)	44.3
B (MM)	24.9
C HEX (MM)	15.88
REPLACEMENT SPRING KIT	NZ-400-SPK-1/4-5PSI
REPLACEMENT O-RING KIT	NZ-400-SK-1/4-VI

NH-480-SS-N-3/4-1/3PSI

$699.27

Attribute: NH-480-SS-N-3/4-1/3PSI (12MP-12M...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	1/3PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	3/4″ MALE NPT
OUTLET CONNECTION (2)	3/4″ MALE NPT
REPLACEMENT SPRING KIT	NZ-400-SPK-3/4-1/3
REPLACEMENT O-RING KIT	NZ-400-SK-3/4-VI

NH-480-SS-N-3/4-1PSI

$640.35

Attribute: NH-480-SS-N-3/4-1PSI (12MP-12MP ...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	1PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	3/4″ MALE NPT
OUTLET CONNECTION (2)	3/4″ MALE NPT
REPLACEMENT SPRING KIT	NZ-400-SPK-3/4-1PSI
REPLACEMENT O-RING KIT	NZ-400-SK-3/4-VI

NH-480-SS-N-3/4-25PSI

$640.35

Attribute: NH-480-SS-N-3/4-25PSI (12MP-12MP...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	25PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	3/4″ MALE NPT
OUTLET CONNECTION (2)	3/4″ MALE NPT
REPLACEMENT SPRING KIT	NZ-400-SPK-3/4-25PSI
REPLACEMENT O-RING KIT	NZ-400-SK-3/4-VI

NH-480-SS-N-3/8-1/3PSI

$398.86

Attribute: NH-480-SS-N-3/8-1/3PSI (06MP-06M...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	1/3PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	3/8″ MALE NPT
OUTLET CONNECTION (2)	3/8″ MALE NPT
FLOW COEFFICIENT (CV)	1.47
A OVERALL LENGTH (MM)	53.1
B (MM)	24.9
C HEX (MM)	17.46
REPLACEMENT SPRING KIT	NZ-400-SPK-3/8-1/3
REPLACEMENT O-RING KIT	NZ-400-SK-3/8-VI

NH-480-SS-N-3/8-10PSI

$426.79

Attribute: NH-480-SS-N-3/8-10PSI (06MP-06MP...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	10PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	3/8″ MALE NPT
OUTLET CONNECTION (2)	3/8″ MALE NPT
FLOW COEFFICIENT (CV)	1.47
A OVERALL LENGTH (MM)	53.10
B (MM)	24.9
C HEX (MM)	17.46
REPLACEMENT SPRING KIT	NZ-400-SPK-3/8-10PSI
REPLACEMENT O-RING KIT	NZ-400-SK-3/8-VI

NH-480-SS-N-3/8-1PSI

$398.86

Attribute: NH-480-SS-N-3/8-1PSI (06MP-06MP ...)

Stock Status: True

SERIES	H-480
MAXIMUM WORKING PRESSURE	3000PSI
FIXED CRACKING PRESSURE	1PSI
MATERIAL	STAINLESS STEEL
PATTERN	STRAIGHT
SEAL MATERIAL	FLUOROCARBON FKM
TREATMENT	STANDARD
INLET CONNECTION (1)	3/8″ MALE NPT
OUTLET CONNECTION (2)	3/8″ MALE NPT
FLOW COEFFICIENT (CV)	1.47
A OVERALL LENGTH (MM)	53.1
B (MM)	24.9
C HEX (MM)	17.46
REPLACEMENT SPRING KIT	NZ-400-SPK-3/8-1PSI
REPLACEMENT O-RING KIT	NZ-400-SK-3/8-VI

Connections	NPT
Shape	Straight

ID	10139337
Category	Instrumentation Valves

Description

Description

Variations (35)

NH-480-B-N-1-1/3PSI

NH-480-B-N-1/2-1/3PSI

NH-480-B-N-1/2-1PSI

NH-480-B-N-1/4-1/3PSI

NH-480-B-N-1/4-10PSI

NH-480-B-N-1/4-1PSI

NH-480-SS-N-1-1/3PSI

NH-480-SS-N-1-1PSI

NH-480-SS-N-1-3PSI

NH-480-SS-N-1/2-1/3PSI

NH-480-SS-N-1/2-1/3PSI-NE

NH-480-SS-N-1/2-10PSI

NH-480-SS-N-1/2-1PSI

NH-480-SS-N-1/2-25PSI

NH-480-SS-N-1/2-3PSI

NH-480-SS-N-1/2-5PSI

NH-480-SS-N-1/4-1/3PSI

NH-480-SS-N-1/4-10PSI

NH-480-SS-N-1/4-1PSI

NH-480-SS-N-1/4-25PSI

NH-480-SS-N-1/4-3PSI

NH-480-SS-N-1/4-50PSI

NH-480-SS-N-1/4-5PSI

NH-480-SS-N-1/8-1/3PSI

NH-480-SS-N-1/8-10PSI

NH-480-SS-N-1/8-1PSI

NH-480-SS-N-1/8-25PSI

NH-480-SS-N-1/8-3PSI

NH-480-SS-N-1/8-5PSI

NH-480-SS-N-3/4-1/3PSI

NH-480-SS-N-3/4-1PSI

NH-480-SS-N-3/4-25PSI

NH-480-SS-N-3/8-1/3PSI

NH-480-SS-N-3/8-10PSI

NH-480-SS-N-3/8-1PSI

General Attributes

PDF Documents
