Description
FP-FP CHECK VALVE STRAIGHT. COMPACT ONE-PIECE, FIXED CRACKING PRESSURE.
Description
Variations (4)
NH-410OP-SS-N-1/2-1/3PSI
$325.59Attribute: NH-410OP-SS-N-1/2-1/3PSI (08FP-0...)
Stock Status: True
| SERIES | H-410OP |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1/3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/2″ FEMALE NPT |
| OUTLET CONNECTION (2) | 1/2″ FEMALE NPT |
| FLOW COEFFICIENT (CV) | 1.20 |
| BACK PRESSURE AT 70F (PSI) | 3000PSI |

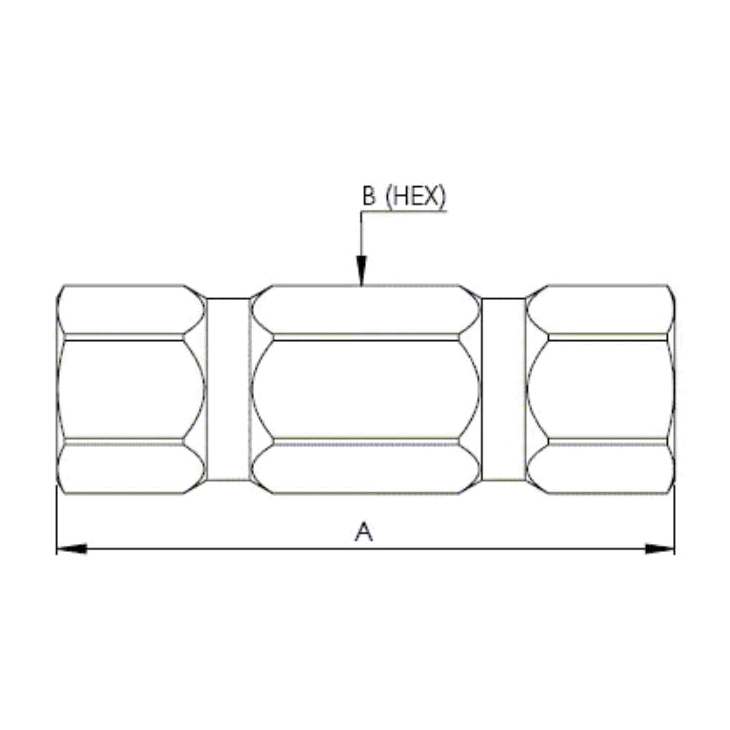

| A OVERALL LENGTH (MM) | 94.0 |
| B HEX (IN) | 1-1/16″ |
| REPLACEMENT SPRING KIT | NZ-400OP-SPK-1/2-1/3 |
| REPLACEMENT O-RING KIT | NZ-400OP-SK-1/2-VI |
NH-410OP-SS-N-1/2-1PSI
$325.59Attribute: NH-410OP-SS-N-1/2-1PSI (08FP-08F...)
Stock Status: True
| SERIES | H-410OP |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/2″ FEMALE NPT |
| OUTLET CONNECTION (2) | 1/2″ FEMALE NPT |
| FLOW COEFFICIENT (CV) | 1.20 |
| BACK PRESSURE AT 70F (PSI) | 3000PSI |
| A OVERALL LENGTH (MM) | 94.0 |
| B HEX (IN) | 1-1/16″ |
| REPLACEMENT SPRING KIT | NZ-400OP-SPK-1/2-1 |
| REPLACEMENT O-RING KIT | NZ-400OP-SK-1/2-VI |
NH-410OP-SS-N-1/4-1PSI
$140.60Attribute: NH-410OP-SS-N-1/4-1PSI (04FP-04F...)
Stock Status: True
| SERIES | H-410OP |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/4″ FEMALE NPT |
| OUTLET CONNECTION (2) | 1/4″ FEMALE NPT |
| FLOW COEFFICIENT (CV) | 0.35 |
| BACK PRESSURE AT 70F (PSI) | 3000PSI |
| A OVERALL LENGTH (MM) | 61.0 |
| B HEX (IN) | 3/4″ |
| REPLACEMENT SPRING KIT | NZ-400OP-SPK-1/4-1 |
| REPLACEMENT O-RING KIT | NZ-400OP-SK-1/4-VI |
NH-410OP-SS-N-1/4-25PSI
$128.70Attribute: NH-410OP-SS-N-1/4-25PSI (04FP-04...)
Stock Status: True
| SERIES | H-410OP |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 25PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/4″ FEMALE NPT |
| OUTLET CONNECTION (2) | 1/4″ FEMALE NPT |
| FLOW COEFFICIENT (CV) | 0.35 |
| BACK PRESSURE AT 70F (PSI) | 3000PSI |
| A OVERALL LENGTH (MM) | 61.0 |
| B HEX (IN) | 3/4″ |
| REPLACEMENT SPRING KIT | NZ-400OP-SPK-1/4-25 |
| REPLACEMENT O-RING KIT | NZ-400OP-SK-1/4-VI |
General Attributes
| Connections | NPT |
|---|---|
| Shape | Straight |
