Description
INS-INS CHECK VALVE STRAIGHT. HIGH PERFORMANCE, FIXED CRACKING PRESSURE.
Description
Variations (36)
NH-400HP-SS-L-1-1/3PSI
$1,046.25Attribute: NH-400HP-SS-L-1-1/3PSI (16INS-16...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 1/3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 4700PSI |

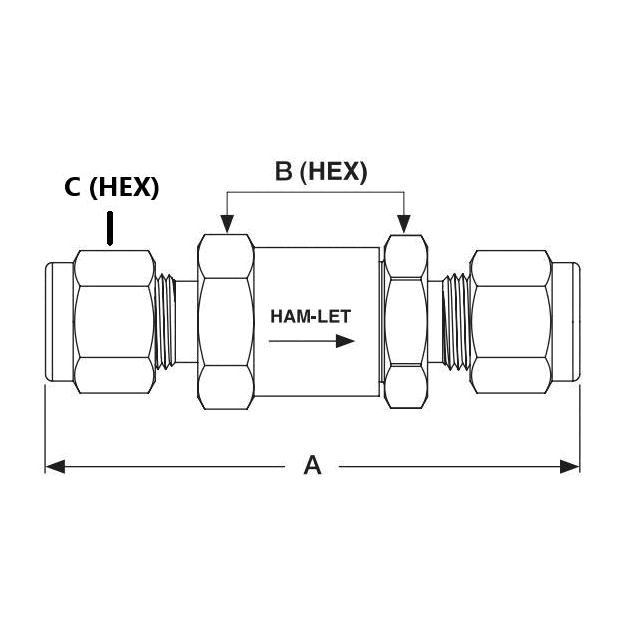

| A OVERALL LENGTH (MM) | 98.5 |
| B HEX (IN) | 1-5/8″ |
| C HEX (IN) | 1-1/2″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-3/4-1/3 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-3/4-VI |
NH-400HP-SS-L-1-10PSI
$1,046.25Attribute: NH-400HP-SS-L-1-10PSI (16INS-16I...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 10PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 4700PSI |
| A OVERALL LENGTH (MM) | 98.5 |
| B HEX (IN) | 1-5/8″ |
| C HEX (IN) | 1-1/2″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-3/4-10 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-3/4-VI |
NH-400HP-SS-L-1-1PSI
$1,046.25Attribute: NH-400HP-SS-L-1-1PSI (16INS-16IN...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 1PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 4700PSI |
| A OVERALL LENGTH (MM) | 98.5 |
| B HEX (IN) | 1-5/8″ |
| C HEX (IN) | 1-1/2″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-3/4-1 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-3/4-VI |
NH-400HP-SS-L-1-25PSI
$1,046.25Attribute: NH-400HP-SS-L-1-25PSI (16INS-16I...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 25PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 4700PSI |
| A OVERALL LENGTH (MM) | 98.5 |
| B HEX (IN) | 1-5/8″ |
| C HEX (IN) | 1-1/2″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-3/4-25 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-3/4-VI |
NH-400HP-SS-L-1-5PSI
$1,142.57Attribute: NH-400HP-SS-L-1-5PSI (16INS-16IN...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 5PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 4700PSI |
| A OVERALL LENGTH (MM) | 98.5 |
| B HEX (IN) | 1-5/8″ |
| C HEX (IN) | 1-1/2″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-3/4-5 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-3/4-VI |
NH-400HP-SS-L-1/2-1/3PSI
$376.35Attribute: NH-400HP-SS-L-1/2-1/3PSI (08INS-...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 1/3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 75.3 |
| B HEX (IN) | 1″ |
| C HEX (IN) | 7/8″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/2-1/3 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/2-VI |
NH-400HP-SS-L-1/2-10PSI
$351.71Attribute: NH-400HP-SS-L-1/2-10PSI (08INS-0...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 10PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 75.3 |
| B HEX (IN) | 1″ |
| C HEX (IN) | 7/8″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/2-10 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/2-VI |
NH-400HP-SS-L-1/2-1PSI
$351.71Attribute: NH-400HP-SS-L-1/2-1PSI (08INS-08...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 1PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 75.3 |
| B HEX (IN) | 1″ |
| C HEX (IN) | 7/8″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/2-1 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/2-VI |
NH-400HP-SS-L-1/2-25PSI
$351.71Attribute: NH-400HP-SS-L-1/2-25PSI (08INS-0...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 25PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 75.3 |
| B HEX (IN) | 1″ |
| C HEX (IN) | 7/8″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/2-25 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/2-VI |
NH-400HP-SS-L-1/2-50PSI
$422.57Attribute: NH-400HP-SS-L-1/2-50PSI (08INS-0...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 50PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 75.3 |
| B HEX (IN) | 1″ |
| C HEX (IN) | 7/8″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/2-50 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/2-VI |
NH-400HP-SS-L-1/2-5PSI
$351.71Attribute: NH-400HP-SS-L-1/2-5PSI (08INS-08...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 5PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 75.3 |
| B HEX (IN) | 1″ |
| C HEX (IN) | 7/8″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/2-5 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/2-VI |
NH-400HP-SS-L-1/4-1/3PSI
$338.10Attribute: NH-400HP-SS-L-1/4-1/3PSI (04INS-...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 1/3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 61.8 |
| B HEX (IN) | 11/16″ |
| C HEX (IN) | 9/16″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/4-1/3 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/4-VI |
NH-400HP-SS-L-1/4-10PSI
$338.10Attribute: NH-400HP-SS-L-1/4-10PSI (04INS-0...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 10PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 61.8 |
| B HEX (IN) | 11/16″ |
| C HEX (IN) | 9/16″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/4-10 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/4-VI |
NH-400HP-SS-L-1/4-1PSI
$338.10Attribute: NH-400HP-SS-L-1/4-1PSI (04INS-04...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 1PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 61.8 |
| B HEX (IN) | 11/16″ |
| C HEX (IN) | 9/16″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/4-1 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/4-VI |
NH-400HP-SS-L-1/4-25PSI
$338.10Attribute: NH-400HP-SS-L-1/4-25PSI (04INS-0...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 25PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 61.8 |
| B HEX (IN) | 11/16″ |
| C HEX (IN) | 9/16″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/4-25 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/4-VI |
NH-400HP-SS-L-1/4-3PSI
$369.24Attribute: NH-400HP-SS-L-1/4-3PSI (04INS-04...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 61.8 |
| B HEX (IN) | 11/16″ |
| C HEX (IN) | 9/16″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/4-3 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/4-VI |
NH-400HP-SS-L-1/4-50PSI
$406.22Attribute: NH-400HP-SS-L-1/4-50PSI (04INS-0...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 50PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 61.8 |
| B HEX (IN) | 11/16″ |
| C HEX (IN) | 9/16″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/4-50 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/4-VI |
NH-400HP-SS-L-1/4-5PSI
$338.10Attribute: NH-400HP-SS-L-1/4-5PSI (04INS-04...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 5PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 61.8 |
| B HEX (IN) | 11/16″ |
| C HEX (IN) | 9/16″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/4-5 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/4-VI |
NH-400HP-SS-L-1/4-75PSI
$406.16Attribute: NH-400HP-SS-L-1/4-75PSI (04INS-0...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 75PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 61.8 |
| B HEX (IN) | 11/16″ |
| C HEX (IN) | 9/16″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/4-75 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/4-VI |
NH-400HP-SS-L-1/8-1/3PSI
$242.76Attribute: NH-400HP-SS-L-1/8-1/3PSI (02INS-...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 1/3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 57.8 |
| B HEX (IN) | 11/16″ |
| C HEX (IN) | 7/16″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/4-1/3 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/4-VI |
NH-400HP-SS-L-1/8-10PSI
$265.14Attribute: NH-400HP-SS-L-1/8-10PSI (02INS-0...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 10PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 57.8 |
| B HEX (IN) | 11/16″ |
| C HEX (IN) | 7/16″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/4-10 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/4-VI |
NH-400HP-SS-L-1/8-1PSI
$265.14Attribute: NH-400HP-SS-L-1/8-1PSI (02INS-02...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 1PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 57.8 |
| B HEX (IN) | 11/16″ |
| C HEX (IN) | 7/16″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/4-1 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/4-VI |
NH-400HP-SS-L-1/8-25PSI
$265.14Attribute: NH-400HP-SS-L-1/8-25PSI (02INS-0...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 25PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 57.8 |
| B HEX (IN) | 11/16″ |
| C HEX (IN) | 7/16″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/4-25 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/4-VI |
NH-400HP-SS-L-1/8-3PSI
$265.14Attribute: NH-400HP-SS-L-1/8-3PSI (02INS-02...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 57.8 |
| B HEX (IN) | 11/16″ |
| C HEX (IN) | 7/16″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/4-3 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/4-VI |
NH-400HP-SS-L-1/8-50PSI
$265.62Attribute: NH-400HP-SS-L-1/8-50PSI (02INS-0...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 50PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 57.8 |
| B HEX (IN) | 11/16″ |
| C HEX (IN) | 7/16″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/4-50 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/4-VI |
NH-400HP-SS-L-1/8-5PSI
$242.76Attribute: NH-400HP-SS-L-1/8-5PSI (02INS-02...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 5PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 57.8 |
| B HEX (IN) | 11/16″ |
| C HEX (IN) | 7/16″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/4-5 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/4-VI |
NH-400HP-SS-L-3/4-1/3PSI
$906.25Attribute: NH-400HP-SS-L-3/4-1/3PSI (12INS-...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 1/3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 3/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/4″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 5000PSI |
| A OVERALL LENGTH (MM) | 89.5 |
| B HEX (IN) | 1-5/8″ |
| C HEX (IN) | 1-1/8″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-3/4-1/3 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-3/4-VI |
NH-400HP-SS-L-3/4-10PSI
$906.25Attribute: NH-400HP-SS-L-3/4-10PSI (12INS-1...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 10PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 3/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/4″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 5000PSI |
| A OVERALL LENGTH (MM) | 89.5 |
| B HEX (IN) | 1-5/8″ |
| C HEX (IN) | 1-1/8″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-3/4-10 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-3/4-VI |
NH-400HP-SS-L-3/4-1PSI
$906.25Attribute: NH-400HP-SS-L-3/4-1PSI (12INS-12...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 1PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 3/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/4″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 5000PSI |
| A OVERALL LENGTH (MM) | 89.5 |
| B HEX (IN) | 1-5/8″ |
| C HEX (IN) | 1-1/8″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-3/4-1 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-3/4-VI |
NH-400HP-SS-L-3/4-25PSI
$906.25Attribute: NH-400HP-SS-L-3/4-25PSI (12INS-1...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 25PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 3/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/4″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 5000PSI |
| A OVERALL LENGTH (MM) | 89.5 |
| B HEX (IN) | 1-5/8″ |
| C HEX (IN) | 1-1/8″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-3/4-25 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-3/4-VI |
NH-400HP-SS-L-3/4-5PSI
$906.25Attribute: NH-400HP-SS-L-3/4-5PSI (12INS-12...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 5PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 3/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/4″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 5000PSI |
| A OVERALL LENGTH (MM) | 89.5 |
| B HEX (IN) | 1-5/8″ |
| C HEX (IN) | 1-1/8″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-3/4-5 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-3/4-VI |
NH-400HP-SS-L-3/8-1/3PSI
$354.38Attribute: NH-400HP-SS-L-3/8-1/3PSI (06INS-...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 1/3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 70.0 |
| B HEX (IN) | 1″ |
| C HEX (IN) | 11/16″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/2-1/3 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/2-VI |
NH-400HP-SS-L-3/8-10PSI
$379.11Attribute: NH-400HP-SS-L-3/8-10PSI (06INS-0...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 10PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 70.0 |
| B HEX (IN) | 1″ |
| C HEX (IN) | 11/16″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/2-10 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/2-VI |
NH-400HP-SS-L-3/8-1PSI
$354.38Attribute: NH-400HP-SS-L-3/8-1PSI (06INS-06...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 1PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 70.0 |
| B HEX (IN) | 1″ |
| C HEX (IN) | 11/16″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/2-1 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/2-VI |
NH-400HP-SS-L-3/8-25PSI
$354.38Attribute: NH-400HP-SS-L-3/8-25PSI (06INS-0...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 25PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 70.0 |
| B HEX (IN) | 1″ |
| C HEX (IN) | 11/16″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/2-25 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/2-VI |
NH-400HP-SS-L-3/8-5PSI
$354.38Attribute: NH-400HP-SS-L-3/8-5PSI (06INS-06...)
Stock Status: True
| SERIES | H-400HP |
|---|---|
| MAXIMUM WORKING PRESSURE | 6000PSI |
| FIXED CRACKING PRESSURE | 5PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| O-RING SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| PRESSURE RATING AT 100F (PSI) | 6000PSI |
| A OVERALL LENGTH (MM) | 70.0 |
| B HEX (IN) | 1″ |
| C HEX (IN) | 11/16″ |
| REPLACEMENT SPRING KIT | NZ-400HP-SPK-1/2-5 |
| REPLACEMENT SEAL KIT | NZ-400HP-SK-1/2-VI |
General Attributes
| Connections | Instrumentation |
|---|---|
| Shape | Straight |
PDF Documents
No PDF documents scraped.
