Description
INS-INS CHECK VALVE STRAIGHT. GENERAL PURPOSE, FIXED CRACKING PRESSURE. SINGLE FERRULE INS
Description
Variations (2)
NH-400-SS-HL-1-1PSI-BU
$1,612.00Attribute: NH-400-SS-HL-1-1PSI-BU (16SINS-1...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | BUNA N |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1″ ONE-LOK INS |
| OUTLET CONNECTION (2) | 1″ ONE-LOK INS |
| FLOW COEFFICIENT (CV) | 4.48 |

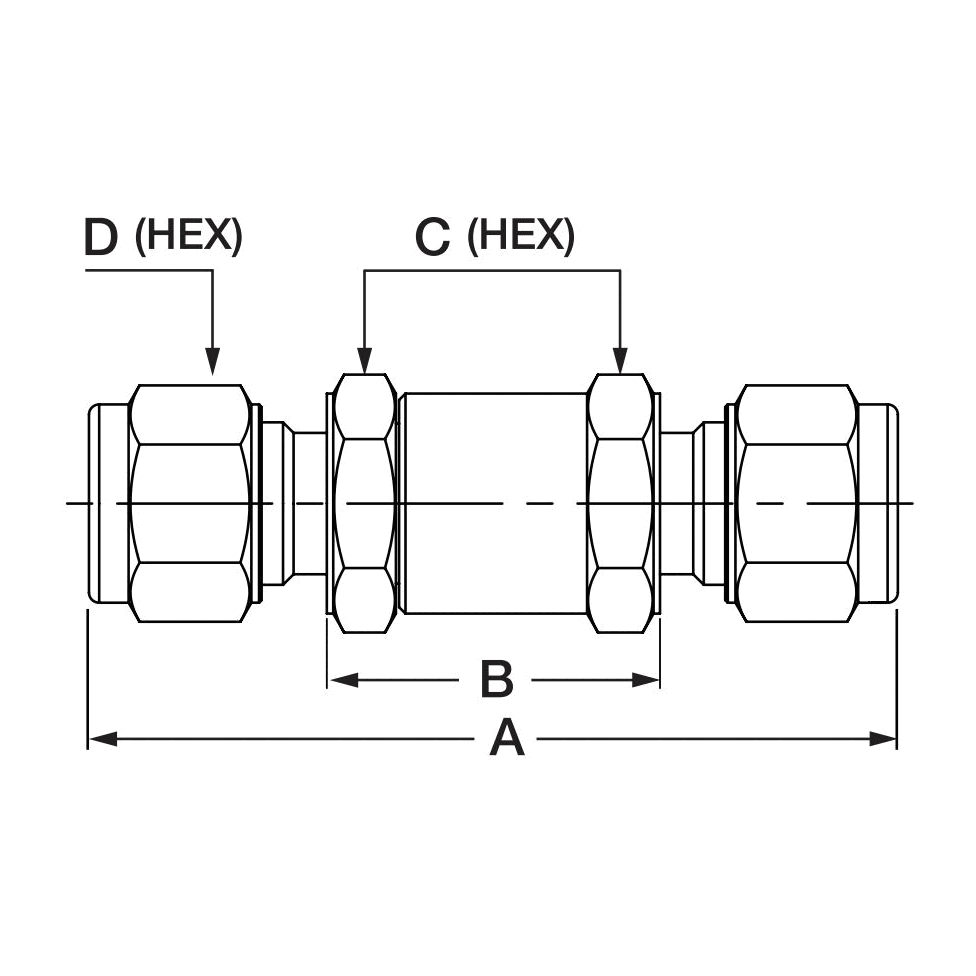

| A OVERALL LENGTH (MM) | 120.0 |
| B (MM) | 67.2 |
| C HEX (MM) | 34.9 |
| D HEX (MM) | 38.1 |
| REPLACEMENT SPRING KIT | NZ-410-SPK-1-1PSI |
| REPLACEMENT O-RING KIT | NZ-410-SK-1-BU |
NH-400-SS-HL-1/2-1PSI
$421.24Attribute: NH-400-SS-HL-1/2-1PSI (08SINS-08...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/2″ ONE-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ ONE-LOK INS |
| FLOW COEFFICIENT (CV) | 1.68 |
| A OVERALL LENGTH (MM) | 77.0 |
| B (MM) | 32.6 |
| C HEX (MM) | 23.8 |
| D HEX (MM) | 22.23 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/2-1PSI |
| REPLACEMENT O-RING KIT | NZ-400-SK-1/2-VI |
