Description
INS-INS CHECK VALVE STRAIGHT. GENERAL PURPOSE, FIXED CRACKING PRESSURE.
Description
Variations (55)
NH-400-B-L-1-1/3PSI
$2,145.71Attribute: NH-400-B-L-1-1/3PSI (16INS-16INS...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1/3PSI |
| MATERIAL | BRASS |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 4.48 |

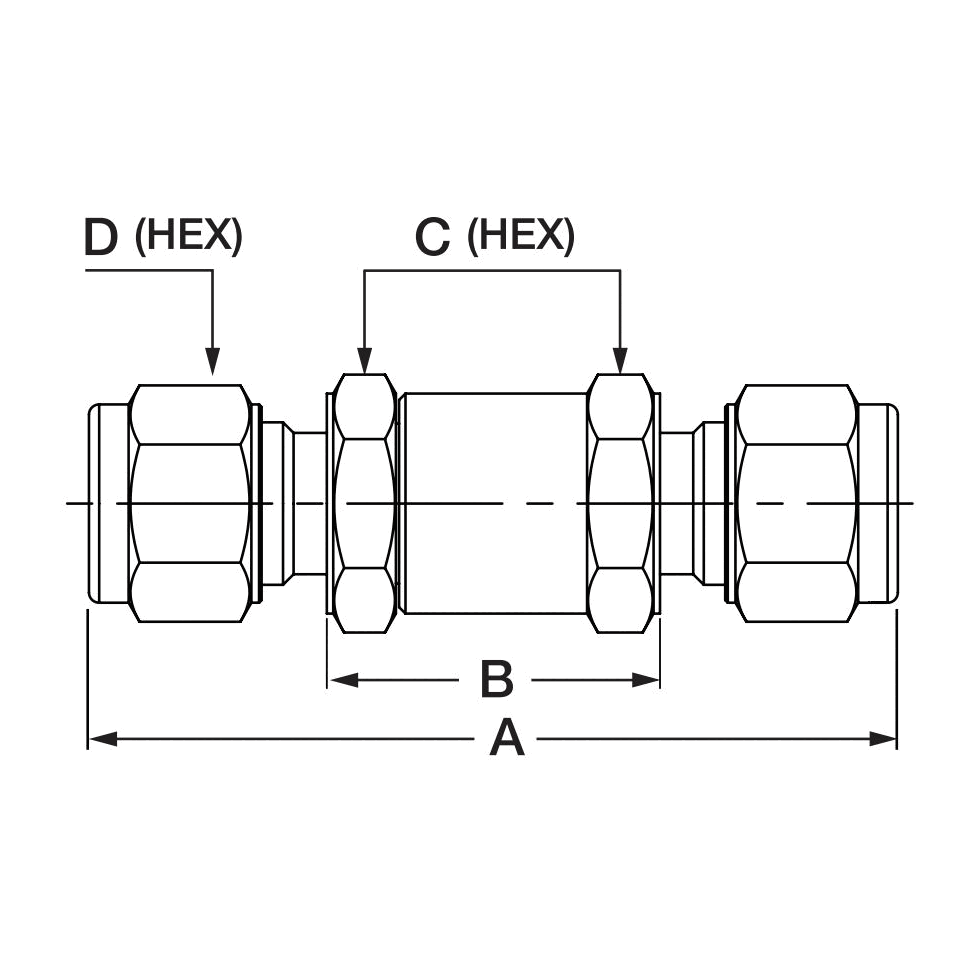

| A OVERALL LENGTH (MM) | 120 |
| B (MM) | 67.2 |
| C HEX (MM) | 34.9 |
| D HEX (MM) | 38.1 |
| REPLACEMENT SPRING KIT | NZ-410-SPK-1-1/3PSI |
| REPLACEMENT SEAL KIT | NZ-410-SK-1-VI |
NH-400-B-L-1/2-1/3PSI
$279.87Attribute: NH-400-B-L-1/2-1/3PSI (08INS-08I...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1/3PSI |
| MATERIAL | BRASS |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 1.68 |
| A OVERALL LENGTH (MM) | 77 |
| B (MM) | 32.6 |
| C HEX (MM) | 23.8 |
| D HEX (MM) | 22.23 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/2-1/3PS |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/2-VI |
NH-400-B-L-1/2-1PSI
$279.87Attribute: NH-400-B-L-1/2-1PSI (08INS-08INS...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1PSI |
| MATERIAL | BRASS |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 1.68 |
| A OVERALL LENGTH (MM) | 77 |
| B (MM) | 32.6 |
| C HEX (MM) | 23.8 |
| D HEX (MM) | 22.23 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/2-1PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/2-VI |
NH-400-B-L-1/4-1/3PSI
$184.13Attribute: NH-400-B-L-1/4-1/3PSI (04INS-04I...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1/3PSI |
| MATERIAL | BRASS |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.47 |
| A OVERALL LENGTH (MM) | 60.5 |
| B (MM) | 25 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 14.28 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-1/3PS |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-B-L-1/4-1PSI
$184.13Attribute: NH-400-B-L-1/4-1PSI (04INS-04INS...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1PSI |
| MATERIAL | BRASS |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.47 |
| A OVERALL LENGTH (MM) | 60.5 |
| B (MM) | 25 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 14.28 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-1PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-B-L-1/4-25PSI
$221.97Attribute: NH-400-B-L-1/4-25PSI (04INS-04IN...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 25PSI |
| MATERIAL | BRASS |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.47 |
| A OVERALL LENGTH (MM) | 60.5 |
| B (MM) | 25 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 14.28 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-25PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-B-L-1/4-5PSI
$184.13Attribute: NH-400-B-L-1/4-5PSI (04INS-04INS...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 5PSI |
| MATERIAL | BRASS |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.47 |
| A OVERALL LENGTH (MM) | 60.5 |
| B (MM) | 25 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 14.28 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-5PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-B-L-1/8-1/3PSI
$151.40Attribute: NH-400-B-L-1/8-1/3PSI (02INS-02I...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1/3PSI |
| MATERIAL | BRASS |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.1 |
| A OVERALL LENGTH (MM) | 56 |
| B (MM) | 25.3 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 11.11 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-1/3PS |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-B-L-1/8-10PSI
$151.46Attribute: NH-400-B-L-1/8-10PSI (02INS-02IN...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 10PSI |
| MATERIAL | BRASS |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.1 |
| A OVERALL LENGTH (MM) | 56 |
| B (MM) | 25.3 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 11.11 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-10PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-B-L-1/8-1PSI
$125.59Attribute: NH-400-B-L-1/8-1PSI (02INS-02INS...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1PSI |
| MATERIAL | BRASS |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.1 |
| A OVERALL LENGTH (MM) | 56 |
| B (MM) | 25.3 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 11.11 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-1PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-B-L-3/4-1/3PSI
$2,072.73Attribute: NH-400-B-L-3/4-1/3PSI (12INS-12I...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1/3PSI |
| MATERIAL | BRASS |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 3/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/4″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 4.48 |
| A OVERALL LENGTH (MM) | 88.5 |
| B (MM) | 44.4 |
| C HEX (MM) | 28.6 |
| D HEX (MM) | 28.6 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-3/4-1/3PS |
| REPLACEMENT SEAL KIT | NZ-400-SK-3/4-VI |
NH-400-B-L-6MM-1/3PSI
$249.49Attribute: NH-400-B-L-6MM-1/3PSI (06MMINS-0...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1/3PSI |
| MATERIAL | BRASS |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 6MM LET-LOK INS |
| OUTLET CONNECTION (2) | 6MM LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.47 |
| A OVERALL LENGTH (MM) | 60.5 |
| B (MM) | 25 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 14 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-1/3PS |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-SS-L-1-1/3PSI
$1,894.79Attribute: NH-400-SS-L-1-1/3PSI (16INS-16IN...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1/3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 4.48 |
| A OVERALL LENGTH (MM) | 120.0 |
| B (MM) | 67.2 |
| C HEX (MM) | 34.9 |
| D HEX (MM) | 38.1 |
| REPLACEMENT SPRING KIT | NZ-410-SPK-1-1/3PSI |
| REPLACEMENT SEAL KIT | NZ-410-SK-1-VI |
NH-400-SS-L-1-10PSI
$1,535.14Attribute: NH-400-SS-L-1-10PSI (16INS-16INS...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 10PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 4.48 |
| A OVERALL LENGTH (MM) | 120.0 |
| B (MM) | 67.2 |
| C HEX (MM) | 34.9 |
| D HEX (MM) | 38.10 |
| REPLACEMENT SPRING KIT | NZ-410-SPK-1-10PSI |
| REPLACEMENT SEAL KIT | NZ-410-SK-1-VI |
NH-400-SS-L-1-1PSI
$1,405.81Attribute: NH-400-SS-L-1-1PSI (16INS-16INS ...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 4.48 |
| A OVERALL LENGTH (MM) | 120.0 |
| B (MM) | 67.2 |
| C HEX (MM) | 34.9 |
| D HEX (MM) | 38.10 |
| REPLACEMENT SPRING KIT | NZ-410-SPK-1-1PSI |
| REPLACEMENT SEAL KIT | NZ-410-SK-1-VI |
NH-400-SS-L-1-5PSI
$1,535.14Attribute: NH-400-SS-L-1-5PSI (16INS-16INS ...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 5PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 4.48 |
| A OVERALL LENGTH (MM) | 120.0 |
| B (MM) | 67.2 |
| C HEX (MM) | 34.9 |
| D HEX (MM) | 38.10 |
| REPLACEMENT SPRING KIT | NZ-410-SPK-1-5PSI |
| REPLACEMENT SEAL KIT | NZ-410-SK-1-VI |
NH-400-SS-L-1/2-1/3PSI
$421.24Attribute: NH-400-SS-L-1/2-1/3PSI (08INS-08...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1/3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 1.68 |
| A OVERALL LENGTH (MM) | 77.0 |
| B (MM) | 32.6 |
| C HEX (MM) | 23.8 |
| D HEX (MM) | 22.23 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/2-1/3PS |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/2-VI |
NH-400-SS-L-1/2-1/3PSI-LF
$452.73Attribute: NH-400-SS-L-1/2-1/3PSI-LF (08INS...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1/3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | LUBRICANT FREE |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 1.68 |
| A OVERALL LENGTH (MM) | 77.0 |
| B (MM) | 32.6 |
| C HEX (MM) | 23.8 |
| D HEX (MM) | 22.23 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/2-1/3PS |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/2-VI |
NH-400-SS-L-1/2-10PSI
$421.24Attribute: NH-400-SS-L-1/2-10PSI (08INS-08I...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 10PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 1.68 |
| A OVERALL LENGTH (MM) | 77.0 |
| B (MM) | 32.6 |
| C HEX (MM) | 23.8 |
| D HEX (MM) | 22.23 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/2-10PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/2-VI |
NH-400-SS-L-1/2-1PSI
$421.24Attribute: NH-400-SS-L-1/2-1PSI (08INS-08IN...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 1.68 |
| A OVERALL LENGTH (MM) | 77.0 |
| B (MM) | 32.6 |
| C HEX (MM) | 23.8 |
| D HEX (MM) | 22.23 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/2-1PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/2-VI |
NH-400-SS-L-1/2-25PSI
$393.68Attribute: NH-400-SS-L-1/2-25PSI (08INS-08I...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 25PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 1.68 |
| A OVERALL LENGTH (MM) | 77.0 |
| B (MM) | 32.6 |
| C HEX (MM) | 23.8 |
| D HEX (MM) | 22.23 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/2-25PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/2-VI |
NH-400-SS-L-1/2-25PSI-EP
$442.29Attribute: NH-400-SS-L-1/2-25PSI-EP (08INS-...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 25PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | EPDM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 1.68 |
| A OVERALL LENGTH (MM) | 77.0 |
| B (MM) | 32.6 |
| C HEX (MM) | 23.8 |
| D HEX (MM) | 22.23 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/2-25PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/2-EP |
NH-400-SS-L-1/2-3PSI
$421.24Attribute: NH-400-SS-L-1/2-3PSI (08INS-08IN...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 1.68 |
| A OVERALL LENGTH (MM) | 77.0 |
| B (MM) | 32.6 |
| C HEX (MM) | 23.8 |
| D HEX (MM) | 22.23 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/2-3PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/2-VI |
NH-400-SS-L-1/2-5PSI
$421.24Attribute: NH-400-SS-L-1/2-5PSI (08INS-08IN...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 5PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/2″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 1.68 |
| A OVERALL LENGTH (MM) | 77.0 |
| B (MM) | 32.6 |
| C HEX (MM) | 23.8 |
| D HEX (MM) | 22.23 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/2-5PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/2-VI |
NH-400-SS-L-1/4-1/3PSI
$196.44Attribute: NH-400-SS-L-1/4-1/3PSI (04INS-04...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1/3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.47 |
| A OVERALL LENGTH (MM) | 60.5 |
| B (MM) | 25.0 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 14.28 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-1/3PS |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-SS-L-1/4-1/3PSI-LF
$225.90Attribute: NH-400-SS-L-1/4-1/3PSI-LF (04INS...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1/3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | LUBRICANT FREE |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.47 |
| A OVERALL LENGTH (MM) | 60.5 |
| B (MM) | 25.0 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 14.28 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-1/3PS |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-SS-L-1/4-10PSI
$183.59Attribute: NH-400-SS-L-1/4-10PSI (04INS-04I...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 10PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.47 |
| A OVERALL LENGTH (MM) | 60.5 |
| B (MM) | 25.0 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 14.28 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-10PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-SS-L-1/4-10PSI-BU
$206.22Attribute: NH-400-SS-L-1/4-10PSI-BU (04INS-...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 10PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | BUNA N |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.47 |
| A OVERALL LENGTH (MM) | 60.5 |
| B (MM) | 25.0 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 14.28 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-10PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-BU |
NH-400-SS-L-1/4-1PSI
$196.44Attribute: NH-400-SS-L-1/4-1PSI (04INS-04IN...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.47 |
| A OVERALL LENGTH (MM) | 60.5 |
| B (MM) | 25.0 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 14.28 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-1PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-SS-L-1/4-25PSI
$183.59Attribute: NH-400-SS-L-1/4-25PSI (04INS-04I...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 25PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.47 |
| A OVERALL LENGTH (MM) | 60.5 |
| B (MM) | 25.0 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 14.28 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-25PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-SS-L-1/4-3PSI
$183.59Attribute: NH-400-SS-L-1/4-3PSI (04INS-04IN...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.47 |
| A OVERALL LENGTH (MM) | 60.5 |
| B (MM) | 25.0 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 14.28 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-3PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-SS-L-1/4-50PSI
$200.51Attribute: NH-400-SS-L-1/4-50PSI (04INS-04I...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 50PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.47 |
| A OVERALL LENGTH (MM) | 60.5 |
| B (MM) | 25.0 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 14.28 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-50PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-SS-L-1/4-5PSI
$183.59Attribute: NH-400-SS-L-1/4-5PSI (04INS-04IN...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 5PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/4″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.47 |
| A OVERALL LENGTH (MM) | 60.5 |
| B (MM) | 25.0 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 14.28 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-5PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-SS-L-1/8-1/3PSI
$214.95Attribute: NH-400-SS-L-1/8-1/3PSI (02INS-02...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1/3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.1 |
| A OVERALL LENGTH (MM) | 56.0 |
| B (MM) | 25.3 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 11.11 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-1/3PS |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-SS-L-1/8-10PSI
$214.95Attribute: NH-400-SS-L-1/8-10PSI (02INS-02I...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 10PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.1 |
| A OVERALL LENGTH (MM) | 56.0 |
| B (MM) | 25.3 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 11.11 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-10PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-SS-L-1/8-1PSI
$214.95Attribute: NH-400-SS-L-1/8-1PSI (02INS-02IN...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.1 |
| A OVERALL LENGTH (MM) | 56.0 |
| B (MM) | 25.3 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 11.11 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-1PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-SS-L-1/8-25PSI
$214.95Attribute: NH-400-SS-L-1/8-25PSI (02INS-02I...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 25PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.1 |
| A OVERALL LENGTH (MM) | 56.0 |
| B (MM) | 25.3 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 11.11 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-25PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-SS-L-1/8-3PSI
$234.73Attribute: NH-400-SS-L-1/8-3PSI (02INS-02IN...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.1 |
| A OVERALL LENGTH (MM) | 56.0 |
| B (MM) | 25.3 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 11.11 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-3PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-SS-L-1/8-5PSI
$234.73Attribute: NH-400-SS-L-1/8-5PSI (02INS-02IN...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 5PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 1/8″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.1 |
| A OVERALL LENGTH (MM) | 56.0 |
| B (MM) | 25.3 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 11.11 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-5PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-SS-L-3/4-1/3PSI
$1,380.57Attribute: NH-400-SS-L-3/4-1/3PSI (12INS-12...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1/3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 3/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/4″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 4.48 |
| A OVERALL LENGTH (MM) | 88.5 |
| B (MM) | 44.4 |
| C HEX (MM) | 28.6 |
| D HEX (MM) | 28.6 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-3/4-1/3PS |
| REPLACEMENT SEAL KIT | NZ-400-SK-3/4-VI |
NH-400-SS-L-3/4-10PSI
$1,290.25Attribute: NH-400-SS-L-3/4-10PSI (12INS-12I...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 10PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 3/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/4″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 4.48 |
| A OVERALL LENGTH (MM) | 88.5 |
| B (MM) | 44.4 |
| C HEX (MM) | 28.6 |
| D HEX (MM) | 28.6 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-3/4-10PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-3/4-VI |
NH-400-SS-L-3/4-1PSI
$1,290.25Attribute: NH-400-SS-L-3/4-1PSI (12INS-12IN...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 3/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/4″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 4.48 |
| A OVERALL LENGTH (MM) | 88.5 |
| B (MM) | 44.4 |
| C HEX (MM) | 28.6 |
| D HEX (MM) | 28.6 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-3/4-1PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-3/4-VI |
NH-400-SS-L-3/4-25PSI
$1,408.98Attribute: NH-400-SS-L-3/4-25PSI (12INS-12I...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 25PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 3/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/4″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 4.48 |
| A OVERALL LENGTH (MM) | 88.5 |
| B (MM) | 44.4 |
| C HEX (MM) | 28.6 |
| D HEX (MM) | 28.6 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-3/4-25PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-3/4-VI |
NH-400-SS-L-3/4-3PSI
$1,290.25Attribute: NH-400-SS-L-3/4-3PSI (12INS-12IN...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 3/4″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/4″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 4.48 |
| A OVERALL LENGTH (MM) | 88.5 |
| B (MM) | 44.4 |
| C HEX (MM) | 28.6 |
| D HEX (MM) | 28.6 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-3/4-3PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-3/4-VI |
NH-400-SS-L-3/8-1/3PSI
$387.75Attribute: NH-400-SS-L-3/8-1/3PSI (06INS-06...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1/3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 1.47 |
| A OVERALL LENGTH (MM) | 63.5 |
| B (MM) | 24.9 |
| C HEX (MM) | 17.46 |
| D HEX (MM) | 17.46 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-3/8-1/3PS |
| REPLACEMENT SEAL KIT | NZ-400-SK-3/8-VI |
NH-400-SS-L-3/8-10PSI
$387.75Attribute: NH-400-SS-L-3/8-10PSI (06INS-06I...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 10PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 1.47 |
| A OVERALL LENGTH (MM) | 63.5 |
| B (MM) | 24.9 |
| C HEX (MM) | 17.46 |
| D HEX (MM) | 17.46 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-3/8-10PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-3/8-VI |
NH-400-SS-L-3/8-1PSI
$362.38Attribute: NH-400-SS-L-3/8-1PSI (06INS-06IN...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 1.47 |
| A OVERALL LENGTH (MM) | 63.5 |
| B (MM) | 24.9 |
| C HEX (MM) | 17.46 |
| D HEX (MM) | 17.46 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-3/8-1PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-3/8-VI |
NH-400-SS-L-3/8-25PSI
$362.38Attribute: NH-400-SS-L-3/8-25PSI (06INS-06I...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 25PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 1.47 |
| A OVERALL LENGTH (MM) | 63.5 |
| B (MM) | 24.9 |
| C HEX (MM) | 17.46 |
| D HEX (MM) | 17.46 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-3/8-25PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-3/8-VI |
NH-400-SS-L-3/8-3PSI
$362.38Attribute: NH-400-SS-L-3/8-3PSI (06INS-06IN...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 1.47 |
| A OVERALL LENGTH (MM) | 63.5 |
| B (MM) | 24.9 |
| C HEX (MM) | 17.46 |
| D HEX (MM) | 17.46 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-3/8-3PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-3/8-VI |
NH-400-SS-L-3/8-50PSI
$362.38Attribute: NH-400-SS-L-3/8-50PSI (06INS-06I...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 50PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 1.47 |
| A OVERALL LENGTH (MM) | 63.5 |
| B (MM) | 24.9 |
| C HEX (MM) | 17.46 |
| D HEX (MM) | 17.46 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-3/8-50PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-3/8-VI |
NH-400-SS-L-3/8-5PSI
$387.75Attribute: NH-400-SS-L-3/8-5PSI (06INS-06IN...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 5PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 1.47 |
| A OVERALL LENGTH (MM) | 63.5 |
| B (MM) | 24.9 |
| C HEX (MM) | 17.46 |
| D HEX (MM) | 17.46 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-3/8-5PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-3/8-VI |
NH-400-SS-L-3/8-5PSI-LF
$416.67Attribute: NH-400-SS-L-3/8-5PSI-LF (06INS-0...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 5PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | LUBRICANT FREE |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 1.47 |
| A OVERALL LENGTH (MM) | 63.5 |
| B (MM) | 24.9 |
| C HEX (MM) | 17.46 |
| D HEX (MM) | 17.46 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-3/8-5PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-3/8-VI |
NH-400-SS-L-3/8-5PSI-PT
$398.67Attribute: NH-400-SS-L-3/8-5PSI-PT (06INS-0...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 5PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | PTFE |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 3/8″ LET-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ LET-LOK INS |
| FLOW COEFFICIENT (CV) | 1.47 |
| A OVERALL LENGTH (MM) | 63.5 |
| B (MM) | 24.9 |
| C HEX (MM) | 17.46 |
| D HEX (MM) | 17.46 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-3/8-5PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-3/8-PT |
NH-400-SS-L-6MM-1/3PSI
$159.97Attribute: NH-400-SS-L-6MM-1/3PSI (06MMINS-...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 1/3PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 6MM LET-LOK INS |
| OUTLET CONNECTION (2) | 6MM LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.47 |
| A OVERALL LENGTH (MM) | 60.5 |
| B (MM) | 25.0 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 14.0 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-1/3PS |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
NH-400-SS-L-6MM-25PSI
$164.00Attribute: NH-400-SS-L-6MM-25PSI (06MMINS-0...)
Stock Status: True
| SERIES | H-400 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 25PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 6MM LET-LOK INS |
| OUTLET CONNECTION (2) | 6MM LET-LOK INS |
| FLOW COEFFICIENT (CV) | 0.47 |
| A OVERALL LENGTH (MM) | 60.5 |
| B (MM) | 25.0 |
| C HEX (MM) | 15.88 |
| D HEX (MM) | 14.0 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-1/4-25PSI |
| REPLACEMENT SEAL KIT | NZ-400-SK-1/4-VI |
General Attributes
| Connections | Instrumentation |
|---|---|
| Shape | Straight |
PDF Documents
No PDF documents scraped.
